Vapor Compression Cycle
Introduction to the Vapor Compression Cycle
The vapor compression cycle is the most widely used refrigeration cycle in mechanical engineering. It forms the basis for air conditioners, refrigerators, heat pumps, and many industrial cooling systems. By circulating a refrigerant through a series of components, the cycle removes heat from one area and rejects it to another, thereby providing cooling.
Did You Know?
Over 80% of modern cooling systems rely on the vapor compression cycle to achieve efficient heat transfer.
This page covers the operating principles, key equations, component designs, applications, and challenges of the vapor compression cycle to provide a comprehensive resource for engineers and industry professionals.

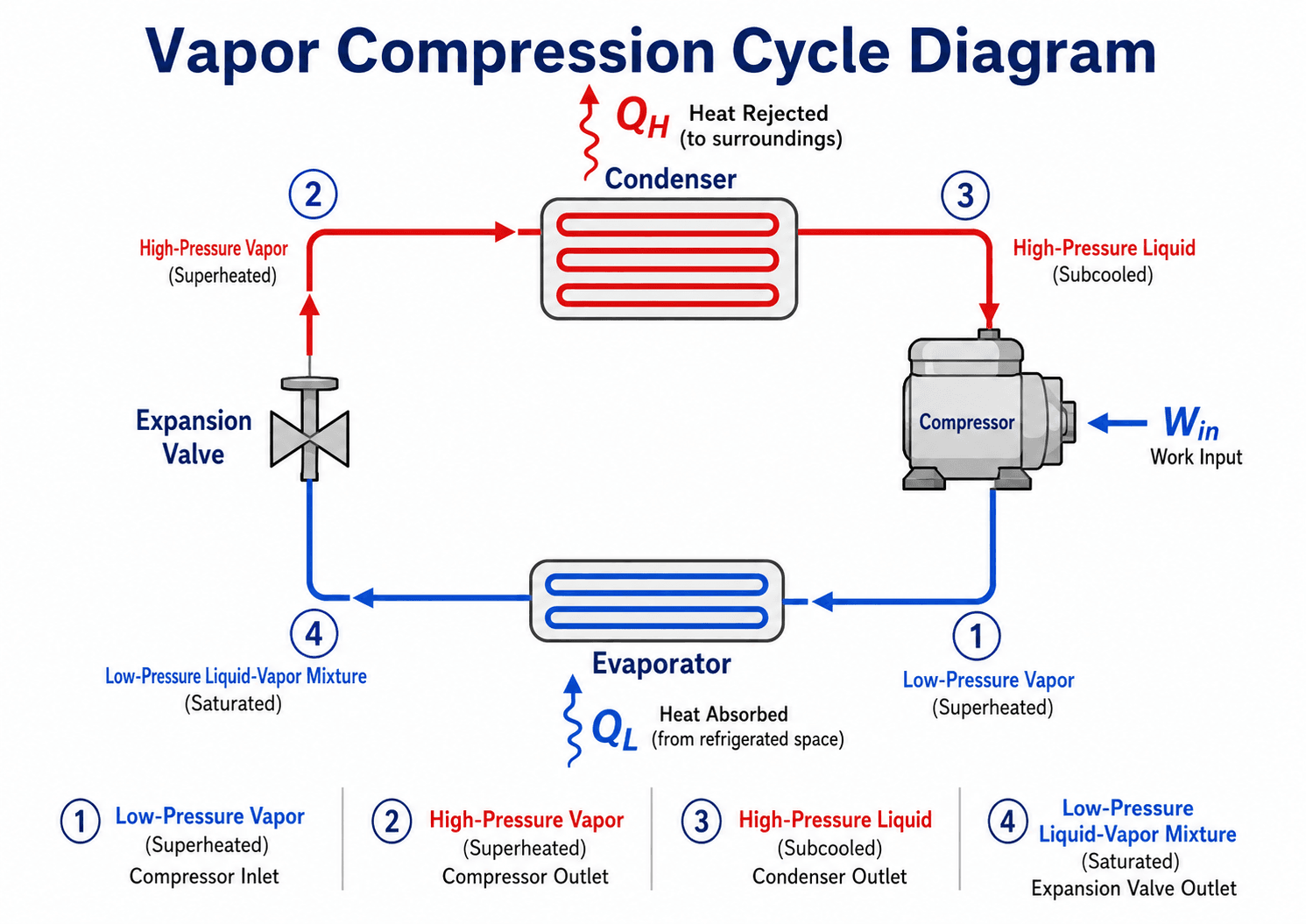

How the Vapor Compression Cycle Works
The cycle consists of four main components working in sequence:
- Compressor: Compresses low-pressure refrigerant vapor to high pressure, raising its temperature.
- Condenser: Rejects heat from the high-pressure vapor, condensing it into a high-pressure liquid.
- Expansion Valve: Reduces the refrigerant’s pressure and temperature via throttling, preparing it for evaporation.
- Evaporator: Absorbs heat from the surroundings as the refrigerant evaporates, thereby providing cooling.
This continuous process enables the transfer of heat from a low-temperature zone to a high-temperature zone, which is the cornerstone of refrigeration and air conditioning systems.

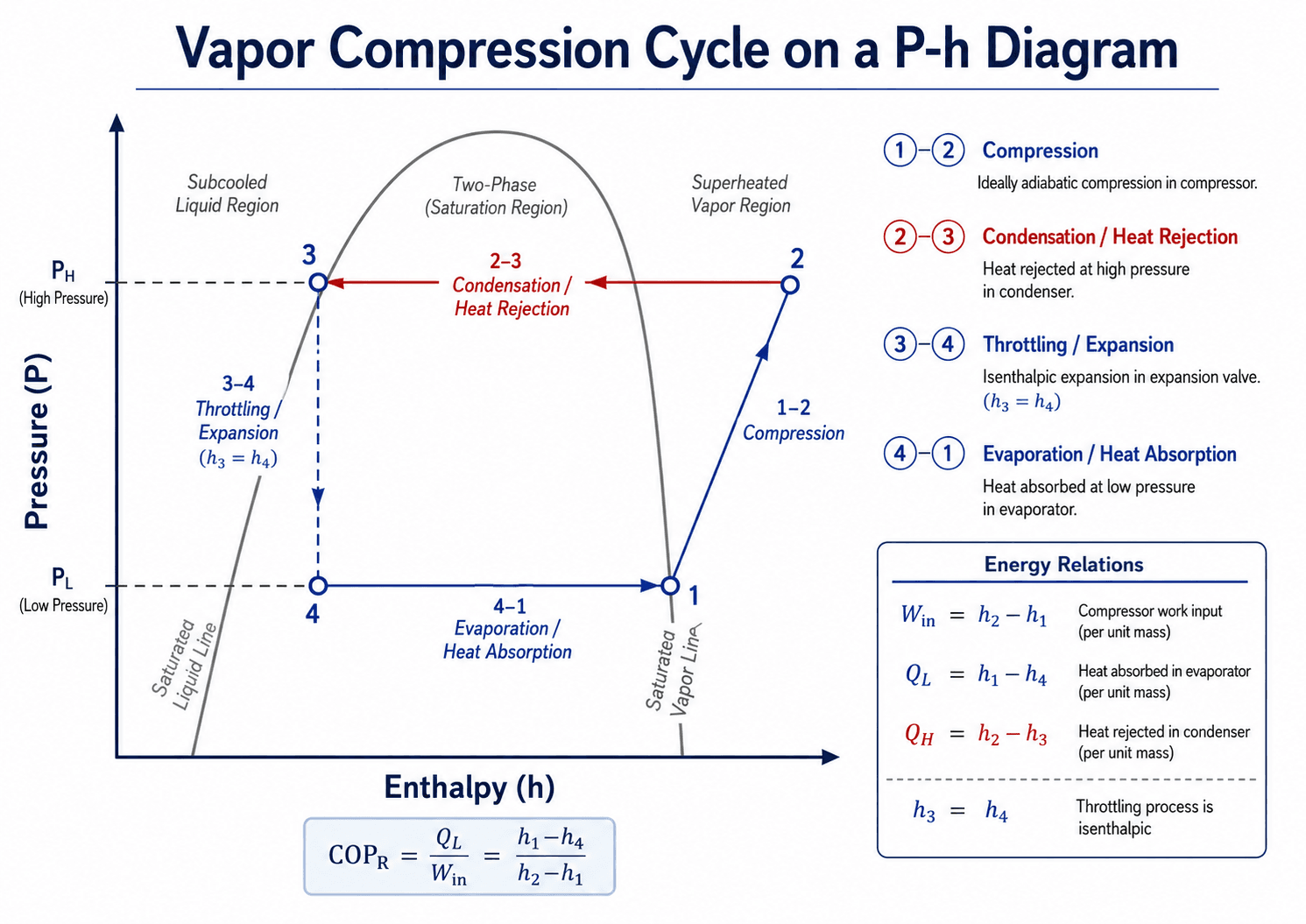

Key Equations and Performance Metrics
Several key equations are used to analyze and optimize the vapor compression cycle. One of the most important performance metrics is the Coefficient of Performance (COP), which measures the efficiency of the refrigeration process.
Coefficient of Performance (COP)
\[ COP = \frac{Q_{L}}{W_{in}} \]
The COP is a measure of the efficiency of a vapor compression system. A higher COP indicates a more efficient cycle, meaning more cooling is achieved per unit of work input.
Engineers also use thermodynamic relationships and pressure ratios to further refine and optimize system performance.
Applications of the Vapor Compression Cycle
The vapor compression cycle is at the heart of numerous practical applications:
Refrigerators and Freezers
Residential and commercial refrigeration systems utilize the vapor compression cycle to maintain cool temperatures for food preservation and other cooling needs.
Air Conditioning Systems
Air conditioners, both in homes and large commercial buildings, depend on this cycle to remove heat from indoor air, ensuring comfortable living and working environments.
Heat Pumps
Heat pumps use a reversed vapor compression cycle to provide both heating and cooling, offering a versatile solution for climate control.
Industrial Process Cooling
In industrial settings, vapor compression systems are used to cool process fluids, protect equipment, and enhance production efficiency.
Real-World Example: Residential Air Conditioner
A typical residential air conditioner employs the vapor compression cycle to deliver efficient cooling. The cycle compresses the refrigerant vapor, condenses it to release heat, throttles it through an expansion valve, and finally evaporates it to absorb indoor heat.
System Overview
This process continuously cycles to maintain a comfortable indoor temperature, demonstrating the practical application of the vapor compression cycle in everyday life.
Challenges and Considerations
Despite its widespread use, the vapor compression cycle presents several challenges:
- Refrigerant Selection: Choosing refrigerants that are efficient, safe, and environmentally friendly is a critical challenge.
- System Efficiency: Maximizing COP while reducing energy consumption and system losses remains an ongoing focus.
- Maintenance: Ensuring leak-free operation and minimizing wear in components such as compressors and valves is essential for reliable performance.
Important!
Overcoming these challenges requires advanced control systems, rigorous maintenance practices, and ongoing research into next-generation refrigerants and system designs.
Conclusion
The vapor compression cycle is a vital process in modern refrigeration and air conditioning systems. By effectively transferring heat through the compression and expansion of a refrigerant, it enables efficient cooling and energy management.
A deep understanding of its working principles, key equations, design considerations, and associated challenges empowers engineers to optimize system performance, reduce energy consumption, and innovate in thermal management technologies.
