Mechanical Engineering · Kinetic Energy Equation

Kinetic Energy Equation – \( \tfrac{1}{2} m v^2 \) for moving masses explained

The kinetic energy equation tells you how much energy a moving object carries based on its mass and speed, making it a core tool for impact analysis, machinery design, vehicles, and safety calculations.

Read time \( E_k = \tfrac{1}{2} m v^2 \) Energy & work equation Mass, speed & motion

Quick answer: what the kinetic energy equation tells you

Core formula

\[ E_k = \tfrac{1}{2} m v^2 \]

The kinetic energy equation says that the energy of a moving object is equal to one half its mass times the square of its speed, so doubling speed increases kinetic energy by a factor of four while doubling mass only doubles the energy.

Use the kinetic energy equation when you want to:

Estimate how much energy a vehicle, machine part, or projectile carries at a given speed.
Size brakes, crash barriers, armor, or safety systems based on impact energy.
Convert between work done by forces and speed changes using energy methods instead of force–acceleration equations.

In everyday engineering, the kinetic energy equation is the workhorse behind “how bad is the hit?” questions. It allows you to turn mass and speed into a single energy number you can compare against material toughness, brake capacity, deformation limits, or safety thresholds. Because the velocity term is squared, speed typically dominates: a small increase in speed can dramatically increase energy, which is why highway impacts are so severe compared with low-speed bumps.

You can think of kinetic energy as the “stored ability” of motion to do mechanical work. If an object with energy \(E_k\) comes to rest, that energy has to go somewhere—into heat in the brakes, plastic deformation of a barrier, or damage to components. Many practical calculations start by using \( E_k = \tfrac{1}{2} m v^2 \) to find the energy level, then work backwards to decide how thick, strong, or powerful your system must be to handle that energy safely, especially in scenarios like machinery spin-down or vehicle stopping, as you’ll see in the worked examples.

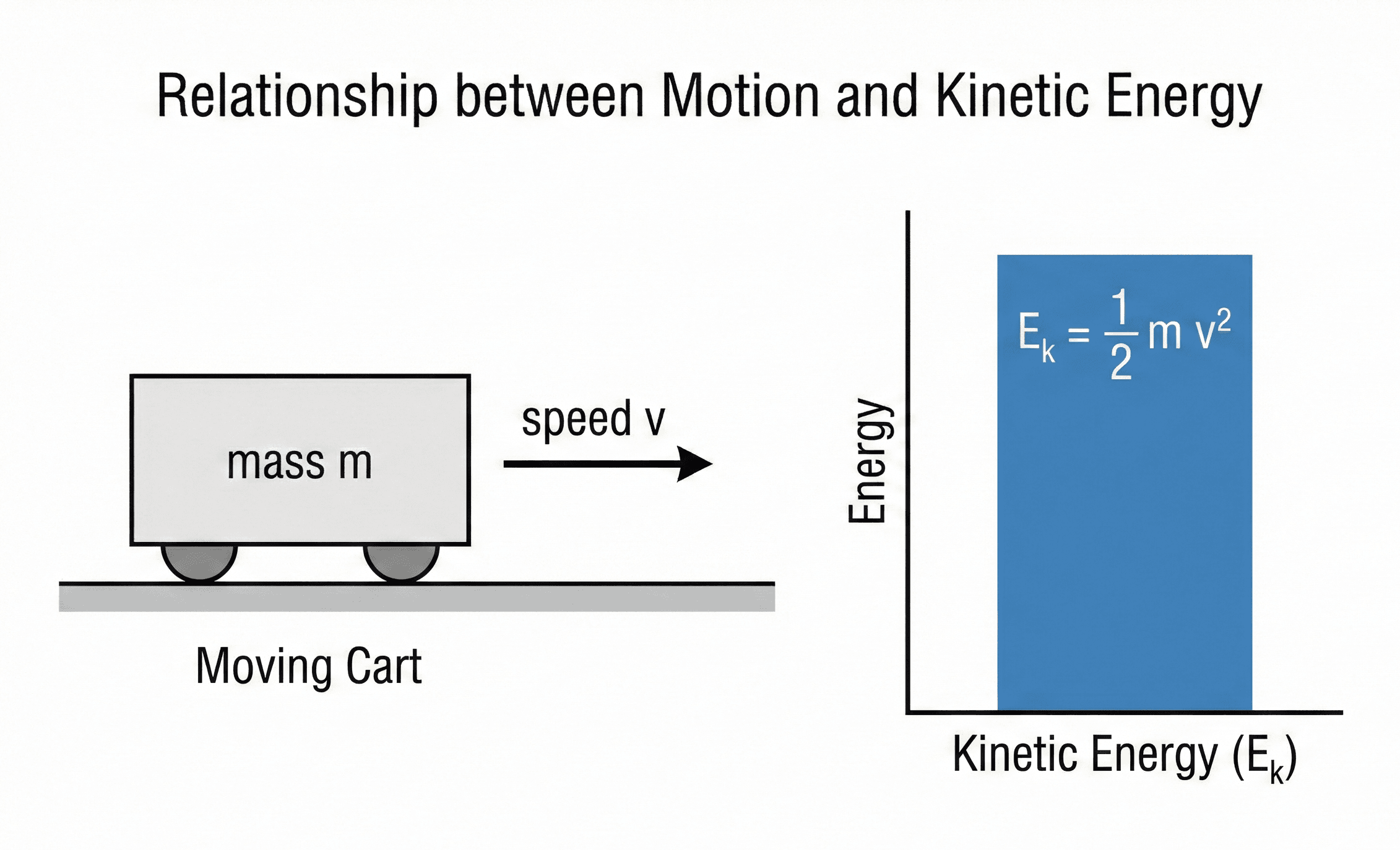

Diagram of a cart of mass m moving with speed v along a track, next to a bar chart representing its kinetic energy given by Ek = 1/2 m v^2. — A moving mass–speed sketch with a kinetic energy bar. The kinetic energy grows with mass but, more importantly, with the square of speed according to \( E_k = \tfrac{1}{2} m v^2 \).

Symbols, units & notation in the kinetic energy equation

In most engineering and physics contexts, kinetic energy is written as \( E_k = \tfrac{1}{2} m v^2 \) or \( K = \tfrac{1}{2} m v^2 \). It is a scalar quantity (it has magnitude but no direction) that depends on the object’s mass and the magnitude of its velocity. The table below summarizes common symbols and units you will see when applying this equation.

Common notation for kinetic energy

Symbol	Quantity	SI Unit	Description
\( E_k \), \( K \)	Kinetic energy	Joule (J)	Energy associated with motion of a body: \( E_k = \tfrac{1}{2} m v^2 \). One joule is one newton-meter of work.
\( m \)	Mass	Kilogram (kg)	Measure of inertia of the body. In basic problems, mass is treated as constant and lumped at the center of mass.
\( v \)	Speed	m/s	Magnitude of velocity relative to the chosen reference frame. Kinetic energy depends on speed squared, not direction.
\( v_{\text{rel}} \)	Relative speed	m/s	Speed measured relative to a particular frame or surface. In some engineering problems, kinetic energy is computed relative to a moving platform or fluid.
\( \tfrac{1}{2} \)	One-half factor	–	Dimensionless constant that appears from integrating work done by a net force as speed increases from 0 to \( v \).

Unit system notes & practical reminders

SI baseline: Use mass in kilograms and speed in meters per second. Kinetic energy then comes out naturally in joules (J), which is the standard across engineering disciplines.
Imperial / U.S. customary: You often see kinetic energy in foot-pounds (ft·lbf) when using pounds-mass and feet per second. Take care with conversion factors if you mix SI and Imperial values.
Speed conversions matter: Converting from km/h or mph to m/s is essential. A small unit mistake on \( v \) gets squared in energy, leading to errors that are off by large factors.

Once you know the mass and speed, you can evaluate kinetic energy by hand or explore scenarios quickly with the kinetic energy calculator, especially when comparing how different speeds or masses change impact energy.

How the kinetic energy equation arises and behaves

The kinetic energy equation is not arbitrary—it drops out naturally from Newton’s Second Law and the definition of mechanical work. It also has intuitive scaling behavior: energy grows linearly with mass but quadratically with speed. That scaling is why doubling speed is far more serious than doubling mass in impact problems and machinery overspeed scenarios.

Deriving \( E_k = \tfrac{1}{2} m v^2 \) from work and Newton’s Second Law

Start with a particle of mass \( m \) moving along a straight line. A net force \( F \) acts in the direction of motion, increasing its speed from \( 0 \) to \( v \) over some distance \( s \). The work done by the net force is \( W = \int F \, \mathrm{d}s \). From Newton’s Second Law in the direction of motion, \( F = m a \), and acceleration \( a \) can be written in terms of velocity and position: \( a = \dfrac{\mathrm{d}v}{\mathrm{d}t} = v \dfrac{\mathrm{d}v}{\mathrm{d}s} \).

\[ W = \int F \,\mathrm{d}s = \int m a \,\mathrm{d}s = \int m v \frac{\mathrm{d}v}{\mathrm{d}s} \,\mathrm{d}s = \int m v \,\mathrm{d}v \] \[ W = m \int_{0}^{v} v \,\mathrm{d}v = m \left[ \tfrac{1}{2} v^2 \right]_{0}^{v} = \tfrac{1}{2} m v^2 \]

This work done by the net force shows up as kinetic energy. If the object started from rest, we define its kinetic energy as \( E_k = W = \tfrac{1}{2} m v^2 \). If it speeds up from an initial speed \( v_1 \) to a final speed \( v_2 \), the change in kinetic energy is

\[ \Delta E_k = \tfrac{1}{2} m v_2^2 – \tfrac{1}{2} m v_1^2 \]

This “work–energy” viewpoint is often easier than summing forces and accelerations directly, especially when you care about start and end states more than the detailed path between them.

Why kinetic energy depends on speed squared

The square on velocity sometimes surprises people: why not just proportional to \( v \)? Mathematically, the square comes from integrating force over distance as speed changes. Physically, it encodes the idea that energy goes up very rapidly with speed: each extra bit of speed is “harder” to add than the last, because the object is moving faster while you are pushing it.

\[ E_k \propto v^2 \quad \Rightarrow \quad \frac{E_{k,2}}{E_{k,1}} = \left( \frac{v_2}{v_1} \right)^2 \]

For example, increasing speed from 20 m/s to 40 m/s multiplies kinetic energy by \( (40/20)^2 = 4 \). If you design a barrier or brake using data from low-speed tests but later allow much higher speeds, the energy can easily exceed your original design envelope unless you explicitly account for the \( v^2 \) scaling in your calculations and checks in the design tips & limits stage.

Link to other energy forms and conservation

Kinetic energy is only one piece of the energy picture. In many applications, it trades off with potential energy, elastic (spring) energy, or internal energy (heat). In an idealized, lossless system, the total mechanical energy (kinetic + potential + elastic) is conserved as the system moves. In real machines, some of the kinetic energy is usually converted into heat in brakes, hysteresis in materials, or vibration and sound during impacts.

The power of the kinetic energy equation is that it gives you a clean, quantitative handle on the “motion” part of that energy budget. Once you know \( E_k \), you can allocate how that energy must be absorbed or redirected by structural elements, damping systems, or energy-storage components.

Worked examples using the kinetic energy equation

The following examples mirror common questions engineers and students ask: how much energy a vehicle has at highway speed, how speed changes impact severity, and how to translate kinetic energy into stopping or protective requirements. The workflow is similar in each case: identify mass and speed, compute \( E_k \), and interpret the number in context.

Example 1 – Kinetic energy of a car at highway speed

A 1,400 kg car is traveling at 27 m/s (about 60 mph). Estimate its kinetic energy and interpret what that means for braking and barrier design.

Write down the kinetic energy equation \( E_k = \tfrac{1}{2} m v^2 \).
Substitute the car’s mass and speed in SI units.
Convert the answer into kJ for easier interpretation.

\[ E_k = \tfrac{1}{2} m v^2 = \tfrac{1}{2} \times 1{,}400~\text{kg} \times (27~\text{m/s})^2 \] \[ (27~\text{m/s})^2 = 729~\text{m}^2/\text{s}^2 \] \[ E_k = 0.5 \times 1{,}400 \times 729 = 700 \times 729 = 510{,}300~\text{J} \] \[ E_k \approx 5.1 \times 10^5~\text{J} = 510~\text{kJ} \]

Result: At 60 mph, the car carries roughly \(510~\text{kJ}\) of kinetic energy. All of that energy must be dissipated by the brakes and tires during a controlled stop, or by deformation and barriers during a crash. This highlights why highway-speed incidents are so demanding on brake sizing, tire grip, and roadside protection systems.

Example 2 – How much worse is a high-speed impact?

A small 1,000 kg electric vehicle is tested at two speeds: 15 m/s and 30 m/s. Assuming the mass is the same and the crash structure behaves similarly, how does the kinetic energy at the higher speed compare to the lower one?

Compute energy at the lower speed using \( E_k = \tfrac{1}{2} m v^2 \).
Compute energy at the higher speed.
Take the ratio of the two energies to see the relative severity.

\[ E_{k,1} = \tfrac{1}{2} \cdot 1{,}000~\text{kg} \cdot (15~\text{m/s})^2 = 500 \cdot 225 = 112{,}500~\text{J} \] \[ E_{k,2} = \tfrac{1}{2} \cdot 1{,}000~\text{kg} \cdot (30~\text{m/s})^2 = 500 \cdot 900 = 450{,}000~\text{J} \] \[ \frac{E_{k,2}}{E_{k,1}} = \frac{450{,}000}{112{,}500} = 4 \]

Result: Doubling speed from 15 m/s to 30 m/s increases kinetic energy by a factor of four. For crashworthiness and barrier design, that means the higher-speed test is not just “twice as bad” but roughly four times as demanding in terms of energy absorption capacity.

Example 3 – Estimating brake work from kinetic energy

A 500 kg industrial cart moves along a factory floor at 5 m/s and is brought to rest over a 10 m braking distance using a friction brake. Assuming constant braking force and neglecting rolling resistance, what is the average braking force required?

Compute the cart’s initial kinetic energy.
Assume this energy is fully dissipated as work by the brake over the stopping distance.
Use \( W = F_{\text{avg}} s \) to solve for the average braking force.

\[ E_{k,\text{initial}} = \tfrac{1}{2} m v^2 = \tfrac{1}{2} \times 500~\text{kg} \times (5~\text{m/s})^2 = 250 \times 25 = 6{,}250~\text{J} \] \[ W = F_{\text{avg}} s \approx E_{k,\text{initial}} \] \[ F_{\text{avg}} = \frac{W}{s} = \frac{6{,}250~\text{J}}{10~\text{m}} = 625~\text{N} \]

Result: The brake must provide an average force of about \(625~\text{N}\) over the 10 m stopping distance. This energy-based approach gives a quick, conservative estimate that you can refine with more detailed friction, temperature, and duty-cycle calculations.

Design tips, limits & checks for kinetic energy calculations

In design and analysis, the kinetic energy equation is usually part of a larger workflow: you combine it with material limits, allowable deflections, braking torque, or absorbed energy capacities. The points below highlight common assumptions, pitfalls, and quick checks that engineers use when working with \( E_k = \tfrac{1}{2} m v^2 \).

Key assumptions behind the basic equation

The standard kinetic energy equation is robust, but it does assume a few things that may not hold in more complex systems.

Mass is treated as concentrated at a point or at the center of mass, with no internal deformation during motion.
The speed \( v \) is measured in a consistent inertial frame (for example, the ground, not a strongly accelerating platform).
Energy transfer is computed between two steady states; transient effects like vibration modes or shock waves are not explicitly modeled.

Common mistakes & limitations in practice

Using inconsistent units (for example, mixing mph with m/s or kg with lbm) and getting energies off by orders of magnitude.
Ignoring rotational kinetic energy in systems with spinning components like flywheels, gears, rotors, or wheels.
Assuming all kinetic energy is absorbed by one component, when in reality it is distributed across multiple elements and paths.
Applying the equation with an inappropriate “mass” in deformable or fluid systems where effective mass depends on geometry and coupling.

Practical sanity checks before you trust the numbers

Before finalizing a design, engineers usually sanity-check kinetic energy numbers against experience and related physical quantities.

Compare your energy to known benchmarks (for example, the energy content of a dropped weight or a known crash test) to see if it feels reasonable.
Relate energy to required brake torque or barrier crush distance using work relationships, and check against component ratings.
Consider worst-case speeds: if overspeed is possible, recompute \( E_k \) at that speed and see whether safety factors remain acceptable.

When results suggest that your system is operating close to material, thermal, or comfort limits, treat the basic kinetic energy calculation as an early warning. The next steps are usually more detailed modeling, such as finite element analysis for impact and deformation, dynamic simulations for braking cycles, or hardware-in-the-loop tests to validate assumptions about how kinetic energy is actually absorbed and dissipated.

Kinetic energy equation – FAQ

What is the kinetic energy equation in simple terms?

In simple terms, the kinetic energy equation says that the energy of motion of an object is one half its mass times its speed squared: \( E_k = \tfrac{1}{2} m v^2 \). Heavier objects or faster objects have more kinetic energy. Because speed is squared, changes in speed have a much bigger effect on energy than equal percentage changes in mass.

How do you calculate kinetic energy step by step?

To calculate kinetic energy, follow these steps: (1) Convert mass to kilograms and speed to meters per second; (2) square the speed \( v^2 \); (3) multiply by the mass \( m \); and (4) multiply by one half. The result is in joules. For example, a 2 kg object moving at 3 m/s has \( E_k = \tfrac{1}{2} \times 2 \times 3^2 = 9~\text{J} \) of kinetic energy.

Why is there a one-half in the kinetic energy formula?

The one-half factor comes from integrating the work done by a net force as speed increases. Starting from Newton’s Second Law and the definition of work, \( W = \int F \,\mathrm{d}s \), you can show that the work needed to accelerate a mass from rest to speed \( v \) is \( \tfrac{1}{2} m v^2 \). The one-half is not arbitrary—it reflects the way force, distance, and changing speed relate mathematically.

What units should I use for kinetic energy in engineering?

In most engineering work, you should use SI units: mass in kilograms, speed in meters per second, and kinetic energy in joules (J). In some industries and regions, foot-pounds (ft·lbf) are also used, but you should be careful about conversions and avoid mixing SI and Imperial units in the same calculation without consistent conversion factors.

References & further reading

Standard university physics and engineering mechanics textbooks that introduce kinetic energy, work, and energy conservation as alternatives to force–acceleration methods.
Online lecture notes and course materials from major universities on classical mechanics, many of which include detailed derivations of \( E_k = \tfrac{1}{2} m v^2 \) and real-world example problems.
Application notes and safety guidelines from automotive, rail, and industrial equipment manufacturers that show how kinetic energy calculations feed into braking, guarding, and impact protection designs.
