Static checks ask whether forces balance. Structural dynamics asks how the structure moves while resisting forces that change with time.

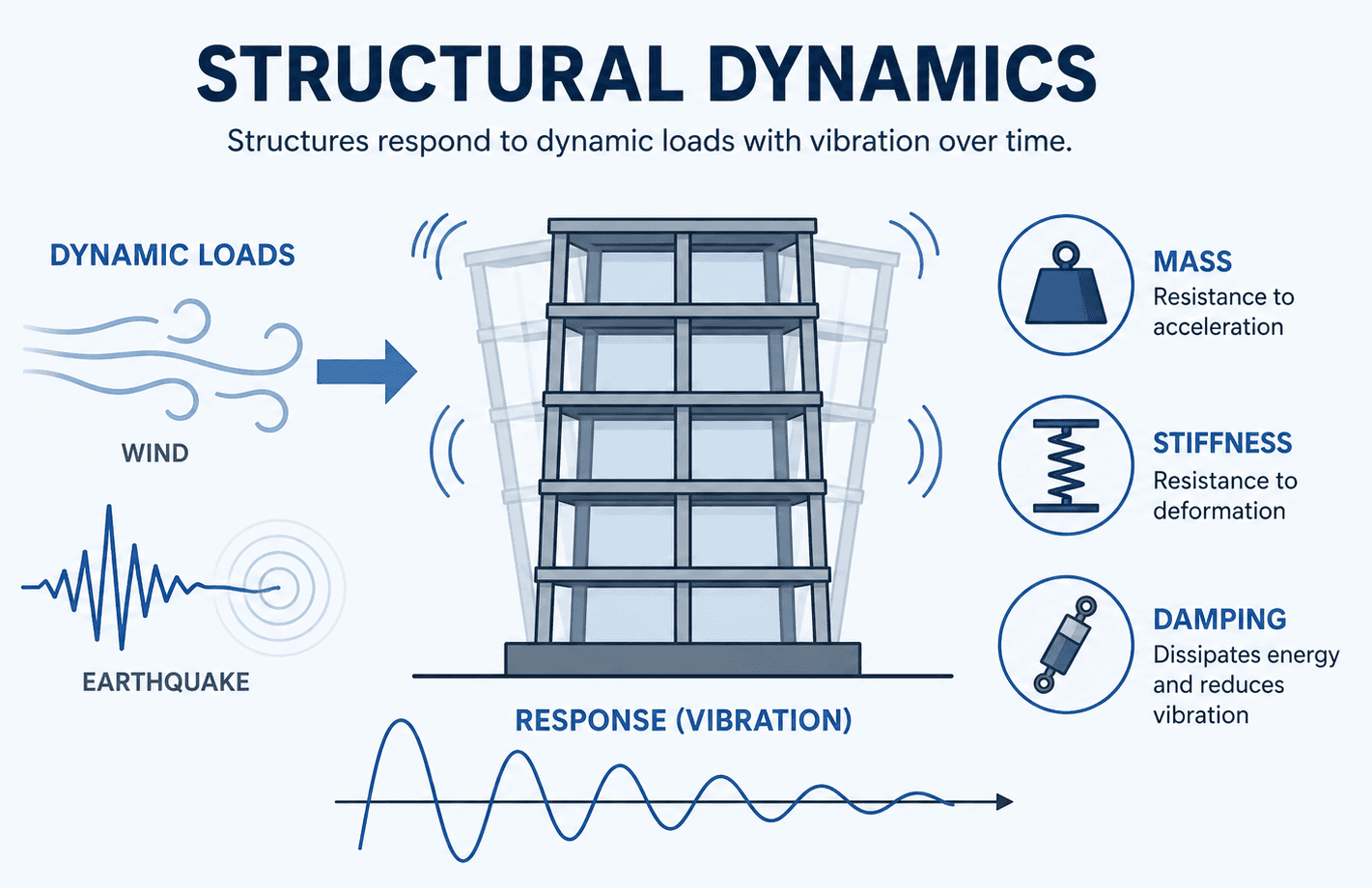

Structural Dynamics infographic
Notice first that the structure is not treated as perfectly still. Dynamic loads create acceleration, and the response depends on how closely the loading frequency lines up with the structure’s natural modes.
What is structural dynamics?
Structural dynamics is the branch of structural engineering that studies how structures respond to loads that vary with time. These loads may come from earthquakes, wind gusts, rotating machinery, vehicles, footsteps, waves, impact, blast, or sudden changes in support conditions.
In a purely static problem, the engineer may assume the structure responds slowly enough that acceleration can be ignored. In a dynamic problem, acceleration matters. The structure has mass, stiffness, and damping, so it can vibrate, amplify motion, transfer energy, and respond differently depending on the timing of the load.
The practical goal is not simply to “stop vibration.” Many structures move slightly under normal service conditions. The engineer’s job is to determine whether that motion is safe, stable, comfortable, code-compliant, and compatible with architectural, mechanical, and operational needs.
Structural dynamics is controlled by the relationship between the load’s time pattern and the structure’s natural tendency to vibrate.
Core principles, variables, and units
Dynamic behavior is governed by four basic ideas: mass resists acceleration, stiffness resists displacement, damping dissipates energy, and the applied load changes with time. These variables determine whether a structure responds quietly, noticeably, or dangerously.
Mass, stiffness, and damping
Mass affects inertia. A heavier floor, bridge, or frame may be harder to accelerate, but once it moves, it can store significant kinetic energy. Stiffness controls how much displacement occurs under load. Damping controls how quickly vibration decays after the excitation is removed.
- m Mass, usually expressed in kg, slugs, or derived from structural weight divided by gravitational acceleration.
- k Stiffness, often expressed as force per displacement such as N/m, kN/mm, lb/in, or kip/in.
- c Damping coefficient, representing energy dissipation from materials, connections, finishes, soil, and supplemental devices.
- f_n Natural frequency in Hz, describing how many vibration cycles per second the structure tends to complete.
- T Natural period in seconds, equal to the time required for one cycle of vibration.
- \(\zeta\) Damping ratio, a dimensionless measure of damping relative to critical damping.
Period and frequency intuition
A short, stiff structure usually has a shorter period and higher natural frequency. A tall, flexible, or lightly braced structure usually has a longer period and lower natural frequency. This matters because dynamic loads may strongly excite one structure and barely affect another.
Do not evaluate vibration by displacement alone. Check frequency, acceleration, damping, occupancy sensitivity, repeated loading, and whether resonance is possible.
Common dynamic loads in structural engineering
A dynamic load is any load whose magnitude, location, direction, or timing changes fast enough that inertia affects the structural response. The same structure may behave statically under one load and dynamically under another.
| Dynamic load source | Typical structural concern | What engineers check |
|---|---|---|
| Earthquake ground motion | Base shear, drift, ductility, energy dissipation | Modal response, response spectrum, nonlinear behavior, detailing |
| Wind gusts | Along-wind motion, across-wind motion, occupant comfort | Acceleration, drift, vortex effects, damping, wind tunnel data where needed |
| Footfall and rhythmic activity | Floor vibration and comfort | Frequency, acceleration, damping, span stiffness, occupancy sensitivity |
| Rotating or reciprocating machinery | Resonance, fatigue, equipment misalignment | Machine frequency, support stiffness, isolation, amplitude limits |
| Impact or blast | Short-duration high-intensity demand | Impulse, strain-rate effects, energy absorption, alternate load paths |
Dynamic loads are especially important for structures that are tall, slender, long-span, lightweight, flexible, lightly damped, repeatedly loaded, or sensitive to small accelerations. A heavy industrial frame supporting rotating equipment and a long-span office floor can both require dynamic thinking, even though the load sources are very different.
Structural dynamics workflow
A useful structural dynamics workflow starts with the source of excitation and ends with a performance decision. The engineer should avoid jumping directly into software before understanding the load, the likely vibration mode, and the acceptable response limit.
Identify the dynamic load → estimate mass and stiffness → determine natural period or frequency → compare excitation frequency to natural frequency → estimate damping → calculate response → check strength, drift, acceleration, fatigue, comfort, and serviceability → revise stiffness, mass, damping, isolation, or detailing if needed.
Step 1: Define the excitation
The load may be periodic, random, impulsive, transient, or ground-based. Earthquake motion is not the same as a steady rotating machine force. Wind is not the same as footfall loading. The analysis method should match the time behavior of the load.
Step 2: Choose the model complexity
Early checks may use a single-degree-of-freedom approximation. More complex structures may require multi-degree-of-freedom models, finite element analysis, response spectrum analysis, time-history analysis, or specialized vibration evaluation.
Step 3: Compare response to performance limits
Dynamic design is often controlled by serviceability rather than strength. A floor can be strong enough but uncomfortable. A tower can resist wind strength demands but still exceed acceleration comfort limits. A machine foundation can resist static weight but amplify vibration near operating speed.
Equations and calculations
The most common starting point is the idealized single-degree-of-freedom oscillator. It represents a structure as a lumped mass, an equivalent stiffness, and an equivalent damping mechanism. Real structures are more complex, but this model explains the core behavior clearly.
In this equation, \(m\) is mass, \(c\) is damping, \(k\) is stiffness, \(x\) is displacement, \(\dot{x}\) is velocity, \(\ddot{x}\) is acceleration, and \(F(t)\) is the applied force as a function of time.
Natural circular frequency
The natural circular frequency \(\omega_n\) is usually expressed in radians per second. It increases when stiffness increases and decreases when mass increases.
Natural frequency and period
Natural frequency \(f_n\) is measured in cycles per second, or Hz. Period \(T\) is measured in seconds per cycle. These values help engineers compare a structure’s dynamic properties to earthquake, wind, footfall, or equipment excitation.
Damping ratio
The damping ratio is dimensionless. Low damping means vibration decays slowly. Higher damping reduces peak response and helps control motion, although real damping is difficult to estimate precisely and can vary with amplitude, connections, finishes, cracking, soil interaction, and nonstructural elements.
Worked example: estimating floor vibration risk
Example
Consider a lightweight office floor bay supported by steel framing. The framing is strong enough for gravity loading, but the design team is concerned about perceptible vibration from walking. A simplified check estimates the effective stiffness as \(k = 18{,}000\ \text{lb/in}\) and the effective participating weight as \(W = 24{,}000\ \text{lb}\).
First convert weight to mass using \(m = W/g\). In U.S. customary units, use \(g = 386.4\ \text{in/s}^2\). The estimated mass is:
Then estimate natural frequency:
A frequency around 2.7 Hz can be sensitive for walking-induced vibration, depending on damping, span layout, floor use, partitions, ceiling systems, and acceleration limits. The engineering response may be to increase stiffness, shorten the effective span, add mass strategically, improve damping, or perform a more detailed floor vibration analysis.
Passing strength checks does not prove vibration performance is acceptable. Dynamic serviceability can control long-span floors before member strength does.
Engineering judgment and field reality
Structural dynamics is sensitive to assumptions. A model may show a clean natural frequency, but the real structure includes partitions, façade systems, slab cracking, connection slip, soil flexibility, equipment supports, architectural finishes, and construction tolerances. These details can shift stiffness, damping, and response.
Damping is one of the biggest judgment areas. Textbook damping values are useful for early checks, but real damping depends on the structure’s material system, amplitude of motion, nonstructural components, connection behavior, foundation interaction, and whether vibration is continuous or short-lived.
Field testing can be valuable when vibration complaints occur or when a structure supports sensitive equipment. Accelerometers, modal testing, operating deflection shape measurements, and vibration monitoring can help identify actual frequencies and response amplitudes instead of relying only on assumed values.
The people using a structure may notice acceleration, rhythm, and duration more than displacement. Comfort problems often appear even when strength demand is low.
When this breaks down
Simplified structural dynamics breaks down when a structure cannot be represented well by one dominant mode, when behavior becomes nonlinear, when supports move, when materials crack or yield, or when the dynamic load is highly irregular. A single-degree-of-freedom model can explain the concept, but it may not capture torsion, diaphragm flexibility, higher modes, soil-structure interaction, local vibration, or connection behavior.
Linear elastic dynamic analysis may also be misleading during severe earthquakes, blast, impact, progressive collapse scenarios, or large-amplitude vibration. In those cases, stiffness may degrade, damping may change, yielding may redistribute forces, and the real response can depend heavily on detailing and ductility.
- Use more detailed modeling when higher modes significantly affect response.
- Use nonlinear methods when yielding, cracking, gap opening, sliding, or large displacement is expected.
- Use measured data when existing structures show unexpected vibration behavior.
- Use project-specific criteria when sensitive occupants, laboratories, hospitals, or equipment are involved.
Common pitfalls and engineering checks
The most costly mistakes in structural dynamics usually come from treating a dynamic problem like a static one. Experienced engineers look for load frequency, resonance risk, damping uncertainty, modeling sensitivity, and serviceability criteria early.
- Ignoring acceleration and checking only displacement.
- Assuming damping is higher than the structure will actually provide.
- Using a fixed-base model when foundation or soil flexibility matters.
- Missing torsional modes in irregular buildings.
- Forgetting that nonstructural elements can change stiffness and damping.
- Using equipment operating speed without checking startup, shutdown, and harmonics.
- Evaluating a floor for strength while ignoring occupant comfort.
| Engineering check | Why it matters | Typical action |
|---|---|---|
| Frequency separation | Reduces resonance risk | Shift stiffness, mass, support layout, or excitation source |
| Damping sensitivity | Peak response can change dramatically | Run lower and upper damping assumptions |
| Acceleration limits | Often controls comfort and equipment performance | Check occupancy-specific criteria |
| Mode shape review | Identifies weak stories, torsion, or local vibration | Review modal participation and deformed shapes |
| Load path continuity | Dynamic forces still need complete resistance paths | Trace diaphragms, collectors, frames, supports, and foundations |
Ask whether the calculated response makes physical sense: What is moving, why is it moving, what resists it, and where does the energy go?
Visualizing structural dynamics
The simplest way to visualize structural dynamics is to imagine pushing a flexible frame sideways and releasing it. The frame does not instantly stop at the original position. It accelerates back, overshoots, reverses direction, and gradually settles as damping dissipates energy.
A real structure has many possible vibration shapes, called modes. A tall building may sway primarily in one direction, twist about its vertical axis, or respond in higher-mode shapes where different elevations move in different directions. A floor system may vibrate locally while the main building frame remains nearly still.
For practical design, always connect the mode shape to a real load path: floor vibration moves through beams and girders, wind motion moves through the lateral system, and seismic inertia moves through diaphragms, collectors, vertical elements, foundations, and supporting soil.
Relevant standards and design references
Structural dynamics is not governed by one single universal document. The relevant reference depends on whether the problem involves earthquake response, wind response, floor vibration, machinery vibration, bridges, blast, or performance-based design.
- ASCE/SEI 7: Used for minimum design loads and criteria for buildings, including seismic and wind provisions where dynamic response can control.
- International Building Code: Establishes building-code requirements and references structural standards used in U.S. building design.
- AISC Design Guide 11: Commonly used for evaluating floor vibrations in steel-framed structures and occupant comfort scenarios.
- FEMA seismic design resources: Useful for seismic performance concepts, nonlinear response, earthquake-resistant detailing, and risk-based guidance.
- AASHTO bridge specifications: Relevant when dynamic behavior involves bridge vibration, moving vehicle loads, pedestrian comfort, or seismic bridge response.
Frequently asked questions
Structural dynamics is the study of how structures move when loads change with time. It explains vibration, natural frequency, damping, resonance, acceleration, and whether motion remains safe, comfortable, and acceptable.
Structural analysis is the broader process of determining forces, reactions, deformation, and stability. Structural dynamics is a specialized part of analysis that includes time-varying loads, inertia, damping, frequency, and vibration response.
Structural dynamics becomes important when loads are cyclic, sudden, repeated, or close to a structure’s natural frequency. Common cases include earthquakes, wind-sensitive buildings, long-span floors, pedestrian bridges, machinery foundations, and vibration-sensitive equipment.
Resonance occurs when a repeated force acts near a structure’s natural frequency. If damping is low, motion can amplify, which may cause comfort problems, fatigue, serviceability issues, or unsafe response in severe cases.
Damping is the energy dissipation that reduces vibration over time. It comes from material behavior, connections, friction, cracking, soil interaction, nonstructural elements, and sometimes supplemental damping devices.
Summary and next steps
Structural dynamics explains how structures behave when loads change with time. Instead of checking only static equilibrium, the engineer must consider mass, stiffness, damping, acceleration, frequency, resonance, and the way motion affects strength, serviceability, comfort, and durability.
The most important habit is to connect the math to the physical structure. Identify the excitation source, estimate the likely mode of response, check whether the load can excite the structure, and compare the result against realistic performance limits. In real projects, dynamic behavior often depends on assumptions that deserve sensitivity checks and field judgment.
Use structural dynamics whenever a structure is flexible, lightly damped, repeatedly loaded, vibration-sensitive, or exposed to wind, seismic, machinery, pedestrian, impact, or blast effects. The earlier these issues are recognized, the easier they are to solve through system selection, stiffness tuning, damping, isolation, or detailing.
