Load Path Analysis

Introduction

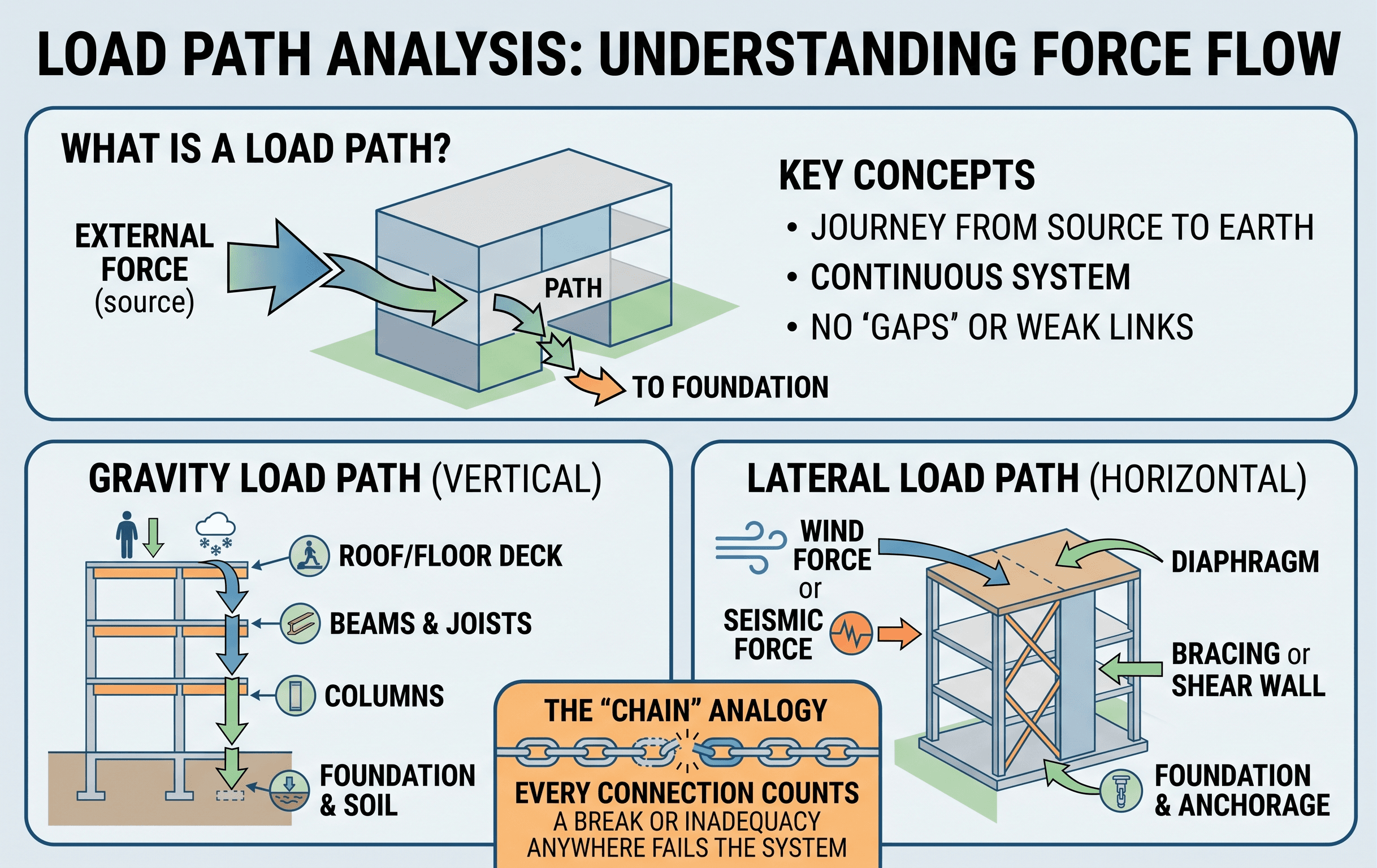

Load path analysis is the process of tracing how every pound of force travels from where it is applied—roof, floors, equipment, cladding—through diaphragms, frames, walls, and foundations into the ground. It is the thread that ties together structural loads, analysis, and detailed design of steel, concrete, and timber systems. When the path is continuous, forces have a reliable route to the foundations; when it’s broken, structures underperform or fail.

A safe structure is a continuous story of forces—from point of application to the soil—with no missing chapters.

What Is Load Path Analysis & Why It Matters

In practice, load path analysis means identifying every element that carries load, the interfaces where load transfers, and whether each interface has the stiffness, strength, and ductility to do so. We evaluate both vertical (gravity) and lateral (wind/seismic) paths, then confirm that connections and anchorage match the assumptions in the model. It’s the most effective way to prevent structural failure.

Fundamentals: Equilibrium, Compatibility & Continuity

The load path rests on three pillars: equilibrium (forces and moments balance), compatibility (deformations are consistent), and continuity (no breaks in the route). These apply at every scale—from a roof fastener to the whole building. Codes provide minimum load requirements and combination rules; your job is to ensure a continuous, ductile route exists under each governing case.

Start with the loads and combinations, then map transfer through diaphragms, vertical elements, collectors/chords, connections, and foundations. Validate with hand checks and sensitivity studies before relying on numerical output.

Vertical Load Path (Gravity)

Gravity loads originate at the roof and floors and flow to the ground through slabs/decks, beams, girders, columns or walls, and finally footings or mats. The vertical path is usually straightforward but still requires attention to tributary areas, continuity through transfer levels, and bearing/anchorage capacity.

• Tributary areas: Establish clear load takeoffs for each supporting member and verify compatibility with architectural grids.
• Transfers: If columns stack changes or walls discontinue, design transfer girders or slabs with shear and punching checks.
• Foundations: Coordinate vertical reactions with foundation design and geotechnical capacity (bearing, settlement, uplift).

Lateral Load Path (Wind & Seismic)

Lateral loads follow a more complex route: cladding → anchors → diaphragms → collectors → vertical lateral-force-resisting elements (VLFREs) such as shear walls, braced frames, or moment frames → foundations and soil. The diaphragm is the “bridge” between cladding/roof loads and the VLFREs. Choose a lateral system early and match diaphragm stiffness and connection detailing to your analysis.

• System choice: Braced frames for economy and drift control; moment frames for architectural openness; shear walls/cores for stiffness and robustness.
• Directional actions: Consider orthogonal load combinations and accidental torsion for seismic; edge/corner zones for wind components & cladding.
• Uplift & overturning: Ensure hold-downs, anchorage, and pile/footing capacity for uplift and sliding under controlling cases.

Diaphragms, Collectors & Chords

Diaphragms (concrete slabs, metal deck with concrete, CLT, or wood sheathing) act as horizontal beams distributing in-plane forces to VLFREs. Collectors (drag struts) gather these forces, while chords resist diaphragm tension/compression from flexure. Around openings and re-entrant corners, forces concentrate—design for continuity.

• Stiffness model: Rigid vs. semi-rigid assumptions materially change force distribution. Match analysis to detailing and material behavior.
• Collectors: Provide continuous steel/rebar/straps with splices away from peaks; anchor to VLFREs with adequate shear/axial transfer.
• Chords: Detail chord continuity through joints; verify compression buckling and tension development lengths.

Openings, Setbacks & Other Discontinuities

Shafts, atria, skylights, and large penetrations interrupt the horizontal route. Without reinforced collectors and chords around these openings, load paths divert unpredictably, creating hotspots and cracking. Architectural setbacks or re-entrant corners increase torsion and stress concentrations.

Connections & Anchorage: Where Load Actually Moves

Members don’t carry load without connections. The load path lives or dies at bolts, welds, anchors, headed bars, and fasteners. Specify connection stiffness, slip, and ductility consistent with your model. Coordinate with fabricators and contractors to ensure access, tolerances, and inspection feasibility.

• Gravity: Bearing, shear studs, development length, and lap splices must be continuous along the route.
• Lateral: Shear tabs, moment connections, gusset plates, hold-downs, and anchor rods must transfer forces reliably to the VLFRE and foundation.
• Anchorage: Verify pry-out, pullout, and concrete breakout for anchors; detail for edge distances and crack control.

Modeling & Verification Strategies

Numerical models are only as good as their assumptions. Start simple, then add fidelity. Compare linear to second-order results where slenderness or P–Δ effects are present; use semi-rigid diaphragms where appropriate; and validate global reactions and forces with hand calculations.

• Boundary conditions: Model foundation springs per the geotechnical report; avoid unrealistic fixed bases unless justified.
• Member releases: Reflect actual connection fixity; misclassification shifts forces and drift.
• Checks: Sum of reactions should match applied loads; diaphragm shears should align with story shears; collector forces should match VLFRE demands.

Practical Workflow: From Concept to Details

1. Confirm loads & combinations: Start from recognized standards (see ASCE and ICC), then build governing cases for strength and serviceability.
2. Select systems: Choose VLFREs based on drift, ductility, and architecture; align with wind design and seismic design.
3. Map vertical path: Trace gravity load tributaries and any transfers; check punching and bearing at columns/walls.
4. Map lateral path: Assign diaphragms, collectors, chords, and anchorage; verify hold-downs and shear transfer across joints.
5. Model & iterate: Begin with simple checks; move to refined models with semi-rigid diaphragms and realistic supports.
6. Detail for continuity: Show collector/chord reinforcement, strap/steel continuity, and connection stiffness explicitly on drawings.
7. Document assumptions: Put load diagrams and transfer notes on plans to guide contractors and reviewers.
8. Inspect & verify: Plan inspections for anchors, welds/bolts, diaphragm nailing, and rebar before cover-up.

Common Pitfalls & How to Avoid Them

• Assuming a load path exists: If it isn’t detailed, it doesn’t exist. Draw the path and specify the connection.
• Rigid diaphragm assumptions: Overly stiff assumptions hide collector peaks; use semi-rigid when stiffness matters.
• Ignoring construction stages: Temporary states (e.g., wet concrete, unbraced frames) can control; coordinate sequences.
• Openings without reinforcement: Unframed penetrations sever chords/collectors; frame and anchor around all major cutouts.
• Foundation mismatch: Anchors and base plates sized for forces the soil system cannot accept; coordinate early with geotechnical design.

Frequently Asked Questions

Key Takeaways & Next Steps

Load path analysis is the backbone of reliable structural design. Map the path for gravity and lateral loads, align diaphragm assumptions with details, and ensure connections and anchorage make the route real. Pair this with a disciplined approach to load definition, analysis, and foundations to avoid surprises and deliver robust performance.

For authoritative references and updates, start at ASCE (minimum loads & hazards), ICC (building codes), and FEMA Building Science (hazard guidance). Then deepen material-specific knowledge with our pages on steel, concrete, timber, and follow through with structural inspections to verify the path on site.
