Horsepower Calculator
Convert torque and RPM or power in kW/W/HP into mechanical horsepower, with clear quick stats and calculation steps.
Calculation Steps
Engineering Guide
Horsepower Calculator
Learn how to turn torque, speed, and power data into reliable horsepower estimates, interpret the calculator’s outputs, and sanity-check the numbers for real motors, drives, and rotating equipment.
Quick Start
The calculator above has two main modes: From Torque & RPM and From Power. Follow these steps to get a realistic horsepower estimate without over- or under-sizing your equipment.
- 1 Select the calculation mode: choose From Torque & RPM when you know shaft torque and speed, or From Power when you have a motor or engine rating in kW, W, or HP.
- 2 Enter your known values: Torque (T) and Rotational Speed (n) for the torque mode, or Known Power (P) for the power mode. Keep units consistent with the dropdowns.
- 3 Check units carefully. For torque: use lb·ft or N·m. For speed: use RPM or rad/s. For power: use kW, W, or HP. The calculator converts everything to SI internally.
- 4 Review the main result. The green result row shows mechanical horsepower: \(\text{HP} \approx \dfrac{P_{\text{W}}}{745.7}\). This is the shaft power, not necessarily the nameplate electrical input.
- 5 Use the quick stats table to see power in kW and W, plus the torque converted between N·m and lb·ft. This helps you compare against motor datasheets or design notes that use different unit systems.
- 6 Open “Calculation Steps” to see the full derivation. The steps show how the calculator converts speed to angular velocity \( \omega \), computes \( P = T \omega \), and then divides by 745.7 to get horsepower.
- 7 Sanity-check the value: compare with typical HP ranges for similar machines, factor in efficiency, and make sure you’re not exceeding the motor’s continuous rating.

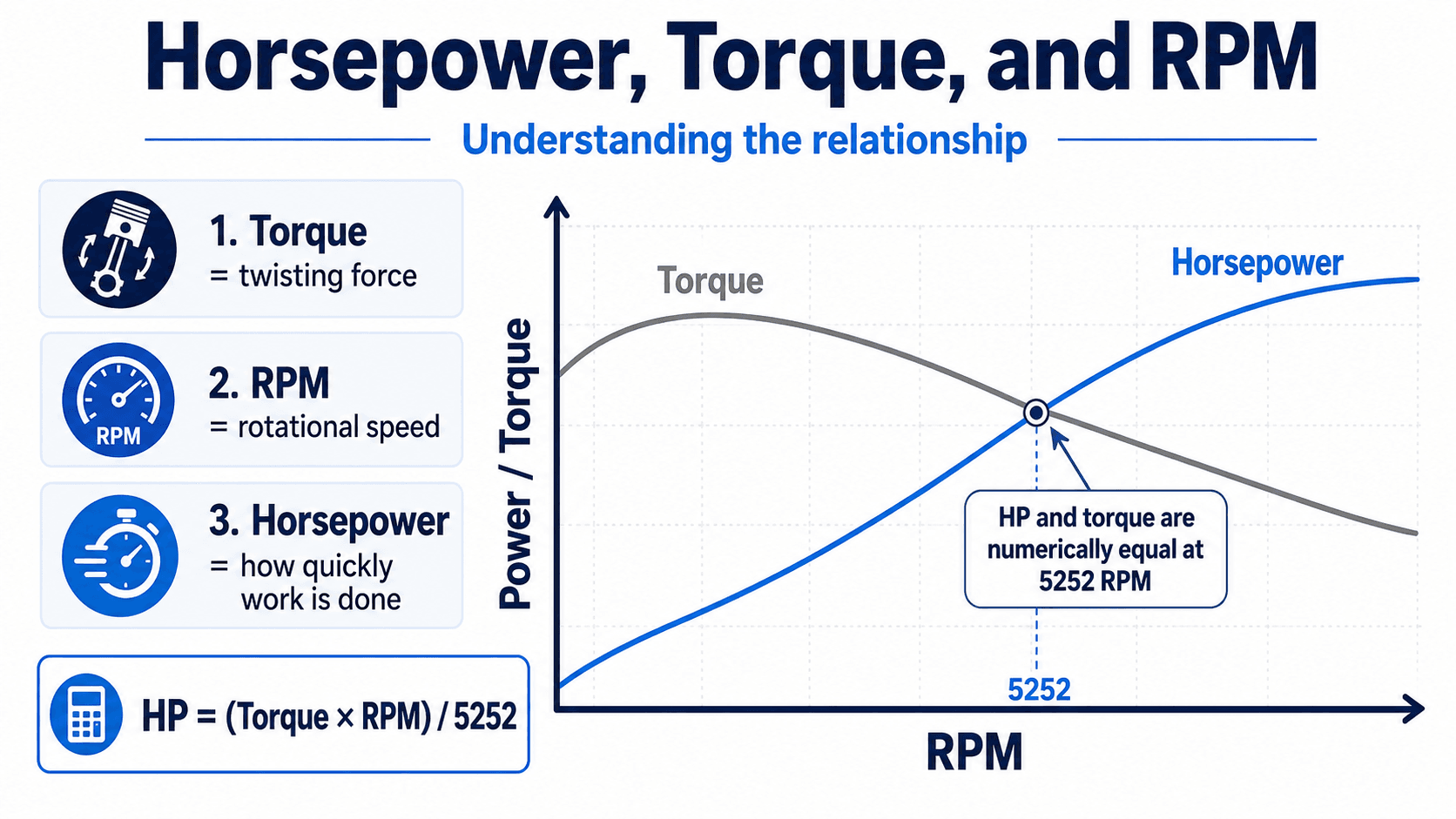

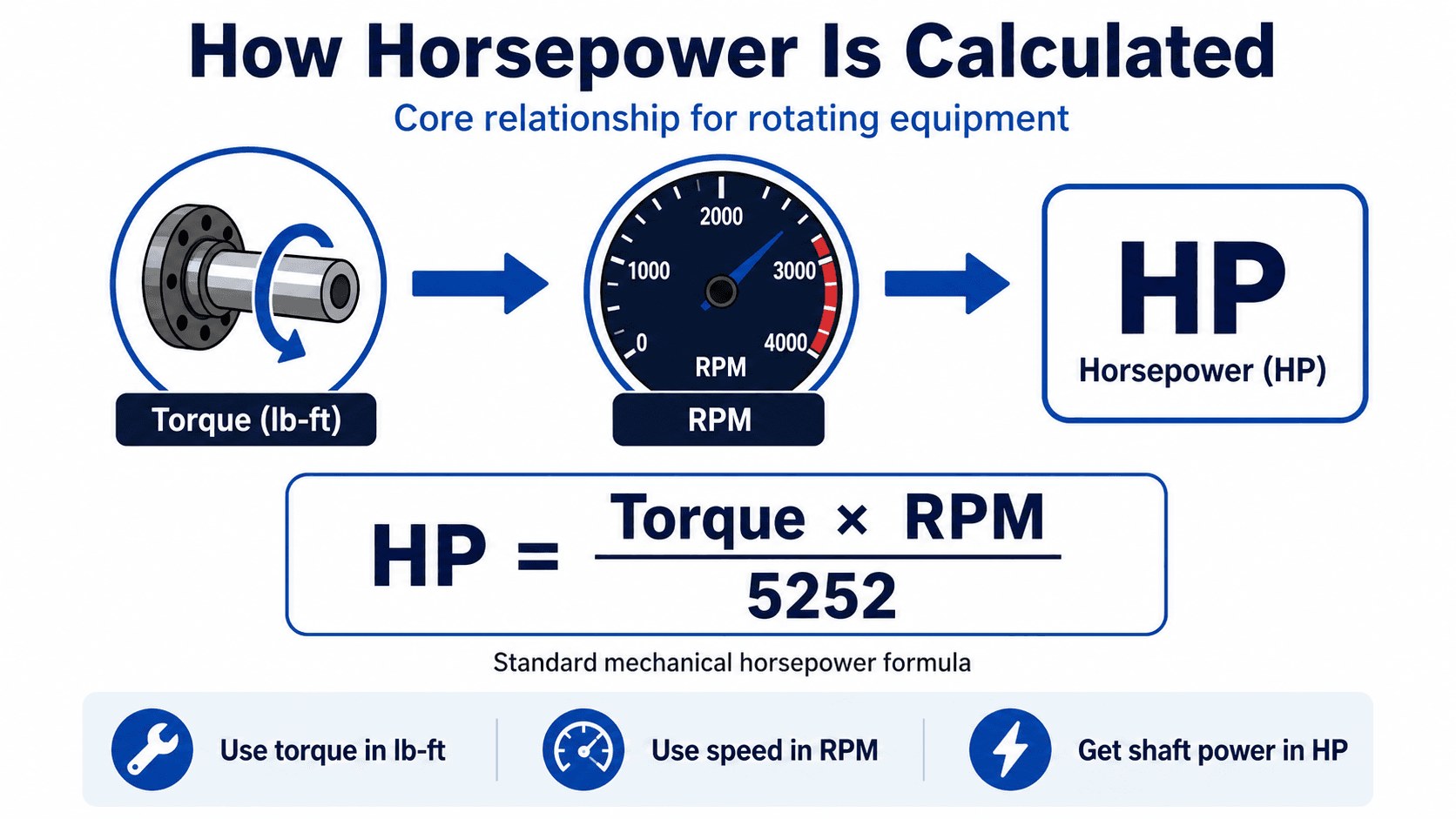

Tip: For quick mental checks, remember the classic approximation \( \text{HP} \approx \dfrac{T_{\text{lb·ft}} \cdot n_{\text{RPM}}}{5252} \). The calculator uses the more exact SI-based relationship under the hood.
Warning: Nameplate horsepower is usually output power at the shaft for motors, but some marketing specs quote “peak” or “input” power. Always read the datasheet footnotes before making safety-critical decisions.
Choosing Your Method
The same machine can be described by torque and speed, or by power alone. The right method depends on what data you have and how early or late you are in the design process.
Method A — From Torque & RPM
Use this when you know the mechanical load on the shaft, or when test data provides torque versus speed.
- Most physically transparent: directly uses load torque and speed.
- Good for sizing motors and gearboxes from mechanical requirements.
- Helps you see how HP changes as speed changes.
- Requires torque data, which is not always printed on nameplates.
- Torque may vary over the cycle (start-up vs steady state).
\( P = T \,\omega,\quad \omega = \dfrac{2\pi n}{60},\quad \text{HP} = \dfrac{P_{\text{W}}}{745.7} \)
Method B — From Power Rating
Use this when you already have a power rating from a motor, VFD, or engine spec: for example 7.5 kW or 50 HP.
- Fastest method when ratings are known.
- Useful for comparing options from different manufacturers.
- Works well in feasibility and budgeting phases.
- Hides how torque varies with speed and load.
- Assumes the rating is continuous, not a short-term peak.
\( P_{\text{W}} = \begin{cases} P_{\text{kW}} \times 1000 \\ P_{\text{HP}} \times 745.7 \\ P_{\text{W}} \text{ (already in watts)} \end{cases}, \quad \text{HP} = \dfrac{P_{\text{W}}}{745.7} \)
Method C — From Electrical Power (with Efficiency)
Sometimes you only know the electrical input: line voltage, current, and power factor. In that case your mechanical horsepower is lower than the electrical kW.
- Useful when you’re given only supply data (e.g., kVA or amps).
- Highlights how efficiency affects usable shaft power.
- Requires an assumed or known efficiency \( \eta \).
- Not as direct as a torque measurement.
\( P_{\text{mech}} = \eta\, P_{\text{elec}}, \quad \text{HP} = \dfrac{\eta\, P_{\text{elec,W}}}{745.7} \)
What Moves the Number
Horsepower is just a way of packaging torque and speed into one value. The calculator lets you explore the most important levers.
At a fixed speed, horsepower scales linearly with torque: \( \text{HP} \propto T \). Doubling torque at the same RPM doubles horsepower.
At fixed torque, horsepower scales with speed: \( \text{HP} \propto n \). A gearbox that halves shaft speed roughly halves HP at that shaft for the same torque.
Mixing lb·ft and N·m or RPM and rad/s incorrectly is a classic error. The calculator normalizes to SI, so \( T \) is in N·m, \( \omega \) in rad/s, and \( P \) in watts before converting back to HP.
If you’re interpreting results against electrical kW, remember that only a fraction becomes shaft power: \( P_{\text{shaft}} = \eta P_{\text{input}} \). A 90% efficient 10 kW motor delivers about 12 HP, not 13.4 HP.
Motors with service factor > 1.0 can handle occasional overload, but continuous operation above rated HP shortens life. Use the calculator to compare required HP with rated HP plus a margin.
Engine and EV specs often quote “peak” horsepower that is only available for seconds. The calculator’s equations describe instantaneous mechanical power; always compare against the continuous rating for design.
Worked Examples
These examples mirror what the calculator does under the hood. They’re written so you can cross-check the “Calculation Steps” panel above.
Example 1 — Horsepower from Torque and RPM
- Application: Coupled pump driven by an electric motor
- Torque: \( T = 250 \,\text{lb·ft} \)
- Speed: \( n = 3000 \,\text{RPM} \)
- Goal: Required mechanical horsepower at the shaft
In the calculator, you’ll see a similar value in the result row, with quick stats showing \(\approx 106 \,\text{kW}\).
Example 2 — Horsepower from Power Rating
- Application: Industrial fan
- Motor rating: \( P = 55 \,\text{kW} \)
- Estimated efficiency: \( \eta = 92\% \) (for comparison)
- Goal: Shaft horsepower and approximate mechanical margin
If you also account for efficiency, the approximate mechanical output is
The calculator’s main output matches the simple rating-to-HP conversion; you can apply efficiency externally for more conservative sizing.
Common Layouts & Variations
Horsepower calculations show up in very different contexts: from pumps and fans to conveyors and vehicle powertrains. The table below suggests which inputs are typical and how to interpret the calculator’s output.
| Use Case | Typical Inputs | How to Use the Calculator | Pros / Cautions |
|---|---|---|---|
| Pumps & Centrifugal Fans | Nameplate kW, rated RPM, sometimes torque or performance curves. | Start in Power mode from kW rating to get HP. For detailed sizing, switch to Torque & RPM using test data at the operating point. | Efficient for quick comparisons of motor frames; watch out for variable-speed operation where actual HP at low speed is lower. |
| Conveyors & Mixers | Required torque from mechanical design, plus speed of the driven shaft. | Use Torque & RPM mode. Enter design torque with a safety factor and typical operating RPM to estimate required HP, then select the next standard motor size up. | Very sensitive to torque assumptions; make sure load cases include start-up and jams, not just steady running. |
| Automotive / EV Drivetrains | Peak torque and speed from dyno curves, plus continuous ratings. | Plug in torque and speed pairs from the curve to see how HP changes across the operating range. This mirrors the classic “power curve” diagram. | HP numbers quoted in marketing are usually peak values at a specific RPM; continuous HP is lower and more relevant for thermal design. |
| Compressors & Positive-Displacement Machines | Vendor kW/HP rating, expected operating pressure and speed. | Use Power mode to convert kW to HP, then cross-check load torque with the manufacturer’s data if available. | Operation far from the design point can increase torque and HP required; always validate against OEM curves. |
- Confirm whether ratings are mechanical output or electrical input.
- Check whether HP is continuous, intermittent, or peak.
- Verify the RPM used in the calculation matches the actual operating point.
- Include realistic efficiency when comparing against electrical limits.
- Document assumptions (load, duty cycle, environment) in your design notes.
- Re-run the calculator for worst-case load scenarios, not just nominal.
Specs, Logistics & Sanity Checks
Once you have a horsepower value from the calculator, you still need to turn it into a spec that purchasing, installers, and operators can work with.
Spec Checklist
- Record HP along with torque, speed, and voltage.
- Specify duty (continuous, intermittent, S1–S9 for motors).
- Include service factor or safety margin (e.g., 1.15× steady-state load).
- Note ambient temperature, altitude, and cooling method if non-standard.
Installation & Logistics
Higher horsepower usually means heavier frames, larger drives, and more demanding cabling. After you choose a motor size based on the calculator:
- Verify frame size, mounting pattern, and shaft dimensions.
- Check starting current and breaker / fuse sizing.
- Confirm that your VFD or starter is rated for the HP and current.
Sanity Checks Before Finalizing
Before you send a purchase order or sign off a design, run a few quick checks:
- Compare your HP with similar existing installations.
- Verify that the motor does not run near 100% load continuously.
- Re-calculate HP at both minimum and maximum expected speeds.
- For redundant systems, confirm that one unit can carry the load if another fails (if required by spec).
Frequently Asked Questions
What is the difference between horsepower and kilowatts?
Both are measures of power. One mechanical horsepower is approximately \( 745.7 \,\text{W} \) or \( 0.7457 \,\text{kW} \). The calculator simply converts between watts, kilowatts, and horsepower using this factor. Many standards and datasheets prefer kW, but HP is still common in North American practice.
How accurate are torque & RPM based horsepower calculations?
If your torque and speed values are accurate and in the correct units, the calculation \( P = T \omega \) is exact physics. In practice, uncertainty comes from measurement error, fluctuating load, and using average values for systems with highly dynamic cycles. For design, it is good practice to include some margin above the computed HP.
Why does the calculator convert everything to SI units first?
Working in SI (N·m, rad/s, watts) avoids memorizing multiple constants like 5252. The calculator converts your inputs to SI, applies \( P = T \omega \), and then converts the result to horsepower. This reduces unit mistakes and makes the steps transparent in the “Calculation Steps” panel.
Does this horsepower include efficiency losses?
The calculator’s horsepower is mechanical power at the shaft based on your torque and speed, or the value implied by a kW/HP rating. If you enter electrical input power without accounting for efficiency, the result will overestimate shaft HP. To incorporate efficiency, multiply the HP result by your estimated efficiency factor.
Can I use this calculator for engines as well as electric motors?
Yes. Any rotating machine where you know torque and speed (or power) can use the same equations. For combustion engines, be aware that published HP values are often measured at specific conditions (temperature, pressure, accessories) and may represent peak rather than continuous power.
Is the classic formula HP = torque × RPM / 5252 still valid?
Yes. The constant 5252 comes from combining unit conversions between lb·ft, RPM, and watts. The calculator’s SI-first approach is equivalent: when torque is in lb·ft and speed in RPM, the exact relationship reduces to \( \text{HP} \approx \dfrac{T_{\text{lb·ft}} \, n_{\text{RPM}}}{5252} \). The SI method is easier to extend to other units and helps avoid unit mix-ups.
How much safety margin should I add to the calculated horsepower?
It depends on the application. For steady industrial loads with good data, many engineers choose 10–20% above the calculated requirement. For highly variable or safety-critical loads, margins can be larger and may be dictated by standards. The calculator gives a physics-based baseline; your project requirements determine the final margin.
