Key Takeaways
- Definition: Steel materials are engineered iron-carbon alloys used for structural framing, reinforcement, connections, plates, decks, tubes, and load-bearing systems.
- Use case: They are selected when strength, ductility, stiffness, speed of erection, long spans, or reliable connection behavior matters.
- Main decision: Engineers must match grade, product form, toughness, weldability, corrosion protection, and availability to the actual structural demand.
- Outcome: Good steel material selection produces members and connections that are strong, ductile, inspectable, durable, and practical to fabricate.
Table of Contents
Introduction
In brief: Steel materials are structural alloys chosen for strength, ductility, stiffness, toughness, connection behavior, durability, availability, and constructability.
Who it’s for: Students and early-career designers.
For informational purposes only. See Terms and Conditions.
Steel is not one generic material. Structural performance depends on grade, shape, manufacturing method, connection detail, exposure, inspection, and the way forces move through the frame.

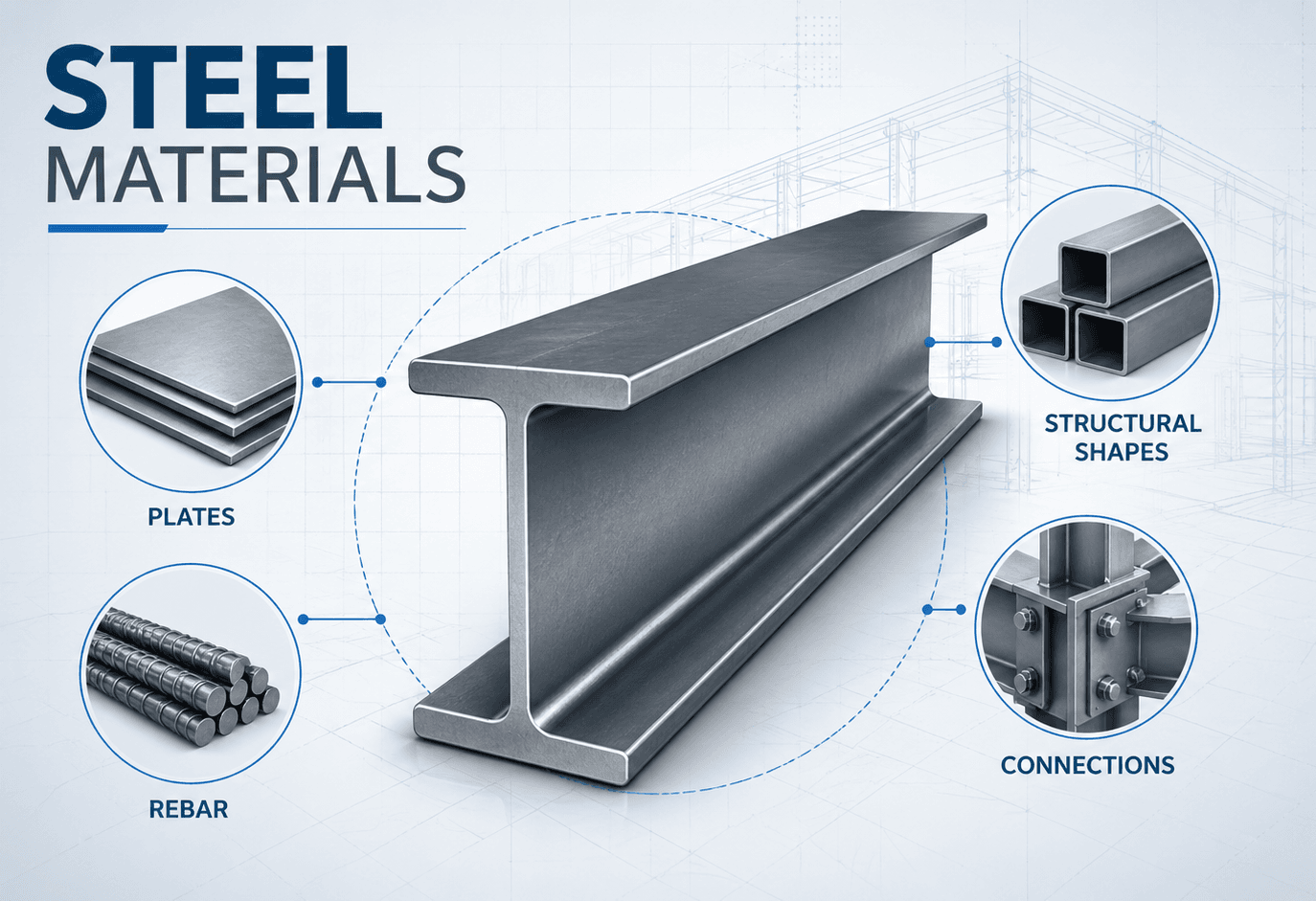

Steel Materials infographic
Notice that the material choice is tied to the load path. Rolled shapes, tubes, plates, bolts, welds, reinforcing bars, and protective systems each solve a different part of the structural problem.
What are steel materials?
Steel materials are iron-based alloys used in structures because they provide a useful combination of strength, stiffness, ductility, toughness, consistency, and fabrication flexibility. In structural engineering, the phrase usually includes rolled beams and columns, hollow structural sections, plates, channels, angles, reinforcing bars, metal deck, fasteners, weld metal, and sometimes specialty corrosion-resistant or high-strength steels.
The most important idea is that steel material selection is not just a strength question. A member may have enough nominal capacity on paper but still be a poor choice if it is difficult to weld, unavailable in the required shape, vulnerable to corrosion, sensitive to fracture, impractical to connect, or mismatched with the expected construction sequence.
Steel also behaves differently depending on how it is produced and used. A wide-flange beam in a building frame, a rectangular tube in an exposed canopy, a plate girder in a bridge, and a reinforcing bar inside concrete can all be “steel,” but they are specified, fabricated, inspected, and protected in different ways.
Before choosing a grade, identify the product form first. Rolled shape, tube, plate, bar, deck, bolt, and weld metal each follow different availability, detailing, and specification rules.
Core steel properties engineers care about
Steel design usually starts with strength, but material performance depends on several properties at once. Yield strength helps define when permanent deformation begins. Tensile strength describes the maximum stress before fracture. Elastic modulus controls stiffness in ordinary service ranges. Ductility allows redistribution and warning before failure. Toughness matters where fracture risk is important. Weldability affects how reliably the material can be joined.
Strength, stiffness, and ductility
For most structural steels, the elastic modulus is similar across common grades, even when yield strength changes. This is why switching to a higher-strength steel may reduce required area for strength but may not solve deflection, vibration, or drift problems. In those cases, stiffness and geometry often control more than the grade.
In the elastic range, stress \( \sigma \) is proportional to strain \( \varepsilon \), with \( E \) representing the modulus of elasticity. For ordinary structural steel design, this relationship helps explain why member depth, bracing, and geometry often matter as much as material strength.
- \(F_y\) Yield stress, commonly expressed in ksi or MPa; used for many strength checks.
- \(F_u\) Ultimate tensile stress; important for fracture, net section, bolts, and connection limit states.
- \(E\) Modulus of elasticity; commonly about 29,000 ksi or 200 GPa for structural steel.
- \(G\) Shear modulus; used in torsion, shear deformation, and stability-related calculations.
- \(C_v\) Charpy V-notch toughness indicator; important for fracture-critical or low-temperature applications.
Higher yield strength does not automatically mean a better member. Check deflection, vibration, local buckling, connection geometry, availability, and fabrication before upgrading the grade.
Main types of steel materials in structures
The right steel material depends on how the structure carries load. A gravity beam, moment frame column, brace, collector plate, reinforcing bar, anchor rod, and metal deck are selected differently because each one has different demands for strength, stiffness, ductility, weldability, fit-up, and inspection.
Structural shapes and plates
Wide-flange shapes are common for beams and columns because they provide efficient flexural and axial resistance with standard connection practices. Channels, angles, tees, and plates are used for secondary framing, bracing, stiffeners, gussets, connection elements, built-up members, and local reinforcement. Plate thickness, through-thickness behavior, and weld access become especially important in heavy connections.
Hollow structural sections
Hollow structural sections, or HSS, include square, rectangular, and round tubes. They are efficient in compression, torsion, and exposed architectural framing, but connection detailing can be more complex than simple shear tabs on wide-flange beams. The closed shape also affects galvanizing, venting, drainage, inspection, and internal corrosion protection.
Reinforcing steel
Reinforcing steel is used inside concrete to carry tension, control cracks, and provide ductility. Rebar selection is connected to steel reinforcement, concrete cover, bar spacing, development length, lap splices, couplers, corrosion exposure, and inspection requirements.
Fasteners, welds, and connection materials
Bolts, weld metal, anchor rods, shear studs, washers, nuts, base plates, and bearing plates are part of the steel material system. Connection materials matter because many structural failures initiate at connections, not in the middle of an idealized member.
| Steel material form | Common structural use | Main selection concern | Practical note |
|---|---|---|---|
| Wide-flange shapes | Beams, columns, girders | Flexure, axial load, buckling, connection fit | Common and efficient for building frames. |
| HSS tubes | Columns, braces, trusses, exposed frames | Connection detailing, local wall limits, drainage | Excellent torsional behavior and clean appearance. |
| Plates | Base plates, gussets, stiffeners, built-up members | Thickness, weldability, fit-up, fracture risk | Often governs connection constructability. |
| Rebar | Reinforced concrete and masonry | Yield grade, spacing, cover, bond, corrosion | Works with concrete to resist tension and cracking. |
| Bolts and weld metal | Connections and splices | Strength, installation, inspection, compatibility | Must match the intended connection design. |
Common steel grades and how they are selected
A steel grade defines material requirements such as yield strength, tensile strength, chemistry, testing, and sometimes toughness or product limits. In practice, the best grade is often the one that satisfies design requirements while remaining easy to source, fabricate, inspect, and connect.
For many building frames, ASTM A992 is widely used for rolled wide-flange shapes. ASTM A36 still appears in plates, angles, and miscellaneous steel. ASTM A500 is common for hollow structural sections. ASTM A615 and related reinforcing bar specifications apply to many concrete reinforcement applications. Weathering steel, stainless steel, and galvanized systems may be selected where corrosion exposure or maintenance strategy controls.
Identify product form → define load and limit states → check required strength and stiffness → evaluate weldability and connection detailing → review exposure and fire conditions → confirm availability and fabricator preference → specify grade, coating, inspection, and substitutions.
What controls the grade decision?
Grade selection is controlled by more than nominal capacity. A high-strength grade may help reduce member weight, but it can also create more demanding connection design, local buckling checks, ductility considerations, and procurement issues. For exposed structures, corrosion protection and appearance may control. For bridges, fatigue and fracture toughness may matter more than the strength increase.
The best steel grade on paper can become a schedule problem if it is not readily available in the required shape, thickness, length, or mill quantity.
Steel material selection workflow
Steel material selection should follow the structure’s load path. First, understand how the structure carries gravity and lateral loads. Then choose the product forms and grades that make the load path strong, stable, ductile, and buildable.
Step 1: define the structural role
A beam, column, brace, truss chord, base plate, rebar cage, or connection plate has a different job. The material selection should match that job before calculations become detailed. For example, a brace may need axial capacity and connection ductility, while a floor beam may be controlled by deflection or vibration.
Step 2: identify the controlling limit states
Steel members may be controlled by yielding, rupture, lateral-torsional buckling, local buckling, shear, bearing, block shear, bolt slip, weld strength, fatigue, fracture, serviceability, fire resistance, or corrosion. The controlling limit state affects whether strength, geometry, connection details, or durability should drive the material choice.
Step 3: coordinate fabrication and erection
A material that is easy to calculate but hard to fabricate is not a good design outcome. Engineers should coordinate camber, shop splices, field splices, bolt access, weld access, hole tolerances, coating sequence, member shipping length, lifting points, and site constraints early enough to avoid redesign.
Structural role → governing forces → member form → steel grade → connection strategy → coating/fire strategy → fabrication review → inspection requirements → final specification.
Equations and calculations for steel materials
Steel material selection is not usually based on one equation, but a few relationships help explain the decisions engineers make. Stress, strain, stiffness, and self-weight show up repeatedly in member design, serviceability checks, and preliminary sizing.
Stress from axial force
Axial stress \( f \) equals force \( P \) divided by area \( A \). This simple relationship is useful for first-pass checks, but final design must also consider buckling, net section, connections, load combinations, and resistance factors.
Elastic deformation
Axial deformation \( \delta \) depends on force, length, area, and modulus of elasticity. Increasing yield strength alone does not reduce elastic deformation unless the area, geometry, or member configuration changes.
Self-weight estimate
Steel self-weight can be estimated from density \( \rho \) and volume \( V \). In U.S. customary units, structural steel is often approximated as 490 lb/ft³. This matters for dead load, erection planning, crane picks, shipping, and foundation reactions.
If a higher-strength steel does not reduce deflection or vibration, the issue is probably stiffness, span, depth, bracing, continuity, or system layout rather than yield stress.
Durability, corrosion, coatings, and fire exposure
Steel is strong and predictable, but it must be protected when the environment demands it. Interior dry building framing may need only ordinary shop primer or fireproofing coordination, while exterior canopies, parking structures, industrial facilities, coastal structures, bridges, and exposed connections may require galvanizing, metallizing, weathering steel, stainless steel, paint systems, or detailed drainage.
Corrosion protection
Corrosion risk depends on moisture, oxygen, chlorides, industrial contaminants, crevices, poor drainage, damaged coatings, and maintenance access. A good steel material strategy avoids water traps, seals vulnerable joints, coordinates coating thickness with bolt holes and faying surfaces, and provides inspection access where deterioration is likely.
Fire and heat exposure
Steel loses strength and stiffness at elevated temperatures, so building design often requires fire-resistance measures such as spray-applied fire-resistive material, intumescent coatings, concrete encasement, gypsum assemblies, or performance-based fire engineering. Fire protection is part of the material decision because it affects member shape, connection detailing, architectural exposure, inspection, and long-term maintenance.
Weathering and stainless steels
Weathering steel can reduce coating maintenance when it forms a stable protective patina, but it needs proper wet-dry cycling and detailing. Stainless steel can perform well in aggressive environments, but cost and connection compatibility must be considered. Neither option replaces sound drainage and realistic exposure assessment.
Do not specify a corrosion-resistant material while leaving details that trap water. Poor drainage can defeat an otherwise good coating or alloy selection.
Engineering judgment and field reality
Steel materials behave predictably when the design, fabrication, erection, and inspection assumptions all line up. Problems often appear when drawings assume perfect fit, perfect material substitutions, perfect weld access, or perfect coating continuity. Real projects include tolerances, erection sequence, weather, shipping limits, field fixes, existing conditions, and coordination conflicts.
Engineers should think beyond member capacity. A steel beam must be connectable. A brace must fit into the bay. A base plate must allow anchor rod tolerances. A welded plate must be accessible for inspection. A galvanized tube must have vent and drain holes. A painted exterior frame must be maintainable. A high-strength member must still satisfy serviceability limits.
The connection is often where steel material decisions become real. Plate thickness, bolt spacing, weld size, access, tolerances, coating, and erection sequence can control the final detail.
Practical steel material checks
- Confirm the specified grade is available in the required product form and thickness.
- Check whether stiffness, deflection, drift, or vibration controls before increasing strength.
- Coordinate weldability, preheat, inspection, and base metal thickness for heavy details.
- Review coating systems with connection slip requirements, fireproofing, and exposed appearance.
- Make sure substitutions preserve strength, toughness, weldability, ductility, and code intent.
When this breaks down
Simplified steel material assumptions break down when the structure is outside ordinary building behavior. Fatigue-sensitive members, fracture-critical components, seismic systems, low-temperature service, heavy weldments, existing unknown steel, fire-damaged steel, corroded steel, and dynamically loaded structures may require deeper material review and more specific testing.
The assumption that steel is ductile and forgiving can also fail when details create brittle behavior. Sharp notches, poor weld terminations, thick restrained plates, inadequate toughness, poor quality control, or unexpected low temperatures can reduce the warning normally expected before fracture. This is why toughness, inspection, and detail category matter in bridges, cranes, industrial frames, and other demanding applications.
| Condition | Why ordinary assumptions may fail | Engineering response |
|---|---|---|
| Fatigue loading | Repeated stress cycles can initiate cracks below static strength limits. | Use fatigue design provisions, detail categories, and inspection planning. |
| Low-temperature service | Fracture toughness may control before ordinary strength checks. | Specify toughness requirements and avoid brittle details. |
| Existing steel | Grade, weldability, section loss, and prior damage may be unknown. | Use testing, investigation, conservative assumptions, and repair details. |
| Severe corrosion | Net section, connection behavior, and coating assumptions change. | Measure section loss and design repair or replacement strategy. |
| Fire exposure | Strength, stiffness, straightness, and residual properties may be affected. | Perform condition assessment before reuse or strengthening. |
Common pitfalls and engineering checks
Many steel material problems come from treating material specification as a late-stage note instead of an integrated design decision. The checks below help keep steel material selection aligned with structural analysis, connection design, and construction reality.
- Using strength as the only decision factor: stiffness, buckling, connection design, and serviceability may control.
- Assuming all steel is weldable the same way: chemistry, thickness, restraint, and procedure requirements matter.
- Ignoring product form: wide-flange shapes, HSS, plates, bolts, weld metal, and rebar are not interchangeable specifications.
- Forgetting coating coordination: galvanizing, paint, fireproofing, slip-critical joints, and architecturally exposed steel can conflict.
- Allowing unreviewed substitutions: equal strength does not guarantee equal toughness, ductility, weldability, or availability.
- Missing field tolerances: anchor rods, base plates, slotted holes, shims, and erection clearances often decide whether steel fits.
Review steel material notes together with the connection details. Most specification problems become visible when you ask how the member will be bolted, welded, lifted, coated, inspected, and maintained.
Visualizing steel material decisions
A useful way to visualize steel materials is to follow the force path from load to foundation. The floor load reaches deck or slab support, transfers into beams, moves through girders, enters columns or braces, passes through connections and base plates, and finally reaches the foundation. Each step may use a different steel material form.
This is why material selection should not be isolated from structural analysis, structural loads, connection design, and field inspection. A strong member with a weak, brittle, corroded, or unbuildable connection is not a successful steel design.
Think in systems: member form, grade, connection material, coating, fire protection, fabrication, erection, and maintenance all work together.
Relevant standards and design references
Steel material specifications and design requirements depend on project type, jurisdiction, and adopted codes. The references below are commonly encountered in structural steel and reinforced concrete work.
- AISC 360, Specification for Structural Steel Buildings: Used for structural steel member and connection design in many U.S. building projects.
- AISC Steel Construction Manual: Provides design aids, shape properties, connection guidance, and practical structural steel design information.
- ASTM material specifications: Define requirements for steels such as wide-flange shapes, plates, HSS, reinforcing bars, bolts, anchor rods, and other products.
- AWS D1.1 Structural Welding Code—Steel: Governs many structural steel welding requirements, procedures, qualifications, and inspection expectations.
- ACI 318 for reinforced concrete: Relevant when steel materials are used as reinforcement in concrete members and must satisfy development, cover, spacing, and durability requirements.
Frequently asked questions
Steel materials are the structural steels, reinforcing steels, connection materials, coatings, and product forms used to carry load, provide ductility, resist corrosion, and make a structure buildable.
Many U.S. wide-flange building frames commonly use ASTM A992 steel because it provides predictable yield strength, good weldability, and broad availability for rolled shapes. Other grades may control for tubes, plates, bridges, exposed weathering steel, or reinforcing bars.
Structural steel is used as the primary exposed or enclosed framing material in beams, columns, braces, trusses, plates, and connections. Reinforcing steel is embedded inside concrete to resist tension, control cracking, and provide ductility in reinforced concrete members.
Steel material assumptions can break down when corrosion, fire exposure, fatigue, brittle fracture risk, poor welding, uncertain existing material, low-temperature service, or unverified substitutions change the expected strength, ductility, or connection behavior.
Member size only solves part of the problem. The selected steel must also meet strength, ductility, toughness, weldability, availability, coating, fabrication, inspection, fire, and durability requirements for the actual project conditions.
Summary and next steps
Steel materials are the family of structural alloys, product forms, reinforcement products, connection materials, and protective systems that allow steel structures to carry load safely and predictably. Good steel material selection starts with the structural role, then checks strength, stiffness, ductility, toughness, weldability, durability, fire exposure, fabrication, and inspection.
The most practical takeaway is that steel is a system decision. A beam, brace, column, plate, bolt, weld, coating, and base detail must work together. Strong material on paper is not enough if the member cannot be connected, protected, inspected, erected, or maintained in the real project.
