Key Takeaways
- Core idea: An isothermal process keeps temperature constant while pressure, volume, heat transfer, and work may change.
- Engineering use: It helps engineers analyze idealized expansion, compression, heat engines, refrigeration behavior, and gas-law problems.
- What controls it: The key controls are thermal contact, process speed, gas behavior, pressure-volume change, and whether the process is close to reversible.
- Practical check: Isothermal does not mean insulated; heat must transfer fast enough to keep the system near constant temperature.
Table of Contents
Introduction
An isothermal process is a thermodynamic process in which the system temperature remains constant. In mechanical engineering, this idea is used to study ideal gas expansion, compression, heat engines, refrigeration cycles, and pressure-volume behavior where heat transfer offsets work so temperature does not rise or fall.

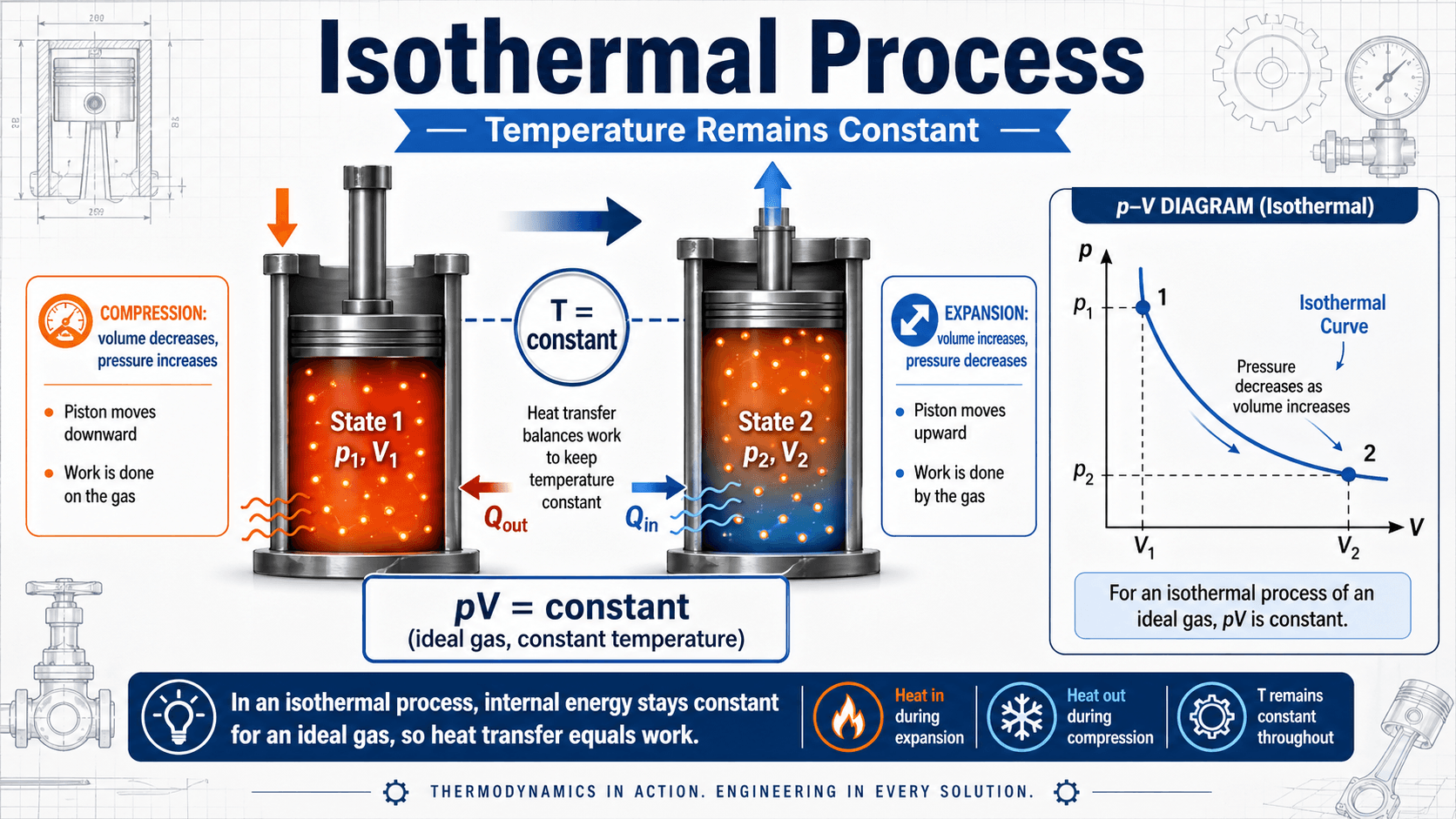

Visual Guide to an Isothermal Process
Notice that the process is not defined by constant pressure or constant volume. The defining condition is constant temperature, which is why pressure and volume can trade off while the gas remains on the same temperature path.
What is an Isothermal Process?
An isothermal process is a process path where the temperature of the system stays the same from the beginning to the end of the process. For an ideal gas with a fixed amount of gas, constant temperature means the product of pressure and volume stays constant. If volume increases, pressure decreases. If volume decreases, pressure increases.
The most common textbook model is a gas inside a piston-cylinder assembly that expands or compresses while staying in thermal contact with a reservoir. The reservoir supplies or removes heat as needed so the gas temperature does not change. This is why an isothermal process is usually an idealized, slow, well-controlled process rather than a sudden real-world event.
Isothermal means constant temperature, not constant heat. Heat may enter or leave the system specifically because the temperature is being held constant.
How an Isothermal Process Works
During an isothermal process, the system exchanges energy with its surroundings in a way that prevents the system temperature from changing. In an ideal gas, internal energy depends only on temperature, so a constant-temperature process has no internal energy change.
Expansion at constant temperature
During isothermal expansion, the gas volume increases and the gas does work on the surroundings. Without heat added from the surroundings, that work output would reduce the gas internal energy and lower its temperature. To remain isothermal, heat must flow into the gas while it expands.
Compression at constant temperature
During isothermal compression, work is done on the gas. Without heat removal, that work input would raise the gas temperature. To remain isothermal, heat must leave the gas as compression occurs. This is why cooling, slow compression, and good thermal contact are important when approximating isothermal compression in practice.
Pressure-volume behavior
On a pressure-volume diagram, an ideal gas isothermal path appears as a downward-curving hyperbola. The curve is not a straight line because pressure changes inversely with volume when temperature and gas amount remain constant.
Where Isothermal Processes Are Used in Engineering
Mechanical engineers use isothermal processes as ideal models for systems where heat transfer is strong enough, or the process is slow enough, that temperature remains nearly constant. The model is especially useful for understanding gas behavior, cycle limits, compression work, and the role of heat exchange in thermal systems.
- Analyzing piston-cylinder expansion and compression of gases under controlled thermal conditions.
- Understanding the isothermal steps in ideal heat engine and refrigeration cycle models, including the Carnot Cycle.
- Comparing ideal process paths in thermodynamic cycles.
- Estimating ideal compression work when a gas is cooled enough to stay close to constant temperature.
- Teaching the link between gas laws, heat transfer, work, and the First Law of Thermodynamics.
Ask whether the process has enough time and surface area to exchange heat. A fast compression or expansion is usually not isothermal, even if the starting and ending temperatures are later measured as similar.
What Controls an Isothermal Process?
The quality of an isothermal assumption depends on more than the word “constant.” Engineers look at the thermal boundary, process speed, gas model, and pressure-volume path before treating a process as isothermal.
| Factor | Why it matters | Engineering implication |
|---|---|---|
| Thermal contact | The system must exchange heat with surroundings to resist temperature change. | Large heat transfer area, conductive walls, or thermal reservoirs make the isothermal assumption more reasonable. |
| Process speed | Fast processes may not allow enough time for heat to enter or leave. | Rapid compression often behaves closer to adiabatic than isothermal. |
| Gas model | The ideal gas relationships assume low-to-moderate pressure and temperature ranges where real-gas effects are limited. | High-pressure gases, refrigerants, and phase-change regions may need property tables or real-gas equations. |
| Reversibility | The common work equation assumes a reversible or quasi-equilibrium path. | Friction, turbulence, pressure losses, and finite temperature differences change real work and heat transfer. |
| Sign convention | Different textbooks use different signs for work and heat. | State whether work is positive when done by the gas or positive when done on the gas before interpreting results. |
Isothermal Process Equations
For a fixed amount of ideal gas at constant temperature, the ideal gas law simplifies into a pressure-volume relationship. This is the main reason isothermal processes are often introduced alongside Boyle’s Law.
This equation means pressure and volume change inversely when temperature and gas amount are constant. If volume doubles, pressure is cut in half. If volume is reduced by half, pressure doubles, assuming ideal gas behavior.
For a reversible isothermal process, the work done by the gas is found by integrating the pressure-volume curve. With the convention used here, expansion gives positive work because \(V_2\) is greater than \(V_1\), while compression gives negative work because \(V_2\) is smaller than \(V_1\).
For an ideal gas, internal energy depends only on temperature. Because an isothermal process has no temperature change, \(\Delta U = 0\). Under the common convention \(\Delta U = Q – W\), heat transfer equals the work done by the gas.
- P Pressure, commonly in pascals, kilopascals, bar, psi, or atm depending on the problem.
- V Volume, commonly in cubic meters, liters, cubic feet, or gallons; ratios must use consistent units.
- n Amount of gas in moles or pound-moles, matched with the correct gas constant.
- R Gas constant; use \(8.314 \, \text{J/(mol·K)}\) for SI molar calculations.
- T Absolute temperature, always in kelvin for SI calculations or Rankine for US customary thermodynamic calculations.
- W Work interaction; sign depends on whether the chosen convention treats work by the gas or work on the gas as positive.
Isothermal Process Sanity Check Workflow
Before using isothermal equations, check whether the process, equation, and units match the physical problem. This prevents the most common mistake: applying the ideal reversible isothermal formula to a process that is actually fast, insulated, irreversible, or outside the ideal gas range.
Confirm constant temperature → confirm fixed gas amount → choose the sign convention → use consistent absolute units → decide whether the path is reversible enough for \(W = nRT \ln(V_2/V_1)\) → compare the result against expansion or compression behavior.
| Check or decision | What to look for | Why it matters |
|---|---|---|
| Temperature basis | Temperature must be constant and expressed as kelvin or Rankine in thermodynamic equations. | Using Celsius or Fahrenheit directly in \(nRT\) gives incorrect work values. |
| Volume ratio | \(V_2/V_1\) must be greater than 1 for expansion and less than 1 for compression. | The natural logarithm controls whether work is positive or negative under the selected sign convention. |
| Heat transfer direction | Heat enters during ideal isothermal expansion and leaves during ideal isothermal compression. | This confirms that the process is not adiabatic and that temperature can remain constant. |
| Reversibility assumption | Look for slow motion, small pressure differences, minimal friction, and near-equilibrium behavior. | The standard logarithmic work equation represents a reversible path, not every real process. |
| Ideal gas range | Check whether the gas is far from saturation and not at extreme pressure or temperature. | Real-gas behavior can make \(PV = nRT\) and \(P_1V_1 = P_2V_2\) inaccurate. |
Worked Example: Isothermal Expansion of an Ideal Gas
Suppose 1.0 mol of ideal gas expands reversibly and isothermally at 300 K from 0.020 m³ to 0.050 m³. Using the convention that work done by the gas is positive, the work is:
Interpretation
The positive result means the gas does about 2.29 kJ of work on the surroundings during expansion. Because the process is isothermal for an ideal gas, \(\Delta U = 0\), so approximately 2.29 kJ of heat must enter the gas to keep its temperature from dropping.
Pressure check
The pressure must decrease as the volume increases. Since the volume increases by a factor of 2.5, the final pressure should be 40% of the initial pressure. This pressure-volume check is a useful way to catch swapped initial and final volumes.
Isothermal vs Adiabatic, Isobaric, and Isochoric Processes
Isothermal process problems are often confused with other idealized thermodynamic paths. The difference is the property being held constant or the interaction being removed.
| Process type | What stays constant? | Typical engineering meaning |
|---|---|---|
| Isothermal | Temperature | Heat transfer offsets work so the system stays at the same temperature. |
| Adiabatic | Heat transfer is zero | No heat crosses the boundary, so temperature often changes during expansion or compression. |
| Isobaric | Pressure | Common in simplified heating or cooling processes where pressure is held constant. |
| Isochoric | Volume | No boundary work occurs because the system volume does not change. |
A useful next comparison is the Adiabatic Process, because it represents the opposite heat-transfer assumption. Isothermal analysis depends on heat exchange; adiabatic analysis removes it.
Engineering Judgment and Field Reality
Real equipment rarely follows a perfectly isothermal path. Compressors heat the gas, cylinders have friction, heat exchangers have finite temperature differences, and pressure losses occur in valves, piping, and passages. Engineers still use isothermal models because they create a useful benchmark for minimum compression work and ideal heat-transfer behavior.
In real gas compression, adding intercooling between stages can make the total process more nearly isothermal. This lowers work input compared with a hot, nearly adiabatic compression path. However, the result depends on heat exchanger effectiveness, pressure drop, compressor speed, gas properties, and allowable equipment size.
A measured final temperature near the starting temperature does not prove the whole process was isothermal. The gas may have heated during compression and cooled afterward, which is a different process path with different work and heat-transfer behavior.
When This Breaks Down
The isothermal model becomes unreliable when the constant-temperature assumption does not describe the actual process path or when the ideal gas and reversible path assumptions are not appropriate.
- Fast compression or expansion may not allow enough time for heat transfer, so temperature changes significantly.
- Insulated or poorly cooled systems behave closer to adiabatic than isothermal.
- High-pressure gases, refrigerants, and near-saturation conditions may require real-fluid property data instead of ideal gas equations.
- Friction, throttling, turbulence, leakage, and pressure drop make real processes irreversible.
- Phase change can occur at constant temperature, but it should not be analyzed with simple ideal gas isothermal equations.
Common Mistakes and Practical Checks
Most errors come from mixing process types, using the wrong temperature scale, or applying the reversible ideal gas equation without checking the assumptions.
- Confusing isothermal with adiabatic. Isothermal requires temperature to stay constant; adiabatic requires no heat transfer.
- Using Celsius or Fahrenheit directly in \(nRT\) instead of absolute temperature.
- Using \(P\Delta V\) for a variable-pressure isothermal process instead of integrating the pressure-volume curve.
- Ignoring the sign convention for work and heat transfer.
- Assuming any constant final temperature means the entire path was isothermal.
The work equation \(W = nRT \ln(V_2/V_1)\) applies to a reversible ideal gas isothermal process. It should not be applied blindly to rapid compression, throttling, real-gas refrigerant states, or phase-change calculations.
Useful References and Engineering Context
Isothermal processes are usually introduced through engineering thermodynamics, ideal gas behavior, and energy balance methods rather than through a single design code. These references help place the concept in the correct engineering context.
- Engineering thermodynamics textbooks: Used to define system boundaries, heat, work, internal energy, reversible processes, and ideal gas process equations.
- Ideal gas law and gas property references: Used to evaluate pressure, volume, temperature, amount of gas, and the limits of ideal gas assumptions.
- Heat transfer references: Used to judge whether a real process can exchange heat fast enough to remain nearly constant temperature.
- Thermodynamic cycle analysis: Used to connect isothermal paths with heat engines, refrigeration cycles, and performance limits.
Frequently Asked Questions
An isothermal process is a thermodynamic process where the system temperature stays constant while pressure, volume, heat transfer, and work may change. For an ideal gas, constant temperature means internal energy does not change, so heat transfer balances the work interaction.
For a fixed amount of ideal gas at constant temperature, the main relationship is \(P_1V_1 = P_2V_2\). For reversible isothermal work, the common formula is \(W = nRT \ln(V_2/V_1)\), where \(W\) is work done by the gas, \(n\) is moles, \(R\) is the gas constant, \(T\) is absolute temperature, and \(V_1\) and \(V_2\) are the initial and final volumes.
No. Isothermal does not mean no heat transfer. For an ideal gas, heat must usually enter during isothermal expansion or leave during isothermal compression so the temperature can remain constant while work is being done.
An isothermal process keeps temperature constant and usually requires heat transfer. An adiabatic process has no heat transfer, so the gas temperature commonly changes during expansion or compression. This is why isothermal and adiabatic curves have different shapes on a pressure-volume diagram.
Summary and Next Steps
An isothermal process is a constant-temperature thermodynamic path. For an ideal gas, this creates the familiar inverse pressure-volume relationship and makes internal energy change equal to zero.
The most important practical idea is that isothermal behavior usually requires heat transfer. Expansion needs heat input, compression needs heat removal, and real systems only approximate the ideal model when the thermal boundary and process speed support it.
