Introduction
In brief: Settlement analysis predicts how much and how fast soil-supported systems will move so engineers can limit distortion, cracking, serviceability problems, and long-term performance risk.
Who it’s for: Students, FE/PE prep, and design reviewers.
For informational purposes only. See Terms and Conditions.
In practice, settlement analysis is where soil compressibility, stress increase, drainage, structural tolerance, and engineering judgment all come together. Many foundations are not governed by bearing failure at all; they are governed by movement.

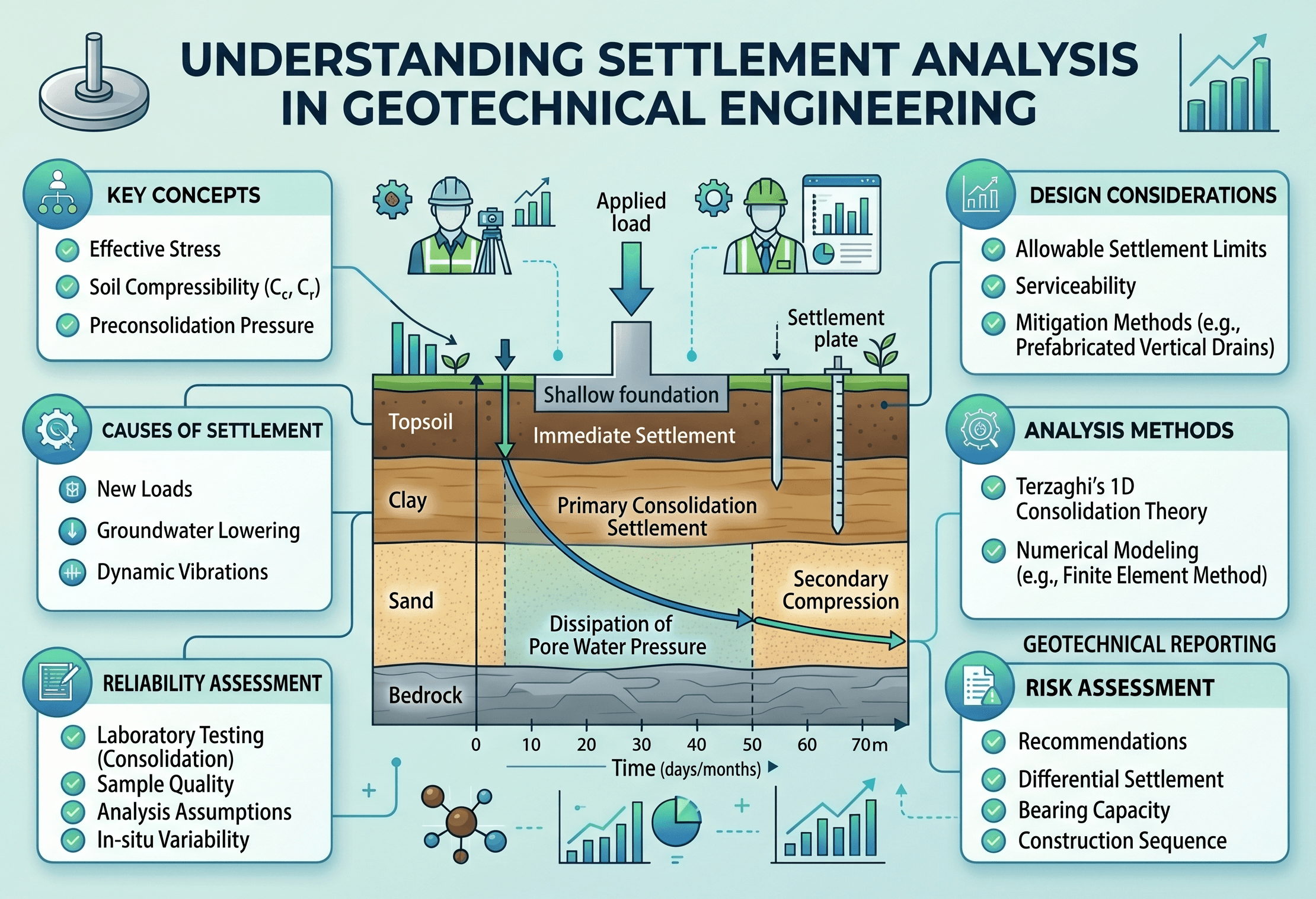

Settlement Analysis infographic
Notice that settlement is not just a single number at the foundation base. Engineers care about where movement happens, how uneven it is, and whether it occurs immediately or over months to years. That is what turns a simple soil reaction problem into a serviceability design problem.
What is settlement analysis?
Settlement analysis is the geotechnical process of estimating vertical ground movement caused by an applied load, stress change, or moisture-related volume change. It is used for footings, mats, slabs, tanks, embankments, walls, and other systems whose performance depends on how the supporting ground deforms over time.
The reason it matters is simple: a structure can remain stable from a strength standpoint and still perform poorly if movement exceeds what the structure can tolerate. Doors bind, façades crack, utilities distort, rails lose line and grade, tanks rack, and equipment loses alignment. For that reason, settlement is often a serviceability limit state that controls the design long before a classical bearing failure is reached.
Settlement analysis also sits at the intersection of several related topics. It depends on realistic subsurface interpretation from Site Characterization, soil behavior fundamentals from Soil Mechanics, and time-dependent compression behavior from Soil Consolidation. On real projects, it feeds directly into Foundation Design and often determines whether shallow support remains viable.
Types of settlement engineers check
A good settlement review separates the mechanism of movement instead of lumping everything into a single estimate. Different soils, loading durations, and drainage conditions produce different settlement behavior.
Immediate or elastic settlement
Immediate settlement occurs as the soil skeleton distorts under stress. It is especially important in granular soils, unsaturated soils, and short-term loading situations. It tends to occur quickly, often during construction or shortly after the load is applied.
Primary consolidation settlement
Primary consolidation is the time-dependent compression of saturated fine-grained soils as excess pore water pressure dissipates. This is the classic mechanism that governs many soft-clay foundation problems. The magnitude depends on compressibility and stress history, while the rate depends on drainage path and the coefficient of consolidation.
Secondary compression or creep
Secondary compression continues after most excess pore pressure has dissipated. It is especially relevant in organic soils, peats, and highly compressible clays. Even when primary consolidation has largely ended, long-term creep can continue to cause serviceability problems.
Total vs. differential settlement
Total settlement is the average downward movement of the foundation system. Differential settlement is the difference in movement between two points. In buildings and equipment foundations, differential settlement is often more damaging because it causes distortion, curvature, and cracking.
Ask first whether the structure is sensitive to magnitude, rate, or differential pattern. Different projects are controlled by different settlement outcomes.
Core principles, variables, and units
Settlement estimates come from three linked questions: how much vertical stress increase reaches a compressible layer, how compressible that layer is, and whether drainage allows the compression to occur quickly or slowly. The analysis can be simple or advanced, but those three ideas always remain in play.
Key variables and typical ranges
The exact parameter set depends on the method, but the following quantities show up repeatedly in settlement work. Use them to sanity-check a report, spreadsheet, or software model before trusting the output.
- \(q\) Applied contact pressure or net stress increase at the foundation level, typically in psf, ksf, kPa, or MPa.
- \(\Delta \sigma_z\) Vertical stress increase at depth caused by loading; this decreases with depth and depends on geometry.
- \(H\) Thickness of the compressible layer, usually in ft or m; larger compressible thickness often means larger settlement potential.
- \(E_s\) Soil modulus used for elastic settlement estimates; must be interpreted carefully because stiffness is stress- and strain-dependent.
- \(C_c\) Compression index for normally consolidated clay, obtained from oedometer testing.
- \(C_r\) Recompression or swell index for unloading-reloading ranges, usually lower than \(C_c\).
- \(e_0\) Initial void ratio, a key input for one-dimensional consolidation settlement calculations.
- \(\sigma’_0\) Initial effective overburden stress before loading; required to evaluate stress history correctly.
- \(\sigma’_p\) Preconsolidation pressure; the boundary between recompression behavior and virgin compression behavior.
- \(c_v\) Coefficient of consolidation, used to estimate how quickly primary consolidation occurs.
Settlement numbers that look precise to the nearest hundredth of an inch often hide much larger uncertainty in soil stiffness, layer continuity, and groundwater assumptions. Treat the input model as the real engineering product.
Decision logic and practical workflow
Engineers do not start settlement analysis by choosing an equation. They start by identifying what is being supported, how sensitive it is to movement, and which layers are likely to compress. Only then does the choice of method make sense.
1) Define the supported structure and movement tolerance. 2) Build the subsurface model and identify compressible zones. 3) Estimate stress increase with depth. 4) Choose immediate, consolidation, and creep methods as needed. 5) Compare total and differential settlement to project tolerances. 6) Revise footing size, layout, ground treatment, or foundation type if movement is unacceptable.
This workflow is why settlement analysis is rarely isolated. It ties directly to foundation type selection, structural stiffness, groundwater control, and construction staging. For difficult sites, the analysis may evolve from hand checks to numerical modeling, but the basic logic remains unchanged.
Equations and calculations
Settlement methods should match the controlling soil behavior. A widely used first-principles form for one-dimensional primary consolidation settlement in clay is:
For overconsolidated soils, engineers often separate recompression and virgin compression. That means using \(C_r\) up to preconsolidation pressure and \(C_c\) beyond it. This is why getting \(\sigma’_p\) and OCR right matters so much.
The second expression represents a simplified elastic settlement form, where \(S_i\) is immediate settlement, \(B\) is a representative foundation width, \(\nu\) is Poisson’s ratio, \(E_s\) is soil modulus, and \(I_s\) is an influence factor based on foundation shape and rigidity. In practice, this method is only as good as the modulus interpretation behind it.
Keep stress, modulus, and geometry in one unit system from start to finish. Settlement errors caused by mixing ksf, psf, feet, and inches are still common in otherwise polished calculations.
Worked example
Example
Consider a lightly loaded building on a shallow mat foundation bearing over 8 ft of soft to medium clay. The service-level stress increase at the center of the clay layer is estimated as 1.2 ksf. Oedometer testing indicates \(C_c = 0.28\), \(e_0 = 0.90\), and an initial effective stress \(\sigma’_0 = 1.5\) ksf. For a first-pass estimate of primary consolidation settlement:
That corresponds to about 3.6 inches of primary consolidation settlement. For many ordinary structures, that could already be a concern. But the analysis is not finished. The engineer still needs to ask whether the layer is overconsolidated, whether the stress increase varies meaningfully across the footprint, whether the structural system can tolerate the differential pattern, and how long the settlement will take.
If the structure is settlement-sensitive, the response might include a larger foundation footprint to reduce stress, use of preload and drains, replacement or improvement of the soft layer, or a switch to deep foundations. The calculation itself is only the beginning; the design decision comes from what the result means for performance and cost.
Engineering judgment and field reality
Settlement analysis is one of the easiest geotechnical tasks to make look more certain than it really is. A spreadsheet may contain dozens of rows and clean formulas, but the result still depends on how well the engineer understands the actual ground. Small differences in layer continuity, moisture condition, fill quality, and stress history can change the answer materially.
Field reality also reminds engineers that settlement is often more variable than bearing capacity. A footing may rest partly on dense sand and partly on softer disturbed material. Two adjacent column loads may have similar contact pressure but very different underlying compressible thickness. That is how differential settlement develops even when average bearing checks appear comfortable.
Construction effects matter too. Overexcavation, rain-softened subgrade, perched water, utility trench backfill, and disturbance from repeated equipment traffic can all degrade the founding condition after the geotechnical report was written. Settlement risk is rarely just a lab-parameter problem.
Many costly settlement issues begin because the built condition no longer matches the design assumption. Always reconnect the calculation to what was actually exposed in the field.
Where this method breaks down
Conventional settlement methods start to lose reliability when the soil profile is highly layered, laterally variable, heavily fissured, organic, collapsible, expansive, or strongly affected by changing groundwater. They also struggle when stress paths are complex, loading is cyclic, construction is staged, or soil-structure interaction materially alters the distribution of contact pressure.
Another breakdown point is the misuse of simplified modulus-based methods in soils where stiffness changes strongly with strain level and confinement. A single modulus value can hide a great deal of uncertainty. Likewise, one-dimensional consolidation equations can mislead if drainage assumptions, stress history, and the actual geometry of compressible zones are not represented realistically.
When these conditions appear, engineers may need higher-quality sampling, more advanced constitutive assumptions, staged analysis, instrumentation, or a different foundation concept entirely. In many cases, the right answer is not a more elaborate settlement equation but a design change such as Ground Improvement, a mat foundation, or deep support.
Common pitfalls and engineering checks
- Checking total settlement and forgetting distortion, angular change, or differential movement.
- Using settlement parameters from poor-quality samples or inappropriate correlations.
- Ignoring deeper compressible strata because near-surface material appears competent.
- Assuming groundwater conditions at exploration will stay unchanged through construction and operation.
- Applying hand methods outside the range where their assumptions remain reasonable.
One of the most expensive mistakes is accepting an “allowable bearing pressure” value as if it automatically guarantees acceptable settlement. In many projects, settlement is the controlling check, not ultimate shear failure.
| Check | Why it matters | Typical trigger | Common response |
|---|---|---|---|
| Total settlement | Controls serviceability and long-term function | Soft clay, loose soil, wide loaded area | Reduce stress, stiffen system, or improve ground |
| Differential settlement | Drives cracking, racking, and misalignment | Variable strata, uneven loading, trench influence | Tie supports together, revise layout, or deepen support |
| Consolidation time | Affects schedule and post-construction movement | Saturated fine-grained soils | Use preload, drains, or staged construction |
| Groundwater sensitivity | Changes effective stress and compressibility behavior | High water table or seasonal fluctuation | Revise parameters and include drainage management |
| Subsurface uncertainty | Can dominate the reliability of the result | Sparse borings or inconsistent profiles | Perform more investigation or design more conservatively |
Visualizing settlement in practice
A useful mental picture is not a foundation sitting on a perfectly uniform spring bed, but a loaded footprint pushing stress deeper into a layered subsurface. The stress bulb may intersect sands, clay seams, fill, weathered material, or groundwater zones, and each layer responds differently.
That is why experienced engineers visualize settlement in three dimensions: where stress spreads, where compressible zones sit, which areas may settle more than others, and how the supported structure bridges or amplifies those movements. This mental model is often more valuable than memorizing one equation.
Relevant standards and design references
Settlement analysis is project-specific, but engineers commonly rely on these references to guide testing, interpretation, and design judgment:
- ASTM D2435 / D2435M: One-dimensional consolidation properties of soils using incremental loading. This is a primary lab reference for compression index, recompression index, and consolidation behavior.
- ASTM D1587: Thin-walled tube sampling of fine-grained soils. Settlement estimates in clay are only as good as the quality of the undisturbed sample.
- ASTM D4318: Liquid limit, plastic limit, and plasticity index. These do not replace settlement testing, but they help classify fine-grained soils and anticipate compressibility behavior.
- FHWA and state DOT geotechnical manuals: Common design guidance for settlement tolerances, embankment settlement, preload strategies, and foundation performance criteria.
- USACE geotechnical guidance: Widely used for soft ground engineering, staged loading, instrumentation, and observational methods in settlement-sensitive earthwork projects.
Frequently asked questions
Total settlement is the overall downward movement of a foundation system, while differential settlement is the difference in movement between locations. Differential settlement usually causes more damage because it creates distortion, tilt, and cracking rather than uniform downward translation.
Settlement analysis becomes especially important when soils are compressible, loads are large, structures are movement-sensitive, or groundwater and drainage conditions affect time-dependent behavior. It is often critical for soft clays, mats, tanks, slabs, embankments, and facilities with tight alignment tolerances.
Yes. Bearing capacity addresses shear failure resistance, but settlement addresses serviceability and deformation. A footing can be strong enough in an ultimate sense and still move more than the structure or supported equipment can tolerate.
Engineers reduce settlement risk by improving subsurface characterization, lowering contact stress, redistributing loads, stiffening the support system, preloading soft ground, installing vertical drains, using ground improvement, or switching to deep foundations when shallow support is too movement-sensitive.
Summary and next steps
Settlement analysis is the disciplined effort to predict how much a supported system will move, how uneven that movement may be, and how quickly it will develop. It matters because serviceability problems often arrive long before classical foundation failure. The best analyses connect stress increase, soil compressibility, drainage behavior, and structural tolerance into one coherent design decision.
In practice, what controls is rarely just a formula. It is the quality of the subsurface model, the realism of the parameters, the sensitivity of the structure, and the engineer’s willingness to question whether the method still matches the ground. When settlement risk is explicit and managed early, the final design is safer, more buildable, and less likely to surprise the project team after construction.
