Overcurrent Protection
Introduction to Overcurrent Protection
Overcurrent protection is a vital safety measure in electrical systems, designed to prevent damage caused by excessive currents. This can result from short circuits, overloads, or equipment failure. Overcurrent protection devices, such as circuit breakers and fuses, are used to automatically disconnect the power supply when current levels exceed safe limits, protecting both the system and personnel.
Understanding the principles of overcurrent protection and how to implement them effectively is key to ensuring electrical system safety and reliability.
How Overcurrent Protection Works
Overcurrent protection operates by detecting excessive current levels in a circuit. When the current exceeds the rated capacity of the system, protective devices are triggered to disconnect the power supply, preventing potential hazards such as overheating, fires, and equipment damage. Overcurrent can be caused by factors such as electrical faults or overloads.

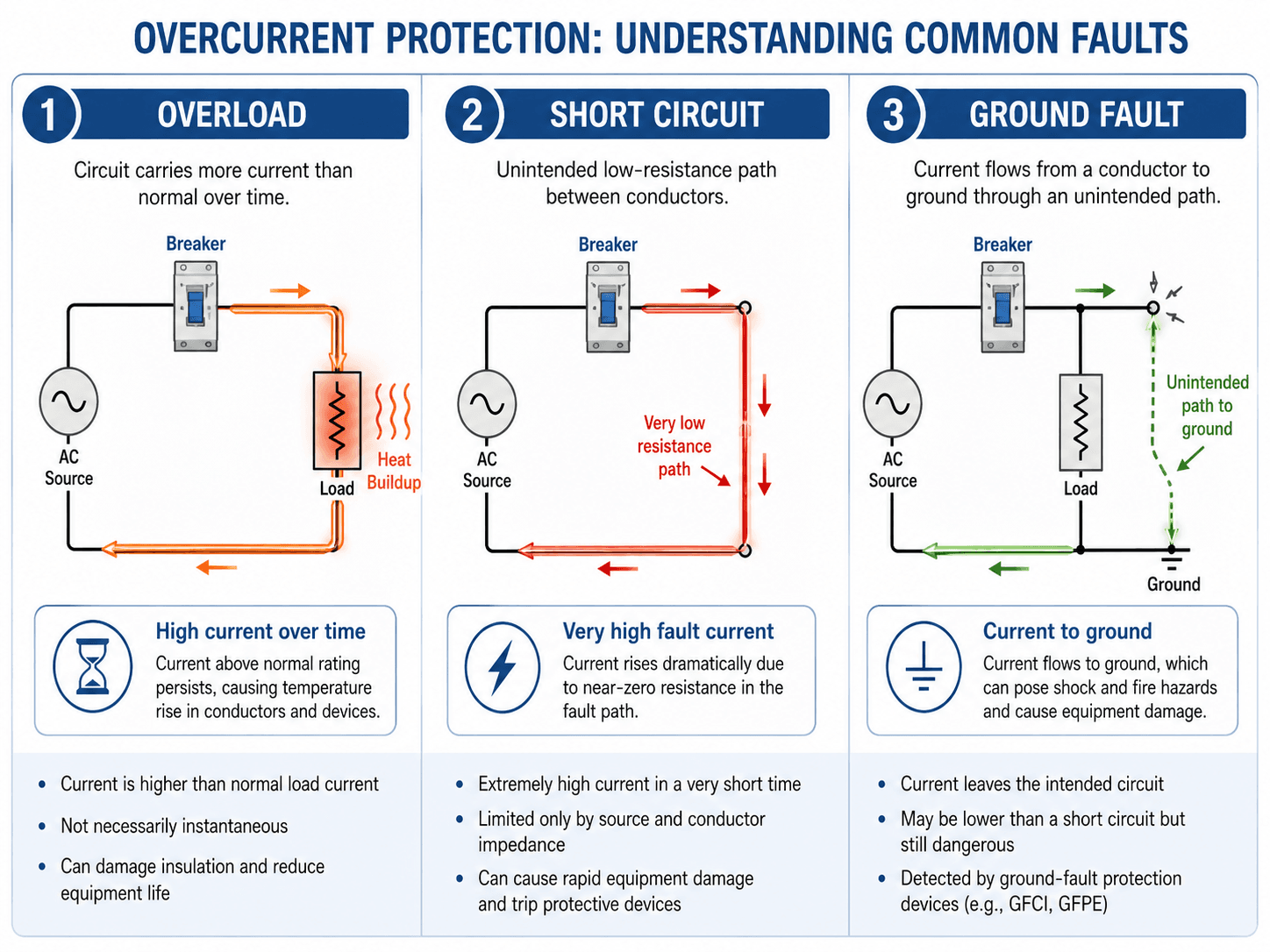

- Short Circuits: Occurs when a low-resistance path forms between two conductors, causing a large current to flow and triggering protective devices.
- Overloads: When a circuit is subjected to higher currents than its design allows, overcurrent protection devices intervene to prevent overheating.
- Equipment Failure: Faulty equipment or wiring can result in overcurrent conditions, leading to tripped breakers or blown fuses.
These mechanisms allow overcurrent protection systems to keep circuits safe and functional, preventing serious damage to electrical infrastructure.
Common Overcurrent Protection Devices
Several devices are designed to provide overcurrent protection in electrical systems. The most common devices include:
- Circuit Breakers: Automatically disconnect the circuit when overcurrent is detected. Circuit breakers can be reset after tripping and are widely used in residential, commercial, and industrial settings.
- Fuses: Contain a metal strip that melts when overcurrent occurs, interrupting the circuit. Fuses must be replaced after they blow.
- Overload Relays: Provide protection for motors and other equipment by disconnecting power when the current exceeds a preset limit.
- Ground Fault Circuit Interrupters (GFCI): Protect against ground faults by monitoring the current and disconnecting the power supply if a fault is detected.
- Arc Fault Circuit Interrupters (AFCI): Detect arc faults and provide protection by interrupting the current flow when arcing is detected, reducing fire risks.
Choosing the right device is essential for effective protection based on the specific needs and operational environment of the electrical system.
Applications of Overcurrent Protection
Overcurrent protection is critical across various industries and electrical applications to ensure the safety of equipment and personnel. Key applications include:
- Residential Wiring: Circuit breakers and fuses are commonly used in homes to protect wiring and prevent electrical fires caused by overcurrent conditions.
- Industrial Power Systems: Protects machinery and high-power equipment from damage caused by electrical overloads or short circuits.
- Commercial Buildings: Safeguards lighting, HVAC systems, and electrical panels in commercial spaces from overcurrent risks.
- Data Centers: Ensures the protection of sensitive equipment and servers by quickly disconnecting power in case of overcurrent.
- Motor Protection: Overload relays provide specific protection for motors, ensuring they are not damaged by overcurrent during startup or operation.
These applications highlight the importance of overcurrent protection in maintaining safe and functional electrical systems.
Benefits of Overcurrent Protection
Implementing overcurrent protection provides several benefits, ensuring both operational efficiency and safety:
- Enhanced Safety: Reduces the risk of electrical fires, equipment damage, and potential harm to personnel caused by excessive current flow.
- Improved System Reliability: Prevents system-wide outages by quickly isolating faulty circuits, ensuring continued operation of the unaffected parts of the system.
- Cost Savings: Prevents expensive repairs and replacements of damaged equipment due to overcurrent-related failures.
- Quick Response: Overcurrent protection devices act immediately to disconnect faulty circuits, minimizing damage and ensuring system integrity.
- Compliance with Regulations: Ensures that electrical systems meet safety standards and building codes, reducing the risk of penalties and liability.
These benefits underscore the critical role of overcurrent protection in safeguarding electrical systems across various applications.
Maintaining Overcurrent Protection Systems
Regular maintenance is key to ensuring that overcurrent protection devices remain functional and effective. Common maintenance practices include:
- Testing Breakers and Fuses: Regularly test circuit breakers and fuses to ensure they operate correctly and are not degraded.
- Inspecting Connections: Check for loose or corroded connections that could impair the performance of overcurrent protection devices.
- Replacing Faulty Devices: Replace any damaged or aging fuses and breakers to maintain reliable protection.
- Reviewing Settings: Ensure that overload relays and other protective devices are set to appropriate thresholds for the system they protect.
- Periodic Calibration: Regularly calibrate protective relays and current-limiting devices to ensure accurate performance.
These maintenance practices help ensure that overcurrent protection systems continue to provide reliable safety and protection over time.
Innovations in Electrical Safety Technology
The field of overcurrent protection continues to evolve with advancements in technology, enhancing system efficiency and safety. Key trends include:
- Smart Circuit Breakers: New digital breakers allow for real-time monitoring and remote control, improving protection and response times.
- Advanced Arc Fault Detection: Enhanced AFCI devices offer better protection against arc faults, reducing the risk of electrical fires in residential and commercial settings.
- Integrated Monitoring Systems: Systems that combine overcurrent protection with real-time monitoring to provide insights into system health and prevent potential faults before they occur.
- Improved Materials: Advances in materials science are leading to more durable and efficient overcurrent protection devices that last longer and perform better under high-stress conditions.
These advancements are making overcurrent protection systems more reliable and adaptable to modern electrical infrastructures.
Conclusion
Overcurrent protection is essential for safeguarding electrical systems from the risks posed by short circuits, overloads, and other fault conditions. By using devices like circuit breakers, fuses, and overload relays, systems can be kept safe, reliable, and compliant with safety regulations.
As technology advances, overcurrent protection systems will continue to improve, offering even more effective solutions to ensure electrical safety and operational efficiency.
