Introduction
In brief: Bearing capacity is the soil support limit beneath a foundation, but safe design also depends on settlement, groundwater, footing shape, and how the ground actually behaves.
Who it’s for: Students, FE/PE prep, and designers.
For informational purposes only. See Terms and Conditions.
In geotechnical engineering, bearing capacity is one of the first checks engineers learn and one of the easiest to misuse. It sounds simple: compare applied pressure to what the soil can support. In practice, that check sits inside a larger decision about settlement, groundwater, stratigraphy, footing geometry, construction disturbance, and uncertainty in the subsurface model.

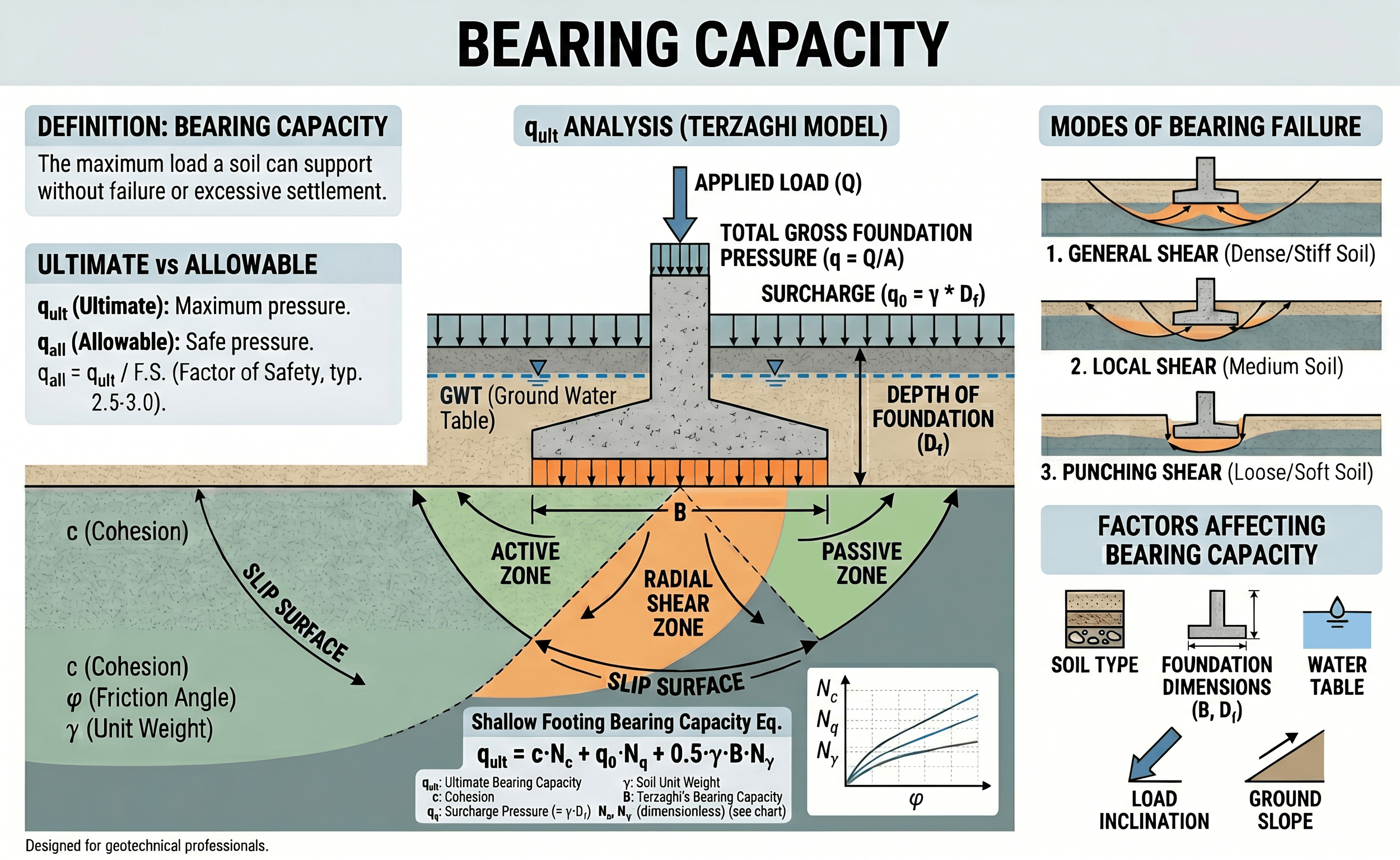

Bearing Capacity infographic
Start by noticing that bearing capacity is not only a soil-strength number. The footing width, depth, surrounding surcharge, and position of the water table all change how the soil mobilizes resistance. That is why the same structure can behave very differently on two sites with similar-looking soils.
What is bearing capacity?
Bearing capacity is the pressure level at which the soil beneath a foundation can no longer support the load without a shear failure mechanism or unacceptable deformation developing. In shallow foundation work, the phrase usually refers to the support limit for spread footings, strip footings, mats, wall footings, and pads resting in near-surface soil.
The idea matters because every foundation has to transfer load into the ground. If the soil is overloaded, the failure is not usually a dramatic “punch-through” the way beginners picture it. More often, the soil under and around the footing reaches a stress state that produces large plastic strains, progressive shear zones, and movement that the structure cannot tolerate.
In real projects, bearing capacity is closely tied to soil mechanics, foundation design, and settlement analysis. A common mistake is to treat bearing capacity as the only controlling foundation check. It rarely is. Many shallow foundations are sized by settlement or differential movement long before classical bearing failure is reached.
Core principles, variables, and units
Classical bearing-capacity theory is built around the idea that the footing pushes stress into the supporting soil and the soil resists that loading through shear strength and confinement. As the applied pressure rises, the soil under the footing develops a failure pattern whose exact shape depends on density, consistency, drainage condition, footing shape, embedment, and layering.
Key variables and typical ranges
The exact notation varies across offices and design methods, but the same physical quantities appear repeatedly. Engineers should always sanity-check both units and field meaning before trusting a calculated pressure.
- \(q_{ult}\) Ultimate bearing capacity, often in psf, ksf, kPa, or kN/m². This is a failure-level quantity, not a service recommendation.
- \(q_{allow}\) Allowable bearing pressure, usually a working or service-level value after applying a factor of safety and sometimes settlement limits.
- \(c’\) Effective cohesion for drained analysis. Often near zero in clean sands and important in some clays, silts, and cemented soils.
- \(\phi’\) Effective friction angle, in degrees. Small changes can noticeably change the bearing factors \(N_q\) and \(N_\gamma\).
- \(\gamma\) Unit weight of soil, in pcf or kN/m³. Use the correct total, moist, or effective value based on the groundwater condition being modeled.
- \(D_f\) Foundation embedment depth. Greater embedment generally increases confinement and surcharge, but excavation condition and groundwater still matter.
- \(B\) Footing width. This affects both stress distribution and the contribution of the unit-weight term in many classical formulations.
Always ask whether the value you are using is an ultimate pressure, a net allowable pressure, or a gross allowable pressure. A surprising number of design errors come from mixing those three ideas.
Another useful distinction is gross versus net bearing pressure. Gross pressure includes the total footing contact pressure at the foundation level. Net pressure adjusts for the overburden removed by excavation. Different references, reports, and calculation sheets use these terms differently, so the language on the geotechnical recommendation must be explicit.
Decision logic or design workflow
A good bearing-capacity workflow starts with the ground model, not the equation. Before choosing a formula, the engineer should know the likely foundation level, soil profile, groundwater condition, load type, and whether shallow support is even a sensible option.
1) Build the subsurface model and identify the controlling layer at footing level. 2) Decide whether the problem is drained, undrained, or mixed. 3) Select a footing type and trial dimensions. 4) Estimate ultimate and allowable support using a method consistent with the soil and loading. 5) Check eccentricity, settlement, groundwater, and adjacent geometry. 6) If shallow support becomes too large, too variable, or too movement-sensitive, shift toward ground improvement, mats, or deep foundations.
That last step matters. Bearing capacity is often used as a screening tool for the broader question of foundation selection. If the needed footing becomes excessively wide, or if the site has highly variable near-surface conditions, the better answer may not be “use a bigger footing.” It may be to change the foundation system altogether.
Equations and calculations
For introductory shallow foundation checks, one of the most recognizable expressions is the Terzaghi-style strip footing equation for general shear failure:
Here, \(c’\) is the effective cohesion, \(\gamma\) is the soil unit weight, \(D_f\) is the footing embedment depth, \(B\) is the footing width, and \(N_c\), \(N_q\), and \(N_\gamma\) are bearing-capacity factors that depend mainly on the friction angle \(\phi’\). The expression is conceptually valuable because it shows that capacity comes from three contributors: cohesion, surcharge from embedment, and the self-weight response of the soil around the footing.
In undrained clay problems, the form often simplifies because the analysis is based on undrained shear strength rather than drained frictional resistance. In practice, engineers also apply shape factors, depth factors, inclination corrections, eccentricity adjustments, and code- or method-specific resistance factors or safety factors depending on the standard being used.
The main practical output is rarely the raw ultimate pressure by itself. Designers usually need one of the following:
- an allowable bearing pressure for service-level design,
- a factored resistance for LRFD or limit-state design, or
- a recommended founding condition that accounts for both support and movement.
The most important engineering habit is to connect the math back to the soil profile. If your parameters come from loose field correlations, disturbed samples, or a single boring on a variable site, the precision of the equation can hide major uncertainty in the inputs.
Worked example
Example: first-pass sizing check for a shallow footing
Suppose a lightly loaded building column is being supported on a square spread footing founded about 4 ft below finished grade in dense sandy soil. A geotechnical screening review suggests the near-foundation soil can reasonably be modeled with low apparent cohesion, a meaningful friction angle, and moderate groundwater influence below the base elevation. The first design question is not “What is the exact final footing size?” It is whether shallow support is even plausible.
A typical first pass would be:
- Estimate the service load and convert it into an average footing pressure using a trial footing width.
- Check whether that pressure is comfortably below a defensible allowable value from the geotechnical recommendation or screening calculation.
- Review eccentricity, overturning effects, and whether the contact pressure stays compressive across the base.
- Then check expected settlement and differential movement for the chosen footing size.
If the first trial footing produces an average service pressure only slightly below the allowable recommendation, that is not a great result. Small changes in groundwater level, excavation disturbance, or footing eccentricity can erase the apparent margin. An experienced designer would usually widen the footing, improve the founding condition, or revisit the foundation concept rather than design right against the recommendation.
The deeper lesson is that bearing-capacity calculations are often best used as a range-finding tool. They help the engineer understand whether the problem is comfortably shallow, borderline shallow, or more naturally suited to a mat, ground improvement approach, or deep support system.
Engineering judgment and field reality
Field performance depends on much more than the neat soil parameters used in a spreadsheet. The founding surface may become softened by rain, scarified by overexcavation, loosened by repeated trafficking, or partially remolded during utility work. Layering may be thinner and more erratic than the boring logs suggested. A shallow perched water condition can appear during excavation even when borings looked dry.
This is why many geotechnical recommendations include wording about proofrolling, undercutting soft spots, verifying subgrade conditions at footing level, and protecting the excavation from disturbance. The design calculation might have been correct for the intended soil horizon, but the field condition at the moment of construction may no longer match that assumption.
A footing founded on “competent bearing soil” can still underperform if the base becomes wet, disturbed, or nonuniform before concrete placement. Bearing recommendations are only as good as the actual subgrade the contractor leaves in place.
Senior engineers also watch for language drift between disciplines. Structural sheets may label a value as “allowable soil bearing pressure” while the geotechnical report intended a net allowable value, or intended it only for certain footing widths and embedment ranges. That kind of mismatch does not show up in the math, but it shows up later in change orders and construction questions.
When this breaks down
Classical bearing-capacity methods are powerful, but they are not universal truth machines. They become less reliable when the assumptions behind a shallow, reasonably homogeneous, clearly characterized soil mass stop matching reality.
Watch for these situations:
- Strongly layered soils: a thin stiff crust over weak material can make a shallow footing look safer than it really is.
- Very loose sands or very soft clays: local punching, large strains, and settlement can dominate before a clean textbook mechanism forms.
- Nearby slopes, excavations, or walls: the stress field is no longer the same as the isolated-footing case.
- High or changing groundwater: effective stress, unit weight, and construction stability can change rapidly.
- Eccentric or inclined loading: the footing may not mobilize support uniformly across the base.
- Seismic or cyclic loading: monotonic static equations may be incomplete or misleading.
In those cases, a more advanced approach may be needed: layered-soil interpretations, numerical analysis, settlement-dominated design, plate-load interpretation, local code provisions, or a change in foundation concept. The key judgment is knowing when the classical answer is a useful approximation and when it has become a dangerous oversimplification.
Common pitfalls and engineering checks
- Confusing ultimate, allowable, gross, and net bearing pressures.
- Using soil parameters from correlations without understanding their uncertainty.
- Ignoring settlement because the shear-capacity number looks comfortable.
- Failing to reduce footing area for eccentric loading or nonuniform contact pressure.
- Using dry-season groundwater assumptions on a site that behaves differently during construction.
- Applying a generic office default instead of the project-specific geotechnical recommendation.
One of the most expensive mistakes in shallow foundation design is treating a published allowable pressure as valid for every footing size, every embedment, and every part of the site. Most recommendations are conditional, not universal.
Before signing off, confirm the footing pressure convention, the governing load case, the founding elevation, likely construction season groundwater, and whether settlement rather than shear is actually controlling the design.
| Parameter | Symbol | Typical units | Why it matters |
|---|---|---|---|
| Allowable bearing pressure | \(q_{allow}\) | psf, ksf, kPa | Primary service-level screening value used in early footing sizing. |
| Ultimate bearing capacity | \(q_{ult}\) | psf, ksf, kPa | Failure-level quantity used with safety factors or resistance factors. |
| Footing width | \(B\) | ft, m | Affects both contact pressure and how soil resistance develops. |
| Embedment depth | \(D_f\) | ft, m | Changes surcharge and confinement; also tied to frost, erosion, and construction. |
| Friction angle | \(\phi’\) | degrees | Strongly influences bearing factors in drained granular or mixed soils. |
| Undrained shear strength | \(s_u\) | psf, kPa | Controls short-term clay support in undrained conditions. |
| Total settlement | \(S_t\) | in, mm | Often controls final sizing before bearing failure is approached. |
Visualizing bearing capacity in practice
A helpful mental sketch is to picture three versions of the same footing: one on dense sand, one on soft clay, and one on layered fill over weak native material. The footing load may be identical, but the stress spread, shear zone shape, groundwater sensitivity, and amount of settlement will differ substantially. That is why “bearing capacity” should be understood as a soil-structure-groundwater interaction problem, not a single memorized equation.
When teaching this topic, it often helps to compare general shear, local shear, and punching behavior side by side.
Relevant standards and design references
Bearing-capacity work is shaped by both geotechnical references and project-specific codes. The equation alone is never the full source of truth.
- IBC Chapter 18, Soils and Foundations: widely referenced building-code framework for foundation support, site class interaction, and geotechnical reporting expectations on building projects.
- AASHTO LRFD Bridge Design Specifications: used where shallow foundations support bridges, abutments, and transportation structures under LRFD resistance concepts.
- FHWA Soils and Foundations manuals: practical federal guidance on foundation investigation, shallow foundation evaluation, settlement, and construction verification.
- ASTM D1586: Standard Penetration Test procedure often used to support bearing-capacity screening and subsurface characterization.
- ASTM D5778: Electronic friction cone and piezocone sounding methods that can provide stronger stratigraphic and strength interpretation than sparse borings alone on many sites.
Frequently asked questions
Bearing capacity controls shear failure beneath the foundation, while settlement controls whether the supported structure moves too much in service. On many building projects, settlement or differential settlement governs before the soil reaches a classical bearing-capacity failure state.
Ultimate bearing capacity is a failure-level quantity, while allowable bearing pressure is a reduced working value used for design after applying safety or resistance concepts and, in many cases, serviceability judgment. They should never be treated as interchangeable.
It becomes less reliable when the soil is strongly layered, very weak, highly variable, affected by nearby slopes or excavations, or governed by groundwater changes, eccentric loading, or seismic effects. In those cases, the engineer usually needs a more project-specific evaluation.
Engineers check bearing capacity for spread footings, strip footings, mats, retaining wall bases, equipment pads, tank foundations, crane pads, and temporary working platforms. It is one of the first filters used when deciding whether shallow support is realistic.
No. A foundation may pass a bearing-pressure check and still perform poorly if differential settlement, subgrade disturbance, groundwater, load eccentricity, or site variability are ignored. Good foundation design treats bearing capacity as one check within a larger performance picture.
Summary and next steps
Bearing capacity is the geotechnical support limit of the ground beneath a foundation, but the practical design question is broader than that definition. Engineers use bearing-capacity theory to estimate whether shallow support is plausible, to size footings rationally, and to understand how strength, surcharge, footing width, and soil unit weight interact beneath the base.
The most important professional takeaway is that a bearing value is never “just a number.” It is tied to a specific soil model, water condition, footing geometry, and pressure convention. The strongest designs connect that number to settlement behavior, construction reality, and the uncertainty that always exists in subsurface interpretation.
If you remember one thing, make it this: a footing can be safe against bearing failure and still be a poor foundation solution. Good geotechnical design checks both support and movement, then confirms that the field condition still matches the assumptions used in the calculations.
