Foundation Design: Principles, Methods, and Importance
Introduction to Foundation Design
Foundation design is a critical aspect of structural engineering, as it ensures that a building or structure remains stable and secure by transferring its loads safely to the ground. A well-designed foundation provides the necessary support to prevent excessive settlement, tilting, or failure over time. Engineers must consider soil conditions, load-bearing capacity, and environmental factors when designing foundations to ensure long-term performance.
This page delves into the key principles of foundation design, the methods used by engineers, and the importance of designing foundations that can safely support buildings and infrastructure.
What is Foundation Design?
Foundation design involves determining the most appropriate foundation type and size for a structure based on its loads, site conditions, and the soil’s bearing capacity. The foundation must transfer the structure’s weight and any additional loads—such as wind or seismic forces—into the ground without causing excessive settlement or instability.
The design process takes into account both the structure’s characteristics and the site’s geotechnical conditions to ensure that the foundation can support the building safely and efficiently over its lifespan.

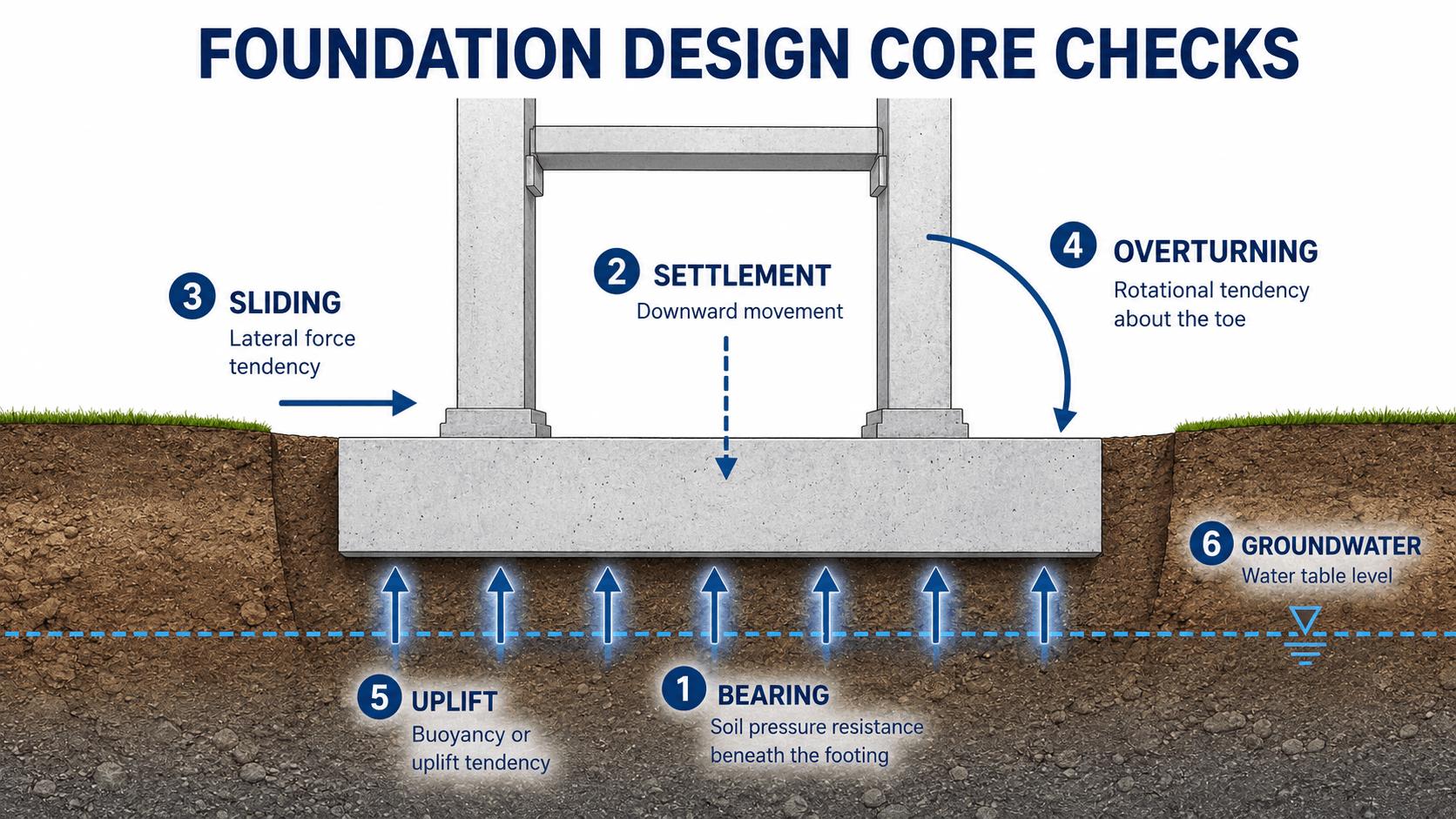

Importance of Foundation Design
Foundation design is essential for the safety and longevity of any building or structure. Without a properly designed foundation, structures can experience differential settlement, tilting, or even collapse. Foundation design ensures that a building remains stable, even when subjected to various loads, environmental changes, or soil conditions.
Preventing Settlement and Tilting
One of the primary functions of a foundation is to prevent excessive settlement. When a foundation is not properly designed, uneven settlement can occur, leading to cracks, tilting, or structural failure. Foundation design considers the soil’s bearing capacity to ensure even load distribution and minimize settlement risks.
Ensuring Structural Stability
Foundations play a crucial role in maintaining a structure’s stability, especially in areas prone to seismic activity or wind loads. Properly designed foundations anchor buildings securely to the ground, preventing overturning or displacement during extreme events.
Adapting to Soil and Environmental Conditions
Foundation design must account for site-specific conditions, such as soil type, groundwater levels, and the risk of frost heave or soil erosion. Engineers design foundations that are compatible with these factors, ensuring the structure remains stable regardless of environmental changes.
Types of Foundations

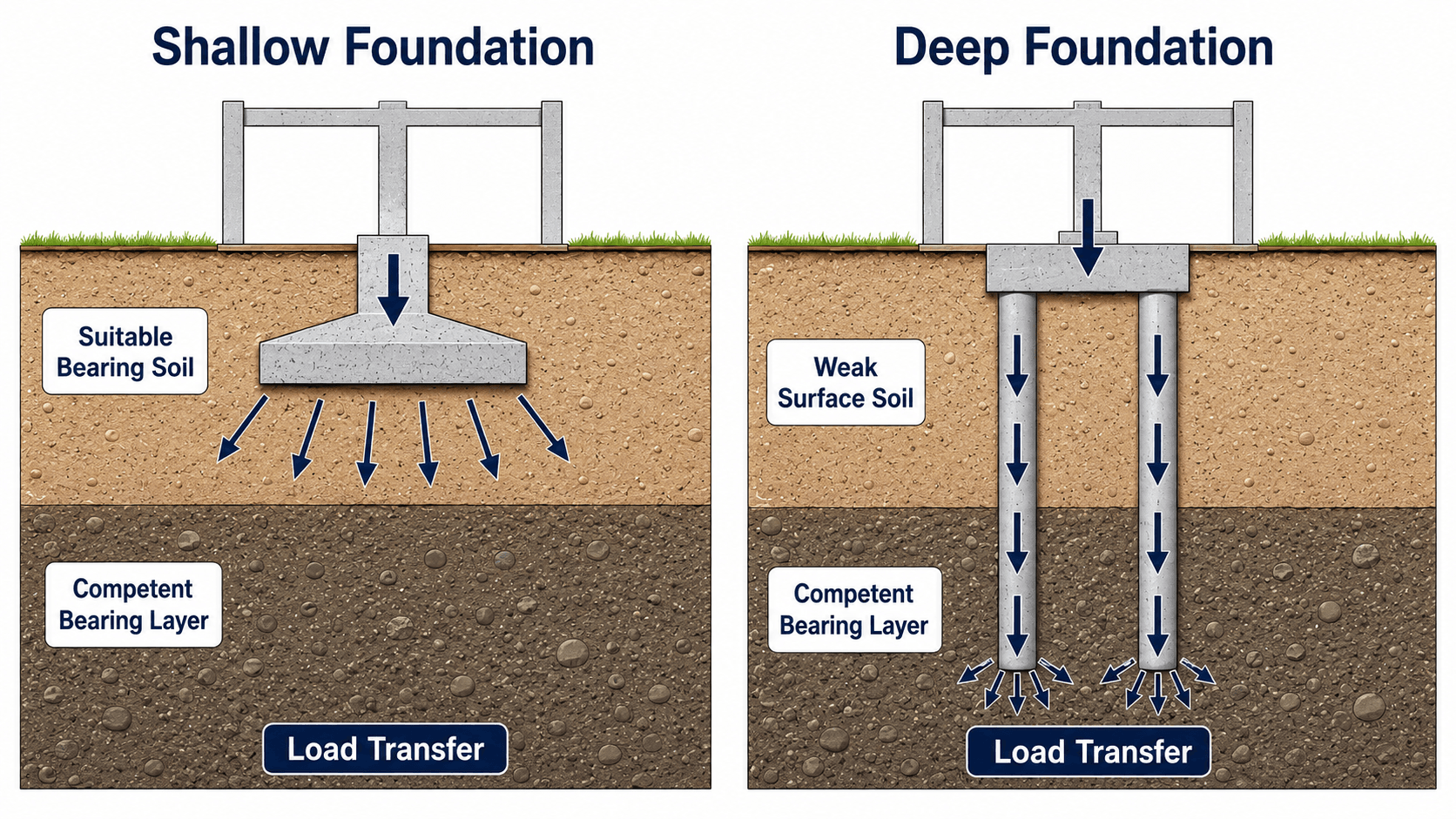

The type of foundation used in a project depends on factors such as the load-bearing requirements, soil conditions, and the structure’s size. Foundations are generally categorized into two main types: shallow foundations and deep foundations.
Shallow Foundations
Shallow foundations are typically used for smaller structures or those on firm, stable soil. These foundations transfer loads to the ground near the surface and include types such as:
- Spread Footings: Spread footings distribute the structure’s load over a large area of soil, providing stability and preventing settlement.
- Mat Foundations: Also known as raft foundations, these are large slabs of concrete that support the entire building and are used in areas with weak soil to spread loads over a broad area.
Deep Foundations
Deep foundations are used when the upper soil layers are too weak to support a structure. They transfer loads to deeper, more stable soil or rock layers. Common types include:
- Pile Foundations: Piles are driven deep into the ground to reach stable soil or bedrock. They are commonly used for large structures or in areas with poor soil conditions.
- Caissons: Caissons are large, hollow cylinders that are sunk into the ground to create a stable foundation. They are often used for bridges, piers, and offshore structures.

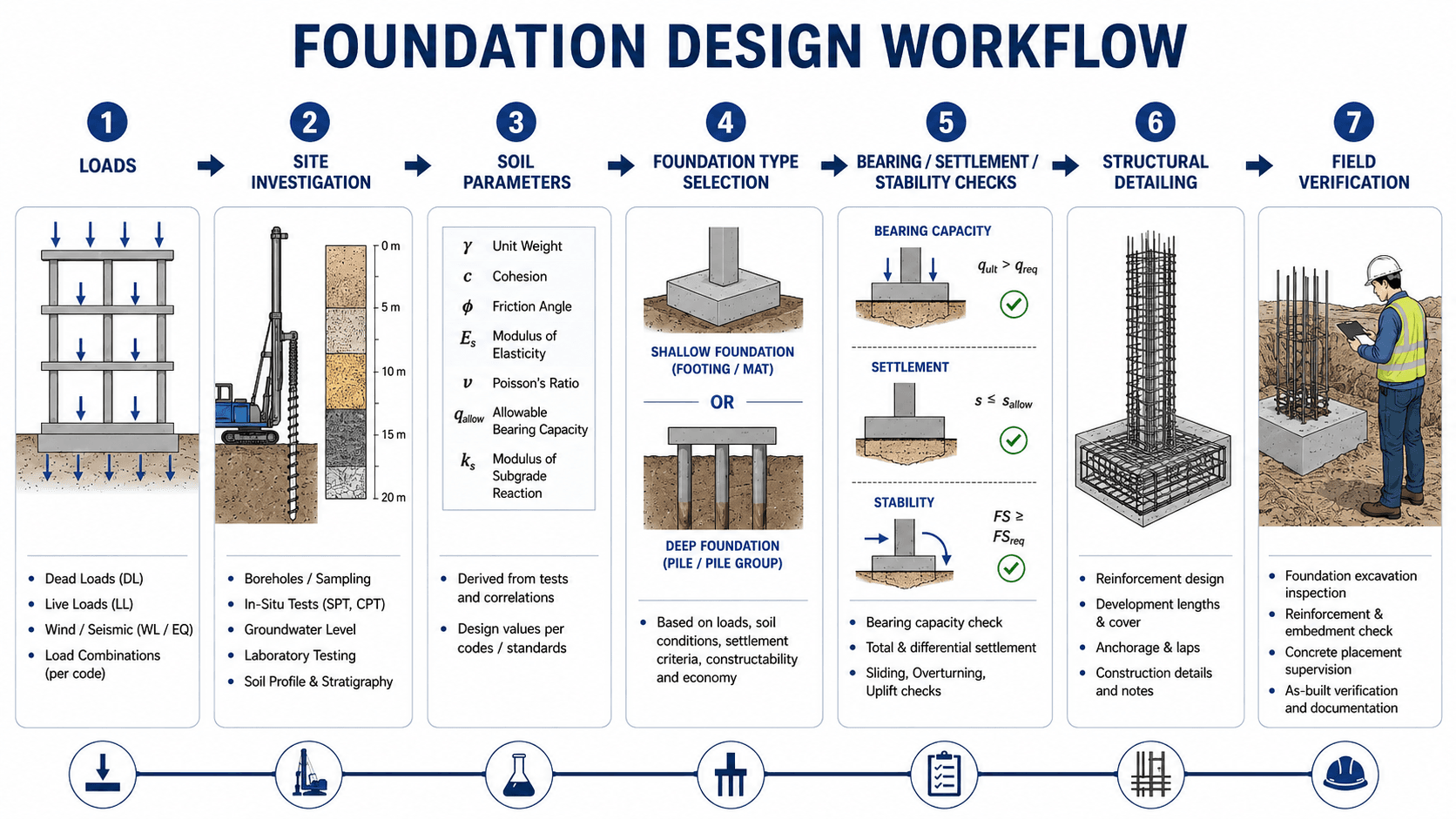

Methods of Foundation Design
Foundation design relies on a combination of geotechnical analysis, load calculations, and construction methods to create stable and secure foundations. Engineers use various techniques to assess soil conditions and ensure the foundation can support the intended loads.
Geotechnical Investigation
Before designing a foundation, engineers conduct a geotechnical investigation to assess the soil’s properties, such as its bearing capacity, composition, and moisture content. This investigation informs the type of foundation required and helps prevent settlement or soil-related issues.
Load Calculations
Engineers calculate the loads that the foundation must support, including the building’s dead load, live load, and any external forces such as wind or seismic activity. These calculations determine the size, depth, and type of foundation needed to ensure stability.
Soil Improvement Techniques
In some cases, soil conditions may not be ideal for a foundation. Engineers can improve the soil’s load-bearing capacity through techniques such as compaction, grouting, or the use of geotextiles. These methods help ensure the foundation is built on stable ground, reducing the risk of settlement or failure.
Applications of Foundation Design
Foundation design is critical for all types of construction projects, from residential homes to large infrastructure projects like bridges and skyscrapers. Different foundation designs are used depending on the type of structure, the loads it must support, and the site’s conditions.
Residential Buildings
For homes, foundation design often involves shallow foundations like spread footings or slabs-on-grade. These foundations provide sufficient support for the relatively light loads of residential structures and are typically used on stable soil.
Commercial and Industrial Buildings
Larger commercial or industrial buildings often require deeper foundations to support greater loads. Pile foundations or mat foundations may be used to ensure that the building remains stable, especially in areas with weaker soils or high water tables.
Bridges and Infrastructure
Infrastructure projects such as bridges, dams, and tunnels require robust deep foundations to ensure stability under heavy loads and environmental forces. Caissons, piles, and drilled shafts are commonly used for these projects to reach stable ground beneath weak upper layers.
Challenges in Foundation Design
Foundation design presents several challenges, including unpredictable soil conditions, environmental changes, and ensuring that foundations are both stable and cost-effective. Engineers must consider a wide range of factors to create foundations that can withstand both immediate and long-term loads.
Unpredictable Soil Conditions
Soil conditions can vary greatly across a site, making it challenging to design a foundation that accounts for these variations. In some cases, the soil may be too weak or prone to erosion, requiring the use of deep foundations or soil improvement techniques. Engineers must thoroughly assess the site’s soil characteristics to prevent unexpected settlement or instability.
Environmental Factors
Environmental conditions such as groundwater levels, frost heave, or flooding can affect foundation stability. Engineers must design foundations to withstand these conditions over time, especially in regions prone to drastic environmental changes. Poor drainage, for example, can lead to water accumulation around the foundation, causing soil erosion and weakening the foundation.
Balancing Cost and Safety
Designing a foundation that is both cost-effective and safe can be challenging. Engineers must find ways to optimize foundation design to minimize costs while ensuring that the structure remains stable over its lifespan. This often involves selecting the most appropriate foundation type and materials based on the project’s budget and requirements.
Innovations in Foundation Design
Advances in technology and materials are transforming foundation design, making it easier for engineers to create more stable, efficient, and environmentally friendly foundations. These innovations enhance both the safety and cost-effectiveness of modern foundations.
Use of Geosynthetics
Geosynthetics, such as geotextiles and geomembranes, are increasingly used to improve the performance of foundations. These materials reinforce the soil, control erosion, and enhance drainage, providing additional support for foundations, particularly in challenging soil conditions.
Helical Piles
Helical piles are an innovative type of deep foundation that can be quickly installed and provide excellent load-bearing capacity. They are ideal for use in areas with poor soil conditions and are increasingly being used in residential, commercial, and infrastructure projects. Their screw-like design allows for easy installation with minimal disturbance to the surrounding soil.
Smart Monitoring Systems
Engineers are now using smart monitoring systems to track the performance of foundations in real-time. These systems use sensors embedded in the foundation to detect shifts, settlement, or changes in soil moisture levels, providing early warnings of potential issues. This allows for proactive maintenance, reducing the risk of foundation failure over time.
Conclusion: The Role of Foundation Design in Structural Engineering
Foundation design is a fundamental aspect of structural engineering, ensuring that buildings and infrastructure remain safe and stable throughout their lifespan. By considering soil conditions, environmental factors, and load requirements, engineers can design foundations that provide the necessary support for any structure. With advancements in technology and materials, foundation design continues to evolve, offering more efficient, sustainable, and cost-effective solutions for modern construction projects.
Whether for residential buildings, commercial projects, or large infrastructure developments, proper foundation design is essential to ensuring the long-term success of any structure.
