Key Takeaways
- Definition: Concrete materials are the cement, water, aggregates, admixtures, and SCMs that determine how concrete behaves from mixing through service life.
- Use case: Structural engineers use concrete material knowledge to connect mix properties with strength, durability, constructability, cracking, and long-term performance.
- Main decision: The key choice is not simply “stronger concrete,” but the right combination of workability, water-cementitious ratio, aggregate quality, durability, and curing.
- Outcome: Understanding concrete materials helps readers review mix designs, interpret test results, and recognize field conditions that can weaken structural performance.
Table of Contents
Introduction
In brief: Concrete materials are the ingredients and mixture properties that control fresh concrete behavior, hardened strength, durability, cracking, and service performance.
Who it’s for: Students and early-career designers.
For informational purposes only. See Terms and Conditions.
Concrete is only as reliable as the materials, proportions, placement, and curing behind it. In structural engineering, material decisions directly affect safety, serviceability, and durability.

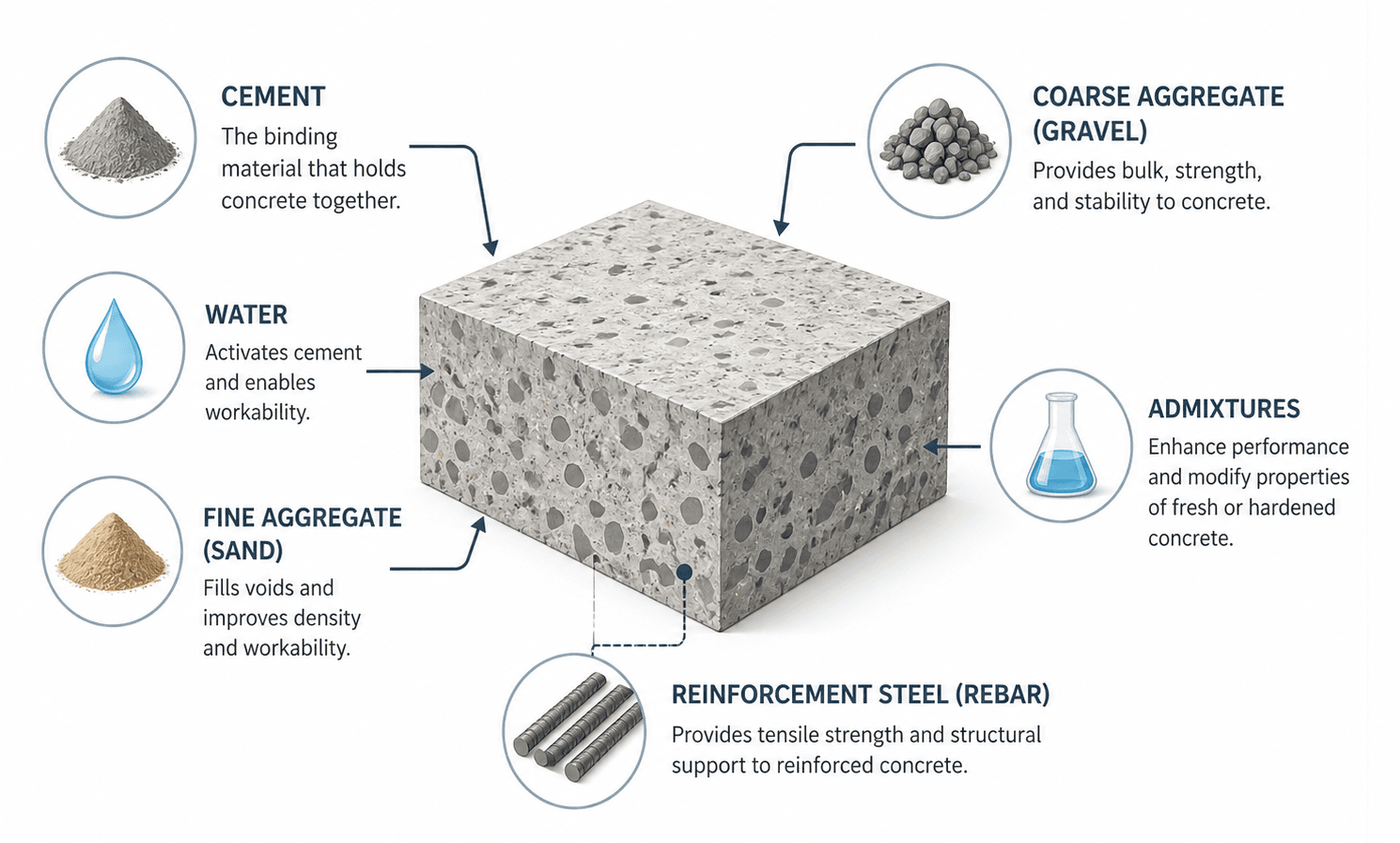

Concrete Materials infographic
Notice that no single ingredient controls everything. A strong concrete mixture depends on the balance between paste quality, aggregate skeleton, water demand, air system, admixture compatibility, and curing conditions.
What are concrete materials?
Concrete materials are the ingredients used to create concrete and the material properties that result from combining them. The basic ingredients are cementitious binder, fine aggregate, coarse aggregate, water, and, in many modern mixtures, chemical admixtures and supplementary cementitious materials. Once mixed, placed, and cured, those ingredients form a composite material used in beams, slabs, columns, walls, foundations, bridges, pavements, tanks, and many other structural systems.
In structural engineering, concrete materials matter because design calculations assume that the concrete placed in the field will achieve specific properties. The most familiar property is specified compressive strength, usually written as \( f’_c \), but compressive strength is only one part of performance. Workability, air content, water-cementitious materials ratio, setting time, shrinkage, creep, modulus of elasticity, durability, permeability, sulfate resistance, freeze-thaw resistance, and bond with reinforcement can all influence whether a structure performs as intended.
Concrete materials should be judged as a complete system, not as isolated ingredients. A mixture can have an acceptable compressive strength and still be difficult to place, prone to cracking, or poorly matched to the exposure environment.
This is why concrete materials connect directly to concrete design. The designer may select a target strength, cover, member size, and reinforcement layout, but the actual material must be proportioned and constructed so the member can achieve the assumed performance.
Main ingredients in concrete
A good concrete mixture starts with understanding what each ingredient contributes. Cement provides the primary binding reaction. Water activates hydration and controls workability. Aggregates occupy most of the volume and strongly influence shrinkage, stiffness, economy, and finishability. Admixtures adjust fresh and hardened behavior. Supplementary cementitious materials can improve durability, reduce heat, lower permeability, or reduce cement content.
Cementitious binder
Cementitious binder includes portland cement and any supplementary cementitious materials blended into the mixture. The binder reacts with water to form hydration products that glue the aggregate skeleton together. Cement type, fineness, chemistry, and replacement levels influence set time, early strength, heat generation, durability, and long-term strength gain.
Aggregates
Aggregates are usually the largest portion of concrete by volume. Fine aggregate, commonly sand, fills smaller voids. Coarse aggregate provides the larger stone skeleton. Gradation, maximum aggregate size, particle shape, surface texture, absorption, moisture content, durability, and cleanliness all affect the amount of paste needed to make workable concrete.
Water
Water is needed for hydration and placement, but excess water increases capillary porosity after hardening. That is why water-cementitious materials ratio is one of the most important concrete material parameters. More water may make the concrete easier to place in the short term, but it can reduce strength, increase permeability, raise shrinkage, and weaken durability.
Chemical admixtures
Admixtures are used to adjust performance without completely changing the base mixture. Water reducers and high-range water reducers improve workability at a lower water content. Air-entraining admixtures create a controlled air-void system for freeze-thaw durability. Accelerators, retarders, shrinkage reducers, corrosion inhibitors, and viscosity modifiers solve project-specific problems when selected and tested properly.
Supplementary cementitious materials
Supplementary cementitious materials, often called SCMs, include fly ash, slag cement, silica fume, natural pozzolans, and calcined clay systems. They can improve later-age strength, lower permeability, reduce heat of hydration, improve chemical resistance, and support more sustainable concrete mixtures. Their benefits depend on source, dosage, curing temperature, cement chemistry, and project schedule.
Material properties engineers check
Concrete material review is not just a list of ingredients. Engineers are usually trying to verify whether the proposed mixture can satisfy strength, durability, constructability, and serviceability requirements at the same time. A mix that looks good in one category can create problems in another.
- \( f’_c \) Specified compressive strength, commonly reported in psi or MPa at a required test age such as 28 days.
- \( w/cm \) Water-cementitious materials ratio by mass; a major control on strength, permeability, and durability.
- Slump A field measure of consistency and workability, usually reported in inches or millimeters.
- Air Entrained and entrapped air content; especially important for freeze-thaw resistance and finishability.
- \( E_c \) Modulus of elasticity; affects stiffness, deflection, vibration response, and load distribution.
- Unit wt. Density or unit weight of concrete, often needed for self-weight and structural load calculations.
Strength is important because reinforced concrete design uses specified compressive strength in flexural, shear, axial, punching shear, and development calculations. But strength does not guarantee durability. Two mixtures can both reach the same \( f’_c \), while one has lower permeability, better air-void structure, lower shrinkage, and better resistance to chlorides or sulfate exposure.
When reviewing concrete materials, always connect the mix to the exposure class, placement method, reinforcement congestion, finishing requirements, curing plan, and testing requirements.
Workability also deserves careful attention. If a mixture is too harsh, workers may add water in the field, vibrate poorly, or struggle to consolidate around reinforcement. If the mixture is too fluid without proper stability, it may segregate or bleed. The target is not simply the highest slump, but the right consistency for the member, reinforcement spacing, placement equipment, and finish.
How concrete material decisions are made
Concrete material selection usually begins with project requirements, not with a favorite mix. The engineer or specification defines the needed performance, and the supplier develops a mixture that can satisfy those requirements with locally available materials. The best choices depend on member type, structural demand, environment, placement difficulty, schedule, and quality control.
Start with required strength and exposure → set maximum \( w/cm \), air content, cementitious limits, and durability requirements → choose aggregate size and gradation for member geometry and reinforcement spacing → select admixtures for workability and set control → evaluate SCMs for heat, durability, sustainability, and strength gain → confirm with trial batches, submittals, and field testing.
For example, a thick mat foundation may be controlled by heat generation and thermal cracking, so the mixture may need lower cement content, SCMs, temperature control, and staged placement planning. A parking structure exposed to deicing salts may be controlled by chloride resistance, low permeability, air entrainment, proper cover, and curing. A heavily reinforced wall may be controlled by flowability, consolidation, and aggregate size.
| Project condition | Material decision that often matters | Why it matters |
|---|---|---|
| Freeze-thaw exposure | Air-entrained concrete with controlled air content | Provides room for freezing water expansion and reduces scaling risk. |
| Chloride exposure | Low \( w/cm \), SCMs, cover, and corrosion protection | Reduces permeability and slows chloride movement toward reinforcement. |
| Mass concrete | Lower heat mixture and temperature control | Limits thermal gradients that can cause early-age cracking. |
| Congested reinforcement | Appropriate aggregate size and workability | Improves consolidation and reduces voids, honeycombing, and weak zones. |
| Fast schedule | Early-strength development and curing control | Supports form removal, post-tensioning, loading, or construction sequencing. |
Useful equations for concrete materials
Concrete materials are usually reviewed through specifications, mix submittals, and tests, but a few simple relationships help engineers understand mixture behavior. The most important is the water-cementitious materials ratio.
In this expression, \( W_w \) is the mass of mixing water, \( W_c \) is the mass of portland cement, and \( W_{scm} \) is the mass of supplementary cementitious materials. Lower values generally reduce capillary porosity and permeability, but the mixture must still be workable and properly cured.
The unit weight \( \gamma_c \) is the concrete weight divided by concrete volume. In structural calculations, normalweight concrete is commonly treated around 145 to 150 lb/ft³ unless project-specific material data, lightweight aggregate, or code assumptions require a different value. Unit weight matters because concrete self-weight often represents a large portion of the permanent structural load.
If a mix design changes cement content, water, aggregate type, or air content, do not assume only strength changes. The change may also affect density, shrinkage, heat, stiffness, finishability, pumpability, and durability.
Worked example: reviewing a concrete mix concept
Example
Suppose a structural slab requires normalweight concrete with a specified compressive strength of 4,000 psi, moderate workability for pumping, and durability suitable for an exterior environment with freeze-thaw exposure. A proposed mixture includes cementitious materials, well-graded aggregates, water reducer, air entrainment, and a target air content set by the project specification.
The first review step is not just checking whether the mix can reach 4,000 psi. The engineer should also review the maximum \( w/cm \), target slump, air range, aggregate size relative to slab thickness and reinforcement spacing, cementitious content, SCM percentage, and curing requirements. If the mix reaches strength but lacks a proper air-void system, it may still be vulnerable to freeze-thaw damage.
Next, the reviewer should ask whether the mixture can be placed and finished under expected site conditions. Pumped concrete may need adequate paste volume and a stable gradation. Exterior slabs may be sensitive to finishing timing, evaporation, curing, and air content. If finishers add water at the surface, overwork bleed water, or finish too early, the surface can become weaker even when cylinder strengths look acceptable.
The final engineering interpretation is that the material decision is a performance balance. Strength, durability, workability, and field execution must agree. The mix design, testing plan, curing plan, and placement procedure all need to support the same structural objective.
Engineering judgment and field reality
Concrete materials are tested and proportioned in controlled ways, but real projects are affected by temperature, delivery time, batching accuracy, aggregate moisture, pump distance, crew practice, reinforcement congestion, form conditions, curing discipline, and weather. Many concrete problems come from the gap between the approved mixture and what actually happens between batching and hardening.
Aggregate moisture is a common field issue. If batch water is not adjusted for wet or dry aggregates, the actual water-cementitious materials ratio can drift away from the submitted value. That can change slump, strength, shrinkage, and durability. Similarly, uncontrolled water added at the jobsite may make placement easier but can increase permeability and reduce surface quality.
A concrete mix is not “approved forever.” If materials, sources, admixture dosages, weather, placement method, or curing conditions change, performance assumptions should be rechecked.
Experienced engineers also watch the relationship between design drawings and material behavior. Narrow walls, deep beams, congested beam-column joints, heavily reinforced mats, and thin architectural elements may require more attention to aggregate size, slump retention, vibration, and self-consolidating behavior. A mixture that works well in a simple footing may not work well in a congested wall or architectural exposed surface.
When concrete material assumptions break down
Concrete material assumptions break down when the mixture no longer reflects the conditions assumed during design, testing, and submittal review. This can happen because of material variability, poor batching control, unexpected exposure, inadequate curing, hot or cold weather, improper consolidation, or construction practices that change the effective mixture.
Laboratory cylinders also do not capture every field condition. Cylinders can show that a concrete mixture has strength potential, but the structure may still have honeycombing, cold joints, plastic shrinkage cracking, poor curing, surface scaling, excessive deflection, or durability problems. Test results must be interpreted together with placement observations, curing records, inspection findings, and actual exposure conditions.
- Hot weather: Accelerates slump loss, evaporation, setting, and early-age cracking risk.
- Cold weather: Slows strength gain and can damage concrete if it freezes before adequate strength develops.
- High cement content: Can increase heat and shrinkage even while supporting strength.
- Poor curing: Can reduce surface durability and increase cracking despite an acceptable mix design.
- Incompatible admixtures: Can cause unexpected set behavior, slump loss, air loss, or segregation.
Common pitfalls and senior engineer checks
Concrete material problems are often preventable when the review focuses on performance rather than paperwork. The goal is to identify where the mixture, specification, construction method, and exposure environment do not align.
- Approving a mix based only on compressive strength while ignoring exposure durability requirements.
- Allowing excess water addition without understanding the effect on \( w/cm \), permeability, shrinkage, and surface quality.
- Using aggregate that is too large for reinforcement spacing, cover, or member geometry.
- Ignoring aggregate moisture corrections and assuming submitted batch weights match field water conditions.
- Specifying high early strength without considering heat, shrinkage, cracking, or curing requirements.
- Assuming SCMs are always beneficial without checking curing temperature, strength schedule, and compatibility.
- Failing to connect material requirements with structural loads, member size, and construction sequencing.
The most costly mistake is treating concrete as a generic commodity. Structural concrete is a performance material, and its behavior depends on mixture proportions, placement, curing, testing, and exposure.
| Senior engineer check | What to look for | Why it matters |
|---|---|---|
| Strength requirement | Specified \( f’_c \), test age, overdesign margin, acceptance criteria | Confirms the mixture supports structural capacity assumptions. |
| Durability requirement | Exposure class, maximum \( w/cm \), air, SCMs, cover, curing | Prevents corrosion, freeze-thaw damage, sulfate attack, and permeability problems. |
| Constructability | Slump, slump retention, aggregate size, pumpability, consolidation | Reduces voids, honeycombing, cold joints, and placement defects. |
| Volume stability | Shrinkage, heat, creep, restraint, curing method | Controls cracking, deflection, and long-term serviceability. |
| Quality control | Batch tickets, field tests, cylinder handling, curing records | Links approved material assumptions to actual field performance. |
Visualizing how concrete materials become structural performance
A useful way to think about concrete materials is to trace performance from ingredient selection to structural behavior. Cementitious materials and water create the paste. Aggregates form the skeleton. Admixtures tune fresh behavior. Curing allows hydration to continue. Testing verifies whether the placed material is meeting the assumptions used by the structural design.
If any link is weak, the structural member can underperform. A beam may have enough reinforcement but poor consolidation. A slab may reach strength but crack from shrinkage and curing problems. A column may have the right specified strength but suffer durability issues if the mixture is too permeable for the exposure.
Use this mental model when reviewing concrete submittals: ingredients → fresh properties → placement → curing → hardened properties → structural performance.
Relevant standards and design references
Concrete materials are governed by a combination of project specifications, building codes, material standards, and testing procedures. The exact requirements depend on project type, jurisdiction, exposure, and contract documents.
- ACI 318: Used for structural concrete design requirements, including strength, durability, cover, reinforcement, and member behavior that depend on concrete material properties.
- ACI 301: Commonly used for specifications for concrete construction, including materials, production, execution, quality control, and acceptance requirements.
- ASTM C150 / ASTM C595 / ASTM C1157: Cement standards used to define portland cement, blended hydraulic cement, and performance-based hydraulic cement requirements.
- ASTM C33: Covers concrete aggregates, including grading and quality requirements for fine and coarse aggregates.
- ASTM C94: Covers ready-mixed concrete production, delivery, batching, and related quality requirements.
Field and laboratory tests such as slump, air content, temperature, unit weight, compressive strength cylinders, and curing records are also essential because they confirm whether the delivered material matches the specified and submitted concrete mixture.
Frequently asked questions
The main concrete materials are cementitious binder, aggregates, water, admixtures, and often supplementary cementitious materials such as fly ash, slag cement, silica fume, or calcined clay. Together, they control strength, workability, durability, volume stability, heat generation, and constructability.
Aggregates make up most of the concrete volume, so their gradation, shape, absorption, cleanliness, durability, and maximum size strongly affect workability, shrinkage, strength, cracking risk, and finishability. A poor aggregate system can make an otherwise reasonable cement paste perform badly.
Concrete durability is strongly influenced by water-cementitious materials ratio, air entrainment, cement type, SCM selection, aggregate quality, curing, cover, and exposure conditions. The goal is not just high compressive strength, but a low-permeability, stable material that can resist the environment.
Concrete materials describe what the concrete is made from and how the mixture behaves, while concrete design sizes and details structural members that use that material. Good structural design depends on both: the member must be calculated correctly and the material must perform as assumed.
Concrete material assumptions break down when batching, moisture corrections, curing, temperature, aggregate quality, admixture compatibility, or field placement differ from the laboratory mixture. This is why submittal review, trial batches, testing, curing control, and field observation matter.
Summary and next steps
Concrete materials are the foundation of structural concrete performance. Cementitious binder, aggregates, water, admixtures, SCMs, and curing conditions determine how concrete behaves when fresh, how it gains strength, how it cracks, and how it resists long-term exposure.
The key engineering lesson is that concrete should be reviewed as a complete material system. Compressive strength matters, but so do workability, \( w/cm \), air content, aggregate properties, permeability, shrinkage, heat, curing, and field quality control. Good material decisions help the final structure match the assumptions used in design.
For practical structural work, connect concrete materials to member behavior, reinforcement detailing, load path, and inspection findings. That connection is what turns a mix design from a submittal into a reliable part of a structure.
