Concrete Reinforcement

Introduction

Concrete reinforcement turns brittle concrete into a ductile structural material. By embedding steel bars, welded wire reinforcement, prestressing tendons, or fiber reinforcement, engineers create members that resist tension, control cracking, and safely redistribute forces. Getting reinforcement right means more than meeting nominal strength; it’s about crack width limits, deflection control, bar development, cover, and constructible details that keep the load path continuous from slab to foundations.

Effective concrete reinforcement = correct bar type + proper detailing + adequate cover + verified installation.

Types of Reinforcement

Different reinforcement solutions address strength, serviceability, durability, and speed of construction. Choose the system that best fits the structure, environment, and budget.

Deformed Steel Bars (Rebar): The workhorse for buildings and bridges. Common grades provide high yield strength with ribbed surfaces for bond. Stainless and epoxy-coated options improve corrosion resistance.
Welded Wire Reinforcement (WWR): Prefabricated wire mats accelerate slab and wall placement and offer consistent spacing; great for temperature-shrinkage steel and two-way slabs.
Prestressing (Post-Tensioning & Pre-Tensioning): Tendons add precompression, controlling cracking and deflection for long spans and aggressive exposure. Essential in parking structures and long-span floors.
FRP Bars & Tendons: Glass/carbon FRP reinforcement eliminates corrosion in marine/deicing environments; design with different stress–strain behavior than steel.
Discrete Fibers (Steel & Synthetic): Mixed into the concrete to reduce early plastic shrinkage cracking and enhance toughness; can replace some conventional temperature/shrinkage reinforcement in slabs-on-ground.

Selection Tips

Use conventional rebar for primary strength, WWR where repetition and speed matter, post-tensioning for deflection-critical spans, FRP for highly corrosive environments, and fibers to mitigate early cracking or add impact resistance.

Mechanics & Design Fundamentals

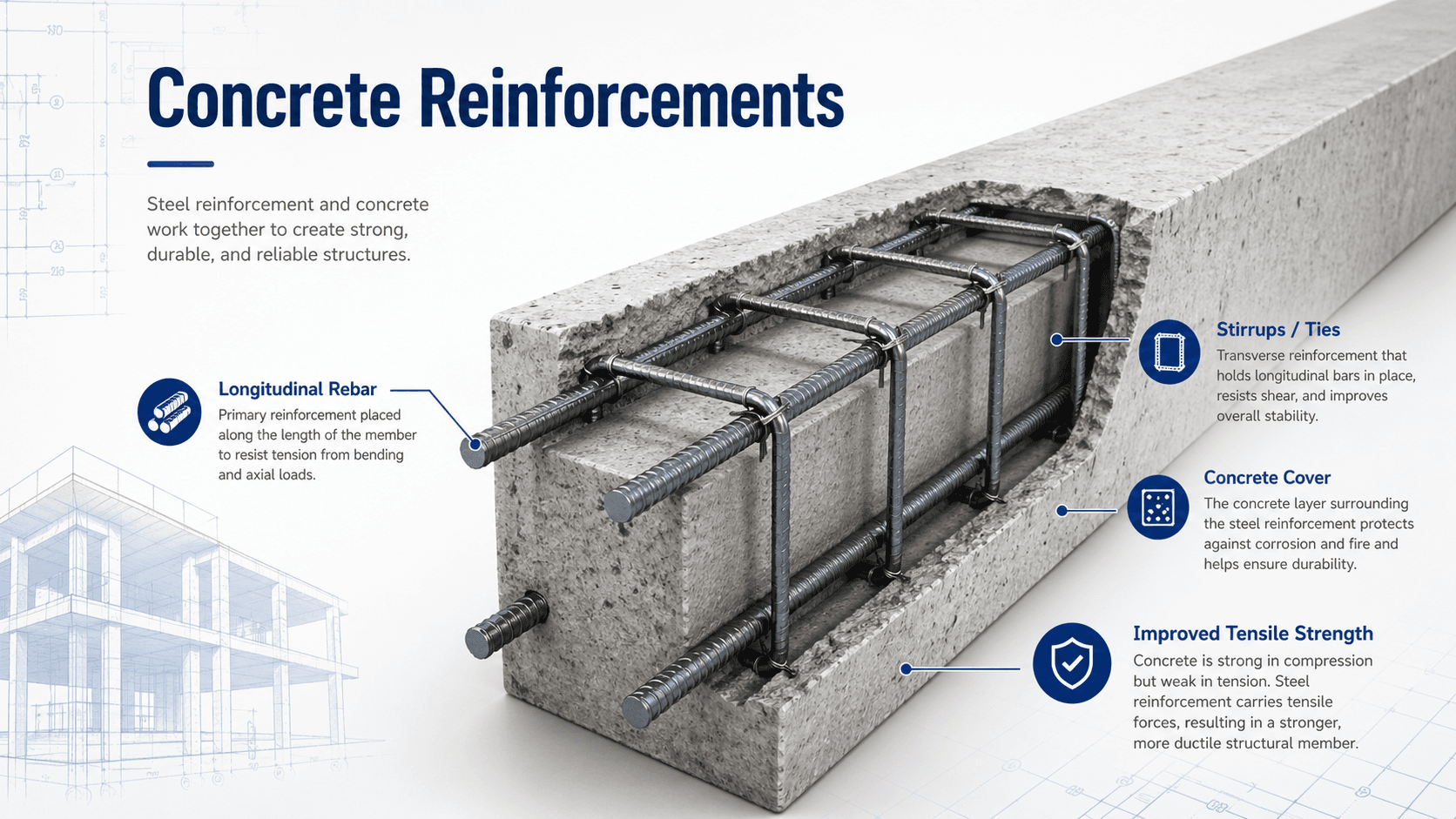

Reinforced concrete relies on composite action: concrete resists compression, reinforcement resists tension, and bond transfers forces between them. Strength design checks ultimate capacity, while serviceability ensures acceptable cracking and deflection under use.

Flexural Strength (Concept)

\( \phi M_n \ge M_u \quad\text{with}\quad M_n = A_s f_y \left(d – \tfrac{a}{2}\right) \)

\(A_s\)Tension steel area

\(d, a\)Effective depth; compression block

Shear is resisted by the concrete web and shear reinforcement (stirrups). Development length ensures bars can reach yield before pullout. Serviceability controls (reinforcement ratios, bar spacing, precompression) manage crack widths and deflection—often more critical than ultimate strength for slabs and water-retaining structures.

Detailing Essentials: Cover, Development & Splices

Detailing is where performance succeeds or fails. Proper anchorage, development, and clear cover ensure strength and durability are actually achieved.

Development & Splice (Concept)

\( l_d \propto \dfrac{\bar{d}\,f_y}{\lambda \,\sqrt{f’_c}} \quad ; \quad l_s \ge \alpha\, l_d \)

\(\bar{d}\)Bar diameter

\(f’_c\)Concrete strength

\(l_d, l_s\)Development; lap splice length

Cover: Provide adequate concrete cover for bond and corrosion protection; increase in marine or deicing exposure.
Bar Bends & Hooks: Use standard hooks where embedment is limited; keep minimum bend diameters to avoid bar damage.
Congestion: Coordinate bar sizes, splice locations, and layered WWR/post-tensioning ducts to maintain concrete flow and vibration access.
Anchorage: In post-tensioning, verify end anchorage zones and bursting steel detailing; in FRP, follow manufacturer anchorage systems and environmental limits.

Important

Design the detail you can build. Bar congestion at beams-column joints or wall piers can prevent proper consolidation—opt for smaller bars at closer spacing or mechanical couplers where needed.

Slabs, Beams & Walls: Practical Reinforcement Strategies

Each element type has characteristic reinforcement patterns. Understanding these helps avoid common pitfalls and align expectations in the field.

One-Way Slabs: Main bottom bars in span direction with top steel over supports; temperature–shrinkage reinforcement perpendicular to main bars (often WWR).
Two-Way Slabs & Flat Plates: Balanced top and bottom reinforcement; punching shear control at columns via shear studs, drop panels, or increased thickness; check deflection and vibration if spans are long.
Beams: Tension steel at the bottom midspan and top over supports; closed stirrups for shear; compression steel improves ductility and long-term deflection.
Walls: Horizontal and vertical bars for axial + bending; boundary elements at high moment regions; WWR is efficient for regular spacing.

Detailing Tip

Stagger splices and avoid splices near maximum moment regions where possible. Use mechanical couplers at heavily loaded areas to reduce lap lengths and congestion.

Columns, Joints & Seismic Detailing

Columns and beam–column joints demand tight confinement to sustain cyclic inelastic drift in seismic zones. Transverse reinforcement (ties/spirals) controls core integrity and buckling of longitudinal bars.

Confinement: Close tie spacing in plastic hinge regions; 135° hooks for seismic ties; ensure tie legs engage all corner/intermediate bars.
Strong Column–Weak Beam: Detail columns for higher overstrength moments to promote ductile beam hinging; coordinate with seismic design philosophy.
Joints: Provide joint shear reinforcement and ensure bars are well anchored into joints; careful bar layering avoids unconsolidated concrete pockets.

Did you know?

Well-confined columns can reach strains far beyond the unconfined concrete limit, preserving gravity load capacity even after large drifts.

Durability & Corrosion Protection

Reinforcement durability hinges on limiting chloride ingress, carbonation, and moisture exposure. Specify mixes with low permeability, adequate cover, and the right reinforcement/coating for the exposure category.

Coated & Stainless Rebar: Epoxy-coated bars reduce corrosion initiation; stainless bars excel at critical zones (joints, edges) with long service life.
FRP Rebar: Immune to corrosion; great for decks, seawalls, and wastewater plants. Design with lower modulus and linear-elastic behavior until rupture—ensure serviceability limits are met.
Concrete Mix & Curing: Low water–cement ratio, SCMs (slag, fly ash, silica fume) and proper curing reduce permeability; see concrete design and concrete materials.

Interface Details

Protect exposed bar ends, minimize cracks at cover by distributing steel, and use waterstops/membranes at joints. Plan for inspections to catch early corrosion signs.

Fiber Reinforcement & Crack Control

Fibers help control plastic shrinkage cracking and enhance post-crack behavior. Steel fibers increase residual strength; macro-synthetic fibers offer corrosion-proof toughness and can reduce temperature/shrinkage bars in some applications (verify with project specs).

Crack Width (Concept)

\( w \propto \dfrac{s_r\, f_s}{E_s} \Rightarrow \text{tighter spacing & lower stress reduce } w \)

\(s_r\)Bar spacing/effective crack spacing

\(f_s\)Steel stress at service

Use fibers as a supplement, not a substitute, for flexural tension steel unless a proven design method and testing support full replacement.

Construction, QA/QC & Inspection

Field quality determines whether design assumptions hold. Chairs, spacers, bar supports, and sequencing all affect cover and placement.

Submittals: Bar lists, placing drawings, coupler details, WWR sheets, post-tensioning stressing plans, and FRP datasheets.
Placement: Verify bar size/grade, spacing, clear cover, splice types/lengths, and proper support (chairs and bolsters) before concrete arrives.
Post-Tensioning: Check duct profiles, anchors, stressing records, and grout quality for bonded tendons; protect unbonded tendons from damage.
Inspection & Testing: Reinforcement inspection is part of special inspections; photograph congestion zones and verify consolidation access.
Documentation: Mark as-built bar changes; coordinate with future coring locations and embed maps.

Important

“Just add water” on site to chase slump increases shrinkage and weakens cover concrete—the first defense against corrosion. Use admixtures or revise the mix if workability is inadequate.

Codes, Standards & Trusted References

Reinforcement design and construction rely on consensus standards and rigorous testing. These homepages are stable starting points for current documents:

ACI (American Concrete Institute): Design and construction standards and guides. Visit concrete.org.
CRSI (Concrete Reinforcing Steel Institute): Detailing manuals and bar placing resources. Visit crsi.org.
ASTM: Material specifications for reinforcing bars, WWR, and testing. Visit astm.org.
NIST: Research on durability, corrosion, and materials performance. Visit nist.gov.

For system context, explore our related pages on concrete design, structural loads, structural analysis, structural dynamics, and structural inspections.

Frequently Asked Questions

How do I choose bar size and spacing?

Balance constructability and serviceability. Smaller bars at closer spacing improve crack control and fit better around congested joints. Use larger bars where placement and cover can be maintained without congestion.

When should I use WWR instead of rebar?

WWR excels in slabs and walls with repetitive spacing and standard bar sizes. It speeds placement, improves bar positioning, and can reduce field labor. Ensure laps and laps’ orientation match the span direction.

Is FRP rebar a direct replacement for steel?

No. FRP is linear elastic to rupture with lower modulus than steel. Design for serviceability and ultimate using FRP-specific provisions, and detail for different development/anchorage requirements.

What controls crack widths?

Bar spacing and stress at service. Lower water–cement ratio, more distributed reinforcement, and precompression (post-tensioning) help. For watertight or exposed surfaces, set explicit crack width targets.

Key Takeaways & Next Steps

Concrete reinforcement is more than bar schedules—it’s the backbone of ductility, serviceability, and durability. Choose the right reinforcement type, detail for development and cover, and coordinate construction so consolidation and tolerances are achievable. Manage corrosion risk with durable mixes, adequate cover, and, where necessary, epoxy-coated, stainless, or FRP reinforcement.

Continue with concrete design, verify loads, ensure a continuous load path, and plan inspections. For authoritative guidance and the latest standards, begin at ACI, CRSI, ASTM, and NIST. With thoughtful detailing and disciplined QA/QC, reinforced concrete will deliver safe, resilient, and long-lasting structures.
