Composite Materials

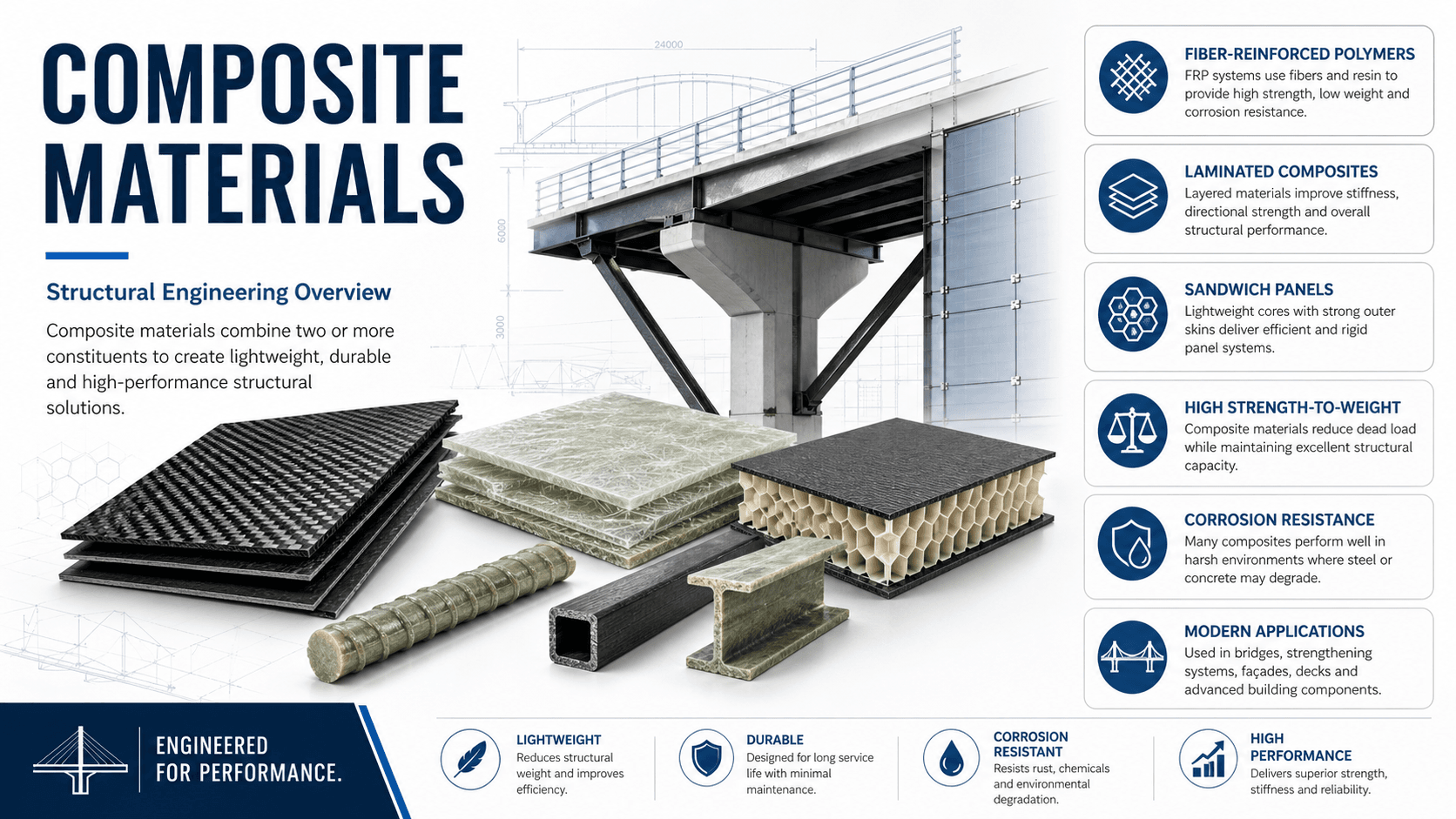

Composite materials are materials formed from two or more constituent materials that remain distinct at a microscopic or structural level but act together as one engineered system. The simplest way to think about a composite is as a combination of a matrix, which binds and protects, and reinforcement, which provides strength, stiffness, crack control, or dimensional stability.

In structural engineering, the idea is broader than carbon fiber. Reinforced concrete is a composite because concrete handles compression while steel reinforcement carries tension. Engineered wood products, FRP strengthening systems, sandwich panels, and steel-concrete floor systems also rely on composite action. The practical question is not just “what is it made of?” but “how do the parts transfer force together?”

Most structural composites are controlled by three interacting parts: the matrix, the reinforcement, and the interface between them. Each part has a different job. When they are compatible, the composite can resist loads efficiently. When they are not, failure may occur through cracking, debonding, delamination, crushing, creep, or premature rupture.

Matrix or binder

The matrix holds the reinforcement in place, distributes stress, protects fibers or reinforcement from the environment, and gives the material its shape. In concrete, the cement paste and aggregate skeleton act as the surrounding material around reinforcement. In FRP, the resin matrix bonds the fibers, protects them from moisture and abrasion, and transfers shear between fibers.

Reinforcement

Reinforcement carries the load that the matrix does not handle well. Steel rebar improves concrete tension capacity. Carbon fibers add high tensile stiffness in CFRP laminates. Glass fibers provide corrosion-resistant reinforcement in GFRP bars. Wood veneers, strands, and laminations help engineered wood products reduce natural defects and provide more predictable structural behavior.

Interface and bond

The interface transfers stress between the components. For reinforced concrete, that means bond between concrete and steel. For externally bonded FRP, it means adhesive bond, surface preparation, and substrate quality. For composite steel beams, it means shear connectors and slab-beam interaction. A weak interface can prevent the stronger component from ever reaching its useful capacity.

Composite materials appear throughout buildings, bridges, industrial structures, marine environments, and repair work. Some are traditional systems used every day, while others are advanced materials selected for corrosion resistance, low weight, or rapid strengthening.

Engineers use composite materials when a single traditional material cannot meet the project goals as efficiently. The goal may be lower dead load, corrosion resistance, fast retrofit, improved durability, longer spans, better crack control, or a more efficient load path.

• Repair and strengthening: CFRP sheets, strips, or wraps can increase flexural, shear, or confinement capacity of existing concrete members when properly bonded and detailed.
• Durability in harsh environments: GFRP reinforcement can reduce corrosion risk in bridge decks, marine structures, parking garages, and other chloride-exposed concrete.
• Efficient floor and bridge systems: Steel-concrete composite beams allow steel to resist tension while concrete contributes compression stiffness and diaphragm behavior.
• Lightweight enclosure and modular systems: Sandwich panels and FRP panels can reduce dead load while providing stiffness through geometry and bonded faces.
• More predictable wood products: Engineered wood products reduce the impact of knots and natural defects by distributing fibers, strands, or veneers in controlled patterns.

Composite performance is controlled by more than material strength. Directionality, bond quality, deformation compatibility, environmental exposure, fire performance, long-term creep, and connection details often matter as much as the published tensile or compressive strength.

Fiber-reinforced polymer systems are one of the most important advanced composite applications in structural engineering. FRP systems are often used to strengthen existing concrete, masonry, steel, or timber members where adding conventional steel plates, jackets, or new framing would be heavy, disruptive, or difficult to install.

Common FRP applications

• Flexural strengthening: CFRP strips or sheets are bonded to the tension face of a beam or slab to increase tensile capacity.
• Shear strengthening: U-wraps or side-bonded sheets help resist diagonal tension and shear cracking in beams.
• Column confinement: FRP wraps confine concrete, improve ductility, and can support seismic retrofit objectives.
• Masonry strengthening: Externally bonded or near-surface-mounted FRP can improve out-of-plane or in-plane wall capacity when anchored correctly.
• Bridge rehabilitation: Lightweight FRP systems can be useful where traffic closures, dead load, or corrosion exposure are major constraints.

Why FRP design is different from steel strengthening

FRP systems generally do not yield like steel. Many FRP products behave almost linearly until rupture, so a design that looks strong on paper can still be undesirable if it creates brittle failure, debonding, or a loss of ductility. Engineers must check the existing member, the substrate, the adhesive, the termination points, the fire exposure, and the expected failure mode.

Composite materials are powerful because their properties can be tailored. That does not make them automatically superior. The best use cases are situations where the composite provides a clear advantage that offsets cost, detailing complexity, inspection difficulty, or specialized installation requirements.

Consider an existing reinforced concrete beam in a parking structure where corrosion damage, low clearance, and limited shutdown time make conventional enlargement difficult. A composite retrofit may be attractive because externally bonded CFRP can add tensile strengthening with limited added dead load and a relatively thin profile.

Engineering decision path

The engineer would first confirm the existing beam geometry, reinforcement, concrete strength, cracking, corrosion damage, and load demand. Next, the retrofit option would be checked for flexural capacity, serviceability, bond length, termination zones, shear capacity, fire exposure, and whether the existing concrete substrate is sound enough to transfer load into the CFRP.

Interpretation

The CFRP material itself may have high tensile strength, but that does not mean the retrofit is automatically acceptable. If the concrete surface is weak, the adhesive is installed outside temperature limits, or the FRP terminates where high peeling stresses occur, the system may debond before the fibers reach useful capacity.

Composite materials often look clean in diagrams because the components are shown acting together perfectly. Real projects are less ideal. Bond lines have workmanship variation, concrete substrates may be cracked or contaminated, timber may gain moisture, field cuts may expose fibers, and fire protection may be overlooked because the strengthening layer is thin.

Experienced engineers also separate material efficiency from system efficiency. A carbon fiber laminate may be extremely strong, but if it requires expensive access, special inspection, fire protection, and careful anchorage, a simpler steel or concrete solution may still be better for the project.

The simplified explanation of composite materials breaks down when the components do not act together, when the assumed load direction is wrong, or when the service environment damages one part of the system faster than expected. This is why composite design must be tied to load path, exposure, detailing, and construction quality.

• Bond failure: The reinforcement may be strong, but the composite action is lost if the interface fails.
• Wrong reinforcement orientation: Fibers or reinforcement placed in the wrong direction may not resist the governing demand.
• Brittle failure: Some composites fail suddenly without the yielding behavior engineers expect from ductile steel systems.
• Fire or temperature exposure: Polymer matrices and adhesives may lose stiffness or strength at elevated temperatures.
• Poor substrate condition: FRP strengthening may be ineffective if the existing concrete, masonry, timber, or steel surface cannot transfer the load.
• Uncontrolled long-term behavior: Creep, fatigue, ultraviolet exposure, and chemical attack can reduce performance over time.

The most common mistakes come from treating composite materials as direct replacements for traditional materials without accounting for system behavior. Composite design is not just a material substitution; it is a load-transfer problem.

• Assuming stronger means stiffer: Some composites have high strength but lower stiffness than steel, which can make deflection or cracking govern.
• Ignoring anisotropy: Fiber direction can make properties very different along and across the reinforcement direction.
• Underestimating connections: Shear connectors, anchors, bond lengths, lap details, and terminations often control performance.
• Skipping service checks: Creep, fatigue, vibration, crack width, and deflection may govern even when strength checks pass.
• Overlooking fire protection: Thin FRP systems and adhesive-bonded materials may need protection to meet the required fire performance.
• Using generic product data: Manufacturer properties must be interpreted with the actual exposure, installation, and design method in mind.
