Key Takeaways
- Core idea: Glass materials in structures include tempered, laminated, heat-strengthened, insulated, coated, and fire-rated glass used for enclosure, daylight, safety, and sometimes direct load resistance.
- Engineering use: Structural glass appears in curtain walls, skylights, canopies, railings, floors, stairs, partitions, glass fins, and building envelopes.
- What controls it: Strength, brittleness, support condition, edge quality, load duration, impact risk, thermal stress, interlayer behavior, and post-breakage performance control glass selection.
- Practical check: Never select glass only by appearance; safety-critical applications must consider what happens after the pane cracks or breaks.
Table of Contents
Introduction
Glass materials in structures are engineered glazing products used in windows, facades, roofs, canopies, guardrails, floors, partitions, and load-sharing architectural systems. In structural engineering, glass is valued for transparency and stiffness, but it must be treated carefully because it is brittle, flaw-sensitive, and often controlled by safety, support detailing, and post-breakage behavior.

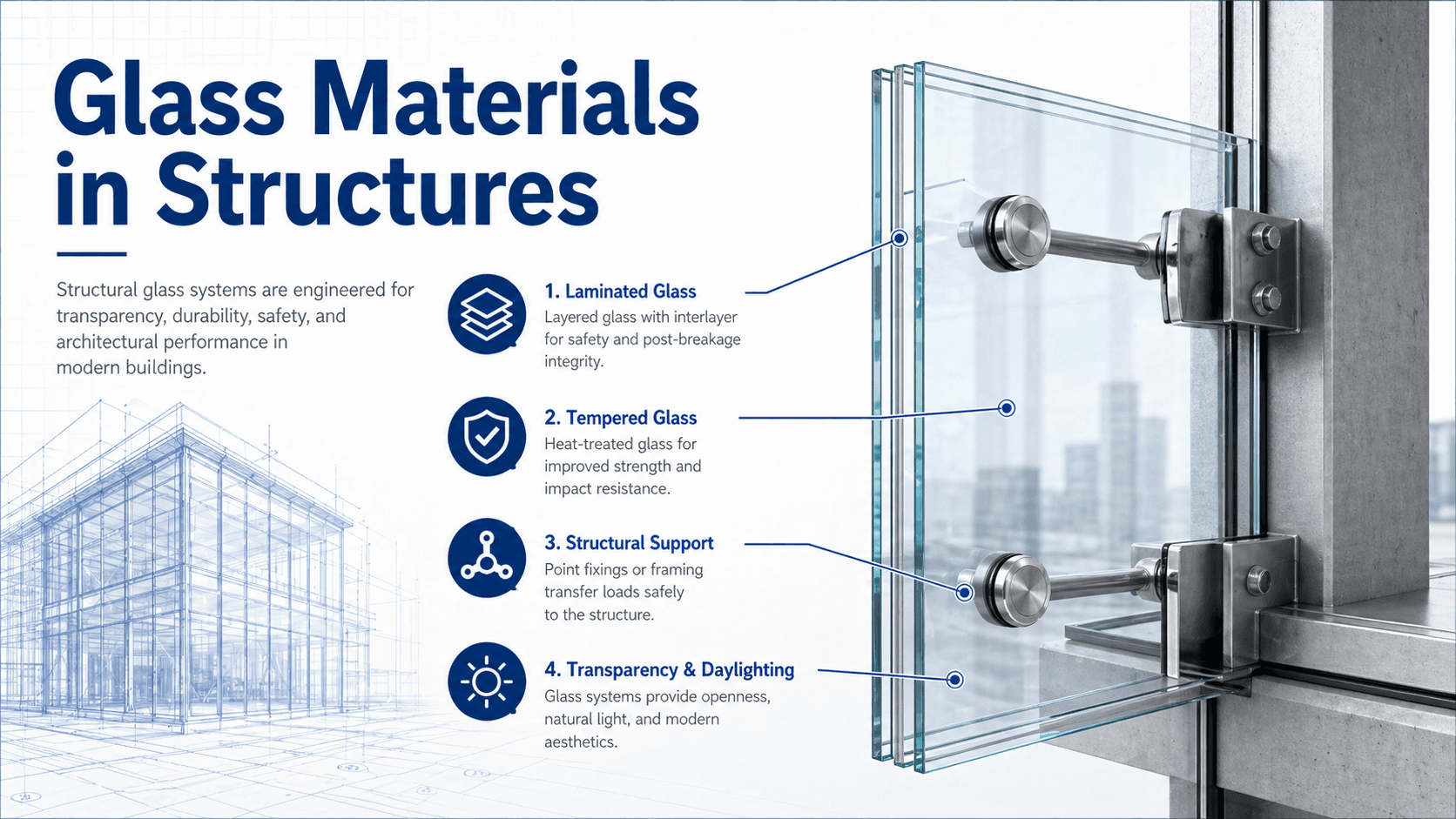

Visual Guide to Glass Materials in Structures
Notice that glass is not one material decision. A window pane, glass guardrail, canopy, curtain wall unit, and glass floor may all use different glass build-ups because their load paths, consequences of breakage, and occupant safety requirements are different.
What Are Glass Materials in Structures?
Glass materials in structures are manufactured glass products used as part of a building or civil structure. They may function as transparent enclosure, weather protection, daylighting surface, safety barrier, architectural feature, or a load-resisting component. Common forms include monolithic panes, laminated build-ups, insulated glass units, coated glass, fire-rated assemblies, glass fins, and point-supported structural glazing.
The structural engineering challenge is that glass behaves differently from steel, concrete, masonry, or timber. It can be stiff and strong under the right conditions, but it is brittle and sensitive to small defects. A surface scratch, chipped edge, drilled hole, point support, thermal gradient, or installation restraint can become the controlling detail.
The question is not simply “Is the glass strong enough?” A better structural question is: what loads act on the glass, how is it supported, what happens if one lite breaks, and does the remaining system still protect people?
Architectural Glass vs. Structural Glass
Architectural glass is primarily used for enclosure, daylight, visibility, weather resistance, and appearance. Structural glass either carries load directly or protects occupants in a safety-critical location. The boundary is not always obvious because a pane can look decorative while still being required to resist wind, impact, fall loads, or overhead breakage risk.
Architectural glazing
Architectural glazing includes windows, storefronts, curtain wall infill, interior partitions, and decorative panels. These elements may still resist wind or service loads, but their main role is enclosure and environmental performance. Energy behavior, condensation resistance, glare, solar heat gain, and appearance are often major drivers.
Structural and safety-critical glazing
Structural glass includes glass fins, glass floors, stair treads, canopies, guardrails, point-supported panels, overhead glazing, and some facade systems where glass participates in the load path. These applications require closer attention to redundancy, support movement, impact behavior, and whether fragments remain attached after breakage.
| Glass use | Primary function | Structural concern |
|---|---|---|
| Window or curtain wall infill | Envelope, daylight, weather protection | Wind pressure, thermal stress, deflection, seal performance |
| Glass guardrail | Fall protection and visibility | Impact, line load, post-breakage retention, base support |
| Glass canopy or skylight | Overhead protection and daylight | Gravity load, wind uplift, snow, impact, falling fragments |
| Glass floor or stair tread | Walking surface and architectural feature | Live load, slip resistance, redundancy, serviceability, fracture behavior |
How Glass Behaves Structurally
Glass is stiff, hard, transparent, and durable, but it is not ductile. Steel can yield and redistribute stress before fracture. Reinforced concrete can crack while reinforcement continues to carry tension. Glass generally does not provide that same warning or redistribution unless the assembly is designed with laminated layers, redundancy, or supporting frames.
Brittleness and flaw sensitivity
Glass strength is strongly influenced by surface and edge flaws. The same nominal glass type can behave differently if one pane has clean edges and another has chips, scratches, holes, or point-contact damage. This is why handling, fabrication quality, setting blocks, edge clearances, and support tolerances matter as much as the material name.
Load duration and support condition
Structural glass checks are influenced by how long the load acts and how the glass is supported. A short impact, a wind gust, a long-duration snow load, and a permanent dead load do not create the same risk. A four-side-supported pane behaves differently from a two-edge-supported panel, a cantilevered guardrail, or a point-supported facade panel.
Post-breakage behavior
Post-breakage behavior is one of the most important ideas in structural glass. Tempered glass may be strong before breakage but can lose most of its ability to act as a barrier after it fractures. Laminated glass can retain fragments through an interlayer, which is why it is commonly used where falling fragments, fall protection, or overhead risk must be controlled.
Common Types of Glass Used in Structures
Glass selection usually begins with the application and consequence of failure. A facade panel, storefront door, glass stair, overhead skylight, and energy-efficient window may all require different glass types even if they appear similar from a distance.
| Glass type | How it is used | Structural behavior | Typical applications |
|---|---|---|---|
| Annealed glass | Basic float glass cooled slowly after forming | Lower strength; breaks into sharp fragments | Non-safety-critical glazing, interior panels, low-risk applications |
| Heat-strengthened glass | Thermally treated to increase strength above annealed glass | Moderate strength; breakage pattern differs from fully tempered glass | Facades, insulated glass units, spandrel glass, wind-loaded panels |
| Fully tempered glass | Thermally treated for high surface compression | Higher strength; breaks into small particles but may lose panel integrity | Doors, storefronts, some railings, safety glazing, impact-prone areas |
| Laminated glass | Two or more glass lites bonded with an interlayer | Fragments can remain attached after breakage; residual capacity depends on build-up | Guards, canopies, skylights, floors, stairs, security glazing, overhead glazing |
| Insulated glass unit | Multiple panes separated by a sealed air or gas space | Strength depends on individual lites, spacer, pressure effects, and support | Windows, curtain walls, high-performance building envelopes |
| Low-E or coated glass | Glass with a coating that modifies solar and thermal radiation | Coating changes energy behavior, not basic load path by itself | Energy-efficient facades, windows, skylights, high-performance envelopes |
| Fire-rated glass | Special tested glazing assembly for fire-resistance or fire-protection performance | Must be used as part of a rated assembly, not just a standalone pane | Fire-rated doors, corridors, partitions, stair enclosures, protected openings |
The words tempered, laminated, insulated, and coated describe different performance features. A high-performance assembly may combine several of them, such as a laminated tempered insulated glass unit with a low-E coating.
Where Glass Materials Are Used in Structures
Glass is used wherever transparency, daylight, visibility, enclosure, or architectural lightness is valuable. In modern structures, it also interacts with energy modeling, facade engineering, occupant comfort, structural movement, and safety requirements.
- Facades and curtain walls: glass resists wind pressure while contributing to daylighting, thermal performance, and building appearance.
- Skylights and roofs: laminated or rated assemblies are often important because occupants may be below the glass.
- Canopies: overhead glass must consider gravity loads, wind uplift, impact, drainage, edge support, and falling-fragment risk.
- Railings and guards: glass must act as a barrier, not just a transparent panel, so post-breakage retention is critical.
- Floors, stairs, and walkways: glass becomes a walking surface, so live load, redundancy, slip resistance, deflection, and human comfort matter.
- Glass fins and structural glazing: glass may help support other glass panels, creating a transparent load path with very little visual framing.
- Partitions and interior walls: glass separates spaces while preserving light and visibility, often with acoustic, fire, or impact considerations.
When glass protects people from falling, falling objects, fire, impact, or overhead fragments, it should be treated as a safety-critical element even if it is also an architectural feature.
What Controls Glass Design?
Glass design is controlled by demand, capacity, support condition, fabrication quality, environmental exposure, and consequence of failure. A pane that works in one location may be inappropriate in another location because the loading, restraint, temperature, or occupant risk is different.
| Factor | Why it matters | Engineering implication |
|---|---|---|
| Glass type and build-up | Annealed, tempered, heat-strengthened, laminated, and insulated assemblies behave differently. | The selected build-up must match strength, breakage, safety, and energy goals. |
| Support condition | Two-edge support, four-edge support, point support, and cantilever support create different stress patterns. | Connection detailing can control the design as much as glass thickness. |
| Edge quality | Edges are common locations for flaws, chips, stress concentrations, and installation damage. | Fabrication, handling, clearances, and setting materials must be coordinated carefully. |
| Load duration | Wind gusts, snow, dead load, impact, and maintenance loads act over different time periods. | Short-duration and long-duration demand may require different checks. |
| Thermal exposure | Solar heating, shading patterns, framing restraint, and coatings can create thermal stress. | Thermal breakage risk must be considered, especially at facades and skylights. |
| Post-breakage requirement | Some applications must continue protecting occupants after one lite fractures. | Laminated assemblies, redundancy, and safe support details may control selection. |
Tempered Glass, Laminated Glass, and Post-Breakage Safety
Tempered and laminated glass are often confused because both can be used in safety glazing. They are not interchangeable. Tempered glass improves pre-break strength and breaks into smaller particles. Laminated glass uses an interlayer to help retain fragments and preserve some barrier function after breakage.
When tempered glass helps
Fully tempered glass is useful where higher strength and safer fragment size are important, such as doors, storefronts, shower enclosures, and some impact-prone areas. The limitation is that once fully tempered glass fractures, it may rapidly break across the entire lite and lose panel continuity.
When laminated glass helps
Laminated glass is important where fragments must be retained or where the glass must continue acting as a barrier after cracking. Guards, overhead glazing, canopies, glass floors, stair treads, security glazing, and some facade applications commonly rely on laminated behavior.
Why laminated tempered assemblies are common
Many safety-critical applications combine tempered or heat-strengthened lites with a laminated interlayer. This can provide higher pre-break resistance plus better post-breakage retention. The final behavior depends on glass thickness, lite type, interlayer material, temperature, support condition, and load duration.
A pane can pass a strength check and still be the wrong choice if it fails in a way that creates falling fragments, loss of fall protection, or loss of overhead safety.
Glass Selection Decision Table
A practical glass selection starts with the application, then checks consequence of breakage, support condition, exposure, and required performance. The table below is not a substitute for project design, but it shows how engineers think through common choices.
Define the glass function → identify loads and hazard location → determine whether post-breakage retention is required → select candidate glass build-up → check support details, deflection, thermal stress, and code criteria → coordinate with manufacturer and facade or specialty engineer.
| Application | Likely glass strategy | Why it matters |
|---|---|---|
| Standard window | Annealed, heat-strengthened, tempered, or insulated glass unit depending on location and load | Envelope performance, wind pressure, energy behavior, and safety glazing rules may control. |
| Curtain wall panel | Heat-strengthened, tempered, laminated, coated, or insulated assembly | Wind, thermal stress, edge support, deflection, seal performance, and energy targets interact. |
| Glass guardrail | Laminated safety glass, often with tempered or heat-strengthened lites | The system must resist guard loads and remain protective after a lite breaks. |
| Canopy or overhead glazing | Laminated glass with support and drainage details designed for overhead use | Falling-fragment risk and residual support after breakage are major concerns. |
| Glass floor or stair | Multi-layer laminated structural glass assembly | Walking surfaces require redundancy, stiffness, slip resistance, wear protection, and comfort checks. |
| Fire-rated opening | Tested fire-rated glass and framing assembly | Fire performance depends on the complete rated assembly, not only the pane. |
Design Review Checklist for Structural Glass
Structural glass design is highly detail-sensitive. A useful design review checks the entire assembly rather than only the pane thickness. Loads, glass make-up, interlayer, framing, supports, tolerances, drainage, access, and replacement strategy all affect long-term performance.
| Review item | What to check | Why it matters |
|---|---|---|
| Design loads | Wind, snow, dead load, live load, impact, maintenance load, seismic drift, and temperature effects | Glass may be controlled by serviceability, local stress, or unusual load combinations. |
| Support details | Bite, setting blocks, point fittings, gaskets, edge clearances, fastener tolerances, and restraint | Support details often determine stress concentrations and breakage risk. |
| Post-breakage behavior | Whether one broken lite still leaves a safe barrier or temporary load path | Guards, overhead glazing, floors, and canopies may be governed by residual performance. |
| Movement compatibility | Building drift, thermal expansion, frame movement, slab deflection, and installation tolerance | Glass should not be forced to accommodate movements that the framing system should release. |
| Durability and maintenance | Sealant compatibility, drainage, cleaning access, coating exposure, and replacement path | Long-term performance depends on water control, access, and maintainable details. |
Trace the load path after damage. If one lite breaks, one fitting loosens, or one support deforms, does the remaining assembly still protect occupants long enough for repair?
Engineering Judgment and Field Reality
Structural glass often fails at the boundary between design assumptions and real installation conditions. Drawings may show clean bearing, uniform support, and ideal clearances, while the field may introduce frame twist, hard contact, blocked drainage, chipped edges, missing setting blocks, or unplanned restraint. These small differences can matter because glass has limited ability to redistribute stress.
Field judgment also matters during maintenance and renovation. Replacing a pane with “similar glass” may not be adequate if the original glass was laminated, heat-strengthened, coated, fire-rated, or part of an insulated unit. The visible appearance may not reveal the interlayer, coating surface, heat treatment, thickness, or rated assembly requirements.
The most dangerous glass decisions are often made after design: substitution, poor handling, edge damage, incompatible replacement glass, or installation that restrains movement the system was designed to allow.
When This Breaks Down
Simplified glass selection breaks down when the glass is safety-critical, overhead, highly loaded, point-supported, exposed to large temperature gradients, or expected to remain protective after breakage. In those cases, a basic “type of glass” list is not enough.
- Post-breakage demand is ignored: a strong monolithic pane may not provide acceptable safety once it fractures.
- Support conditions are idealized: glass stresses can change when actual bearing, point supports, frame movement, or edge restraint differ from assumptions.
- Thermal stress is overlooked: shading, coatings, dark spandrel areas, and restrained edges can create temperature gradients that crack glass.
- Substitution changes performance: replacing laminated glass with monolithic glass, or heat-strengthened glass with tempered glass, can change breakage behavior and residual safety.
- The framing is treated as secondary: glass performance depends on gaskets, blocks, anchors, tolerances, drainage, sealants, and movement joints.
Common Mistakes and Practical Checks
Most poor glass decisions come from treating glass as an appearance item instead of an engineered assembly. The practical check is to connect every glass choice to loads, hazard location, support detail, and consequence of breakage.
- Choosing glass only by thickness: two panes with the same thickness can behave very differently if one is annealed, one is tempered, and one is laminated.
- Ignoring edge damage: chips, scratches, and poor edge finishing can control breakage risk even when the glass type appears correct.
- Using monolithic glass where retention is needed: guards, canopies, skylights, and floors often need laminated behavior.
- Forgetting serviceability: excessive deflection, vibration, or visible movement can make glass feel unsafe even before strength is exceeded.
- Overlooking compatibility: sealants, interlayers, coatings, framing materials, and drainage paths must work together.
- Assuming a facade panel is nonstructural: even infill glazing may resist significant wind pressure and must accommodate building movement.
Do not assume tempered glass is automatically the safest option. In many structural or overhead applications, fragment retention and residual barrier performance are more important than pre-break strength alone.
Relevant Standards, Codes, and Design References
Glass design depends on project location, occupancy, application, and governing documents. The references below are commonly used to frame glass strength, safety glazing, product classification, and building-code context.
- ASTM E1300: Commonly used for determining load resistance of glass in buildings under uniform lateral loads, especially for windows, facades, and similar glazing applications.
- International Building Code Chapter 24: Provides building-code provisions for glass and glazing, including safety glazing locations, identification, and related requirements adopted or modified by jurisdictions.
- ASTM C1048: Covers heat-strengthened and fully tempered flat glass, helping define product categories that are often used in structural and safety glazing discussions.
- ANSI Z97.1 and CPSC 16 CFR Part 1201: Common safety glazing impact references for materials used in hazardous locations such as doors, guards, and human-impact areas.
- Manufacturer and specialty engineer data: Essential for laminated interlayers, point-supported systems, fire-rated assemblies, coatings, insulated glass units, and project-specific structural glass details.
Frequently Asked Questions
Common glass materials in structures include annealed glass, heat-strengthened glass, fully tempered glass, laminated glass, insulated glass units, coated glass, fire-rated glass, and engineered structural glass assemblies. The right choice depends on load, safety risk, support conditions, energy performance, and whether the glass must retain fragments after breakage.
Yes, glass can be a structural material when it participates in resisting load or protecting occupants, such as in glass fins, guards, floors, stairs, canopies, skylights, and some facade systems. It must be designed carefully because glass is brittle, flaw-sensitive, and does not yield like steel before failure.
Tempered glass and laminated glass solve different problems. Tempered glass has higher strength and breaks into small particles, while laminated glass uses an interlayer to help retain fragments after breakage. For overhead glazing, guards, floors, and other safety-critical applications, laminated or laminated-tempered assemblies are often preferred.
Glass is challenging structurally because it is brittle, sensitive to edge damage and surface flaws, weak in tension relative to compression, and unable to redistribute stress through ductile yielding. Good structural glass design depends on realistic loads, clean support details, reliable interlayers, redundancy, and careful coordination with codes and manufacturers.
Summary and Next Steps
Glass materials in structures are engineered glazing products used for transparency, enclosure, daylighting, safety barriers, overhead protection, and specialized load-resisting applications. The major glass types include annealed, heat-strengthened, tempered, laminated, insulated, coated, and fire-rated assemblies.
The most important structural ideas are brittleness, edge quality, support condition, load duration, thermal stress, and post-breakage behavior. Good glass selection starts with the application and hazard, then works through loads, build-up, supports, movement, safety requirements, and field installation reality.
