Refrigeration Cycles

Understanding Refrigeration Cycles

Refrigeration cycles are essential processes in thermodynamics, enabling the transfer of heat from a lower temperature region to a higher temperature region. These cycles are the backbone of various cooling systems, including household refrigerators, air conditioners, industrial chillers, and medical storage units. By efficiently managing heat transfer, refrigeration cycles play a pivotal role in preserving food, maintaining comfortable living environments, and supporting critical medical procedures.

In this comprehensive guide, we will explore the intricacies of refrigeration cycles. We will delve into their theoretical foundations, key equations, practical applications in engineering, real-world examples, and the challenges associated with optimizing their performance. Whether you’re a student, engineer, or enthusiast, understanding refrigeration cycles is crucial for appreciating how modern cooling systems operate and how they can be improved for greater efficiency and sustainability.

How Do Refrigeration Cycles Work?

At the heart of every refrigeration system lies the fundamental principle of heat transfer. Refrigeration cycles operate by absorbing heat from a designated space (the cold reservoir) and rejecting it to the surrounding environment (the hot reservoir). This process requires the continuous circulation of a refrigerant—a fluid that undergoes phase changes to facilitate heat transfer.

The primary components involved in a typical refrigeration cycle include:

• Compressor: Increases the pressure of the refrigerant vapor, thereby raising its temperature.
• Condenser: Allows the high-pressure, high-temperature refrigerant to release heat to the environment, causing it to condense into a liquid.
• Expansion Valve: Reduces the pressure of the liquid refrigerant, leading to a drop in temperature.

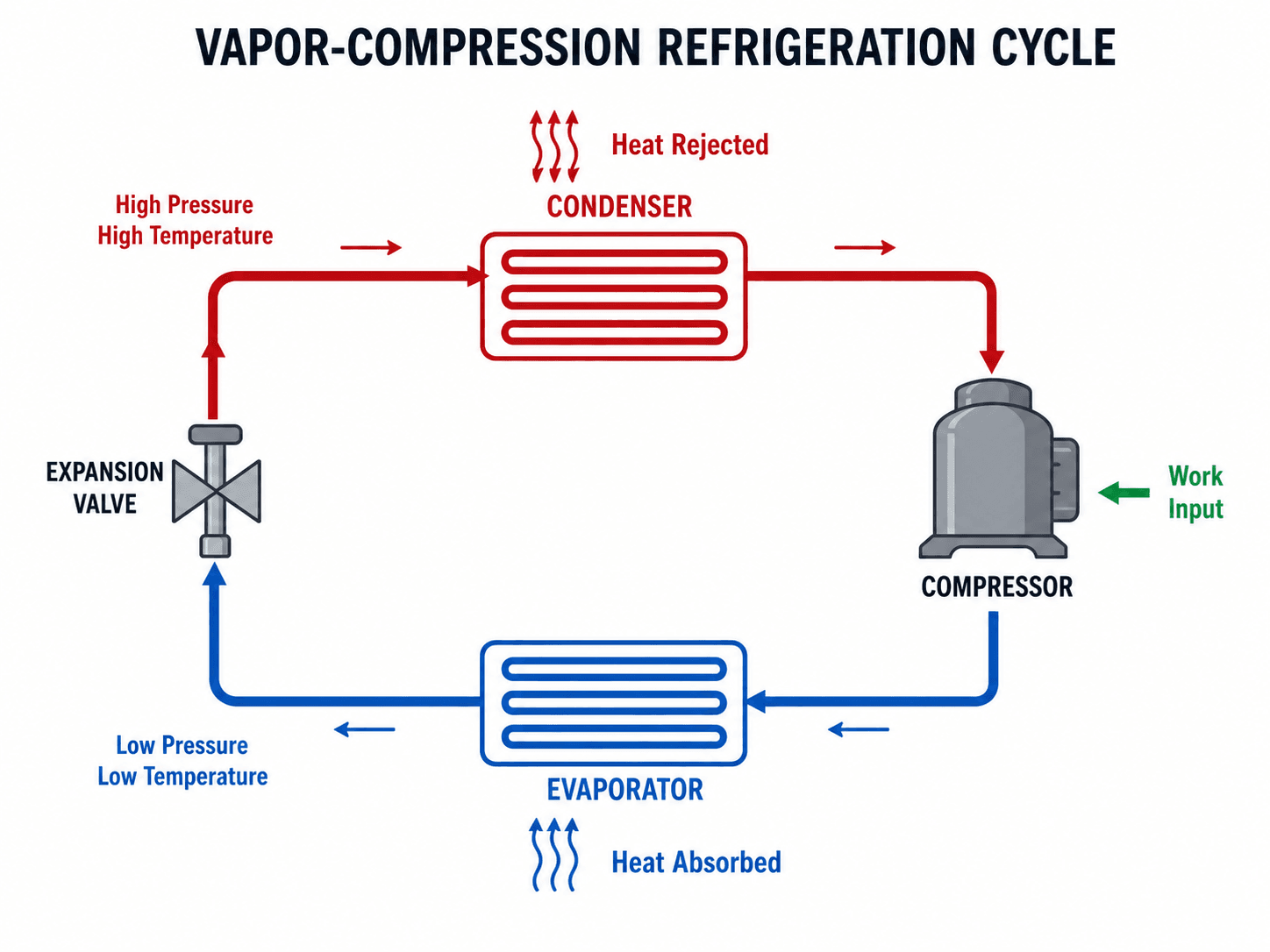

• Evaporator: Absorbs heat from the space to be cooled, causing the refrigerant to evaporate back into a vapor.

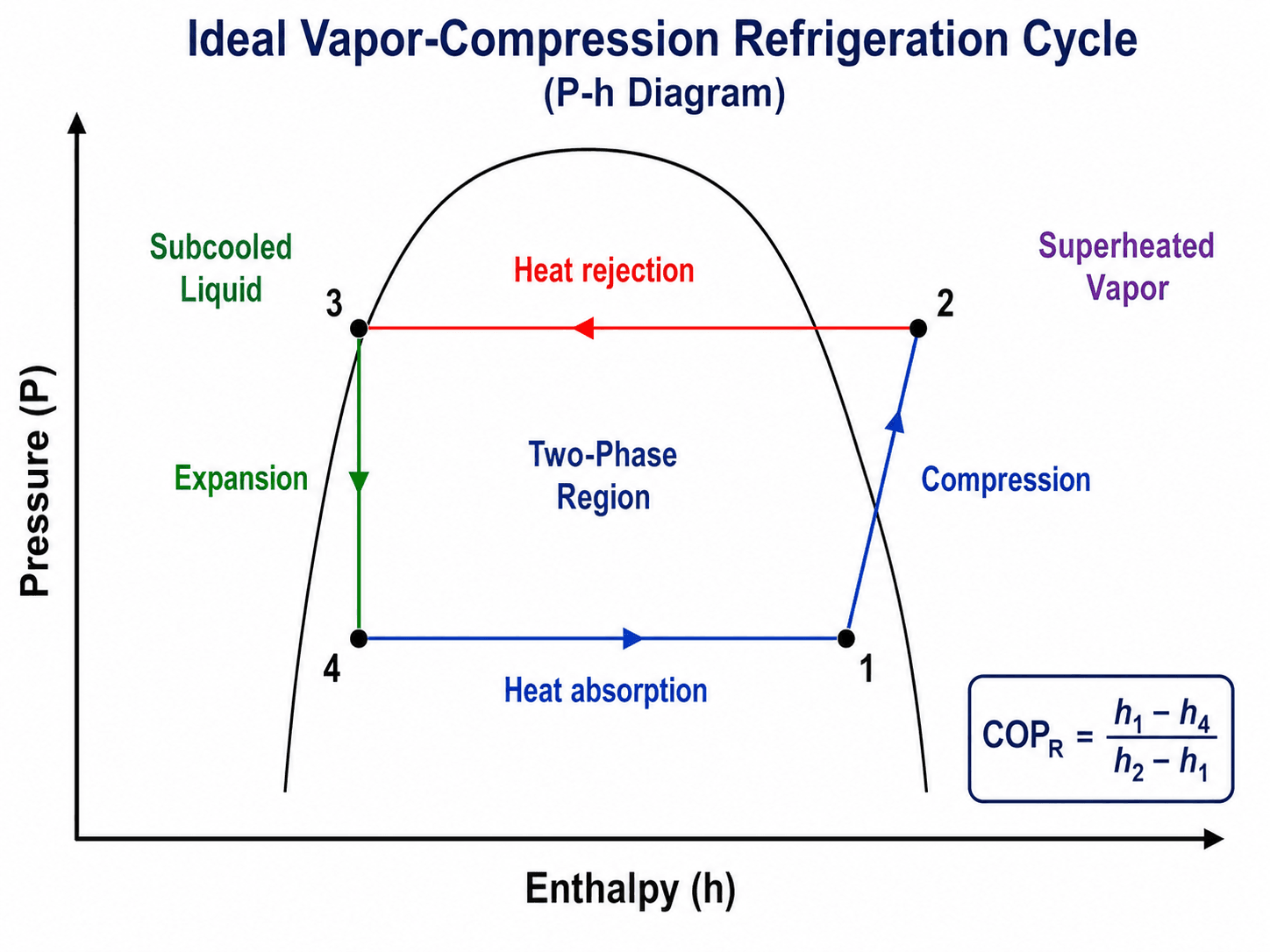

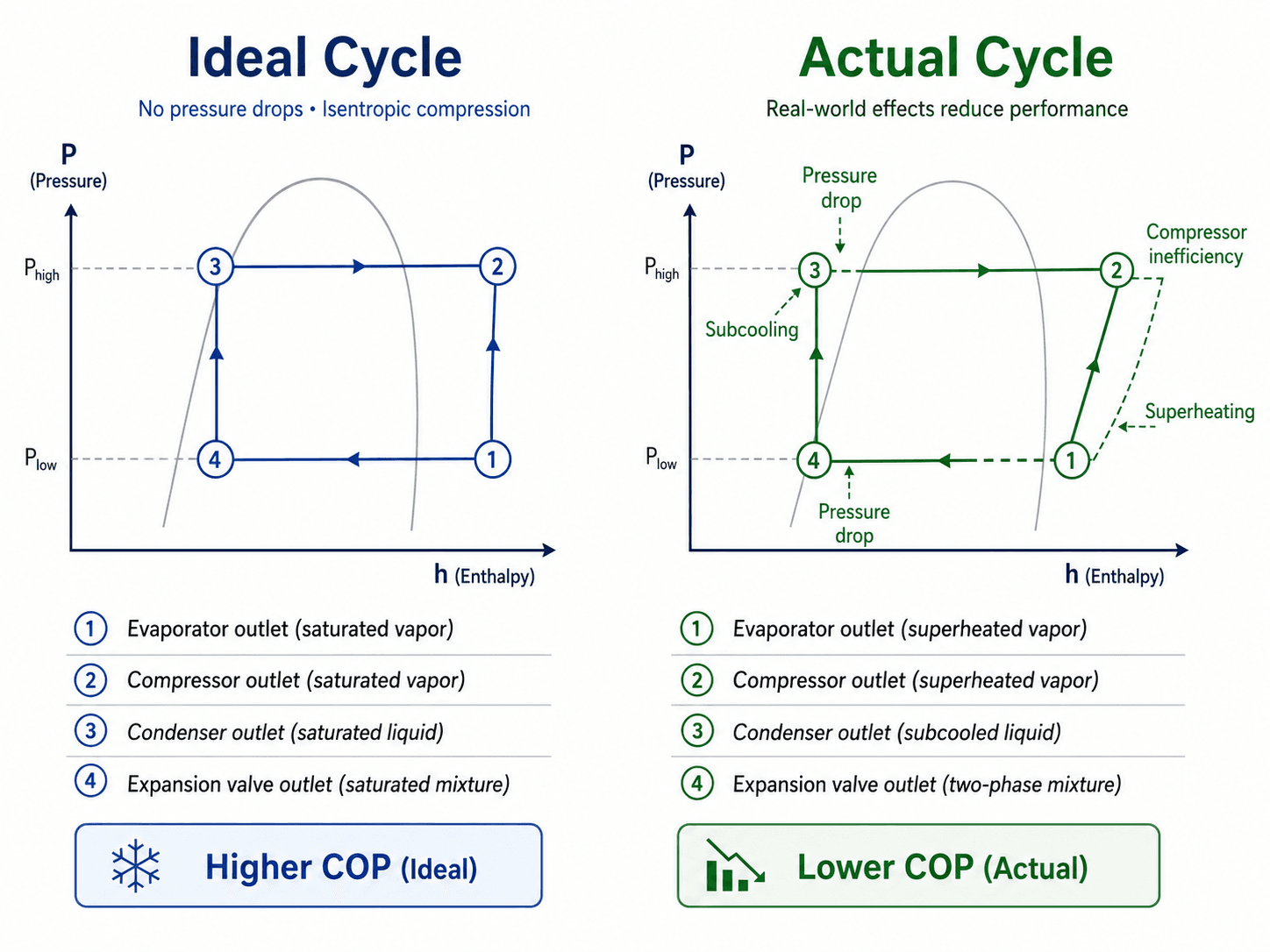

These components work in tandem to create a continuous loop, facilitating the transfer of heat and maintaining the desired cooling effect. The cycle can be represented on a pressure-enthalpy (P-H) diagram, illustrating the phase changes and energy exchanges that occur during operation.

Key Equations for Refrigeration Cycles

To effectively analyze and optimize refrigeration systems, engineers utilize several key thermodynamic equations. These equations help in calculating performance metrics such as the Coefficient of Performance (COP), refrigeration capacity, and energy consumption.

These equations are fundamental for designing and assessing the performance of refrigeration systems. By applying them, engineers can determine optimal operating conditions, select appropriate refrigerants, and enhance overall system efficiency.

Applications of Refrigeration Cycles in Engineering and Technology

Refrigeration cycles are integral to a multitude of engineering applications, spanning from residential cooling solutions to large-scale industrial processes. Their ability to efficiently manage heat transfer makes them indispensable in maintaining desired environmental conditions and supporting critical operations.

Additionally, industrial refrigeration systems are crucial in various manufacturing processes. They are used to cool machinery, preserve products, and maintain specific temperature conditions required for production, ensuring operational efficiency and product quality.

The automotive industry also utilizes refrigeration cycles in air conditioning systems within vehicles. These systems enhance passenger comfort by regulating cabin temperatures, enabling vehicles to operate efficiently in varying climatic conditions.

Moreover, medical refrigeration systems are vital for preserving vaccines, medications, and biological samples. These systems ensure that sensitive medical products remain within required temperature ranges, safeguarding their efficacy and safety.

For more insights into the applications of refrigeration cycles in engineering, visit the ASME Refrigeration Cycles Applications Overview.

Real-World Example: Vapor-Compression Refrigeration Cycle

To illustrate the practical application of refrigeration cycles, let’s examine the vapor-compression refrigeration cycle, the most widely used refrigeration cycle in various cooling systems. This example demonstrates how the cycle operates, its components, and its efficiency considerations.

This real-world example highlights the practical application of the vapor-compression refrigeration cycle, showcasing how theoretical principles are applied to design efficient and effective cooling systems. By understanding and optimizing each component of the cycle, engineers can achieve significant improvements in system performance and energy efficiency.

Challenges in Applying Refrigeration Cycles in Engineering

While refrigeration cycles are indispensable in various engineering applications, optimizing their performance and efficiency presents several challenges. These challenges stem from both theoretical limitations and practical constraints inherent in real-world systems.

One of the primary challenges is the selection of suitable refrigerants. Refrigerants must possess properties that facilitate efficient heat transfer, low environmental impact, and safety under operational conditions. Historically, substances like chlorofluorocarbons (CFCs) were widely used but were later phased out due to their ozone-depleting effects. Modern alternatives like hydrofluorocarbons (HFCs) and natural refrigerants such as ammonia and carbon dioxide are being adopted to address environmental concerns, each with its own set of advantages and limitations.

Additionally, achieving high energy efficiency in refrigeration cycles requires meticulous design and optimization. Factors such as compressor efficiency, heat exchanger performance, and refrigerant flow rates must be carefully managed to minimize energy consumption and operational costs. Engineers must employ advanced modeling techniques and utilize energy-efficient components to enhance system performance.

Material compatibility is another critical consideration. Refrigerants can interact with system materials, leading to corrosion, degradation, or other forms of wear and tear. Selecting materials that are resistant to the chosen refrigerant ensures system longevity and reliability, preventing costly maintenance and downtime.

Furthermore, the design of expansion devices and evaporators poses challenges in managing refrigerant flow and ensuring optimal heat absorption. Precise control of refrigerant expansion is essential for maintaining desired cooling effects and preventing issues such as refrigerant flooding or insufficient heat exchange.

Environmental regulations also impact the design and implementation of refrigeration systems. Compliance with standards governing refrigerant usage, emissions, and energy efficiency requires ongoing adaptation and innovation. Engineers must stay abreast of regulatory changes and incorporate sustainable practices into their system designs to meet evolving standards.

Lastly, the integration of refrigeration systems with renewable energy sources introduces additional complexities. Balancing variable energy inputs from sources like solar or wind with the consistent operational demands of refrigeration cycles necessitates advanced control systems and energy storage solutions. Engineers must develop hybrid systems that can adapt to fluctuating energy availability while maintaining efficient cooling performance.

For strategies on overcoming these challenges and improving refrigeration cycle applications in engineering, visit Engineering.com’s article on Refrigeration Cycle Challenges.

Conclusion

Refrigeration cycles are at the forefront of modern engineering, enabling the efficient management of heat transfer in a myriad of applications. From maintaining comfortable living environments and preserving essential goods to supporting critical industrial and medical processes, the role of refrigeration cycles cannot be overstated.

Mastery of refrigeration cycle principles empowers engineers to design systems that are not only efficient but also sustainable and environmentally responsible. By understanding the intricacies of heat absorption, work input, and heat rejection, engineers can optimize refrigeration systems to achieve maximum performance while minimizing energy consumption and environmental impact.

Despite the challenges in selecting appropriate refrigerants, managing energy efficiency, and ensuring material compatibility, ongoing advancements in technology and engineering practices continue to enhance the capabilities and sustainability of refrigeration cycles. Innovations such as advanced refrigerants, energy recovery systems, and smart control technologies are paving the way for more efficient and environmentally friendly cooling solutions.

Embracing the principles and challenges of refrigeration cycles not only improves engineering designs but also contributes to broader goals of energy sustainability and environmental stewardship. As the demand for efficient and reliable cooling systems grows, refrigeration cycles remain a fundamental tool in the quest for excellence in mechanical engineering and beyond.

To further explore thermodynamic principles and their applications, visit Khan Academy’s Thermodynamics Section.
