Carnot Cycle
Understanding the Carnot Cycle
The Carnot Cycle is a key concept in thermodynamics. It defines the maximum efficiency any heat engine can achieve. Named after Sadi Carnot, a French physicist, it was introduced in 1824. This cycle serves as a benchmark for real-world engines. It helps us understand how to approach maximum efficiency in energy conversion.
Did You Know?
The Carnot Cycle consists of four reversible processes. This makes it the most efficient cycle possible for heat engines.
In this article, we will explore the principles of the Carnot Cycle. We will discuss its theoretical basis, key equations, practical applications in engineering, real-world examples, and the challenges in achieving its ideal conditions.
How Does the Carnot Cycle Work?

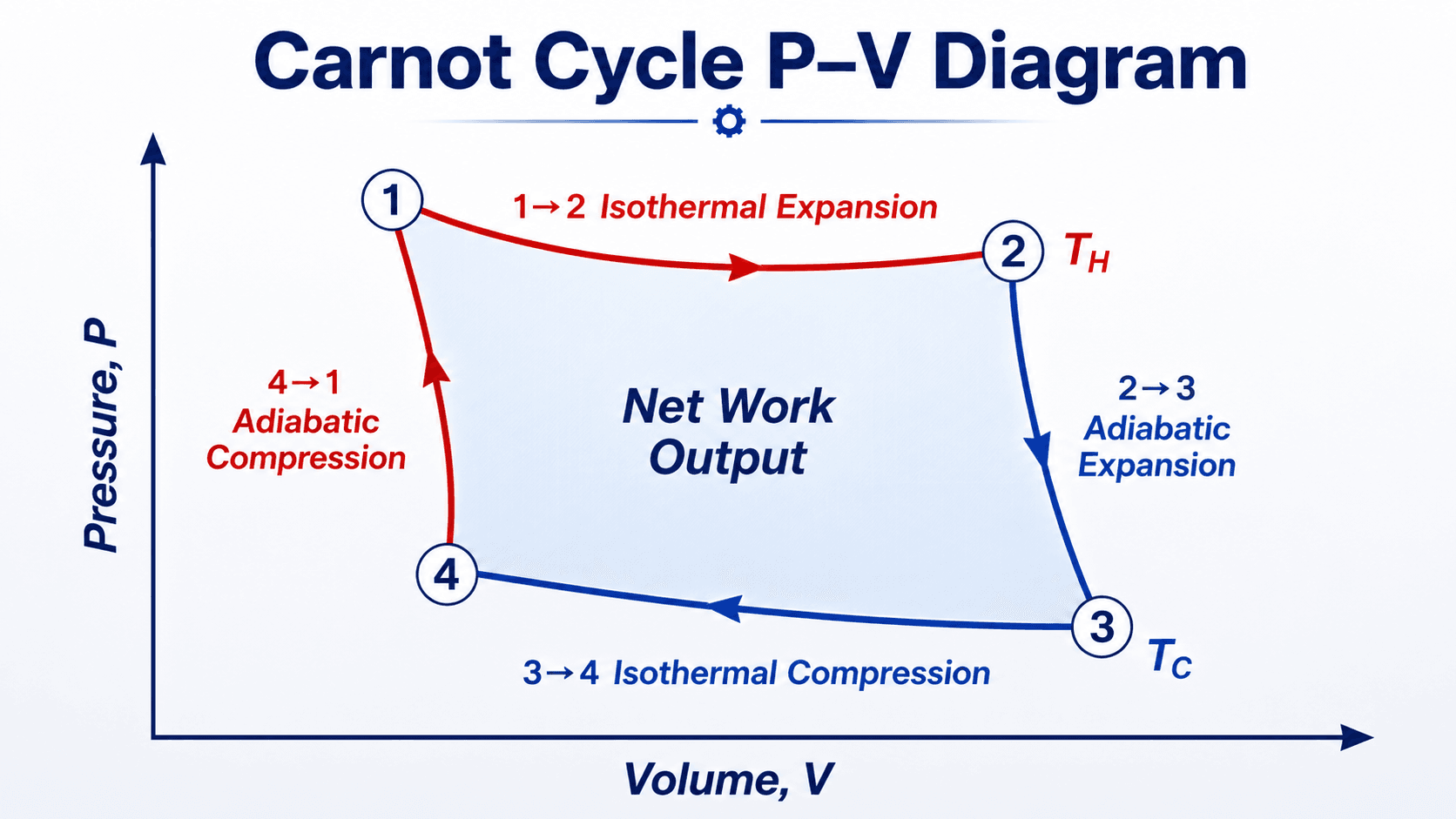

The Carnot Cycle has four distinct thermodynamic processes. These include two isothermal and two adiabatic processes. These steps create a closed loop on a pressure-volume (PV) diagram. The cycle is reversible, meaning it can run forwards or backwards without increasing entropy.
Important!
The Carnot Cycle’s reversibility is an idealization. Real engines have irreversibilities that lower their efficiency.
Let’s break down the four processes:
- Isothermal Expansion: The gas expands at a constant high temperature (\(T_H\)), absorbing heat (\(Q_H\)) from the hot reservoir.
- Adiabatic Expansion: The gas continues to expand without exchanging heat. Its temperature drops from \(T_H\) to \(T_C\).
- Isothermal Compression: The gas is compressed at a constant low temperature (\(T_C\)), releasing heat (\(Q_C\)) to the cold reservoir.
- Adiabatic Compression: The gas is further compressed without heat exchange, raising its temperature back to \(T_H\).

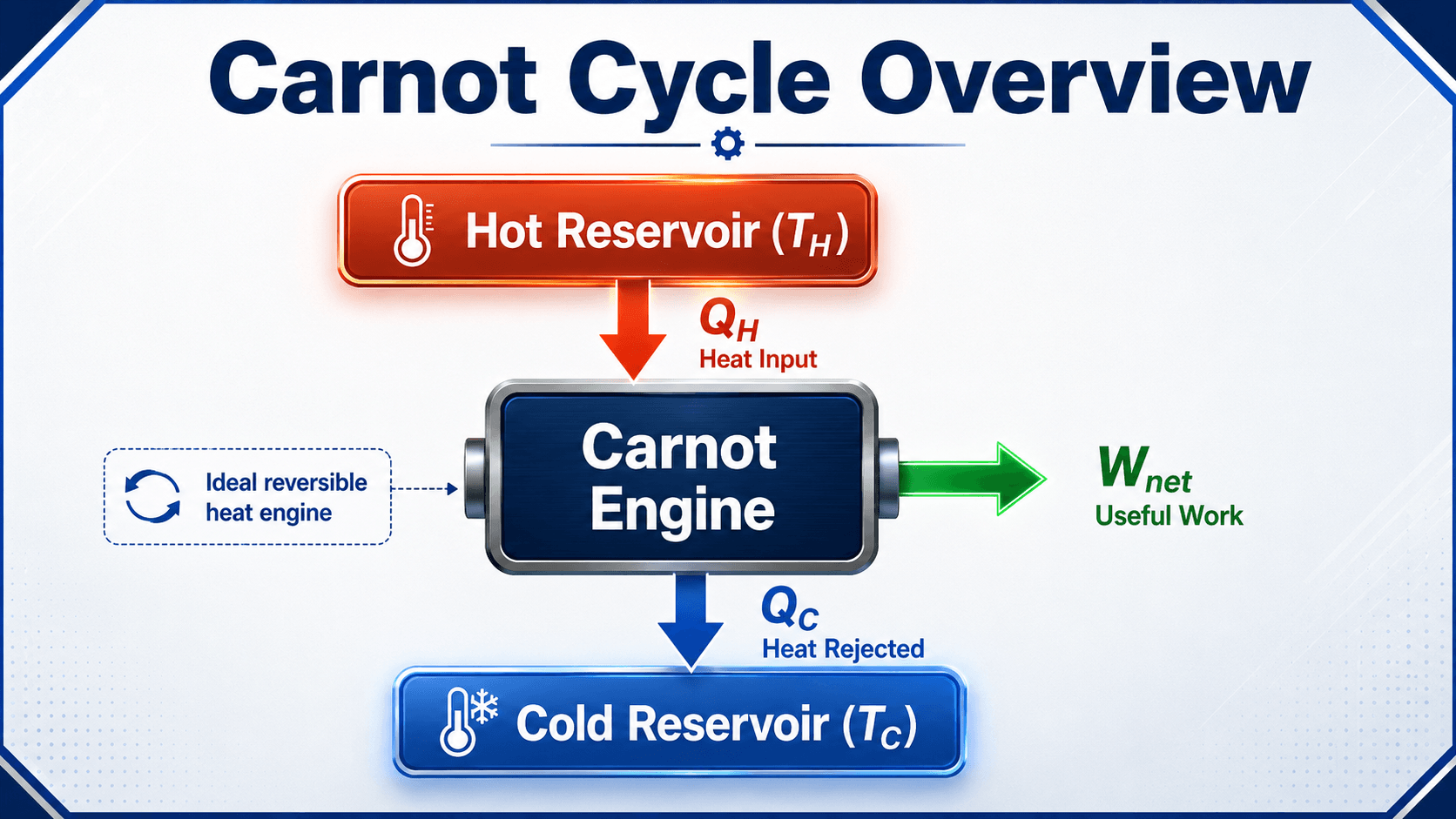

The Carnot Cycle operates between two thermal reservoirs: a hot reservoir at temperature \(T_H\) and a cold reservoir at temperature \(T_C\). The cycle’s efficiency depends only on these two temperatures. This makes it essential for understanding engine performance limits.
Key Equations for the Carnot Cycle
Several fundamental equations govern the Carnot Cycle. These relate pressure, volume, temperature, and efficiency. Understanding these equations is vital for analyzing engine performance.
Efficiency of the Carnot Cycle:
\[ \eta = 1 – \frac{T_C}{T_H} \]
This equation shows the maximum theoretical efficiency of a heat engine. It depends on the temperatures of the hot and cold reservoirs. Higher temperature differences lead to greater efficiency.
Work Done by the Carnot Engine:
\[ W = Q_H – Q_C \]
This equation calculates the net work output of the Carnot Cycle. It is the difference between the heat absorbed and the heat rejected.
Pressure and Volume Relationship:
\[ \frac{P_1 V_1}{T_H} = \frac{P_2 V_2}{T_C} \]
This equation shows how pressure and volume relate during the isothermal steps of the Carnot Cycle. It remains constant when adjusted for temperature.
These equations are essential for calculating the efficiency and work output of the Carnot Cycle. They provide a benchmark for measuring real engines.
Applications in Engineering and Technology
The Carnot Cycle serves as a foundation for designing real-world heat engines. By understanding its principles, engineers can design more efficient engines and identify performance limits.
Heat Engine Design
In designing heat engines like steam turbines and internal combustion engines, the Carnot Cycle provides a standard for maximum efficiency. Engineers use this benchmark to improve engine performance, aiming to reduce energy losses.
Moreover, the Carnot Cycle is crucial in refrigeration and heat pump systems. Understanding the cycle allows engineers to optimize these systems for better energy efficiency.
Refrigeration Systems
Refrigerators and air conditioners operate on principles similar to the Carnot Cycle. They transfer heat between different temperature reservoirs. By analyzing these systems through the Carnot Cycle, engineers can enhance their efficiency and reduce energy use.
Additionally, the Carnot Cycle is important in aerospace engineering. Efficient thermal management is critical for propulsion systems and environmental control in spacecraft.
Aerospace Applications
In aerospace engineering, efficient heat engines are vital for propulsion and energy management. The Carnot Cycle provides insights into optimizing engine performance, ensuring that aircraft and spacecraft operate efficiently under varying thermal conditions.
Real-World Example: The Ideal Gas Carnot Engine
To illustrate the Carnot Cycle, consider an ideal gas Carnot engine operating between a hot reservoir at \(500 \, \text{K}\) and a cold reservoir at \(300 \, \text{K}\). This theoretical engine undergoes the four reversible processes of the Carnot Cycle, achieving maximum possible efficiency.
Calculating Efficiency
Using the Carnot efficiency formula:
\[ \eta = 1 – \frac{T_C}{T_H} = 1 – \frac{300}{500} = 0.4 \text{ or } 40\% \]
This means the engine converts 40% of the heat absorbed into useful work. The remaining 60% is rejected to the cold reservoir. In reality, no engine can achieve this efficiency due to irreversibilities and practical limitations. However, it serves as an important theoretical benchmark.
Understanding this example helps engineers recognize factors that influence engine efficiency. It also highlights the importance of temperature differences in designing high-performance systems.
Challenges in Achieving Carnot Cycle Efficiency
While the Carnot Cycle provides a valuable framework, achieving its ideal conditions in real-world applications is challenging. These challenges arise from the ideal assumptions of the Carnot model, which are hard to replicate in practical systems.
Important!
Real engines face irreversibilities like friction and turbulence. These factors lower efficiency below the Carnot limit.
One major challenge is maintaining reversible processes. In reality, compression and expansion involve friction and other dissipative effects. These generate entropy, making processes irreversible and decreasing overall efficiency.
Additionally, perfect insulation required for adiabatic processes is unattainable. Heat losses to the environment during the isothermal and adiabatic stages can significantly impact engine performance, deviating from ideal Carnot behavior.
Consideration:
Engineers must design systems that minimize irreversibilities and heat losses. This helps approach Carnot efficiency as closely as possible.
Material limitations also play a role. The Carnot Cycle assumes ideal gases and perfect thermal conductivity. These assumptions are not always valid, especially under extreme temperatures and pressures in high-performance engines.
Furthermore, achieving large temperature differences between the hot and cold reservoirs can lead to material stress and thermal fatigue. This poses engineering challenges in maintaining structural integrity and operational reliability.
Conclusion
The Carnot Cycle is a cornerstone in thermodynamics. It sets the theoretical limit for heat engine efficiency. By understanding its principles, engineers gain valuable insights into energy conversion processes and performance limits.
Although real-world engines cannot achieve Carnot efficiency due to irreversibilities and practical constraints, the Carnot Cycle remains a guiding benchmark. It inspires engineers to design more efficient systems by minimizing energy losses and optimizing thermal processes.
Mastering the Carnot Cycle and its thermodynamic concepts is essential for mechanical engineers. It aids in innovating and improving energy systems. As technology advances, the principles from the Carnot Cycle continue to inform the development of high-efficiency engines, sustainable energy solutions, and advanced thermal management systems.
Embracing the theoretical insights of the Carnot Cycle allows engineers to push the boundaries of efficiency. This contributes to more sustainable and effective mechanical systems across various industries.
