Key Takeaways
- Definition: Expansive soils are clay-rich soils that swell when wetted and shrink when dried, creating heave, cracking, differential movement, and long-term maintenance risk.
- Use case: This page helps when a site may contain shrink-swell clays beneath slabs, pavements, shallow foundations, utilities, or retaining systems.
- Main decision: The big engineering choice is whether to control moisture, treat the near-surface soil, tolerate movement, or bypass the active zone with a different foundation strategy.
- Outcome: You will understand the mechanisms, investigation workflow, common warning signs, and practical design responses that reduce expansive soil risk.
Table of Contents
Introduction
In brief: Expansive soils are shrink-swell clays that change volume with moisture, causing heave, cracking, and differential movement unless investigation, drainage, and foundation strategy are handled carefully.
Who it’s for: Students, inspectors, and geotechnical designers.
The core issue is not just that the soil moves. It is that the movement is often seasonal, uneven, and strongly influenced by drainage, vegetation, utilities, and construction details.

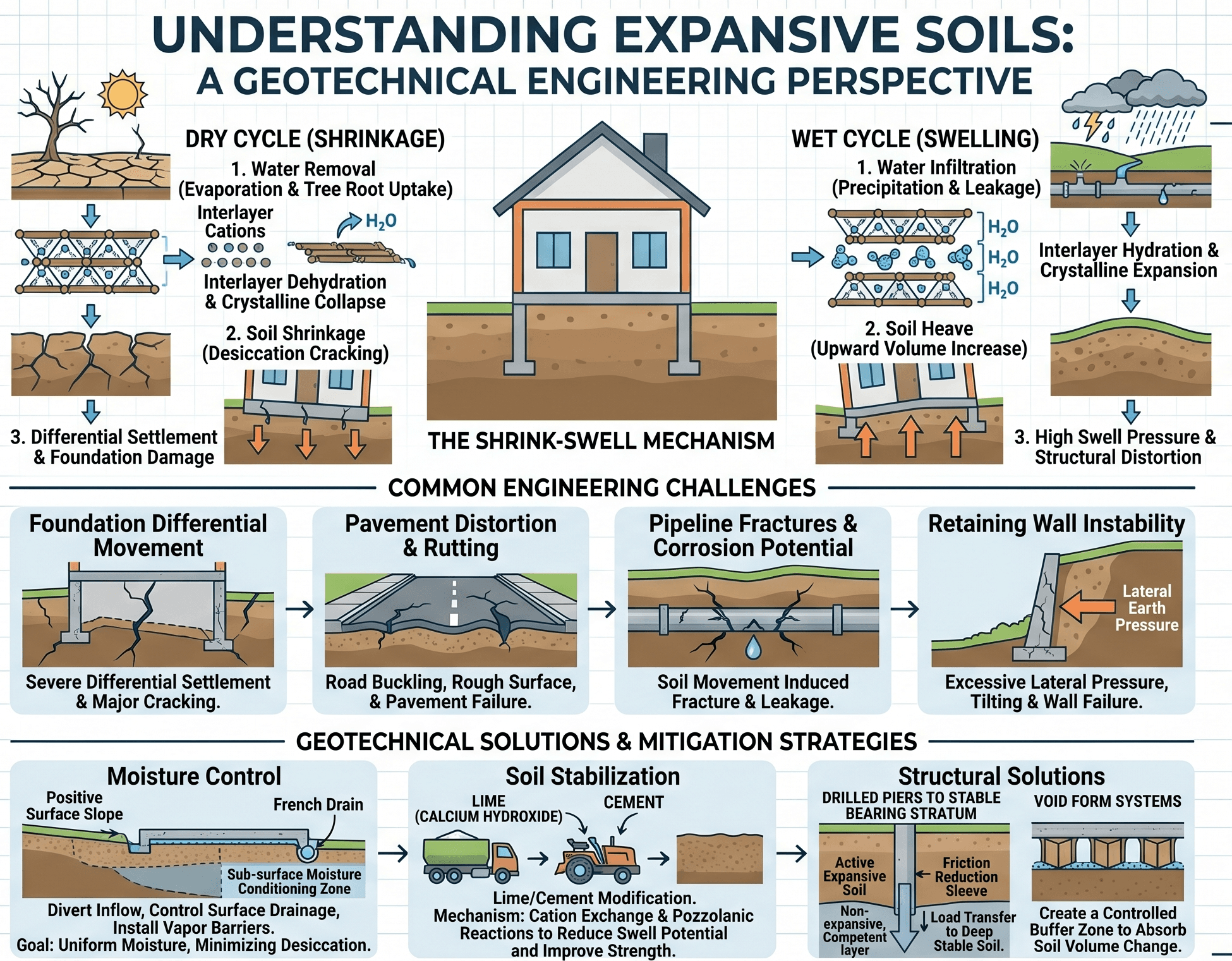

Expansive soils infographic
Notice the relationship between the near-surface active zone, water sources, and differential movement. In practice, the most important question is rarely “Is the clay expansive?” by itself. It is “How much of the soil profile is active, what will change its moisture content after construction, and how sensitive is the supported structure to nonuniform heave?”
What are expansive soils?
Expansive soils are fine-grained soils, typically clays, that gain volume when they absorb water and lose volume when they dry. The movement is tied to mineralogy, especially clays with high shrink-swell potential such as smectite-rich materials, but mineralogy alone does not tell the full story. The field performance also depends on dry density, in-situ water content, stress state, depth, fissuring, seasonal wetting and drying, and how the site is graded and drained.
From an engineering perspective, expansive soils matter because they create movement without any change in structural loading. A slab-on-grade may crack or dish, a light foundation may lift at one corner, a pavement may roughen, and buried utilities may experience differential strain, all because the moisture regime changed after construction. That makes expansive soil behavior different from classic bearing-capacity problems and different from ordinary settlement problems.
The most useful mental model is this: expansive soils behave like a moisture-sensitive support system. When moisture conditions remain uniform and predictable, the structure may perform acceptably. When moisture enters or leaves unevenly, the structure sees nonuniform support and differential movement.
Core principles, index properties, and practical indicators
Expansive soil evaluation begins with simple soil behavior indicators and then moves toward project-specific interpretation. Engineers usually look at classification, Atterberg limits, clay fraction, natural water content, density, suction, and evidence of seasonal cracking or prior distress. None of these values should be used in isolation. The design value comes from the pattern they form together.
What usually signals elevated shrink-swell risk
High plasticity, a meaningful clay fraction, dry or desiccated near-surface conditions, strong seasonal moisture swings, and a structure with low tolerance for differential movement are the classic warning signs. The strongest risk statements come from combining lab results with field observations, drainage mapping, and the expected post-construction moisture regime.
- LL Liquid limit, usually reported as a percentage; higher values often indicate more active clay behavior and larger moisture sensitivity.
- PI Plasticity index, in percent; widely used as a fast indicator of potential expansiveness, though not a direct prediction of heave.
- % clay Clay-size fraction by gradation or hydrometer; important because expansion potential depends on how much active clay is actually present.
- w Natural water content, in percent; helpful for judging whether the soil is currently dry of equilibrium and likely to swell if wetted.
- A Activity, often taken as plasticity index divided by clay fraction; useful as a screening tool for mineralogical aggressiveness.
- PVR Potential vertical rise; a design-oriented estimate of how much upward movement may develop in the active zone under assumed wetting conditions.
Treat expansive soil indicators as a risk framework, not as a single “pass/fail” number. A moderate-plasticity clay under poor drainage can outperform a high-plasticity clay under strong moisture control, and the reverse can also be true.
Investigation and decision workflow
A good expansive soil workflow starts with one question: what moisture changes are realistic after construction? That question is more valuable than jumping straight to a foundation detail, because the foundation response depends on the moisture regime that the site will actually experience.
1) Identify whether shrink-swell soils are likely from regional geology, borings, test pits, and distress history. 2) Confirm the risk with classification testing, plasticity, water content, density, and where justified, swell or suction-related testing. 3) Define the active zone and likely wetting sources such as roof runoff, irrigation, perched water, leaking utilities, and tree influence. 4) Estimate how much movement the structure can tolerate. 5) Choose among moisture control, removal and replacement, chemical treatment, structural stiffening, void-form solutions, deep support, or a hybrid strategy. 6) Verify that grading, drainage, landscaping, and maintenance assumptions are actually buildable.
This topic is as much about management of uncertainty as it is about calculation. The same clay can behave very differently beneath an interior slab, a landscaped perimeter, and a utility trench. That is why the final recommendation should tie soil behavior to specific site features and not just to the boring log.
Equations and calculations engineers actually use
Expansive soil design does not revolve around one universal formula. Most projects rely on a combination of screening indices, swell tests, suction interpretation, and estimated movement in the active zone. Even so, a few simple relationships help frame the problem and support sanity checks.
Activity is a quick screening measure that relates plasticity to the amount of clay-sized material. Higher activity can suggest more mineralogical aggressiveness, but it does not replace swell testing, moisture profiling, or engineering judgment.
These relationships express vertical swell strain or percent swell from a specimen or an assumed layer response. In design practice, the harder problem is deciding what thickness of soil will actually wet up enough to participate in heave. That is why the active zone definition is often more important than the specimen result by itself.
If a calculated movement seems precise to the nearest fraction of an inch but the active-zone depth, post-construction drainage, and utility leakage risk are all uncertain, the apparent precision is misleading. Bookend expansive soil calculations with upper and lower bound moisture scenarios.
Worked example: framing an expansive soil recommendation
Example
Consider a lightly loaded slab-on-grade building supported on near-surface clay. Borings and lab results show a high plasticity clay in the upper several feet, natural water content below long-term equilibrium in summer, visible desiccation cracking, and grading that currently allows runoff to pond near one edge of the site. Trees are also planned near the perimeter.
The first design move is not to jump straight to a structural slab thickness. The first move is to define the risk path: the near-surface clay is moisture-sensitive, it is currently dry enough to take on water, and the planned site features could introduce moisture nonuniformly. That means the controlling risk is differential heave, not just total heave.
A practical recommendation might include: positive surface drainage away from the building, controlled roof runoff discharge, separation between trees and the foundation zone, moisture conditioning and recompaction or selective replacement of the upper active zone, and slab/foundation detailing that acknowledges possible residual movement. If movement tolerance is very low or the active zone is deep and difficult to control, the design could shift toward a more robust foundation solution that reduces reliance on near-surface moisture stability.
The lesson is that expansive soil design is rarely a single material-property decision. It is a systems decision about soil, water, structure, landscaping, utilities, and long-term maintenance acting together.
Engineering judgment and field reality
Field performance is often controlled by what happens after the geotechnical report is issued. A site may be evaluated in one moisture condition, but the real movement occurs after irrigation begins, roof leaders are connected poorly, a utility line leaks, or landscaping changes the evaporation pattern around the structure. These are not minor details. On expansive clay sites, they can be the design.
Another field reality is that distress does not always mean “the geotechnical numbers were wrong.” Sometimes the soil movement was real and foreseeable, but the final grading, plumbing, or vegetation plan no longer matched the assumptions behind the recommendation. That is why expansive soil guidance should clearly separate design assumptions from owner maintenance obligations and construction controls.
The most common expansive soil failure mode is not extreme lab swell by itself. It is differential moisture change beneath a structure that was detailed as if support conditions would remain uniform.
When this breaks down
Expansive soil analysis becomes unreliable when the investigation is too sparse to define lateral variability, when the active zone depth is guessed rather than justified, or when the design assumes a stable moisture regime that the site cannot realistically maintain. It also breaks down when screening indicators like plasticity index are treated as direct movement predictions.
Some methods also lose value when the project is highly sensitive to movement but the recommended controls depend on perfect long-term maintenance. In those cases, a theoretically valid moisture-control strategy may still be a weak risk decision because the field execution is too uncertain. The correct response is often to move toward a more fault-tolerant foundation or ground-treatment strategy rather than pretend the uncertainty is small.
Common pitfalls and engineering checks
- Assuming all clays on a site have the same swell potential or active-zone depth.
- Using Atterberg limits alone as a final design basis without moisture-path interpretation.
- Ignoring trees, irrigation, runoff concentration, leaking utilities, or perched water.
- Checking total movement but not differential movement across the footprint.
- Relying on a detail that only works if future site maintenance is perfect.
A frequent error is to recommend only a stronger slab while leaving site drainage and moisture management underdefined. Structural stiffness can reduce distress, but it does not remove the soil movement that is driving the problem.
| Parameter | Symbol | Typical units | Why it matters |
|---|---|---|---|
| Plasticity index | PI | % | Quick screening for shrink-swell severity and clay activity trends. |
| Natural water content | w | % | Helps indicate whether the soil is dry of its likely long-term condition and prone to swell if wetted. |
| Clay fraction | % clay | % | Separates truly clay-rich materials from soils that are only moderately plastic because of fines content. |
| Estimated active-zone depth | H | ft or m | Often controls the movement estimate more than the specimen swell percentage alone. |
| Potential vertical rise | PVR | in or mm | Useful for communicating likely design movement, but only as good as the moisture assumptions behind it. |
Visualizing the active zone and moisture path
A useful way to think about expansive soils is to sketch the structure in section and then trace how water can enter, leave, or redistribute within the upper soil profile. The main visual elements are the active zone, roof runoff, surface grading, irrigation, vegetation root depth, trench backfill, and the location of utilities.
That sketch often reveals the true problem faster than a page of raw numbers. It shows whether moisture changes are likely to be uniform or concentrated at edges, corners, or isolated strips. On many distressed sites, the pattern of cracking makes more sense once the water pathway is drawn.
Even without a second figure, this section is worth keeping because the moisture-path sketch is one of the fastest decision tools in expansive soil work.
Relevant standards and design references
Expansive soil work is governed less by one single code and more by a combination of classification standards, swell-testing procedures, and project-specific geotechnical criteria tied to moisture control and movement tolerance.
- ASTM D4318: Covers liquid limit, plastic limit, and plasticity index testing. It is one of the first references used for identifying potentially expansive fine-grained soils.
- ASTM D4546: Covers one-dimensional swell or collapse testing of soils. It helps quantify swell under controlled loading and wetting conditions.
- ASTM D2487 and ASTM D2488: Soil classification standards that support engineering description, grouping, and initial screening during site characterization.
- Local building guidance, DOT manuals, and project specifications: Often the most important practical documents because they define movement criteria, slab recommendations, moisture barriers, drainage expectations, and acceptance details.
- Geotechnical report assumptions and foundation criteria: On real projects, these are the controlling references because the expansive soil recommendations must match the site investigation, structure type, and post-construction moisture assumptions.
Frequently asked questions
Expansive soils heave when moisture enters clay-rich soil with shrink-swell potential and the soil structure increases in volume. The most damaging cases are usually not uniform wetting but uneven wetting, because that creates differential support and localized cracking.
No. Expansive soils are mainly a shrink-swell and uplift problem driven by moisture change, while compressible soils are mainly a settlement problem driven by load and time-dependent deformation. A site can contain both concerns, but the mechanisms and design responses are different.
Engineers reduce risk by combining investigation, drainage control, landscaping and utility management, subgrade treatment, and foundation detailing that fits the structure’s movement tolerance. The right answer is usually a system of measures, not one isolated fix.
It becomes unreliable when the active zone is poorly defined, the investigation misses lateral variability, or the design assumes a moisture regime that the finished site will not actually maintain. Weak drainage assumptions are one of the biggest reasons field performance departs from paper predictions.
Summary and next steps
Expansive soils are not just “bad clays.” They are moisture-sensitive foundation materials whose behavior depends on mineralogy, stress state, density, depth, and most importantly the moisture path that develops before and after construction. That is why expansive soil risk cannot be reduced to a single plasticity number or one lab swell result.
In practice, the design is controlled by three linked questions: how much of the profile is active, how much moisture change is realistic, and how much movement the structure can tolerate. Strong recommendations connect these answers to grading, roof runoff, utilities, vegetation, subgrade treatment, and foundation strategy instead of treating them as separate topics.
The best next step is to deepen the surrounding fundamentals. If you understand soil mechanics, settlement behavior, and foundation selection, expansive soil recommendations become much clearer and far more defensible.
