Unsteady Flow Process
Understanding Unsteady Flow Processes in Thermodynamics
An unsteady flow process—also known as a transient flow process—is one in which the properties within a control volume (such as velocity, pressure, temperature, and density) change with time. Unlike steady flow processes where conditions remain constant, unsteady flow is characterized by time-dependent variations and is common in many real-world applications.
Did You Know?
Many engineering systems experience unsteady flows during start-up, shut-down, or under variable operating conditions. Examples include water hammer in pipelines and pulsating flows in reciprocating engines.
This page explores the fundamental principles, key equations, practical applications, and challenges associated with unsteady flow processes—vital knowledge for any mechanical engineer tackling transient phenomena.
How Unsteady Flow Processes Work

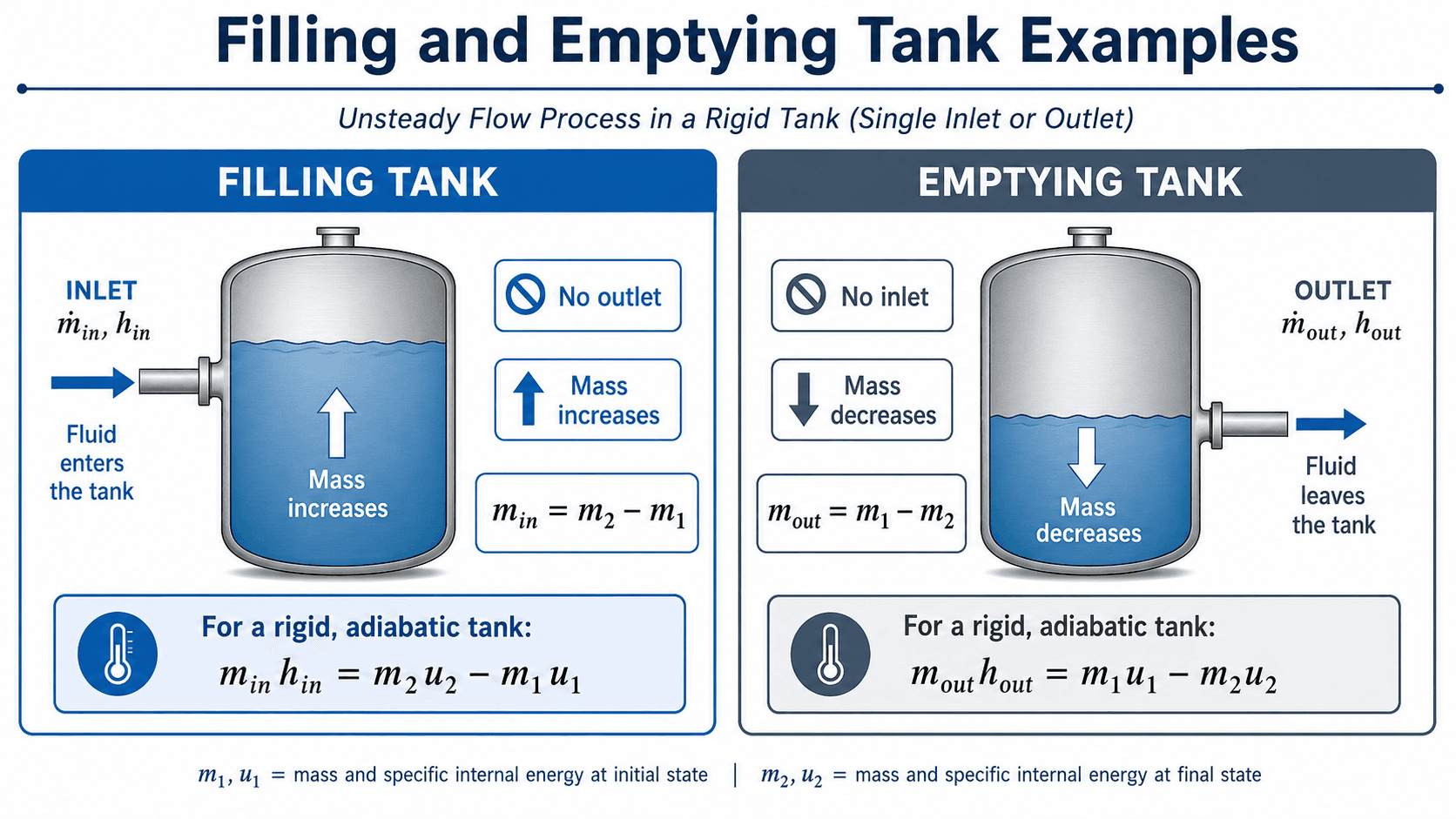

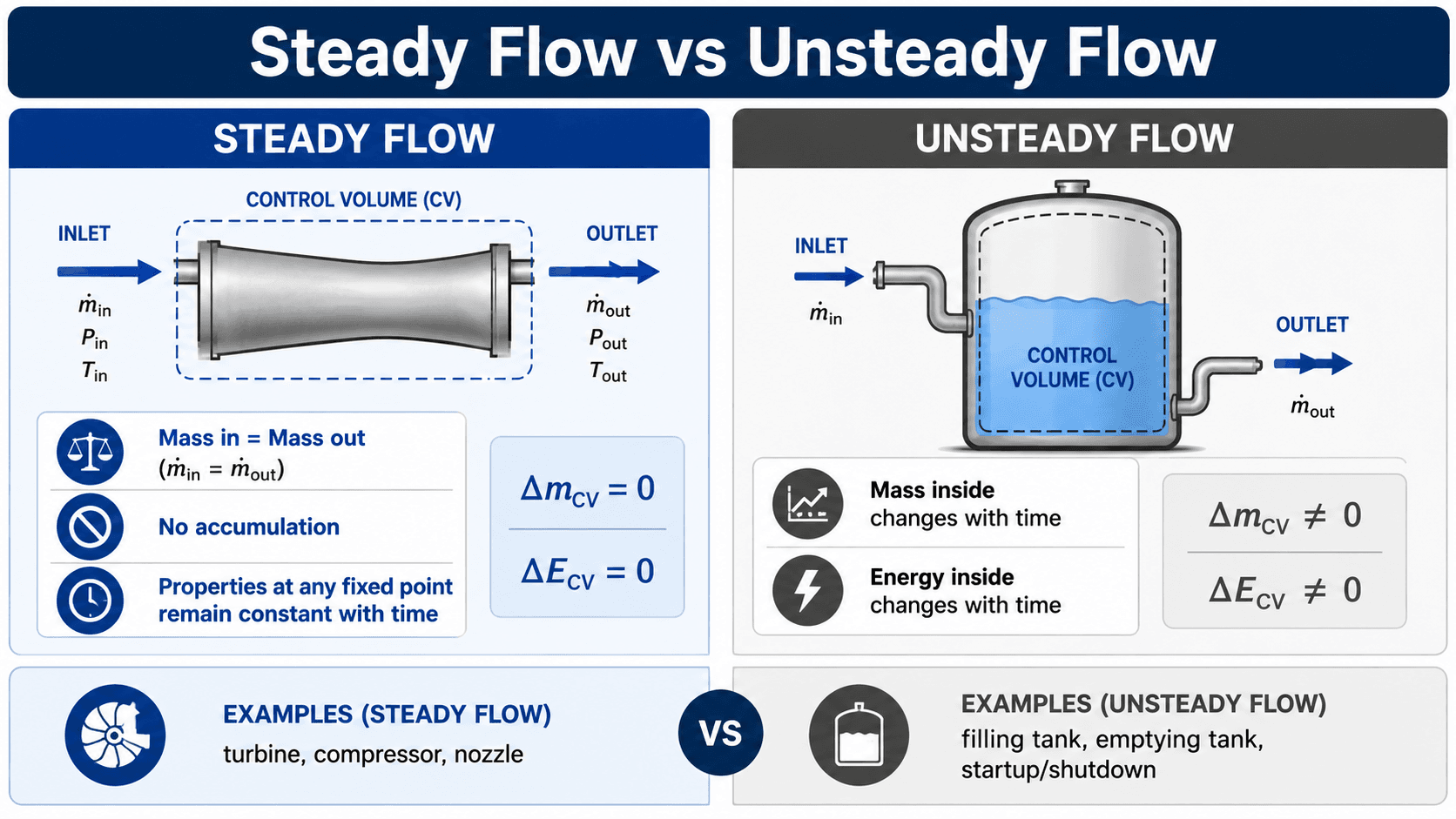

In an unsteady flow process, the fluid properties inside a control volume change with time. This happens when the rate at which mass, energy, or momentum enters the control volume does not exactly balance the rate at which it leaves. As a result, accumulation or depletion occurs, leading to time-dependent behavior.
Important!
Unlike steady flow, where storage terms vanish, unsteady flow analysis must account for the accumulation (or depletion) of mass and energy over time. This adds complexity but is essential for predicting dynamic system behavior.
Engineers use unsteady flow analysis to design systems that can handle transient events—ensuring safety and efficiency during periods of rapid change.
Key Equations and Concepts

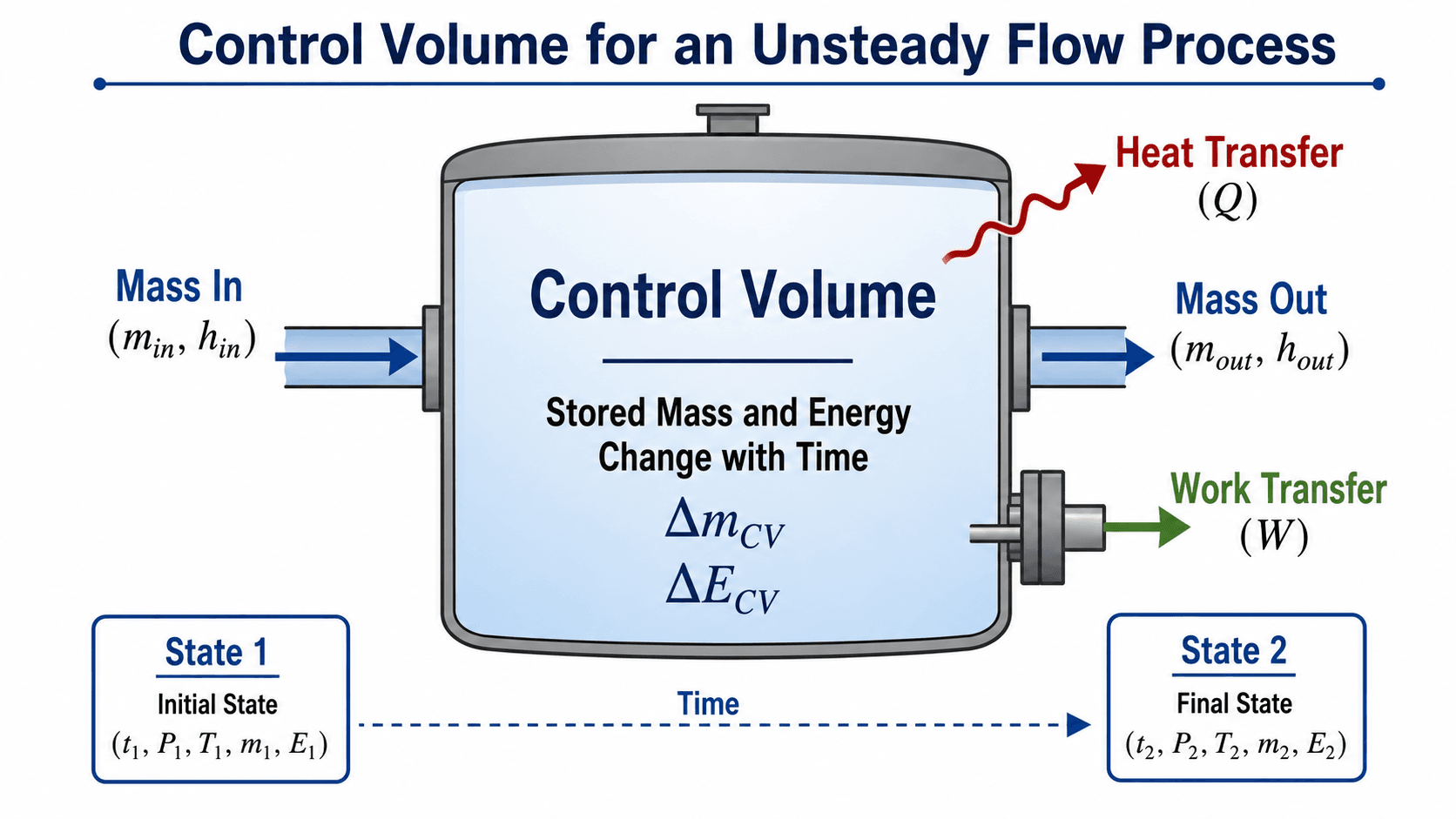

Analyzing unsteady flow processes involves applying conservation laws that include time-dependent (accumulation) terms. Two fundamental equations in this context are the unsteady continuity equation and the unsteady energy equation.
Unsteady Continuity Equation
\[ \frac{\partial}{\partial t}\int_{CV}\rho\, dV + \int_{CS} \rho\, (\mathbf{V} \cdot \mathbf{n})\, dA = 0 \]
This equation states that the rate of change of mass within the control volume plus the net mass flux across the control surface is zero. In unsteady flows, the first term is non-zero, reflecting the accumulation or depletion of mass.
Unsteady Energy Equation
\[ \frac{\partial}{\partial t}\int_{CV}\rho e\, dV + \int_{CS}\rho e\, (\mathbf{V} \cdot \mathbf{n})\, dA = \dot{Q} – \dot{W} \]
This form of the energy equation includes an accumulation term that accounts for changes in energy stored within the control volume over time. It balances the energy carried by the fluid with the net heat and work interactions.
Applications in Mechanical Engineering
Unsteady flow process analysis is crucial in designing and optimizing systems that operate under time-varying conditions. Understanding transient behavior allows engineers to predict and mitigate issues that arise during dynamic events.
Pipeline Transients
Rapid valve closures or pump start-ups can create pressure surges known as water hammer. Unsteady flow analysis helps design mitigation strategies to prevent pipeline damage.
Reciprocating Engine Flows
The flow of air-fuel mixtures in engines is inherently unsteady due to the cyclical nature of the piston motion. Transient analysis improves engine efficiency and performance.
HVAC Systems
Unsteady flow models help in designing heating, ventilation, and air conditioning systems that can quickly respond to changing load conditions.
Turbo-machinery
Transient flow analysis is key to optimizing the performance of compressors, turbines, and fans during start-up and shut-down phases.
Real-World Example: Transient Flow in a Pipeline
Consider a pipeline system during a rapid valve closure. The sudden change in flow conditions creates a transient pressure surge—commonly known as water hammer. Engineers use unsteady flow analysis to model the accumulation of pressure waves and design mitigation measures such as surge tanks or specialized valve controls.
Key Analysis Points
The analysis involves quantifying the change in mass and energy within the pipeline over time, predicting pressure fluctuations, and ensuring that the system can safely handle these transient events.
By understanding these transient phenomena, engineers can improve system reliability and prevent costly damage.
Challenges in Unsteady Flow Analysis
Unsteady flow processes are inherently more complex than steady flows. Challenges include capturing rapid temporal changes, accurately measuring transient parameters, and handling complex geometries and boundary conditions. These factors demand high-fidelity simulations and advanced experimental techniques.
Important!
High-quality sensors and sophisticated numerical models are essential to capture the dynamic behavior of unsteady flows accurately. Even minor discrepancies can lead to significant errors in prediction.
Overcoming these challenges is critical for designing systems that can withstand transient events and operate reliably under varying conditions.
Conclusion
Unsteady flow process analysis is a vital aspect of thermodynamics and fluid mechanics in mechanical engineering. By considering the time-dependent behavior of fluid systems, engineers can design and optimize equipment that operates safely and efficiently under transient conditions.
Mastery of unsteady flow principles enables the development of robust solutions in pipeline design, engine performance, HVAC systems, and beyond—driving innovation and ensuring reliability in modern engineering applications.
