Key Takeaways
- Core idea: Water filtration passes water through media or membranes to remove remaining particles, turbidity, fine floc, and some particle-associated contaminants.
- Engineering use: In water treatment plants, filtration usually follows clarification and prepares water for more reliable disinfection.
- What controls it: Filter media, particle loading, coagulation performance, hydraulic loading rate, headloss, turbidity, and backwashing control filter performance.
- Practical check: A filter problem is often an upstream process problem; poor coagulation or sedimentation can overload filters even when the filters themselves are not broken.
Table of Contents
Introduction
Water filtration is the treatment process that removes remaining fine particles, turbidity, suspended solids, and some particle-associated contaminants by passing water through granular media, activated carbon, membranes, or another filter barrier. In a conventional water treatment plant, filtration usually comes after coagulation, flocculation, and sedimentation and before disinfection.

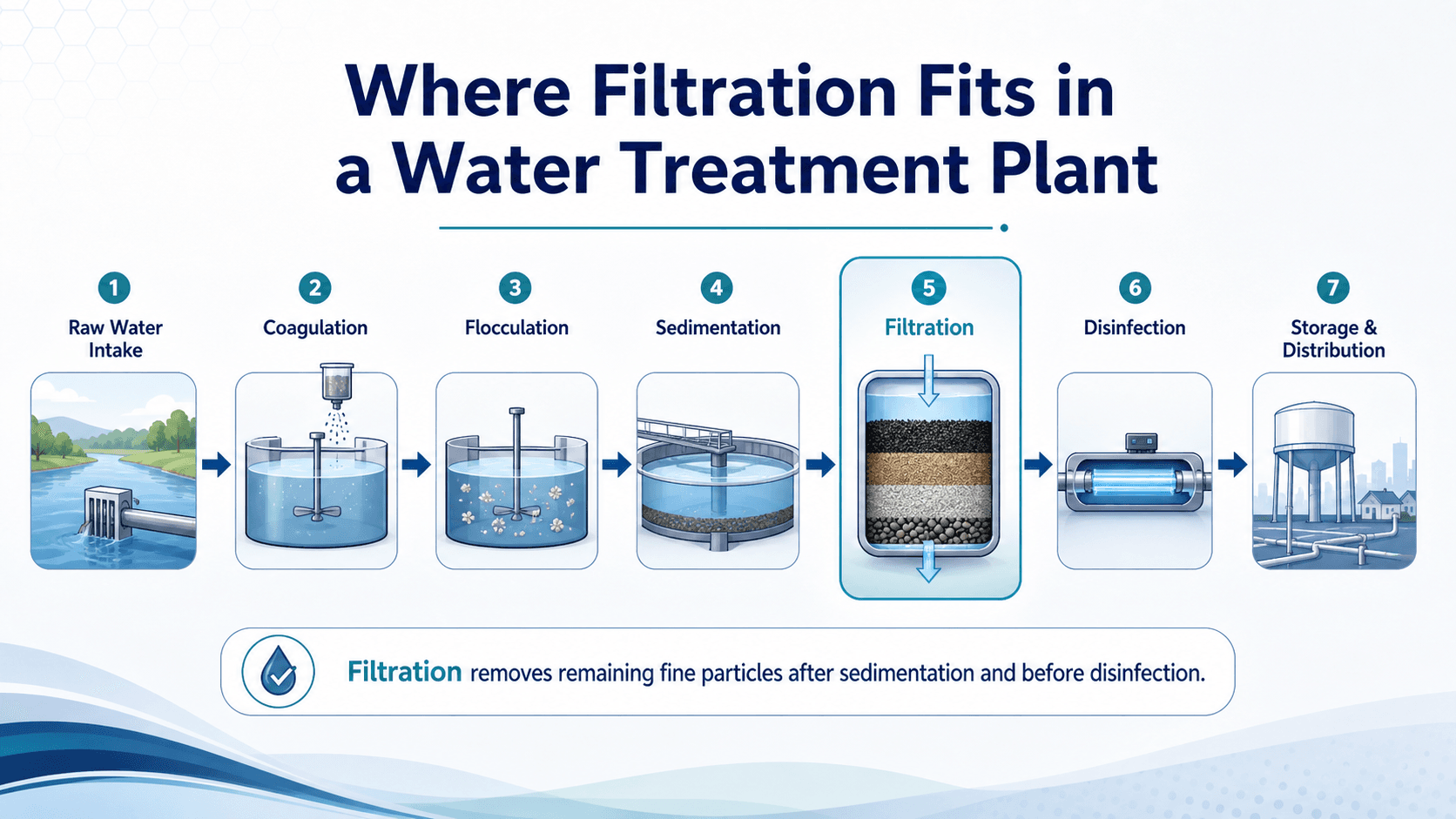

Where Filtration Fits in a Water Treatment Plant
Notice that filtration is not the first step. Coagulation, flocculation, and sedimentation reduce the particle load before the water reaches the filter, while disinfection follows after the water has been clarified.
What Is Water Filtration?
Water filtration is a physical separation process used to remove particles from water. In water treatment plants, it commonly uses layers of granular media such as anthracite, sand, garnet, and gravel, although activated carbon and membrane systems may also be used depending on the treatment goal.
The key engineering idea is that filtration is part of a larger treatment train. Filters are not expected to solve every water quality problem by themselves. They perform best when upstream processes have already destabilized small particles, formed larger floc, and removed much of the settleable material before the water reaches the filter bed.
For broader process context, water filtration connects closely with water treatment processes, coagulation in water treatment, and flocculation in water treatment.
How Water Filtration Works

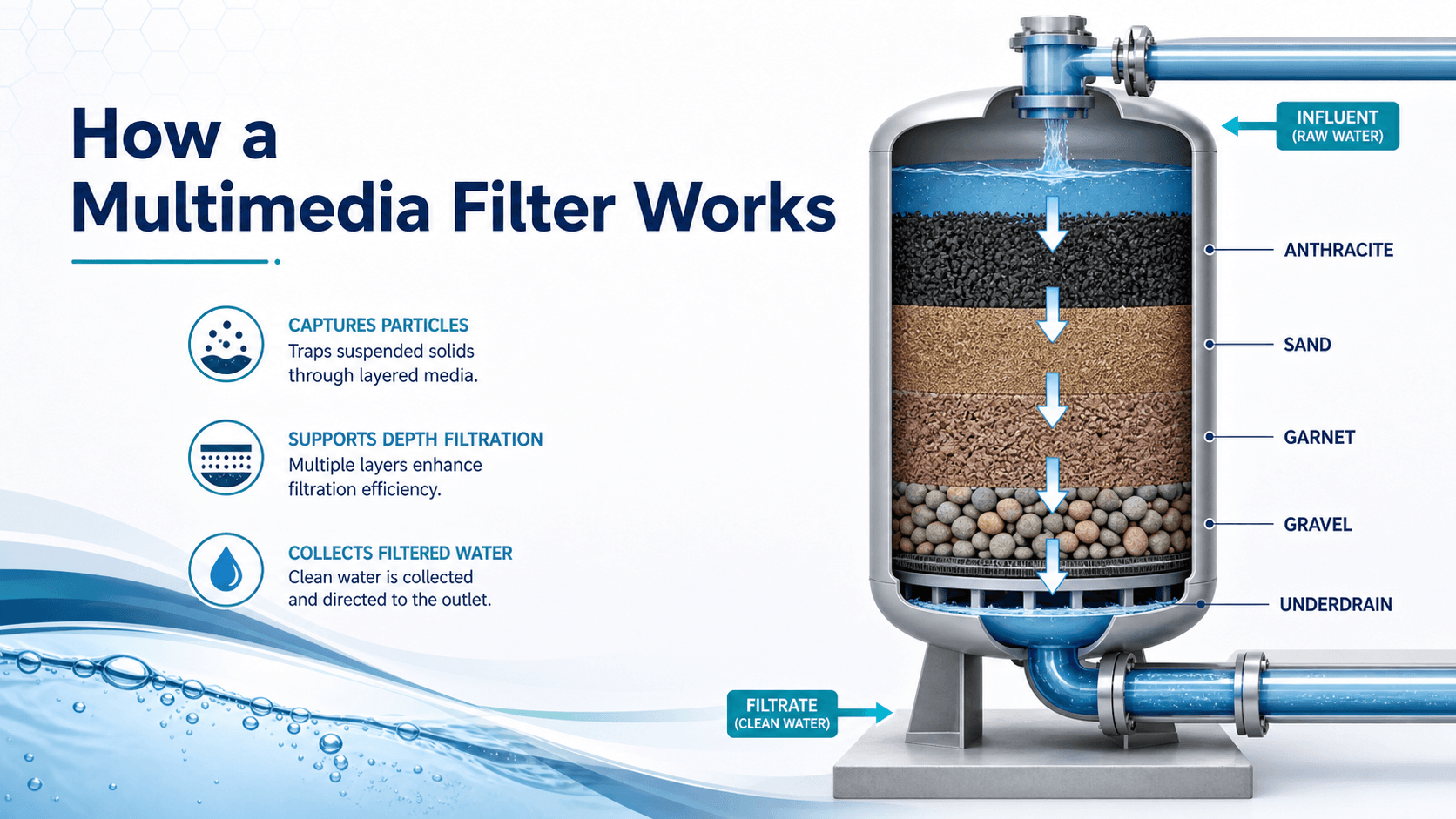

Filtration works by forcing or allowing water to move through a filter barrier. In a conventional granular filter, particles are removed as water travels through a layered bed. Some particles are strained near pore openings, some settle or intercept on media grains, and others attach to the media surface after upstream chemical treatment has made them easier to capture.
Particle capture through the filter bed
A well-operated filter does not simply act like a screen. The media bed provides depth filtration, meaning particles can be captured throughout the upper and middle portions of the media. This is why dual-media and multimedia filters often perform better than a thin single layer when properly designed and backwashed.
Why upstream chemistry matters
Coagulation and flocculation change the behavior of small particles before they reach the filter. When particles are properly destabilized, they are more likely to attach to media grains. When pretreatment is poor, particles may pass through the bed or clog the top layer too quickly.
Clean water collection through the underdrain
After water passes through the media, the underdrain collects filtered water evenly and sends it to the next treatment step. The underdrain must support uniform flow during normal operation and distribute backwash water evenly during cleaning. Poor underdrain performance can create short-circuiting, media disturbance, or uneven filter cleaning.
Types of Filtration Used in Water Treatment
The best filtration method depends on raw water quality, treatment objectives, available footprint, operator capability, regulatory requirements, solids loading, and downstream process sensitivity. A municipal drinking water plant may use granular media filtration, while advanced treatment or reuse projects may use membranes or activated carbon as part of a larger system.
| Filtration type | Common use | Engineering implication |
|---|---|---|
| Rapid sand filtration | Common municipal treatment after clarification. | Effective for turbidity polishing but requires controlled loading and regular backwashing. |
| Dual-media or multimedia filtration | Layered granular filters using anthracite, sand, garnet, and gravel. | Supports depth filtration, longer filter runs, and better solids distribution when operated correctly. |
| Slow sand filtration | Lower-rate filtration with biological activity near the top of the bed. | Can provide strong treatment in suitable applications but needs more area and careful operation. |
| Granular activated carbon | Taste, odor, organic compound, and polishing applications. | Combines filtration with adsorption but eventually exhausts and needs replacement or regeneration. |
| Membrane filtration | Microfiltration, ultrafiltration, nanofiltration, or reverse osmosis applications. | Can target smaller particles or dissolved constituents but introduces pressure, fouling, pretreatment, and concentrate management concerns. |
Do not choose a filter by media type alone. Confirm the target contaminant, particle size range, upstream pretreatment, allowable headloss, backwash capacity, residuals handling, and monitoring requirements.
What Controls Filter Performance?
Filter performance is controlled by both the filter design and the water reaching the filter. A filter that looks correctly sized on paper can still perform poorly if the influent turbidity, particle characteristics, temperature, coagulant dose, or hydraulic loading changes faster than operations can respond.
| Factor | Why it matters | Engineering implication |
|---|---|---|
| Influent turbidity | Higher turbidity sends more particles into the filter. | Filter runs shorten, headloss rises faster, and breakthrough risk increases. |
| Coagulation and flocculation quality | Particle destabilization controls how easily fine particles attach to filter media. | Poor pretreatment can make filters behave like overloaded screens instead of depth filters. |
| Hydraulic loading rate | Flow rate affects contact time, particle capture, headloss, and filter run length. | Overloading a filter can push particles through the bed before they are captured. |
| Media condition | Media size, depth, cleanliness, and stratification affect removal efficiency. | Media loss, mudballs, or poor stratification can create uneven filtration and high turbidity events. |
| Backwash effectiveness | Backwashing removes stored solids and resets the bed for the next filter run. | Weak backwash leaves solids in the bed; aggressive backwash can lose media or damage the filter profile. |
| Temperature and seasonal water quality | Cold water, algae, organics, and storm events can change particle behavior. | Seasonal operating adjustments may be needed for coagulant dose, filter loading, and backwash frequency. |

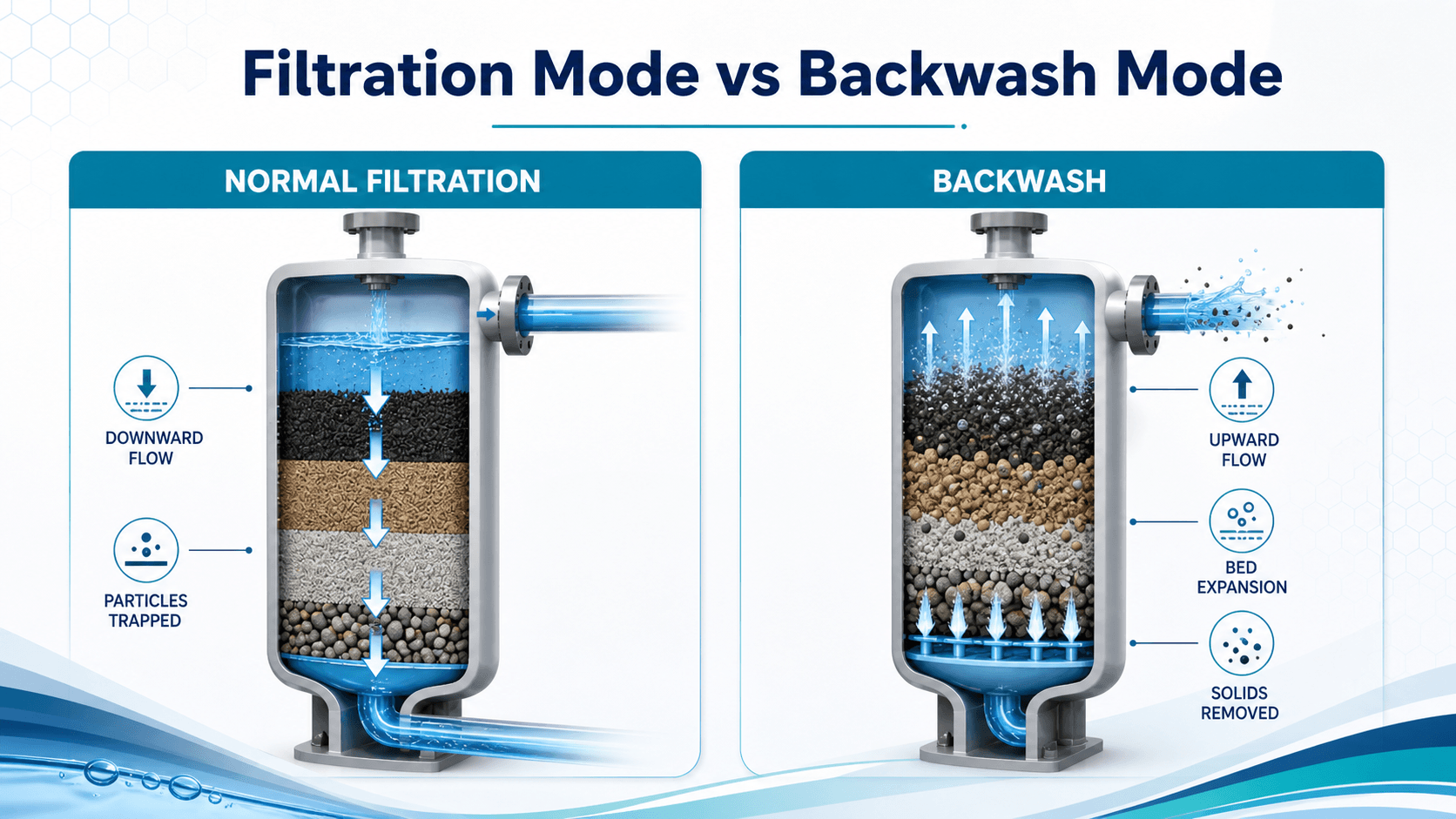

Backwashing and Filter Cleaning
As a filter operates, particles accumulate inside the media bed. This increases headloss and eventually reduces filter reliability. Backwashing reverses flow through the filter, expands or agitates the media, and carries accumulated solids out of the unit. Many systems also use air scour to loosen solids before or during the water backwash sequence.
When filters are usually backwashed
Operators typically backwash based on headloss, filter run time, effluent turbidity, plant operating procedures, or a combination of triggers. The goal is to clean the filter before breakthrough occurs, while avoiding unnecessary backwash cycles that waste water and disrupt plant operation.
Why filter-to-waste matters
After backwash, the first filtered water may contain loosened particles as the bed settles and ripens. Many plants use a filter-to-waste period before returning the filter to service. This prevents the early post-backwash turbidity spike from reaching the finished water process.
Water Filtration Review Checklist
A practical review of a filtration system should start upstream, move through the filter, and end with downstream water quality. This checklist helps separate a true filter problem from a treatment train problem.
Check source water changes first. Then review coagulation and flocculation performance, sedimentation carryover, filter loading rate, headloss trend, effluent turbidity, backwash sequence, and filter-to-waste practice. If the filter is failing immediately after backwash, look closely at backwash intensity, media condition, and return-to-service timing.
| Check or decision | What to look for | Why it matters |
|---|---|---|
| Upstream clarification | Floc carryover, unsettled solids, cloudy settled water, or poor basin performance. | Filters are polishing units, not substitutes for failed clarification. |
| Headloss trend | Rapid headloss increase compared with normal filter runs. | May indicate high solids loading, algae, mudballs, poor backwash, or media fouling. |
| Effluent turbidity | Sudden spikes, gradual breakthrough, or high turbidity after backwash. | Shows whether particles are escaping the filter or the bed has not stabilized. |
| Backwash sequence | Proper flow, air scour, bed expansion, wash duration, and wash water clarity. | Incomplete cleaning shortens filter runs and can leave solids stored in the bed. |
| Media condition | Media loss, uneven surface, cracks, mudballs, biological growth, or mixed layers. | Physical media problems can create short-circuiting and reduce particle capture. |
| Return to service | Filter-to-waste duration, turbidity recovery, and startup flow control. | A clean filter can still send poor water downstream if it is returned too quickly. |
Filtration vs Sedimentation vs Disinfection
Filtration is often confused with sedimentation and disinfection because all three improve water quality. The difference is the removal mechanism. Sedimentation relies on gravity, filtration uses a physical barrier or media bed, and disinfection inactivates microorganisms that may remain after clarification and filtration.
| Process | Main purpose | What it does not replace |
|---|---|---|
| Sedimentation | Settles larger floc and heavier suspended solids before filtration. | Does not reliably remove fine particles that remain suspended. |
| Filtration | Removes remaining particles, fine floc, turbidity, and some particle-associated organisms. | Does not replace final disinfection or chemical control when pathogens or dissolved contaminants are concerns. |
| Disinfection | Inactivates microorganisms and may provide residual protection in distribution. | Does not remove turbidity, sediment, or filterable solids by itself. |
This distinction is important for treatment plant troubleshooting. If turbidity is high before disinfection, adding more disinfectant is usually not the root solution. The plant must first understand why clarification or filtration is allowing particles to pass.
Engineering Judgment and Field Reality
Real filters operate under changing conditions. Storm runoff can increase turbidity and natural organic matter. Algae can shorten filter runs. Cold water can change coagulation behavior. A filter that performs well during stable source water conditions may struggle during seasonal turnover, high-flow events, or sudden chemical dose changes.
Experienced operators and engineers look for patterns rather than isolated readings. A single turbidity spike may be a startup or sampling issue, but repeated spikes after backwash suggest a return-to-service problem. A gradual shortening of filter runs may point to media fouling, algae, poor backwash, or upstream clarification drift.
Filter performance is usually a system signal. When filters start failing, review the full treatment train before assuming the filter media alone is the problem.
When This Breaks Down
The simple explanation of filtration breaks down when the filter is treated as an isolated piece of equipment. In practice, filtration reliability depends on upstream chemistry, hydraulics, media condition, operations, and downstream water quality targets.
- High particle loading: Storm events, algae, or poor sedimentation can overload the filter and shorten run time.
- Poor coagulation control: Particles may remain stable and pass through the bed instead of attaching to the media.
- Uneven hydraulic distribution: Short-circuiting or uneven flow can leave portions of the media underused while other zones overload.
- Incomplete backwashing: Stored solids remain in the bed, causing mudballs, rising headloss, and poor filter recovery.
- Media degradation or loss: Worn, mixed, or missing media can reduce depth filtration and increase turbidity breakthrough.
Common Mistakes and Practical Checks
Water filtration is easy to oversimplify because diagrams often show water moving through neat layers of media. Real performance depends on particle chemistry, flow control, media condition, and cleaning. The most common mistakes come from treating filtration as a standalone process rather than part of a connected plant.
- Calling filtration purification: Filtration improves water quality, but it does not automatically make water potable without proper disinfection and other required treatment.
- Ignoring settled water quality: Poor clarification sends too much solids load to the filters and reduces filter run length.
- Backwashing only by time: Time-based backwashing may miss changing headloss, turbidity, or seasonal source water conditions.
- Skipping post-backwash recovery: Returning a filter too quickly can send early turbidity spikes downstream.
- Assuming all filters remove the same contaminants: Sand, activated carbon, and membranes target different water quality problems.
Do not expect a granular filter to remove dissolved contaminants the way a membrane, ion exchange unit, or activated carbon system might. Match the filtration method to the actual contaminant and treatment objective.
Relevant Manuals, Standards, and Design References
Filtration design and operation are usually governed by drinking water regulations, state requirements, owner criteria, and utility-specific operating procedures. A general engineering article can explain the concept, but treatment performance must be checked against the applicable project and regulatory context.
- U.S. Environmental Protection Agency: EPA Surface Water Treatment Rules describe federal treatment requirements for surface water systems, including the role of filtration, disinfection, turbidity, and pathogen control in public drinking water protection.
- Project-specific criteria: State primacy agency requirements, utility standards, pilot testing, design manuals, operator procedures, and finished water goals may control filter selection, allowable loading, monitoring, and backwash practice.
- Engineering use: Engineers use regulatory targets and operating data together to evaluate filter performance, select treatment barriers, plan upgrades, and troubleshoot turbidity or breakthrough problems.
Frequently Asked Questions
Water filtration in a treatment plant is the process of passing clarified water through granular media, activated carbon, membranes, or another filter barrier to remove remaining fine particles, turbidity, and particle-associated contaminants before disinfection or downstream treatment.
In a conventional drinking water treatment plant, filtration usually occurs after coagulation, flocculation, and sedimentation and before disinfection. This location matters because upstream clarification reduces the solids load on the filters, while filtration improves the reliability of disinfection.
Water filtration mainly removes suspended solids, fine floc, turbidity, sediment, and some microorganisms or contaminants associated with particles. Activated carbon can also reduce taste, odor, and some dissolved organic compounds, while membranes can target smaller particles or dissolved constituents depending on membrane type.
Filters need backwashing because trapped particles accumulate in the media and increase headloss. Backwashing reverses flow through the filter bed, expands or agitates the media, and carries accumulated solids out of the filter so the unit can return to reliable service.
Summary and Next Steps
Water filtration is a core treatment process that removes remaining suspended particles, fine floc, turbidity, and some particle-associated contaminants before water moves to disinfection or other downstream treatment. In a water treatment plant, it works best as part of a complete treatment train rather than as an isolated unit.
The most important practical concepts are filter media selection, upstream clarification, hydraulic loading, headloss, turbidity monitoring, backwash effectiveness, and post-backwash recovery. When filtration performance declines, the right engineering response is to evaluate the full process from source water conditions through finished water goals.
