Key Takeaways
- Core idea: High strength concrete is concrete designed to reach compressive strengths above ordinary structural concrete, often discussed around 6,000 psi and formally treated in many ACI contexts at 8,000 psi or greater.
- Engineering use: It is most valuable in high-rise columns, core walls, bridge girders, prestressed members, precast components, and heavily loaded structural elements.
- What controls it: Strength depends on low water-cementitious ratio, aggregate quality, cementitious material selection, admixture compatibility, curing, temperature control, and field quality control.
- Practical check: Higher compressive strength does not automatically mean better concrete; durability, cracking, ductility, constructability, and cost can control the real design decision.
Table of Contents
Introduction
High strength concrete is an engineered concrete mixture designed to achieve compressive strength above ordinary structural concrete, commonly 6,000 psi or greater in general practice and often 8,000 psi, or about 55 MPa, and greater in ACI high-strength concrete guidance. It matters because it can reduce member size, increase load capacity, extend spans, and improve durability when the mix is designed, placed, cured, and tested correctly.

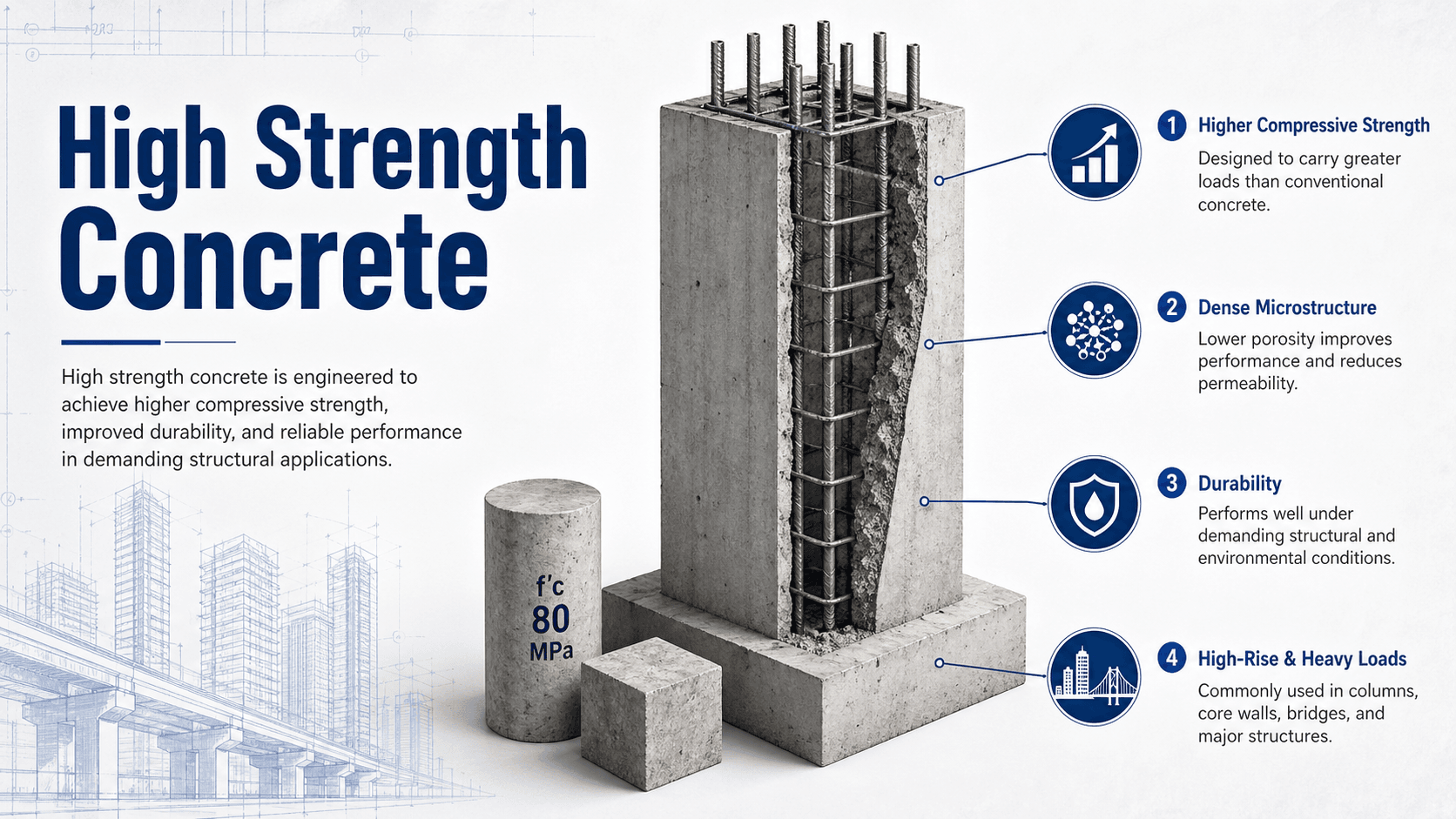

How High Strength Concrete Works
Notice that compressive strength is only the visible outcome. The design actually depends on the full chain of decisions: material selection, water control, workability, placement, curing, and acceptance testing.
What is High Strength Concrete?
High strength concrete is concrete proportioned to develop a specified compressive strength significantly higher than conventional structural concrete. In everyday construction language, the term is often used for mixtures above about 6,000 psi. In more formal structural engineering references, high strength concrete is commonly treated as concrete with specified compressive strength \( f’_c \) of 8,000 psi, or approximately 55 MPa, and greater.
The important point is that high strength concrete is a performance target, not a single recipe. A mix may achieve high strength through a low water-cementitious materials ratio, optimized aggregate grading, strong coarse aggregate, supplementary cementitious materials such as silica fume or slag, and high-range water-reducing admixtures. The result can be a denser, stronger, lower-permeability material, but only when field production matches the laboratory design.
High strength concrete should be specified because the structure needs the performance, not because a higher psi value sounds safer. In many members, reinforcement detailing, shear, cracking, stiffness, durability exposure, or constructability may control more than compressive strength.
Strength Ranges and What the Numbers Mean
Concrete strength is usually expressed as specified compressive strength, written as \( f’_c \), based on cylinder testing at a defined age such as 28 days unless the project specifies another age. The same term can mean slightly different things depending on whether a reader is looking at a supplier page, a university note, a design standard, or a project specification.
| Concrete category | Typical compressive strength range | How to interpret it |
|---|---|---|
| Normal structural concrete | About 3,000–5,000 psi, or 20–35 MPa | Common for many slabs, beams, walls, footings, and building members where extreme strength is not required. |
| High strength concrete in common use | Often 6,000 psi and greater, or about 40 MPa and greater | A practical threshold often seen in construction discussions, supplier language, and general education resources. |
| ACI high-strength concrete context | Often 8,000 psi and greater, or about 55 MPa and greater | A more formal engineering threshold where specialized mixture proportioning, testing, and design considerations become more important. |
| Very high strength concrete | About 10,000–20,000 psi, or 70–140 MPa | Used in more demanding columns, precast work, bridge components, and specialized structural applications. |
| Ultra-high-performance concrete | Often above 17,000 psi, or 120 MPa, depending on the definition and product | A different class of material that often includes fibers, very dense particle packing, and specialized placement requirements. |
These ranges are useful for learning, but project specifications control the actual requirement. Engineers should confirm the specified age, acceptance criteria, exposure class, testing method, and whether the project is asking for high strength, high early strength, high durability, or a combination of performance targets.
Where High Strength Concrete Is Used
Engineers use high strength concrete when the added performance creates a structural, architectural, durability, or construction benefit. The clearest cases are members where compressive stress, member size, long-term deformation, or production speed are important.
- High-rise columns and core walls: higher compressive strength can reduce column size and increase usable floor area, especially on lower levels.
- Transfer girders and heavily loaded members: high strength concrete can help carry large concentrated forces where architectural layouts interrupt regular framing.
- Prestressed concrete girders: higher strength supports prestress transfer, longer spans, improved cracking control, and efficient sections.
- Precast concrete: high early and high ultimate strengths can speed production cycles and reduce member dimensions.
- Bridges and parking structures: dense, well-cured mixtures can improve durability when permeability, chloride exposure, and cracking are controlled.
- Marine and industrial structures: high strength concrete may be selected where load demand and exposure severity both matter.
Before specifying high strength concrete, ask what problem it solves: smaller columns, longer spans, faster precast turnover, lower permeability, high axial load, or improved service life. If the answer is only “more strength,” the specification may be overreaching.
What Controls High Strength Concrete Performance?
High strength concrete performance is controlled by the full mixture and construction process. The same specified strength can be reliable or risky depending on aggregate quality, water control, admixture behavior, curing, temperature, testing, and how congested the reinforcement is in the actual member.
| Factor | Why it matters | Engineering implication |
|---|---|---|
| Water-cementitious materials ratio | Lower ratios reduce capillary porosity and help strength gain, but they can make the mix harder to place. | Requires admixture control, workability testing, and careful curing rather than simply adding water in the field. |
| Aggregate strength and grading | At higher paste strengths, the aggregate can become the limiting component instead of the cement paste. | Weak, dirty, poorly graded, or reactive aggregates can cap performance or increase durability risk. |
| Supplementary cementitious materials | Silica fume, slag, fly ash, and other materials can improve density, durability, and long-term strength. | Mixture behavior, set time, heat generation, finishing, and curing sensitivity must be checked during trial batching. |
| High-range water reducer | Superplasticizers help maintain workability at low water contents. | Admixture compatibility, slump retention, delivery time, and temperature can control field success. |
| Curing and temperature | Dense, low-water mixtures still need moisture and temperature control to hydrate and avoid early cracking. | Poor curing can erase the theoretical benefit of a high-strength mix and increase shrinkage cracking risk. |
| Testing and quality control | High strength concrete has less tolerance for inconsistent batching, sampling, curing, and cylinder handling. | Trial batches, pre-placement meetings, acceptance criteria, and field testing must be coordinated before the pour. |
Compressive Strength, Testing, and the Meaning of \( f’_c \)
The most recognized property of high strength concrete is compressive strength. In structural design, \( f’_c \) is the specified compressive strength used in calculations, detailing checks, and project requirements. In testing, compressive stress is determined from the maximum load carried by a test specimen divided by its loaded area.
This simple equation is not a complete design method, but it explains the basic measurement. A cylinder or core is loaded in compression, the maximum force is recorded, and the force is divided by the cross-sectional area. The result is compared with the project’s specified strength and acceptance criteria.
- \( f_c \) Measured compressive stress, commonly reported in psi or MPa.
- \( P \) Maximum compressive load carried by the specimen, commonly reported in pounds or newtons.
- \( A \) Loaded cross-sectional area of the specimen, commonly reported in square inches or square millimeters.
- \( f’_c \) Specified compressive strength used by the designer, not the same thing as every individual test result.
For high strength concrete, testing quality becomes especially important. Improper sampling, poorly capped specimens, field-cured cylinders used for the wrong purpose, or inconsistent lab handling can create misleading results. On important projects, the testing plan should be reviewed before concrete arrives on site.
High Strength Concrete Decision Table
Use this table as a practical design review aid. It does not replace project specifications or structural calculations, but it helps identify when high strength concrete is likely justified and when a lower-strength, better-detailed mixture may be more appropriate.
Start with the structural problem, not the target strength. Confirm the controlling demand, identify whether smaller member size or durability is truly needed, check constructability and reinforcement congestion, then require trial batches and field quality controls before finalizing the specification.
| Check or decision | What to look for | Why it matters |
|---|---|---|
| Structural need | High axial compression, long span demand, transfer forces, prestress transfer, or limited member depth. | High strength concrete is most useful when strength directly improves the structural system. |
| Member size benefit | Reduced column dimensions, thinner members, longer spans, or improved architectural clearance. | The cost premium is easier to justify when it creates usable space or avoids larger framing. |
| Durability objective | Low permeability, chloride resistance, freeze-thaw exposure, marine exposure, or aggressive service environment. | Strength alone does not guarantee durability; exposure requirements and cracking control must also be addressed. |
| Constructability | Congested reinforcement, pumping distance, placement temperature, slump retention, consolidation access, and finishing needs. | A mix that works in the lab can fail in the field if it cannot be placed and consolidated properly. |
| Quality control capacity | Experienced supplier, trial batch history, admixture compatibility, testing lab experience, and curing plan. | High strength concrete has tighter production tolerances and should not be treated as ordinary ready-mix concrete. |
Mix Design Principles for High Strength Concrete
High strength concrete mix design is an optimization process. The goal is not to add as much cement as possible. The goal is to create a dense, workable, durable mixture that reaches the required strength with predictable field performance.
Start with performance requirements
The designer and supplier should understand the required compressive strength, age of strength acceptance, exposure conditions, maximum aggregate size, workability needs, placement method, member congestion, curing conditions, and any early strength requirements. A high-rise column mix may not be the same as a precast girder mix or a bridge deck mix.
Control water without sacrificing placement
A low water-cementitious materials ratio is central to high strength concrete, but adding water in the field can quickly undermine the mixture. High-range water reducers are used to maintain workability while keeping the water content controlled. Slump retention, delivery time, temperature, and admixture sequencing should be verified during trial batching.
Match the aggregate to the target strength
As concrete strength increases, aggregate properties become more important. Strong, clean, durable, well-graded aggregate helps the composite material carry stress without weak zones. Poor aggregate shape, weak particles, contamination, or reactive materials can limit strength and durability even when the paste is carefully proportioned.
Use supplementary cementitious materials with intent
Silica fume, slag cement, fly ash, and other supplementary cementitious materials can improve density, long-term strength, and permeability. They also affect heat generation, finishing behavior, set time, color, early strength, and curing sensitivity. The best combination depends on the structure and exposure environment.
Engineering Judgment and Field Reality
High strength concrete can look straightforward on a design schedule because it is often represented by one number: \( f’_c \). In the field, that number depends on supplier consistency, batching accuracy, truck time, temperature, admixture timing, vibration, curing, testing discipline, and whether the mix can actually move through congested reinforcement.
Experienced engineers watch for mismatch between design intent and field practicality. A lower-strength mix that places cleanly, consolidates well, cures properly, and controls cracking may perform better than a high-strength mix that is difficult to pump, loses workability, or is cured poorly during hot, cold, or windy conditions.
Do not let the specified strength hide the construction problem. If reinforcement congestion, placement access, member thickness, temperature, or curing conditions are challenging, the field plan may matter as much as the laboratory mix design.
When This Breaks Down
The simplified idea that “higher strength equals better concrete” breaks down when the governing problem is not compressive strength. Many structural and durability issues are controlled by cracking, detailing, exposure, shrinkage, permeability, reinforcement corrosion, or constructability.
- Slabs-on-grade: joint layout, subbase support, shrinkage, finishing, and curing often matter more than a high compressive strength number.
- Durability-critical work: permeability, cover, air entrainment, cracking, curing, and exposure class may control more than compressive strength.
- Seismic regions: ductility, confinement, development length, shear behavior, and detailing cannot be ignored because concrete strength is high.
- Mass concrete elements: higher cementitious content can increase heat concerns if temperature control is not addressed.
- Congested members: a strong mix that cannot be placed around reinforcement can create voids, honeycombing, and poor bond.
Common Mistakes and Practical Checks
Most high strength concrete mistakes come from treating it like ordinary concrete with a larger strength number. The mix, design assumptions, placement process, testing plan, and curing requirements all need to align.
- Specifying excessive strength without a reason: higher strength can increase cost and complexity without improving the controlling limit state.
- Adding water at the site: field water additions can damage the water-cementitious ratio and reduce strength and durability.
- Ignoring aggregate quality: weak or poorly graded aggregate can limit performance in high strength mixtures.
- Assuming high strength means high durability: durability also depends on permeability, air system, cover, cracking, curing, and exposure.
- Forgetting ductility and detailing: high compressive strength does not eliminate the need for confinement, anchorage, reinforcement spacing, and shear checks.
- Using lab results as a field guarantee: trial batch performance must be translated into realistic delivery, pumping, placement, and curing conditions.
The biggest mistake is specifying a high \( f’_c \) while leaving the supplier, contractor, inspector, and testing lab to solve workability, curing, and acceptance issues after the pour has already started.
Relevant Standards and Design References
High strength concrete should be understood through both material proportioning guidance and structural design requirements. These references help define how the material is selected, tested, specified, and used in structural members.
- ACI 363R, Report on High-Strength Concrete: Covers high strength concrete materials, mixture proportions, properties, quality control, structural design considerations, economics, and applications.
- ACI 211.4R, Guide for Selecting Proportions for High-Strength Concrete: Provides guidance for trial mixtures, material selection, water-cementitious ratio, admixtures, and mixture optimization.
- ACI 318, Building Code Requirements for Structural Concrete: Governs structural concrete design requirements for many building projects, including strength, serviceability, durability, detailing, and member design checks.
- ASTM C39/C39M: Covers compressive strength testing of cylindrical concrete specimens, which is central to confirming whether concrete meets specified compressive strength requirements.
- Project specifications and local requirements: Define the actual acceptance criteria, testing frequency, exposure requirements, curing expectations, and any project-specific performance targets.
Frequently Asked Questions
High strength concrete is concrete with compressive strength above ordinary structural concrete. Many general construction references use 6,000 psi as a practical threshold, while ACI high-strength concrete guidance commonly uses 8,000 psi, or about 55 MPa, and greater.
No. High strength concrete is mainly defined by compressive strength, while high performance concrete is designed for specific performance goals such as durability, low permeability, workability, early strength, or resistance to exposure. A concrete mixture can be both high strength and high performance, but the terms are not identical.
High strength concrete is commonly used in high-rise columns, core walls, transfer members, prestressed bridge girders, precast components, parking structures, marine structures, and heavily loaded foundations where strength, member size, durability, or construction speed justify the tighter quality control.
High strength concrete can be more expensive, less forgiving during placement, more sensitive to curing, and more brittle than normal concrete. It also depends heavily on aggregate quality, low water-cementitious ratio control, admixture compatibility, temperature management, and disciplined testing.
Summary and Next Steps
High strength concrete is an engineered concrete material used when ordinary concrete strength is not enough for the structural objective. It can support slimmer columns, longer spans, precast speed, prestressed performance, and durability goals, but only when the mixture and construction process are controlled.
The most important checks are not limited to compressive strength. Engineers should also evaluate water-cementitious ratio, aggregate quality, admixture compatibility, workability, curing, testing, reinforcement detailing, cracking risk, and whether high strength actually improves the controlling design condition.
