Key Takeaways
- Definition: Frequency measures how many cycles, oscillations, rotations, or repeating events occur per second.
- Main use: Engineers use frequency to analyze waves, AC signals, vibration, rotating equipment, filters, communications, and control-system response.
- Watch for: Keep period, angular frequency, RPM, and wavelength relationships separate so Hz, rad/s, and cycles per minute are not mixed incorrectly.
- Outcome: You will be able to solve for frequency from period, cycle count, wavelength, angular frequency, or rotational speed.
Table of Contents

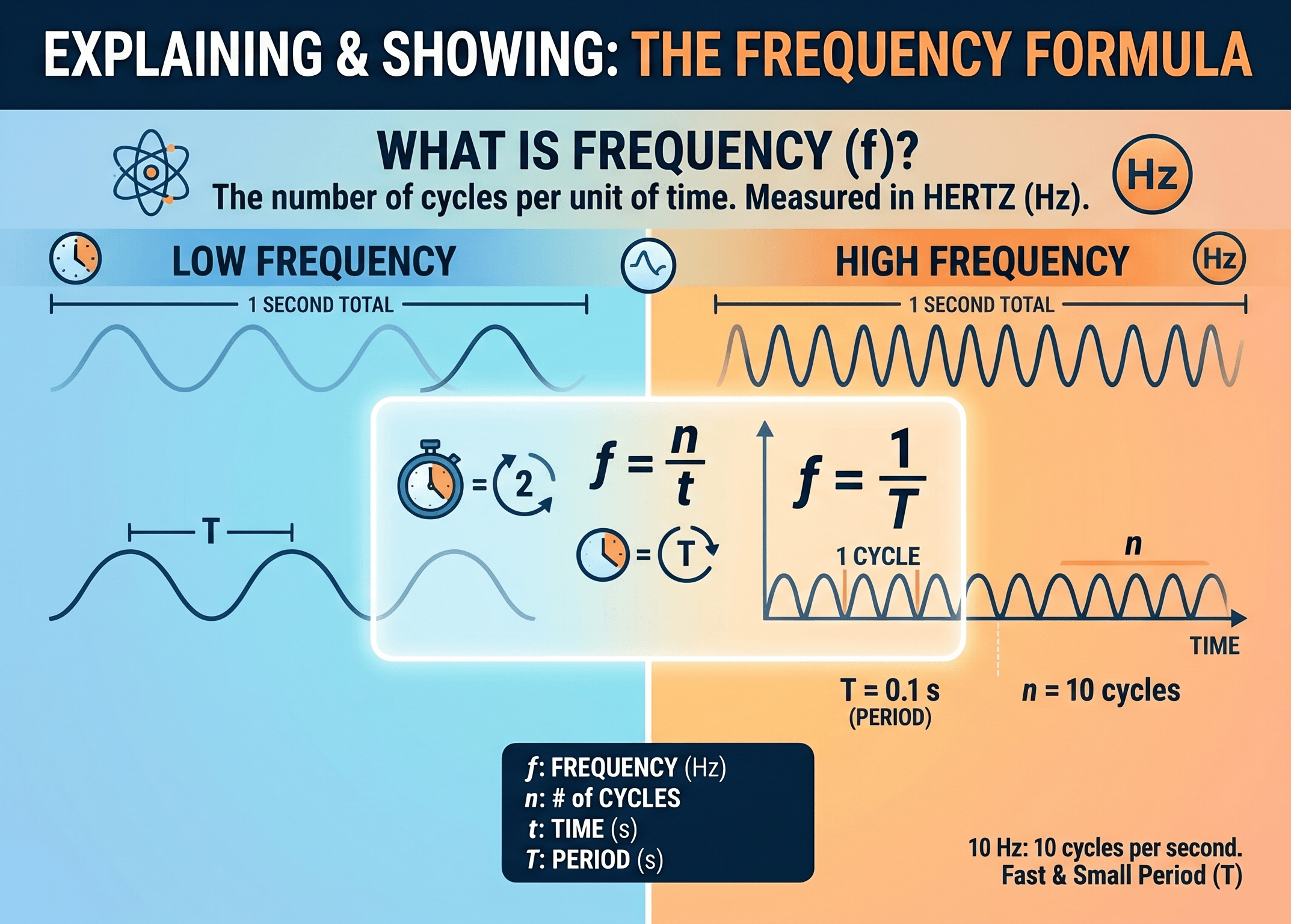

Cycles, period, and frequency in repeating motion
The frequency formula relates how often a repeating event occurs to the time required for one complete cycle.
The first thing to notice is that frequency and period move in opposite directions. A shorter period means the cycle repeats more often, so the frequency is higher.
What is the frequency formula?
The frequency formula calculates how often a repeating event occurs. In the most common form, frequency is the reciprocal of period, meaning it tells you how many cycles happen per second when you know the time for one cycle.
Frequency is used across engineering because many systems repeat: AC voltage, mechanical vibration, rotating shafts, sound waves, radio waves, sampling signals, motor speed, filter response, and control-system oscillations.
The key engineering problem is choosing the correct frequency relationship for the information you have. A signal measured by period uses \(f = 1/T\). A wave with known speed and wavelength uses \(f = v/\lambda\). A rotating shaft may be converted from RPM to Hz.
The frequency formula
The primary frequency formula relates frequency to period:
This equation says frequency \(f\) is the number of cycles per second, while period \(T\) is the time for one cycle. If one cycle takes \(0.02\,\text{s}\), the event repeats \(50\) times per second.
Frequency can also be calculated from the number of cycles observed over a measured time interval:
For waves, frequency is connected to wave speed and wavelength:
In vibration, control systems, and AC analysis, angular frequency is also common:
Do not mix Hz and rad/s. Frequency \(f\) counts cycles per second, while angular frequency \(\omega\) measures radians per second.
Variables and units
Frequency calculations are usually simple, but unit mistakes are common. The most important unit is hertz, where \(1\,\text{Hz}=1\,\text{cycle/s}\).
- \(f\) Frequency. SI unit: hertz (Hz), equivalent to cycles per second or s\(^{-1}\).
- \(T\) Period, or time for one complete cycle. SI unit: seconds (s).
- \(N\) Number of cycles, oscillations, rotations, or repeated events counted over a time interval.
- \(t\) Elapsed time over which cycles are counted. SI unit: seconds (s).
- \(v\) Wave speed. Common SI unit: m/s.
- \(\lambda\) Wavelength, or distance between matching points on a wave. Common SI unit: meters (m).
- \(\omega\) Angular frequency. Unit: radians per second (rad/s).
If period is in milliseconds, convert to seconds before using \(f = 1/T\). For example, \(20\,\text{ms}=0.020\,\text{s}\), so \(f=50\,\text{Hz}\).
| Quantity | Meaning | Common units | Conversion note | Engineering use |
|---|---|---|---|---|
| \(f\) | Frequency | Hz, kHz, MHz, GHz | \(1\,\text{kHz}=1000\,\text{Hz}\) | Signals, waves, vibration, AC systems |
| \(T\) | Period | s, ms, µs | \(1\,\text{ms}=10^{-3}\,\text{s}\) | Oscilloscope measurements and timing |
| \(\omega\) | Angular frequency | rad/s | \(\omega=2\pi f\) | Vibration, AC phasors, control systems |
| RPM | Rotational speed | rev/min | \(f=\text{RPM}/60\) | Motors, shafts, fans, pumps |
A 60 Hz signal has a period of about \(16.7\,\text{ms}\), while a 1 kHz signal has a period of \(1\,\text{ms}\). Higher frequency means shorter time between cycles.
How to rearrange the frequency formula
Most frequency problems are solved by identifying which paired quantities are known: period and frequency, cycles and elapsed time, wavelength and wave speed, or angular frequency and frequency.
After rearranging, check whether the answer should be a time, count, length, Hz value, or rad/s value. Dimensional mismatch usually means the wrong frequency relationship was selected.
Worked example: calculate frequency from period
Example problem
An electrical signal repeats once every \(8\,\text{ms}\). Find the frequency in hertz.
First convert milliseconds to seconds:
Substitute the period into the frequency formula:
The result is:
This means the signal completes 125 cycles every second. If this were an AC waveform, one full waveform cycle would occur every \(0.008\,\text{s}\).
If the period is less than one second, the frequency should be greater than \(1\,\text{Hz}\). This quick check catches many period-to-frequency errors.
Where engineers use frequency
Frequency is one of the most common quantities in electrical, mechanical, civil, acoustical, communications, and control engineering. It tells engineers how fast something repeats and helps connect time behavior to system response.
- Electrical systems: AC power, signal timing, impedance, filters, oscillators, and RMS waveform analysis.
- Mechanical systems: vibration, rotating machinery, resonance, shaft speed, bearing diagnostics, and modal testing.
- Communications: radio frequency, wave propagation, modulation, antennas, and bandwidth planning.
- Controls: frequency response, Bode plots, stability margins, and dynamic system tuning.
- Acoustics: sound pitch, Doppler shift, noise analysis, and wave speed relationships.
Use \(f=1/T\) when one cycle time is known. Use \(f=N/t\) when you count cycles over a time interval. Use \(f=v/\lambda\) when the problem is a traveling wave. Use \(\omega=2\pi f\) when the model uses radians or sinusoidal phasors.
Assumptions and limitations
The frequency formula is straightforward when the event is periodic, meaning it repeats in a consistent way. The more irregular or transient the signal is, the more care is needed when assigning a single frequency value.
- 1 The event being measured repeats in a recognizable cycle.
- 2 The measured period or elapsed time is representative of the signal or motion.
- 3 The unit system is consistent, especially seconds, milliseconds, RPM, Hz, and rad/s.
- 4 For waves, wave speed and wavelength refer to the same medium and propagation condition.
Where the simple formula breaks down
A single frequency may not fully describe a broadband signal, nonperiodic pulse, noisy measurement, changing RPM, chirp signal, transient vibration, or waveform containing multiple harmonics.
If a signal has several frequency components, use spectrum analysis or Fourier methods instead of assuming one period gives the complete behavior.
Engineering judgment and field reality
In real measurements, frequency is often estimated from instruments such as oscilloscopes, tachometers, accelerometers, spectrum analyzers, data loggers, and control-system software. The equation is simple, but the measurement quality controls the result.
A vibration signal may show one dominant frequency plus harmonics, sidebands, electrical noise, or structural resonances. The frequency formula still applies to each repeating component, but the system may not be described by one number.
Measure several cycles when possible. Estimating frequency from one noisy cycle can be misleading, while counting many cycles over a longer time interval usually reduces timing error.
Common mistakes and engineering checks
- Using milliseconds as seconds: \(8\,\text{ms}\) must be entered as \(0.008\,\text{s}\) in \(f=1/T\).
- Confusing Hz and rad/s: \(1\,\text{Hz}\) equals one cycle per second, not one radian per second.
- Forgetting the \(2\pi\): angular frequency is \(\omega=2\pi f\), not just \(\omega=f\).
- Mixing RPM and Hz: divide RPM by 60 to get revolutions per second.
- Applying one frequency to a complex signal: a noisy or harmonic-rich signal may need spectral analysis.
Frequency and period should be reciprocals. If frequency increases, period must decrease. If both increase together, the calculation or unit conversion is wrong.
| Check item | What to verify | Why it matters |
|---|---|---|
| Period units | Convert ms, µs, or minutes to seconds | Frequency in Hz uses seconds |
| Angular frequency | Use \(\omega=2\pi f\) | Prevents confusing cycles with radians |
| Rotational speed | Use \(f=\text{RPM}/60\) | Converts revolutions per minute to revolutions per second |
| Wave relation | Use \(f=v/\lambda\) | Connects frequency to speed and wavelength in the same medium |
Frequently asked questions
The most common frequency formula is \(f=1/T\), where \(f\) is frequency and \(T\) is the period of one complete cycle.
Frequency is measured in hertz, abbreviated Hz. One hertz means one cycle per second.
Use \(f=v/\lambda\), where \(v\) is wave speed and \(\lambda\) is wavelength. Make sure both values use consistent units.
Frequency measures cycles per second in Hz. Angular frequency measures radians per second and is calculated with \(\omega=2\pi f\).
Summary and next steps
The frequency formula \(f=1/T\) connects how often something repeats with the time required for one complete cycle. It is one of the most widely used relationships in signals, waves, vibration, rotating machinery, AC power, communications, and control systems.
The main engineering judgment is choosing the right form. Use period for timing problems, cycle count for measured events, \(v=f\lambda\) for waves, \(\omega=2\pi f\) for angular models, and RPM conversion for rotating equipment.
