Soil Consolidation

What Is Soil Consolidation and Why It Matters

Soil consolidation is the time-dependent volume decrease of saturated fine-grained soils under increased effective stress as pore water is expelled. In practice, consolidation governs long-term settlement beneath embankments, tanks, slabs, and shallow foundations. Understanding it lets designers set realistic construction schedules, control post-construction settlement, and choose between ground improvement techniques and foundation alternatives.

This guide answers key questions: How do primary and secondary consolidation differ? Which parameters matter (Cc, Cr, cv)? How do we compute settlement and time to reach a given degree of consolidation? What tests and instrumentation confirm performance? We connect to adjacent topics like Settlement Analysis, Site Characterization, and Groundwater in Geotechnical Engineering.

Consolidation controls when and how much your structure settles—design both the magnitude and the timetable.

Fundamentals: Effective Stress, Compressibility & Drainage Paths

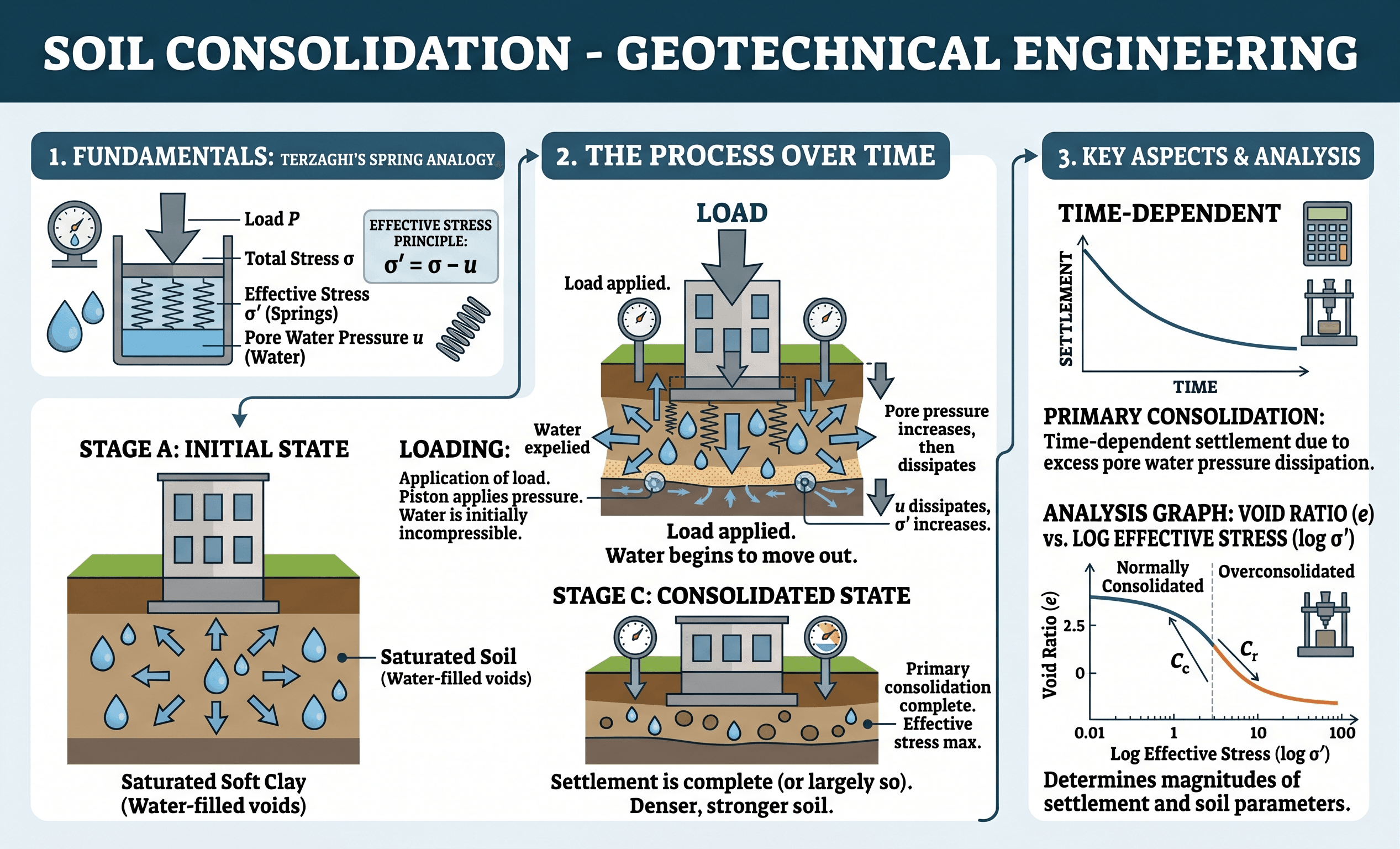

Consolidation arises from a change in effective stress in saturated soils. When loads are applied to clays and silts, pore water initially carries the load; with time, water drains and grain skeletons compress. The rate depends on drainage path length and soil permeability–compressibility coupling. Building a solid soil mechanics picture helps you choose parameters and boundary conditions realistically.

  • Compressibility (Cc, Cr): From the e–log σ′ curve; Cc for virgin compression, Cr for recompression.
  • Preconsolidation stress (σ′p): Separates recompression from virgin compression; OCR = σ′p / σ′0.
  • Coefficient of consolidation (cv): Governs time rate; depends on permeability and compressibility.
  • Drainage conditions: Single vs. double drainage halves/ doubles the drainage path Hd.

Key Concepts (Indicative Relations)

\( \sigma’ = \sigma – u \quad ; \quad T_v = \dfrac{c_v\, t}{H_d^2} \)
\( \sigma’ \)Effective vertical stress
\( u \)Excess pore pressure
\( c_v \)Coefficient of consolidation
\( H_d \)Drainage path (thickness to drainage plane)

Related Internal Reading

Bearing stresses at the base of foundations tie directly to consolidation inputs—see Bearing Capacity and Shallow Foundations.

Primary vs. Secondary (Creep) Consolidation

Primary consolidation is dissipation of excess pore pressure due to drainage; secondary consolidation (creep) is ongoing time-dependent deformation at roughly constant effective stress after primary ends. Organic clays and peats can exhibit significant secondary settlement, while inorganic clays often show modest creep.

Secondary Compression (Indicative)

\( S_s = C_\alpha \, H \, \log_{10}\!\left(\dfrac{t_2}{t_1}\right) \)
\( C_\alpha \)Secondary compression index
\( H \)Thickness of compressible layer
\( t_1,t_2 \)Start/end times of creep window

Did you know?

For preloaded clays, primary settlement can be “spent” before construction, but secondary settlement remains—estimate it explicitly for tanks and embankments.

Design Equations: Magnitude and Time Rate

Settlement prediction uses layer-by-layer sums with appropriate compressibility parameters (recompression or virgin). Select drainage paths and cv consistent with stratigraphy and boundary conditions. Always check for varying stresses with depth due to foundation geometry and loads.

Primary Consolidation Settlement (e–log σ′ method)

\( S_c = \sum \left[ \dfrac{C_r}{1+e_0} H \log\!\left(\dfrac{\sigma’_p}{\sigma’_0}\right) + \dfrac{C_c}{1+e_0} H \log\!\left(\dfrac{\sigma’_0 + \Delta \sigma’}{\sigma’_p}\right) \right] \)
\(e_0\)Initial void ratio
\( \sigma’_0 \)Initial eff. stress
\( \sigma’_p \)Preconsolidation stress
\( \Delta \sigma’ \)Stress increase from foundation

Time to Reach a Target Degree of Consolidation

\( T_v = \dfrac{c_v t}{H_d^2} \quad\Rightarrow\quad t = \dfrac{T_v H_d^2}{c_v} \)   (use appropriate \(T_v\)–\(U\) charts)
\( U \)Degree of consolidation (e.g., 90%)
\( T_v \)Time factor from theory/charts

For multi-layer systems, compute stress increments (e.g., Boussinesq or Newmark) and apply layer-specific parameters. When the foundation behaves as a raft, consider load distribution and stiffness—see Geotechnical Modeling for FE refinements.

Laboratory Testing: Oedometer & Supporting Tests

The oedometer (consolidation) test provides e–log σ′ curves, preconsolidation stress, Cc, Cr, cv, and Cα. High-quality sampling matters: tube type, area ratio, and handling can distort results. Complement with index properties (Atterberg limits), unit weight, and strength tests for comprehensive design inputs.

  • Specimen quality: Minimize disturbance; trim carefully; document sample recovery and orientation.
  • Loading schedule: Follow standard load increments; obtain cv from t–√t or log-time methods.
  • Reconsolidation: For overconsolidated clays, apply recompression before virgin loading to map both Cr and Cc.

Related Topics & Tests

Link tests to context: Atterberg Limits, Permeability Test, and broader Geotechnical Soil Testing.

Field Instrumentation & Verification

Verification proves that consolidation is proceeding on schedule and that magnitudes match predictions. The right instruments measure both what is changing (pore pressure vs. deformation) and where (layer-specific vs. global).

  • Settlement plates & extensometers: Track vertical movement of fills/foundations and specific horizons.
  • Piezometers: Monitor excess pore pressure dissipation—an early indicator of primary consolidation progress.
  • Inclinometers: Use where lateral spreading or slope stability interacts with consolidation (embankments, levees).
  • Reporting: Summarize trends with predicted vs. measured curves—see Geotechnical Reporting.

Did you know?

Piezometer dissipation often confirms primary consolidation completion before settlements flatten—critical for deciding when to remove surcharge or start structural work.

Preloading, Vertical Drains & Vacuum Systems

When consolidation timeframes are incompatible with the schedule, engineers accelerate consolidation using preload fills, prefabricated vertical drains (PVDs), and sometimes vacuum preloading. PVDs shorten drainage paths (radial flow), reducing time to reach a target degree of consolidation; vacuum adds effective stress without tall embankments—handy near sensitive structures.

Concept: Time to U% with PVDs

\( t \sim \dfrac{F(U)\, D_e^2}{c_h} \)
\( D_e \)Equivalent drain spacing (pattern-dependent)
\( c_h \)Horizontal coefficient of consolidation
\(F(U)\)Function of target consolidation U
  • Patterns: Triangular/square spacing per target time; include smear and well-resistance effects in design.
  • Staging: Monitor stability (pore pressure, settlement) during staged preload to avoid failure.
  • Hybrid solutions: Stone columns or ground improvement to add stiffness and drainage simultaneously.

Important

Do not remove surcharge until instruments confirm the degree of consolidation required for post-construction settlement limits.

Common Risks & Mitigation Strategies

Consolidation design intersects with other geotechnical hazards. Anticipate and mitigate to keep performance predictable.

  • Underestimated layer thickness: Tighten investigation spacing near variable deposits—see Geotechnical Investigation.
  • High groundwater: Impacts effective stress and drainage; coordinate with Groundwater management and stable resources like USGS.
  • Organic/peat layers: Large secondary compression; consider partial replacement or lightweight fills.
  • Adjacent structures: Consolidation-induced settlements can affect utilities and walls—coordinate with Retaining Wall Design.

When to Go Deep Instead

If compressible strata are very thick or schedules are tight, compare preloading with Deep Foundations or piled rafts.

Practical Design Workflow

  • 1) Build the ground model: Stratigraphy, OCR, groundwater, and variability—see Site Characterization.
  • 2) Derive parameters: From oedometer and correlations; assign Cc, Cr, cv, Cα by layer quality.
  • 3) Compute stresses: Use influence methods for Δσ′ with foundation type and load combinations—tie to Foundation Design.
  • 4) Predict settlements & time: Sum layer settlements; choose drainage paths and target U%. Check against service limits.
  • 5) Evaluate options: If settlements/time exceed limits, consider preload + PVDs, vacuum, replacement, or stiffness inclusions—see Ground Improvement Techniques.
  • 6) Instrumentation plan: Settlement plates & piezometers with trigger levels and decision rules.
  • 7) Reporting & QA/QC: Document assumptions, acceptance criteria, and monitoring—see Geotechnical Reporting.

Did you know?

Double drainage (top and bottom) halves the drainage path, quartering the consolidation time for the same cv.

FAQs: Quick Answers on Soil Consolidation

How is consolidation different from immediate settlement?

Immediate (elastic) settlement occurs quickly due to soil distortion without pore pressure dissipation, typically important in sands and under small load durations. Consolidation is time-dependent and dominates in saturated clays.

What parameters are most influential?

Cc, Cr, and cv from high-quality oedometer tests; correct OCR and drainage conditions have comparable influence on magnitude and time.

How can I speed up consolidation safely?

Use preload with PVDs and staged construction, monitor pore pressure dissipation, and verify stability at each stage. Vacuum preloading is useful where tall surcharges are impractical.

Where should I go next?

Read our guides on Settlement Analysis, Shallow Foundations, and Ground Improvement.

Conclusion

Soil consolidation sets the long-term performance of many civil works. Predict it with realistic parameters, verify with instrumentation, and manage it proactively through preloading and drainage when schedules demand. Integrate consolidation checks with foundation capacity, groundwater control, and constructibility. For stable external references and design context, consult FHWA, USACE, and hazard-resilient detailing from FEMA Building Science. For adjacent topics, see our internal pages on Foundation Design, Bearing Capacity, and Geotechnical Modeling. With this workflow, consolidation becomes a managed variable—not a surprise after handover.
