Key Takeaways
- Core idea: Flood control dams temporarily store floodwater upstream and release it more slowly to reduce the downstream peak flow.
- Engineering use: Water resources engineers use reservoirs, outlet works, spillways, operating rules, and reservoir routing to manage flood hydrographs.
- What controls it: Flood storage capacity, inflow hydrograph shape, outlet rating curves, spillway capacity, freeboard, and downstream channel limits control performance.
- Practical check: A dam reduces flood risk; it does not remove downstream risk from extreme storms, emergency releases, sedimentation, debris, gate problems, or overtopping.
Table of Contents
Introduction
Flood control dams are dams designed to temporarily store excess runoff during storms and release it at a controlled rate after downstream flood levels drop. In water resources engineering, their main purpose is not simply to block water, but to reshape the flood hydrograph by lowering the peak discharge and delaying flow downstream.

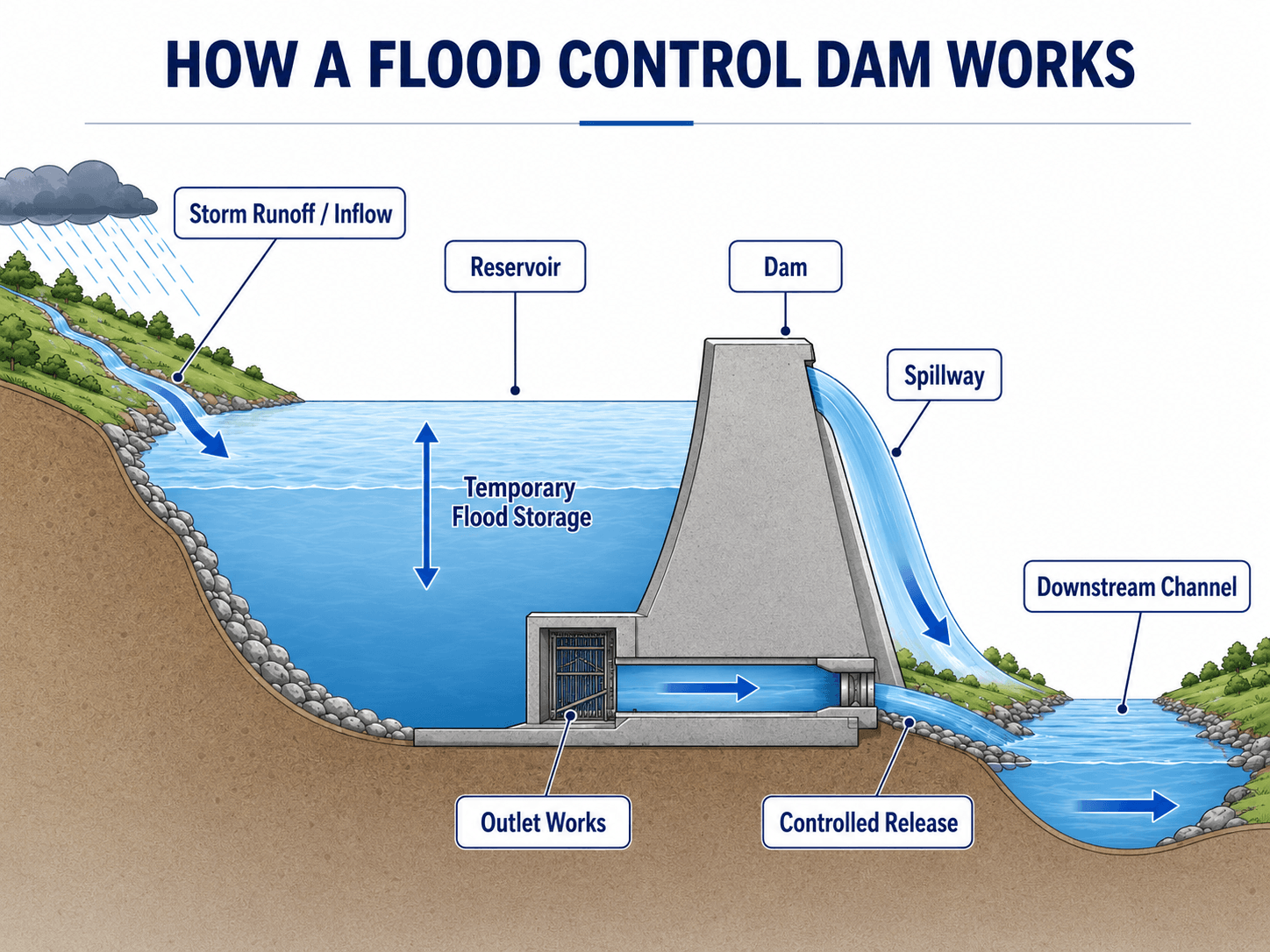

How a Flood Control Dam Works
Read the diagram from left to right: storm runoff enters the reservoir, the reservoir temporarily stores part of the flood volume, and downstream flow is released at a lower, more controlled rate.
What Is a Flood Control Dam?
A flood control dam is a hydraulic structure built to reduce flood damage by holding back part of a flood wave and releasing that water over a longer period. The dam, reservoir, outlet works, spillway, and operating rules work together to reduce peak downstream discharge.
The important engineering distinction is that a flood control dam is a storage-and-release system, not a permanent guarantee that downstream flooding cannot occur. The reservoir must have available flood control storage before the event, the outlets must be able to release water without exceeding downstream capacity, and the spillway must safely pass flows that exceed normal release capacity.
A flood control dam changes the timing of water. It temporarily stores flow during the rising limb of a flood hydrograph, then releases that water later so the downstream peak is lower than it would have been without the dam.
Flood Control Dam vs Flood Control Reservoir
The dam is the structure that impounds and controls water. The reservoir is the storage volume behind the dam. The complete flood control project includes both of those pieces plus outlet works, spillways, operating rules, downstream channel constraints, dam safety monitoring, and emergency planning.
Dry Dams and Multipurpose Reservoirs
Not all flood control dams have a permanent reservoir. Some are dry dams, also called flood retarding structures, that normally pass low flows and only impound water temporarily during storm events. Others are multipurpose reservoirs that balance flood control storage with water supply, recreation, hydropower, environmental releases, or navigation.
The Storage-and-Release Process
Flood control dams work by balancing inflow, storage, and outflow. During a storm, runoff from the watershed enters the reservoir. If inflow is greater than the controlled release rate, reservoir storage increases. After the flood peak passes, the stored water is gradually released until the reservoir returns to its intended operating range.
- \(\Delta S\) Change in reservoir storage during a time step, commonly expressed as volume.
- \(I\) Inflow entering the reservoir from storm runoff, upstream rivers, or tributaries.
- \(O\) Outflow leaving the reservoir through outlet works, gates, spillways, or other release structures.
Outlet Works Handle Controlled Releases
Outlet works are the lower-level release structures that pass water downstream under planned operating conditions. They may include gates, valves, conduits, intake towers, trash racks, energy dissipation structures, and downstream channels. For flood control, the outlet release is often constrained by the safe capacity of the downstream channel.
Principal Spillways and Emergency Spillways
A principal spillway handles planned or design-level releases when reservoir water rises into the spillway operating range. An emergency spillway provides additional capacity during larger events that exceed normal outlet or principal spillway capacity. Both are part of dam safety, because uncontrolled overtopping can be especially dangerous for embankment dams.
Controlled release does not mean releasing water as slowly as possible. Operators must balance downstream channel capacity, available reservoir storage, forecasted inflows, drawdown time, dam safety, and the possibility of another storm arriving before storage is recovered.

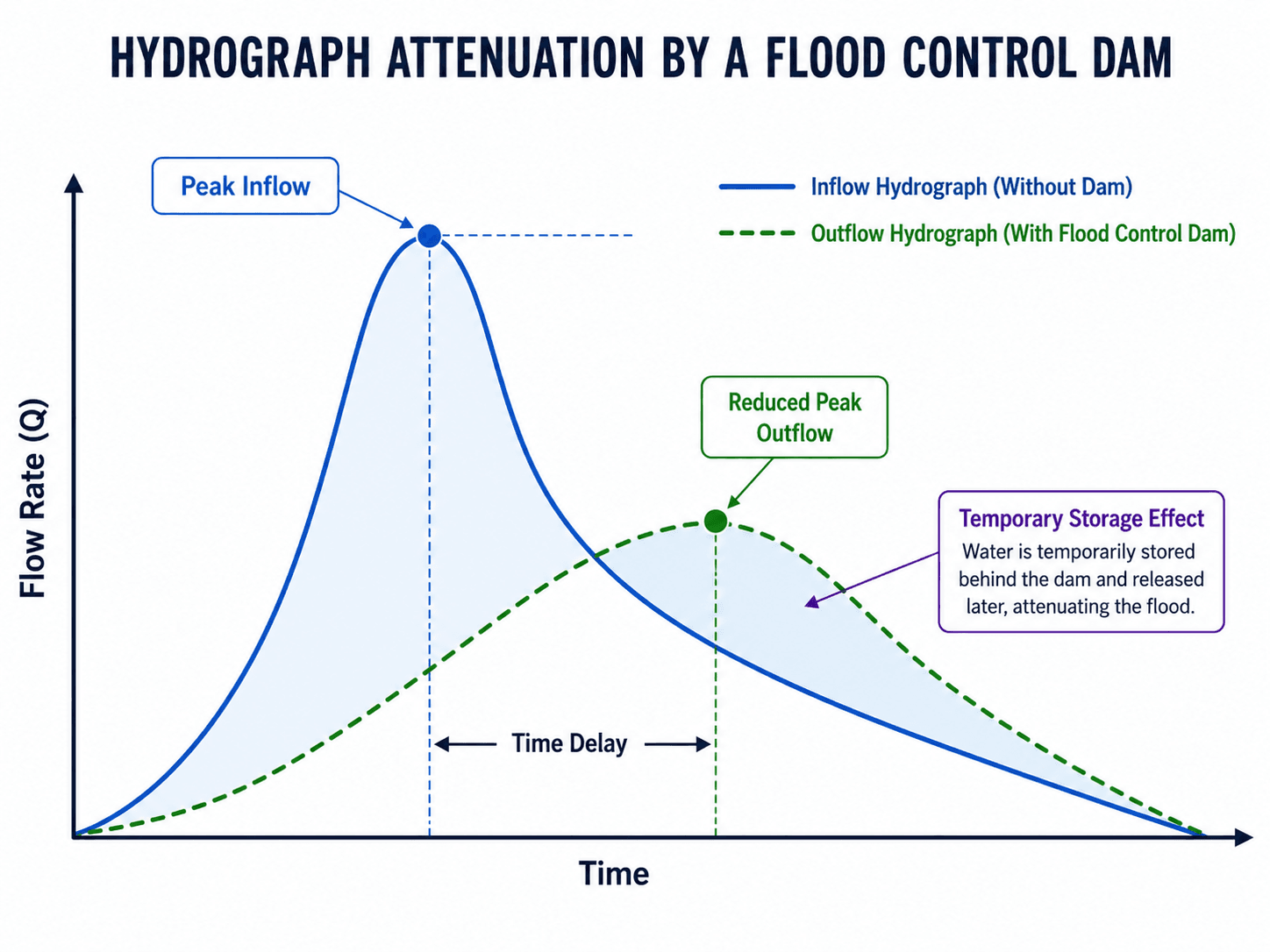

Hydrograph Attenuation: The Main Flood Control Effect
The most important effect of a flood control dam is hydrograph attenuation. The dam reduces the downstream peak flow by storing part of the flood volume during the highest inflow period and releasing that water later. This usually creates a lower, broader, and delayed outflow hydrograph.
Why Lower Peak Flow Matters
Flood damage often depends heavily on the maximum water surface elevation, depth, velocity, and duration downstream. Lowering the peak discharge can keep flow within the downstream channel, reduce floodplain depth, protect bridges or road crossings, and reduce pressure on levees, floodwalls, and drainage systems.
Why Timing Also Matters
A delayed outflow peak can be beneficial when it prevents multiple tributaries from peaking at the same time downstream. However, release timing can also create problems if reservoir outflow overlaps with another downstream flood wave. That is why dam operation is connected to watershed-scale flood routing, not just the dam site itself.
Example: How a Dam Reduces a Flood Peak
Imagine a storm sends a sharp inflow hydrograph into a reservoir. The outlet works release only the amount the downstream channel can accept, so the reservoir rises into flood control storage. Instead of passing the full inflow peak downstream immediately, the dam stores part of the water and releases it later, producing a lower outflow peak after the incoming flood wave has already started receding.

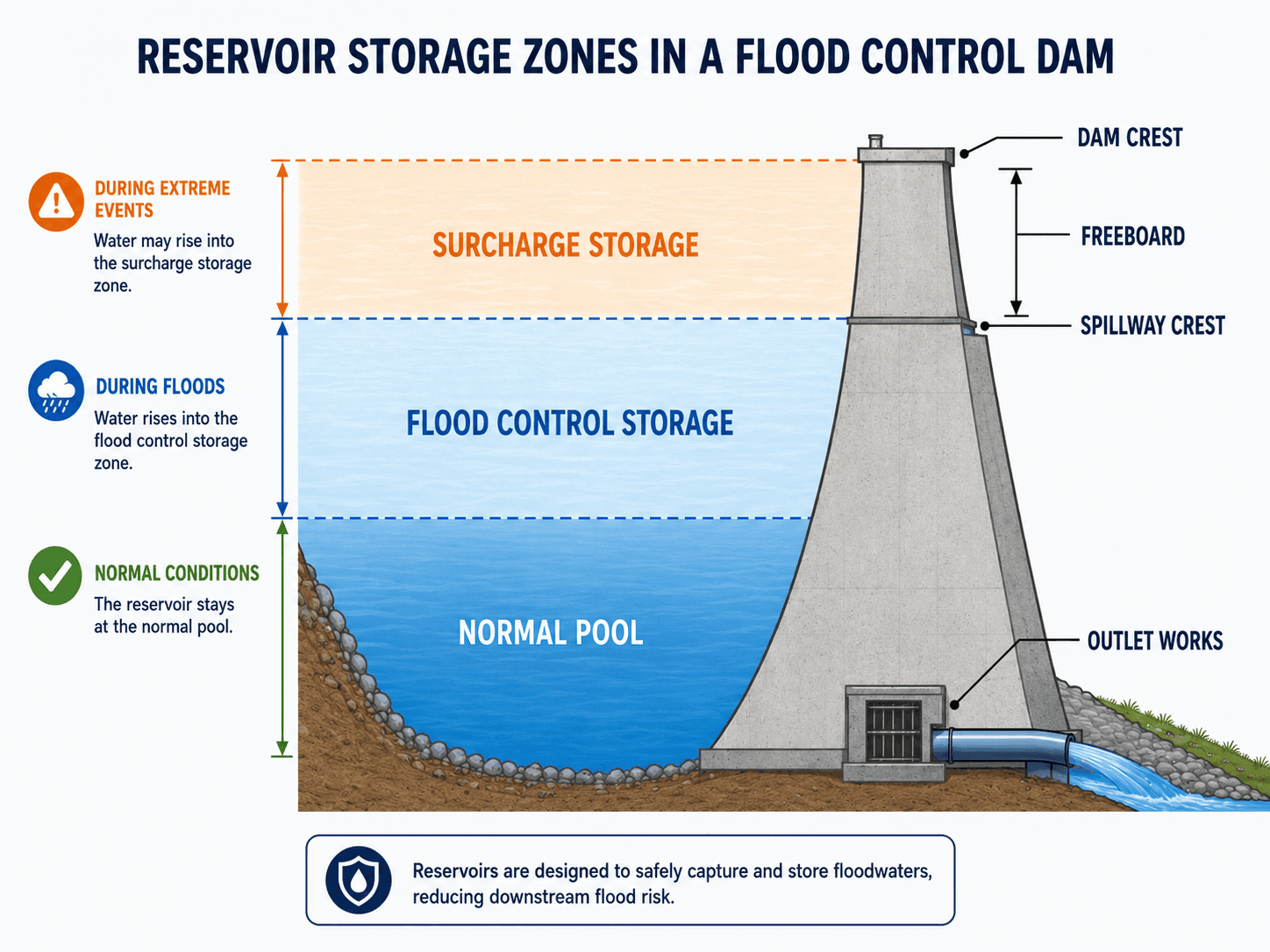

Reservoir Storage Zones in Flood Control Dams
Reservoir storage is usually divided into operating zones. The exact names vary by project, but the basic concept is consistent: some water may be held under normal conditions, additional volume is reserved for flood control, and higher zones may be used only during extreme events.
Some flood control dams are multipurpose reservoirs with a normal pool, while others are normally dry and only store water during flood events. The zone diagram is most directly applicable to reservoirs that maintain a permanent pool, but the same basic design question applies to dry dams: how much temporary flood storage is available before downstream releases or spillway flow become critical?
| Reservoir zone or feature | What it means | Engineering implication |
|---|---|---|
| Normal pool | The typical operating water level when the reservoir is not storing an active flood event. | If the reservoir starts too high before a storm, less flood control storage is available. |
| Flood control storage | The volume reserved to temporarily capture floodwater during a storm. | More usable storage generally means greater potential peak-flow reduction. |
| Surcharge storage | Temporary storage above the primary flood control zone during large or unusual events. | This may indicate the project is approaching spillway-controlled or emergency operating conditions. |
| Spillway crest | The level at which water begins to pass through or over the spillway. | Spillway behavior strongly affects maximum reservoir level and dam safety during extreme inflow. |
| Freeboard | The vertical margin between high water level and the top of the dam. | Insufficient freeboard increases overtopping risk from waves, wind setup, settlement, or larger-than-expected inflow. |
Main Components of a Flood Control Dam
A flood control dam is more than the visible wall or embankment. It is a system of structural, hydraulic, geotechnical, mechanical, and operational components. Each part affects how safely the reservoir stores water and how predictably that water is released.
| Component | Role in flood control | Practical design or operations concern |
|---|---|---|
| Dam body or embankment | Creates the reservoir storage volume by retaining water upstream. | Must resist seepage, slope instability, erosion, settlement, and overtopping. |
| Reservoir | Provides temporary storage for floodwater. | Storage can be reduced by sedimentation, encroachment, or high pre-storm water levels. |
| Outlet works | Releases water at controlled rates during and after floods. | Capacity, reliability, debris blockage, and downstream channel limits control usable releases. |
| Principal spillway | Passes planned spillway releases when the reservoir rises above the spillway crest. | Capacity and erosion resistance affect maximum water surface and release safety. |
| Emergency spillway | Provides extra flow capacity during unusually large events. | Must pass rare flood flows without causing uncontrolled erosion or dam breach conditions. |
| Energy dissipation | Reduces erosive energy at the outlet or spillway discharge point. | Stilling basins, riprap, plunge pools, or aprons may be needed to prevent scour. |
| Instrumentation and monitoring | Tracks water levels, seepage, deformation, gate position, and unusual behavior. | Monitoring helps operators detect problems before they become emergency conditions. |
How Engineers Route Floodwater Through a Reservoir
Reservoir routing is the process of estimating how an inflow hydrograph changes as water is temporarily stored and released by the dam. It connects hydrology, reservoir geometry, outlet controls, spillway behavior, and downstream channel capacity into one flood control performance check.
Build the inflow hydrograph, define reservoir storage, apply outlet and spillway rating curves, calculate water level and outflow through time, then compare peak pool elevation, peak outflow, spillway activation, downstream capacity, and drawdown time.
| Routing step | What the engineer checks | Why it matters for flood control dams |
|---|---|---|
| Develop inflow hydrograph | Watershed runoff volume, peak flow, timing, and storm duration. | The hydrograph determines how quickly the reservoir fills and when peak storage demand occurs. |
| Define storage-elevation curve | Reservoir volume available at each water surface elevation. | This controls how much water can be stored before spillway or surcharge conditions occur. |
| Define outlet rating curve | Controlled release rate at different reservoir elevations and gate settings. | Outlet capacity determines how much flow can be passed while staying within downstream limits. |
| Define spillway rating curve | Spillway flow rate once water reaches the spillway crest. | Spillway capacity controls high-water behavior and reduces overtopping risk. |
| Compare downstream response | Peak outflow, release timing, bridge constraints, channel capacity, and tributary timing. | A lower outflow peak at the dam may still cause flooding if it overlaps with downstream peaks. |
| Check drawdown time | How long it takes to recover flood storage after the event. | Slow drawdown can leave the reservoir vulnerable if another storm arrives soon after. |
Flood Control Dams vs Other Flood Control Measures
Flood control dams are one tool in a broader flood risk management system. They are most useful when upstream storage can reduce downstream peak flow. Other measures may be better when the main problem is local drainage, floodplain exposure, channel capacity, or the need to protect a specific developed area.
| Measure | Primary function | When it is most useful |
|---|---|---|
| Flood control dam | Stores floodwater upstream and releases it slowly. | Watersheds where upstream storage can reduce damaging downstream peaks. |
| Levee | Contains floodwater within or near a channel. | Protecting developed areas next to rivers where storage is limited. |
| Floodwall | Provides a vertical barrier where space is limited. | Urban corridors, waterfronts, or critical assets with limited footprint. |
| Detention basin | Temporarily stores local runoff and releases it slowly. | Site-scale, subdivision-scale, roadway, or urban stormwater management. |
| Diversion channel | Routes flow away from a vulnerable area. | Locations where a safe alternate flow path is feasible and environmentally acceptable. |
Flood Control Dam vs Detention Basin
Both systems temporarily store runoff, but they usually operate at different scales. A flood control dam often manages a river, large watershed, or reservoir system. A detention basin usually manages local stormwater from a site, subdivision, roadway, industrial area, or urban drainage network.
A dam may reduce downstream peak flow, but it can also alter sediment transport, aquatic habitat, release timing, maintenance requirements, and public risk perception. Flood control is usually strongest when storage, conveyance, floodplain planning, and emergency operations are evaluated together.
Design and Modeling Inputs Engineers Review
Flood control dam performance depends on hydrology, hydraulics, reservoir geometry, structural capacity, operations, and downstream consequences. A simple diagram can explain the concept, but an actual project requires defensible inputs and careful review.
| Input or control | Why it matters | Engineering implication |
|---|---|---|
| Inflow hydrograph | Defines the timing and magnitude of floodwater entering the reservoir. | A short, sharp inflow peak requires different storage and outlet behavior than a long-duration flood. |
| Storage-elevation relationship | Shows how much volume is available at each reservoir level. | Small changes in reservoir elevation can represent large or small storage changes depending on valley shape. |
| Outlet rating curve | Relates reservoir water level to controlled release capacity. | Outlet capacity affects drawdown time and downstream peak reduction. |
| Spillway rating curve | Defines high-flow discharge once water reaches the spillway crest. | Spillway capacity controls maximum pool level during extreme events. |
| Downstream channel capacity | Limits how much water can be released without causing downstream flooding. | A large outlet is not useful if the downstream channel cannot safely accept the release. |
| Sediment and debris | Can reduce storage, block outlets, or alter hydraulic capacity. | Maintenance access, trash racks, inspections, and sediment management affect long-term performance. |
Senior Engineer Review Checklist for Flood Control Dams
A strong flood control dam review does not stop at “the reservoir stores water.” It checks whether the dam can store the right flood volume, release water at a defensible rate, pass extreme inflows safely, and avoid shifting unacceptable risk downstream.
Start with the design flood and inflow hydrograph, check available storage and outlet performance, confirm spillway and freeboard behavior, review downstream impacts, then test whether operations, maintenance, monitoring, and emergency planning are realistic.
| Review check | What to look for | Why it matters |
|---|---|---|
| Flood control storage | Available storage before the storm, not just total reservoir volume. | A reservoir that is already full may have limited ability to attenuate a flood peak. |
| Outlet operation | Controlled release capacity, gate reliability, backup power, and operating rules. | Flood performance depends on whether releases can be managed when conditions are difficult. |
| Spillway and freeboard | Maximum reservoir level, spillway discharge, waves, and crest margin. | These checks help identify overtopping risk and emergency operating conditions. |
| Downstream consequences | Channel capacity, bridges, levees, floodplain occupancy, and release timing. | A release that is safe at the dam can still create or worsen downstream flooding. |
| Maintenance reality | Sediment accumulation, debris blockage, access roads, inspections, and instrumentation. | Flood control capacity can degrade over time if the system is not maintained. |
| Emergency action planning | Warning procedures, inundation areas, communications, and operator decision points. | Residual risk remains even when the dam performs as designed. |
Engineering Judgment and Field Reality
In practice, flood control dam performance is affected by conditions that may not be obvious in a simplified drawing. Sediment can reduce reservoir flood storage capacity. Debris can block outlet works or spillway approaches. Gate operation may be limited by access, power, communications, staffing, or safety procedures. Downstream channels may also change because of erosion, vegetation, bridge constraints, or development.
The safest-looking reservoir may not be the safest operating condition. If downstream channels are already high, releasing water too quickly can worsen flooding; if the reservoir is held too high, the dam may lose storage needed for the next storm.
Experienced engineers also watch for risk transfer. A flood control dam may protect one community while changing flood timing, sediment movement, ecological conditions, or release impacts downstream. That is why dam evaluation should be connected to watershed hydrology, hydraulic modeling, floodplain planning, and emergency communication.
When This Breaks Down
The simplified explanation of a flood control dam works best when the dam has available storage, the inflow is within the project’s operating range, outlet works remain functional, and downstream releases can be safely accepted. The concept becomes less reliable when one of those assumptions fails.
| Failure mode or limitation | What happens | Why it matters |
|---|---|---|
| Overtopping | Water rises above the dam crest or an uncontrolled low point. | Overtopping can rapidly erode embankment dams and create breach conditions. |
| Spillway erosion | High-velocity flow damages the spillway, chute, outlet channel, or foundation. | Spillway damage can reduce discharge capacity and threaten dam stability during high flow. |
| Outlet blockage | Debris, sediment, ice, or mechanical issues reduce controlled release capacity. | The reservoir can rise faster than expected because planned outflow is no longer available. |
| Gate malfunction | Operators cannot adjust releases as intended during the flood event. | Loss of release control can increase reservoir level or create downstream release problems. |
| Sedimentation | Reservoir storage volume declines over time. | The dam may provide less flood attenuation than the original design assumed. |
| Downstream backwater | Downstream flow cannot drain efficiently because of high river stages, constrictions, or tributary timing. | Controlled releases may still create flooding when downstream conditions are already unfavorable. |
- Extreme inflow exceeds storage and spillway assumptions: the reservoir may rise into surcharge storage or approach emergency conditions.
- Downstream conditions are already high: otherwise reasonable releases may combine with tributary peaks or backwater conditions.
- Public risk is misunderstood: people downstream may assume the dam eliminates flood risk when it only reduces selected flood consequences.
Common Mistakes and Practical Checks
The most common mistakes come from treating flood control dams as simple barriers instead of dynamic reservoir systems. The dam must be evaluated across the full flood event: inflow, rising reservoir level, outlet release, spillway activation, downstream response, and recovery after the event.
- Assuming bigger storage always solves the problem: additional storage helps only if it is available before the storm and can be released safely afterward.
- Ignoring downstream channel limits: increasing outlet capacity can raise downstream flood peaks if releases exceed channel or bridge capacity.
- Forgetting drawdown time: a reservoir that drains too slowly may not recover enough flood storage before the next event.
- Overlooking debris and sediment: blocked outlets and lost storage can reduce the real performance of an otherwise sound design.
- Confusing dam safety with flood protection: a dam can be structurally safe and still allow downstream flooding during large releases.
Do not evaluate a flood control dam only at the peak reservoir level. The timing of inflow, outflow, downstream flood waves, and reservoir drawdown often controls whether the system actually reduces risk.
Relevant Manuals, Data Sources, and Design References
Flood control dam design and operation are project-specific, but engineers commonly rely on hydrologic studies, reservoir routing, spillway and outlet works design, downstream inundation analysis, emergency action planning, and agency operating rules. The best reference depends on whether the project is a federal dam, local flood control reservoir, multipurpose reservoir, or privately operated structure.
- Bureau of Reclamation: Design Standards No. 14: Appurtenant Structures for Dams provides technical context for spillways, outlet works, surcharge storage, and dam appurtenant structures that influence flood control performance.
- Project-specific criteria: State dam safety rules, owner operating manuals, local floodplain criteria, watershed studies, and emergency action plans may control the final design and operating requirements.
- Engineering use: References are used to connect reservoir routing, spillway capacity, outlet works, downstream inundation, public safety, maintenance, and emergency communication into a defensible flood risk management approach.
Frequently Asked Questions
A flood control dam is a dam designed to temporarily store excess runoff during storms and release it more slowly after downstream flood levels recede. Its main purpose is to reduce peak flow, delay the flood wave, and lower downstream flood damage.
Flood control dams reduce flooding by storing part of the incoming flood volume in a reservoir and releasing it through outlet works or spillways at a controlled rate. This lowers the downstream peak discharge and spreads the release over a longer period when downstream conditions allow.
No. Flood control dams reduce flood risk, but they do not eliminate it. Extreme inflows, limited storage, spillway capacity, downstream channel limits, debris blockage, sedimentation, gate problems, or operational constraints can still create damaging flood conditions.
A flood control dam stores and regulates water upstream to reduce downstream peak flow. A levee does not store the flood wave in the same way; it attempts to keep floodwater within a channel or away from a protected area.
No. Some flood control dams are multipurpose reservoirs with a normal pool, while others are dry dams or flood retarding structures that normally pass low flows and only store water temporarily during storm events.
Summary and Next Steps
Flood control dams reduce flood risk by using reservoir storage, outlet works, spillways, and operating rules to lower and delay downstream peak flows. Their value comes from changing the timing and magnitude of a flood hydrograph, not from eliminating floodwater entirely.
A strong engineering review looks at available storage, inflow hydrographs, outlet and spillway capacity, reservoir routing, freeboard, downstream channel limits, sediment, debris, operations, maintenance, and emergency planning. The most important practical lesson is that flood control is a risk management problem, not a single-structure solution.
