Feedback Control
Introduction to Feedback Control
Feedback control is a cornerstone of electrical engineering, enabling systems to maintain stability, accuracy, and performance under varying conditions. From self-regulating thermostats to advanced robotic systems, feedback control ensures that outputs align with desired goals, even when disturbances or uncertainties arise. This principle is fundamental to designing reliable and efficient technologies that power our modern world.
In this detailed guide, we explore the essentials of feedback control, breaking down its mechanisms, applications, and significance in control systems. Whether you’re a student delving into control theory or an engineer refining a cutting-edge design, this resource offers clear insights to deepen your understanding and inspire practical solutions.
What is Feedback Control?

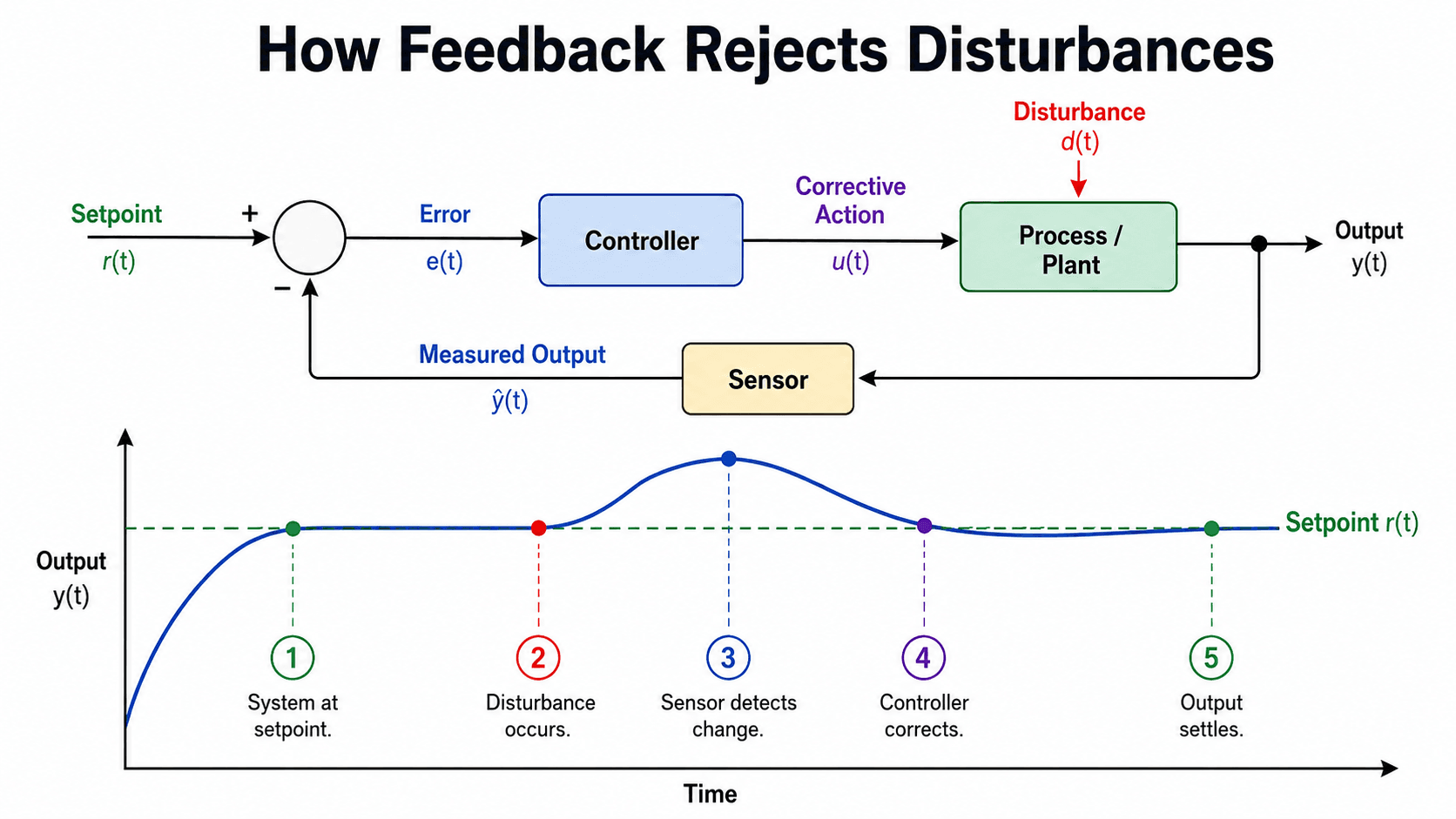

Feedback control refers to a process where a system’s output is monitored and compared to a desired reference, with adjustments made to minimize any difference—or error—between the two. This dynamic loop of sensing, comparing, and correcting allows systems to self-regulate and adapt to changes, making it a vital concept in electrical and control engineering.
At its core, feedback control relies on a closed-loop system, where information flows from the output back to the input. This contrasts with open-loop systems, which lack real-time correction. By continuously adjusting based on feedback, these systems achieve greater precision and resilience, making them indispensable in everything from industrial automation to consumer electronics.
Key Components of Feedback Control

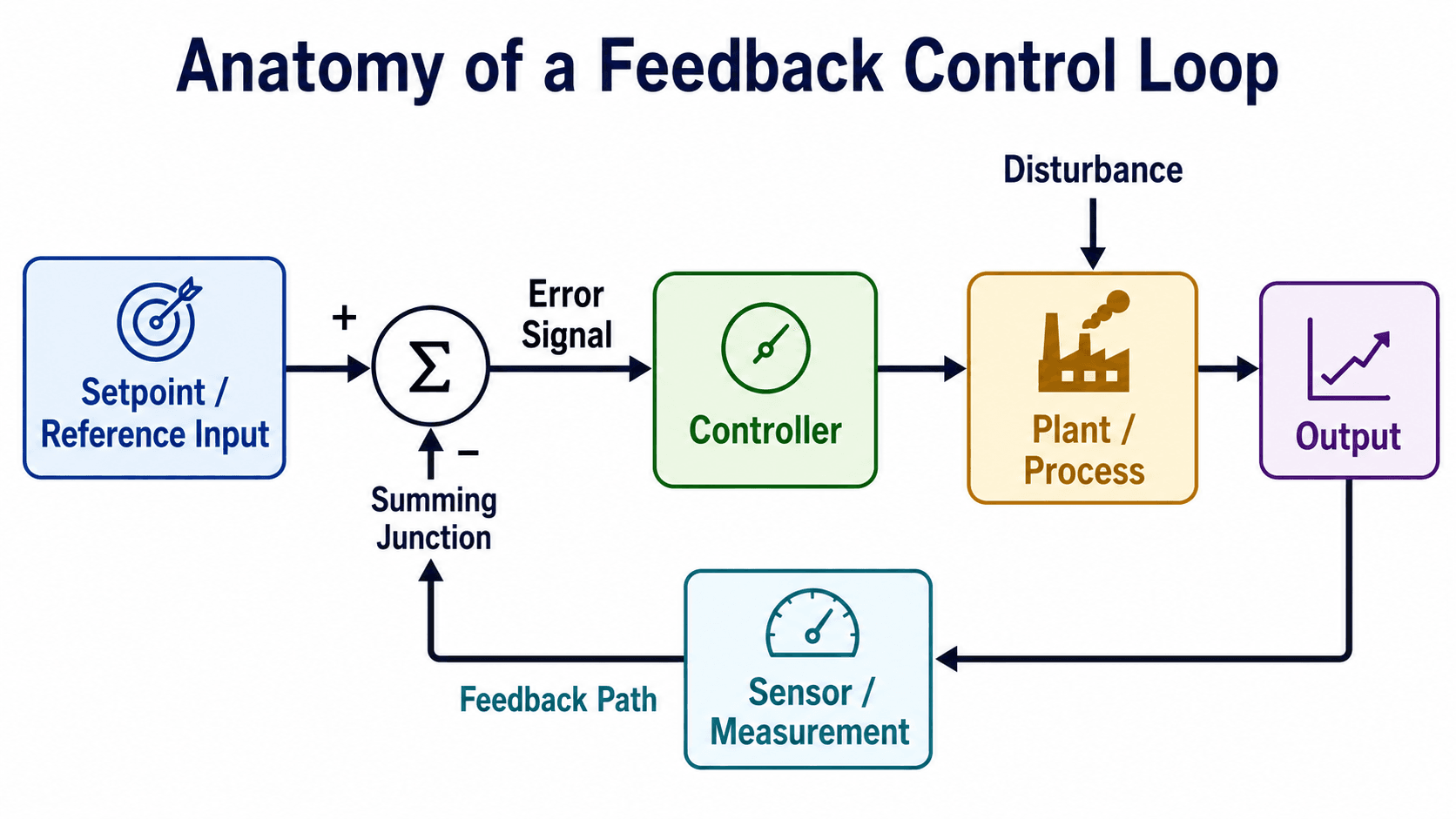

A feedback control system is built from several critical elements working in harmony. Understanding these components is essential for designing and analyzing effective control systems. Below, we outline the core building blocks that make feedback control possible.
Sensors
Sensors measure the system’s output, such as temperature, speed, or voltage, providing real-time data. Accurate sensing is the foundation of feedback, as it determines how well the system can detect deviations from the desired state.
Controller
The controller processes the sensor data, compares it to the setpoint (desired output), and calculates the necessary adjustments. Common types include proportional (P), integral (I), and derivative (D) controllers, often combined in PID systems for optimal performance.
Actuators
Actuators execute the controller’s commands, physically altering the system—think motors adjusting speed or valves regulating flow. Their responsiveness directly impacts the system’s ability to correct errors swiftly and accurately.
Feedback Loop
The feedback loop ties it all together, continuously cycling data from output to input. This closed-loop structure distinguishes feedback control, enabling self-correction and stability even in unpredictable environments.
Types of Feedback Control
Feedback control systems come in various forms, each suited to specific applications and performance needs. Here’s a look at the primary types engineers encounter in control systems design.
Negative Feedback
Negative feedback reduces the error by opposing the deviation, stabilizing the system. It’s the most common type, used in amplifiers, temperature regulators, and speed controllers to maintain consistent performance.
Positive Feedback
Positive feedback amplifies deviations, often intentionally, as in oscillators or amplifiers where growth or rapid change is desired. While less common in stabilization, it’s critical in specific signal-processing applications.
Linear vs. Nonlinear Control
Linear feedback assumes proportional responses, simplifying analysis and design, while nonlinear control handles complex, real-world behaviors like saturation or friction. Engineers choose based on system dynamics and precision requirements.
Applications in Electrical Engineering
Feedback control is ubiquitous in electrical engineering, driving innovation across industries. Its ability to adapt and stabilize systems makes it a key tool for solving practical challenges.
In power systems, feedback control regulates voltage and frequency for reliable electricity delivery. Robotics relies on it for precise motion and positioning, while communication systems use it to maintain signal integrity. Everyday devices like drones, HVAC systems, and autonomous vehicles also owe their functionality to sophisticated feedback mechanisms.
Designing Feedback Control Systems
Creating an effective feedback control system requires careful planning and analysis. Engineers use mathematical models, such as transfer functions or state-space representations, to predict system behavior and tune performance.

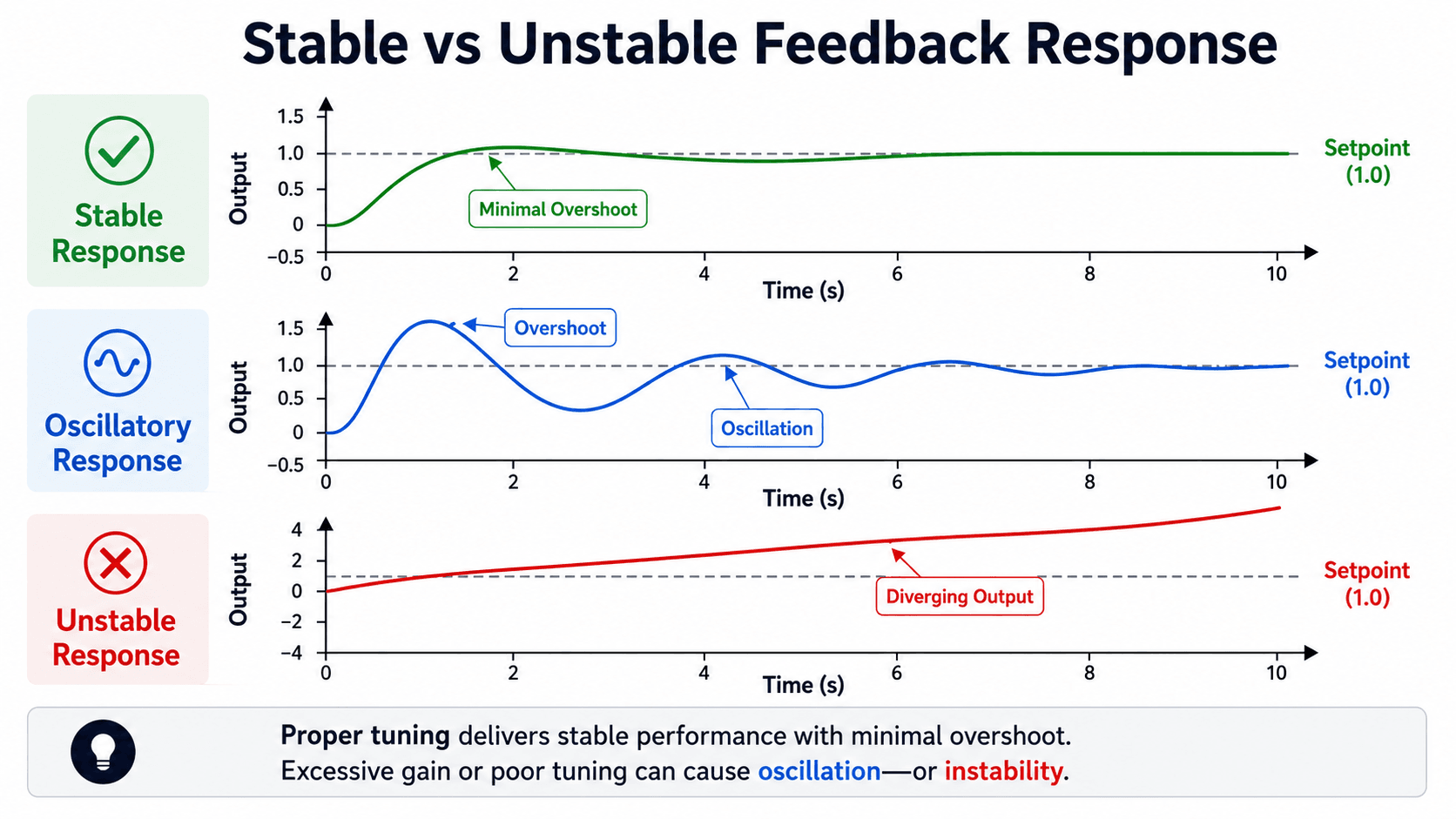

Stability is a primary concern—tools like Bode plots and Nyquist criteria help assess it. Tuning controllers, balancing speed, accuracy, and robustness, is another critical step. Modern design often incorporates simulation software and real-world testing to refine systems before deployment.
Conclusion: The Power of Feedback Control
Feedback control is a transformative concept in electrical engineering, enabling systems to achieve precision, adaptability, and efficiency. Its principles underpin countless technologies that shape our lives, from simple appliances to complex industrial processes.
As engineering advances, feedback control continues to evolve, integrating with AI, machine learning, and IoT to tackle emerging challenges. By mastering this foundational topic, engineers and learners alike can unlock new possibilities and drive progress in an ever-changing technological landscape.
