Wind Design
Introduction

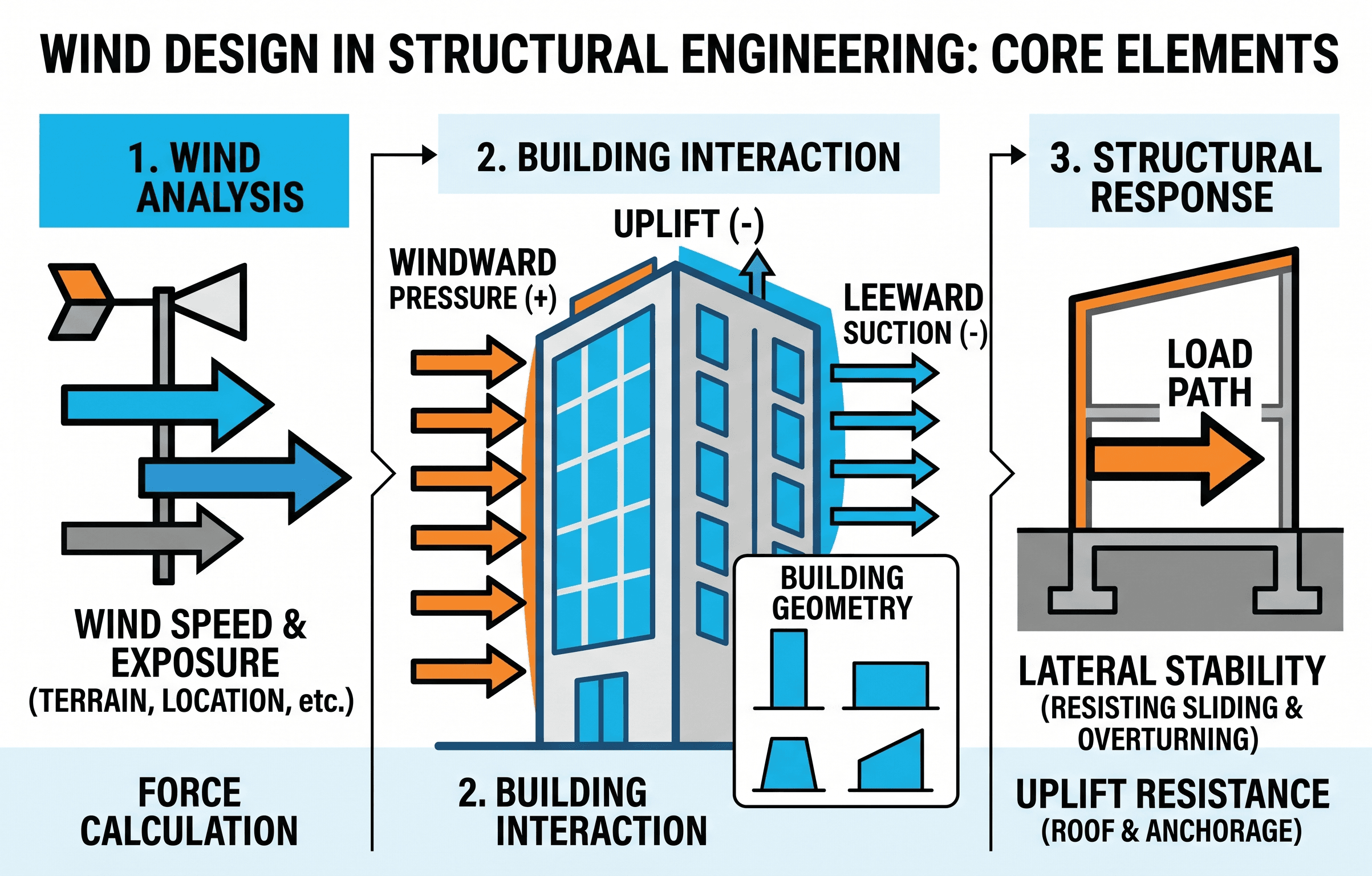

Wind design is the discipline of quantifying wind loads on buildings, cladding, and rooftop equipment and delivering those loads safely to the foundation through a continuous load path. It connects hazard data, aerodynamics, analysis methods, and detailing so structures resist suction, pressure, and vibration without unacceptable drift, damage, or water intrusion. Because wind varies by geography, terrain, and building shape, successful design starts with correct site parameters and ends with meticulous envelope anchorage.
Great wind design balances strength, stiffness, and detailing—from cladding fasteners to lateral frames—guided by reliable hazard data and realistic load paths.
Wind Design Basics & Performance Goals
The primary objectives are life safety (no collapse), property protection (limited damage to envelope and equipment), and continuity of operations (acceptable drift, accelerations, and water tightness). Engineers check two parallel tracks:
- MWFRS (Main Wind-Force Resisting System): Frames, walls, and diaphragms that resist global shear and overturning.
- Components & Cladding (C&C): Local pressures on panels, windows, doors, edge zones, and fasteners.
What “Good” Looks Like
Predictable story shears and overturning, controlled drift/acceleration for comfort, well-detailed collectors/chords, and envelope anchors sized for peak suction in edge/corner zones.
Wind Hazard & Site Parameters
The design wind climate is captured by a basic wind speed map and modifiers for exposure (terrain roughness), directionality, topographic speed-up, and importance (risk). Site-specific geometry—height, plan shape, and shielding—shifts pressures dramatically. Establish these inputs before modeling forces or sizing the lateral system.
- Basic wind speed: Mapped 3-sec gust at 10 m height—use authoritative sources such as ASCE resources and local code adoption at ICC.
- Exposure: Open terrain vs. urban roughness; affects velocity profile and dynamic pressures.
- Topography: Hills, escarpments, and ridges can amplify speeds; apply speed-up factors when applicable.
- Importance: Risk category multipliers for essential facilities and high-occupancy buildings.
Did you know?
A low-rise warehouse on an exposed coastal site can see higher roof suctions than a mid-rise downtown office—terrain matters as much as height.
Translating Wind Speed to Pressure
Wind pressure scales roughly with the square of wind speed, then is modified by external pressure coefficients (shape effects) and internal pressure (leakage/openings). Components and cladding use localized, often higher, coefficients than the main system. Proper zoning around edges and corners is critical.
Velocity & Net Pressure (Conceptual)
Directionality and gust effects are included via factors specified by the governing standard. For flexible or tall buildings, dynamic amplification and across-wind response can exceed simple static estimates—consider structural dynamics when needed.
MWFRS vs. Components & Cladding
MWFRS design produces story shears, overturning, and reactions for frames, shear walls, braced bays, or cores. C&C design addresses local zones where pressures peak—especially roof corners/edges and wall zones near discontinuities. The two are not interchangeable; a structure can pass MWFRS checks yet fail through cladding or fastener blow-off.
- MWFRS: Lateral system selection—moment frames, braced frames, or walls—balanced with stiffness and architectural needs. See steel design, concrete design, and timber design.
- C&C: Fastener spacing, panel thickness, subframing gage, and anchorage details sized for local suctions—especially at roof corners.
- Rooftop equipment: Mechanical units and screens require dedicated anchorage and sometimes shielding; small areas can see very high localized suctions.
Important
Edge/corner zones typically govern C&C. Detail fasteners, clips, and purlins explicitly; “typical” spacing rarely works in corner zones.
Diaphragms, Collectors & the Wind Load Path
Wind forces collected by cladding and roof decks must enter diaphragms, then transfer through collectors (drag struts) and chords to vertical elements and finally the foundations. Assumed diaphragm stiffness (rigid vs. semi-rigid) changes force distribution among frames/walls and can concentrate collector forces around openings.
Diaphragm Shear Flow (Concept)
Around re-entrant corners and shafts, frame openings with closed collector loops and ensure chord continuity. Coordinate diaphragm nailing/attachment with analysis assumptions and verify anchorage into VLFREs. For fundamentals, see load path analysis.
Torsion, Drift & Serviceability
Serviceability under wind often controls member depth and system choice. Interstory drift affects partitions and facades; building accelerations impact occupant comfort at upper levels. Eccentric stiffness or plan irregularities cause torsion, amplifying edge demands. Unlike seismic, wind service checks can govern in tall or flexible buildings.
Drift & Acceleration (Concept)
- Control strategies: Add stiffness (walls/braces), tune mass, increase damping (viscous dampers), or modify aerodynamics.
- Facade compatibility: Coordinate allowable drift with curtain-wall joints and anchors to prevent glazing damage.
Special Effects: Tall, Slender & Irregular Buildings
For tall or unusually shaped buildings, across-wind vortex shedding, interference from neighbors, and topographic speed-up can dominate response. Where code-specified procedures are insufficient or overly conservative, wind tunnel testing or computational studies are used to determine pressures and accelerations. Consider tuned mass or viscous dampers to control motion while keeping member sizes reasonable.
System Selection Tips
For drift control, concrete cores or composite cores offer high stiffness; braced frames are efficient in steel; dual systems combine redundancy and drift control. See structural dynamics for comfort criteria and modeling approaches.
Envelope, Openings, Roof Uplift & Water
Envelope performance is where wind design meets reality. Roofs and cladding fail most often at corners and edges due to peak suctions; internal pressure spikes when large openings occur (garage doors, failed windows). Design both the structure and fasteners/anchors for these peaks and provide robust water management to prevent damage even when deflections occur.
- Internal pressure: Classify as enclosed, partially enclosed, or open; this changes net pressures dramatically.
- Roof uplift: Verify purlins, clips, and decking for corner zones; detail continuous ties to walls/frames.
- Water management: Positive slopes, secure flashing, and backup waterproofing; wind-driven rain can exploit minor deflections.
Important
Changing a door or louver can reclassify the internal pressure regime—coordinate architecture and MEP openings with the wind model.
Load Combinations & Verification Checks
Wind enters both strength (ultimate) and service combinations. Pattern loads by direction and zone; MWFRS and C&C combinations differ. Verify orthogonal load cases when required, and document assumptions clearly for review and construction.
Strength Combination (Concept)
Perform QA checks: sum of story shears equals base shear; diaphragm shears match story shears; collector forces equal shear tributary times lever arm; anchor uplift and sliding are within foundation capacity.
Practical Wind Design Workflow
- Confirm code path: Identify adopted code and wind standard (stable entry points: ICC, ASCE).
- Establish site parameters: Basic wind speed, exposure, topography, directionality, importance.
- Model geometry: Heights, plan shape, openings; set internal pressure classification.
- Compute MWFRS & C&C pressures: Zone roofs and walls; don’t forget parapets and equipment.
- Select lateral system: Braced frames, moment frames, walls or cores; iterate for drift/acceleration targets. Cross-reference steel, concrete, and timber.
- Design diaphragms & collectors: Use semi-rigid modeling when stiffness matters; frame openings and re-entrant corners.
- Detail envelope anchorage: Corner zones, clip schedules, purlins, and subframing; document fastener patterns on drawings.
- Verify foundations: Sliding, uplift, overturning; coordinate with geotechnical report.
- Document & inspect: Put pressure tables, zone diagrams, and connection details on plans; plan special inspections for anchors, bolts, and welds.
Did you know?
Most wind-related failures begin at the envelope. A robust clip schedule and sealed load path from panel to frame prevents progressive peel-off.
Existing Buildings: Assessment & Retrofit
Many existing structures were designed to outdated wind maps or lack modern C&C detailing. Start with condition assessments, verify diaphragm continuity, and check roof uplift and parapet anchorage. Effective retrofits add collectors, enhance diaphragm nailing or deck fasteners, reinforce edge zones, upgrade rooftop unit anchorage, and add bracing/walls where drift is excessive.
Where to Focus
Roof corners/edges, large openings (doors/curtain walls), rooftop units, parapets, and soft/weak frames at ground level. Cross-check global stability with structural failure prevention strategies.
Codes, Standards & Trusted References
Wind design is governed by building codes and wind standards. While editions vary by jurisdiction, the following homepages are stable entry points to authoritative resources:
- ASCE: Minimum design loads and wind provisions. Visit asce.org.
- ICC: International Building Code adoption and resources. Visit iccsafe.org.
- NIST: Building science and wind engineering research. Visit nist.gov.
- FEMA Building Science: Guidance on wind risk mitigation and recovery. Visit fema.gov.
For broader context, see our pages on structural loads, load path analysis, and seismic design.
Frequently Asked Questions
Do I need wind tunnel testing?
Use tunnels for tall, slender, or unusually shaped buildings, or where interference/topography complicate pressures. For regular low- to mid-rise structures, code methods are typically sufficient.
What governs—strength or serviceability?
For many tall or flexible buildings, serviceability (drift/acceleration) governs member depth and damping strategy even when strength checks pass.
How do internal pressures affect design?
Openings or breach increase internal pressure and net suction on roofs; coordinate door and louver decisions with the wind classification to avoid under-designed anchorage.
Are MWFRS and C&C pressures interchangeable?
No. MWFRS addresses global forces; C&C are local and typically higher, especially at corners/edges. Design and detail both.
Key Takeaways & Next Steps
Wind design depends on credible site parameters, sound aerodynamics, and a continuous load path from cladding to foundation. Start with reliable hazard data, choose an efficient lateral system, model diaphragm stiffness realistically, and detail collectors, chords, and anchors deliberately. Control drift and acceleration for comfort, and give the envelope the attention it deserves—especially corners, edges, and rooftop equipment.
Continue your learning with structural loads, structural analysis, and structural dynamics; compare system choices in steel, concrete, and timber; and close the loop with structural inspections to verify performance on site. For authoritative updates and maps, begin at ASCE, ICC, NIST, and FEMA Building Science. Thoughtful modeling + precise detailing = durable, wind-resilient structures.
