Heat Exchangers
What are Heat Exchangers?
Heat exchangers are devices engineered to transfer thermal energy between two or more fluids at different temperatures without mixing them. They are essential in many industries, including power generation, chemical processing, HVAC, and refrigeration, where optimizing energy use is crucial.
Did You Know?
Modern heat exchangers can recover a significant portion of waste heat—often up to 90%—helping industries reduce energy consumption and lower emissions.
This page explores the core principles, key equations, designs, applications, and challenges of heat exchangers, providing a comprehensive resource for mechanical engineers and industry professionals.

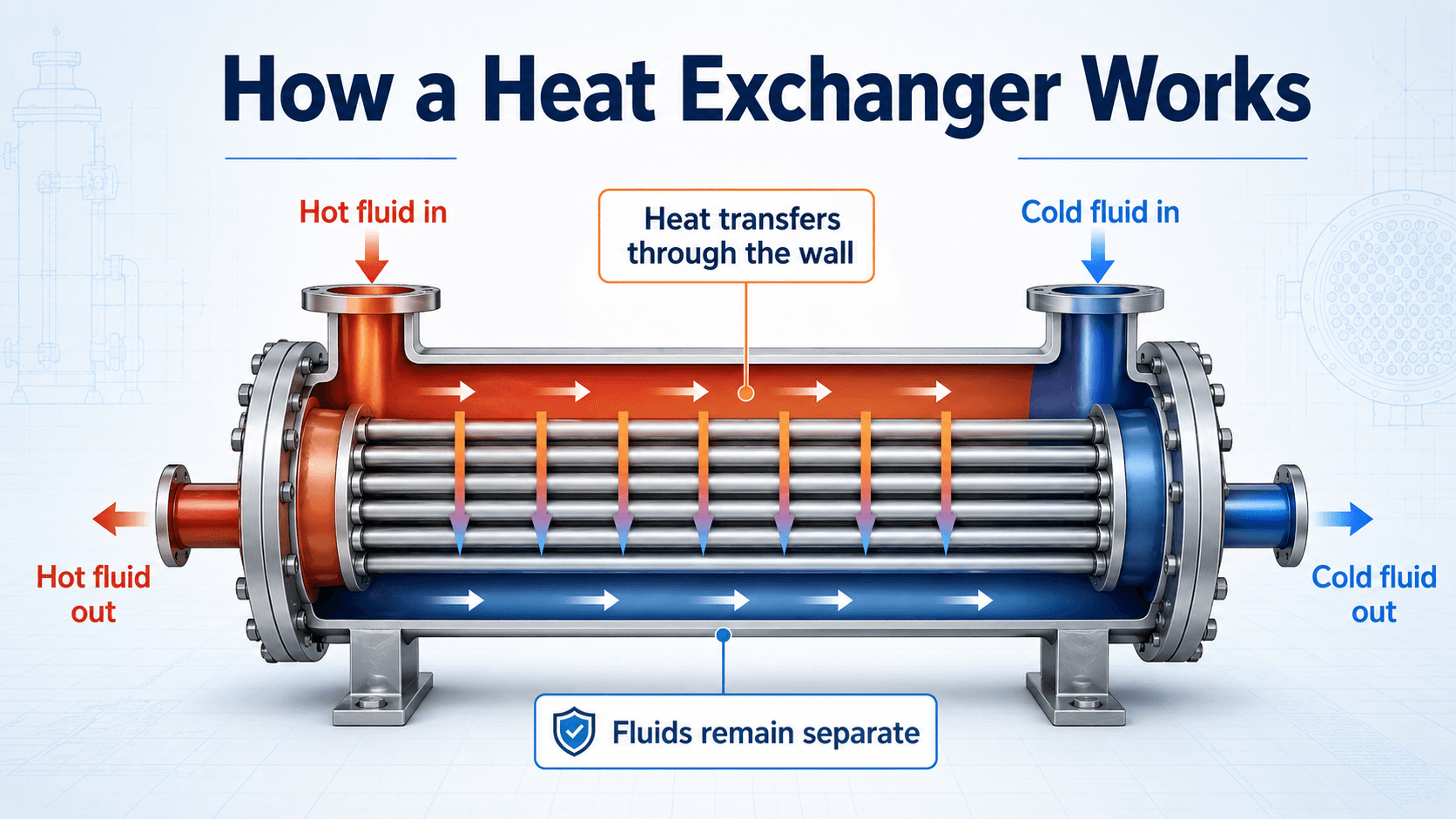

How Heat Exchangers Work

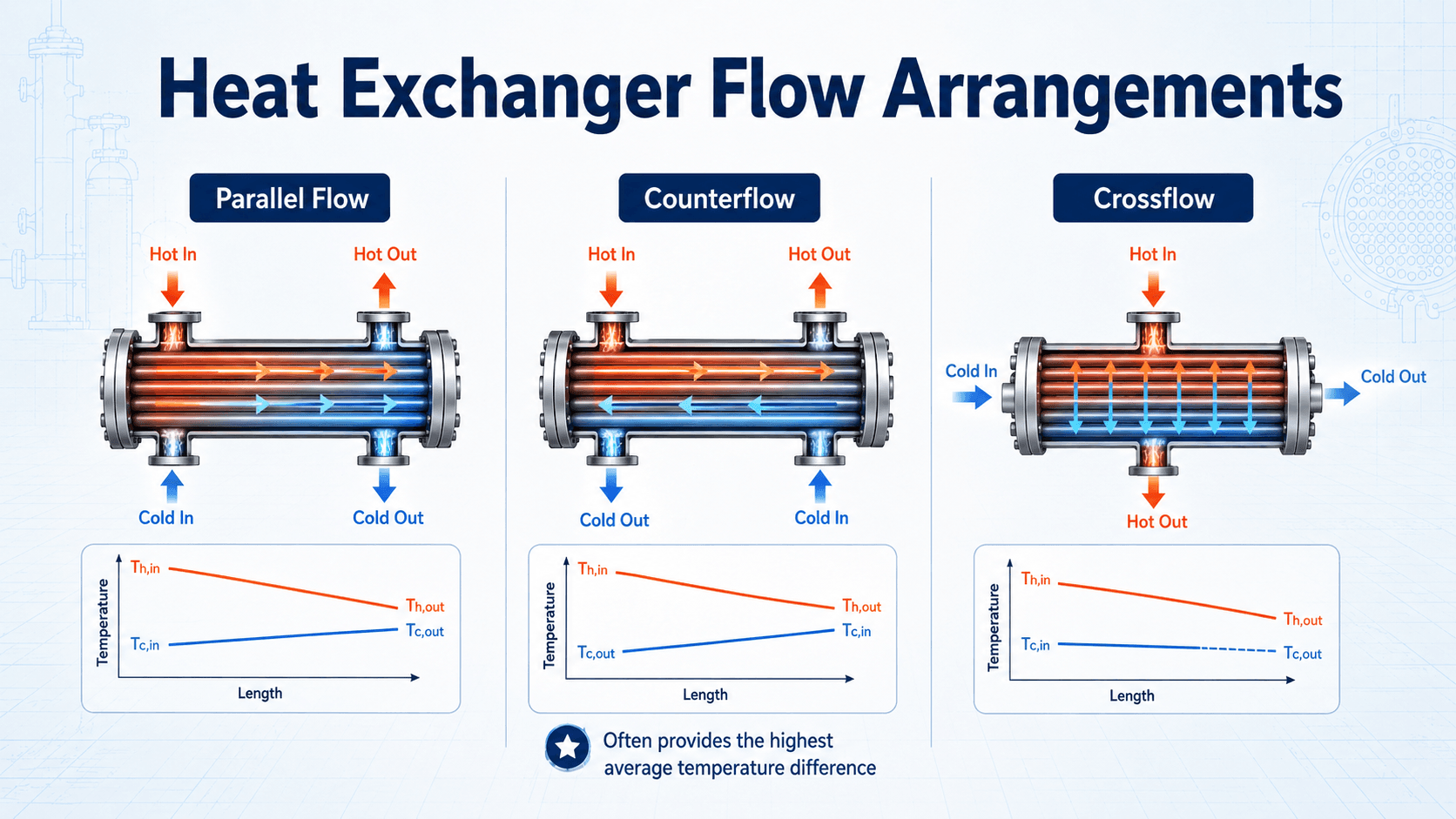

Heat exchangers transfer thermal energy between fluids through a solid barrier, typically via conduction and convection. Depending on the design, the fluids may flow in parallel, counterflow, or crossflow arrangements to maximize the heat transfer efficiency.
Important!
The design and configuration—such as counterflow versus parallel flow—play a crucial role in determining the overall efficiency of a heat exchanger.
By optimizing the heat transfer surface area and flow arrangements, engineers can tailor heat exchangers to meet specific thermal management requirements.

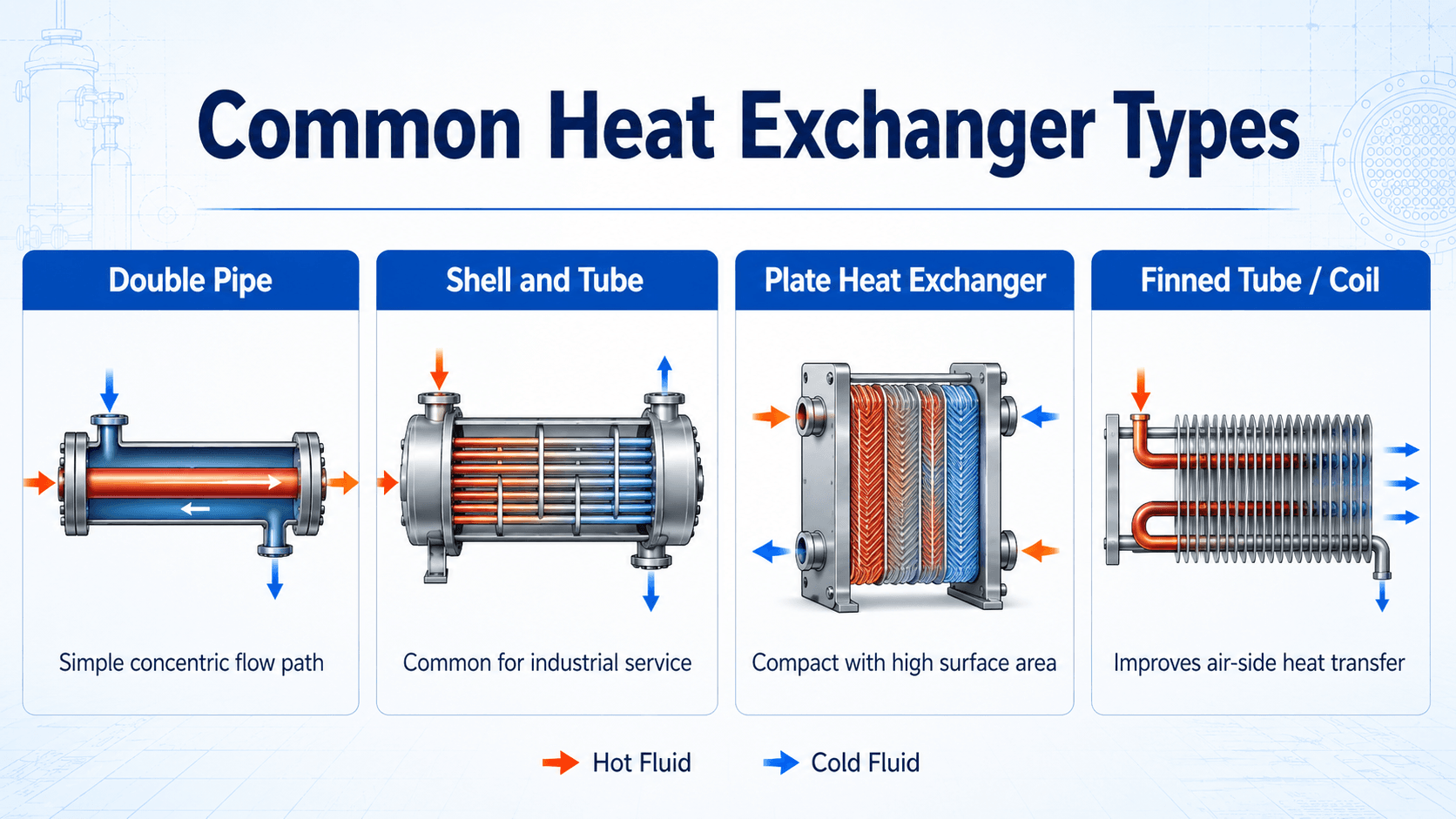

Types and Designs of Heat Exchangers
There are several common types of heat exchangers used in industry, each with its advantages:
- Shell-and-Tube: Consists of a series of tubes enclosed within a shell. One fluid flows through the tubes while the other flows around them, making it ideal for high-pressure applications.
- Plate: Comprises multiple thin, corrugated plates that create channels for fluid flow, offering high heat transfer efficiency in a compact design.
- Air-Cooled: Uses air as the cooling medium, often with extended surfaces (fins) to increase the heat transfer area, common in automotive and power generation applications.
- Finned Tube: Incorporates fins to enhance the heat transfer between the tube and the surrounding fluid, useful in systems where space is limited.
The selection of a heat exchanger type depends on factors such as fluid properties, operating pressures, temperature ranges, and maintenance requirements.
Key Equations and Performance Metrics
The performance of a heat exchanger is commonly evaluated using the overall heat transfer equation:
Overall Heat Transfer Equation
\[ Q = U A \Delta T_{lm} \]
This equation forms the basis for heat exchanger design. Maximizing \( Q \) often involves increasing the area \( A \), enhancing the overall heat transfer coefficient \( U \), or optimizing the temperature difference.
In addition, the effectiveness-NTU (Number of Transfer Units) method is frequently used to analyze and size heat exchangers for specific applications.
Applications in Mechanical Engineering
Heat exchangers are ubiquitous in modern engineering and are employed in a variety of applications:
Power Generation
In power plants, heat exchangers are used to recover waste heat from exhaust gases and preheat feedwater, improving overall plant efficiency.
HVAC Systems
Heating, ventilation, and air conditioning systems utilize heat exchangers to transfer heat between indoor and outdoor air, ensuring comfortable and energy-efficient environments.
Refrigeration
Refrigeration cycles depend on heat exchangers to absorb and reject heat, enabling the efficient cooling of spaces and products.
Chemical Processing
In chemical plants, heat exchangers are critical for controlling process temperatures, thereby optimizing reaction rates and product quality.
Real-World Example: Shell-and-Tube Heat Exchanger
The shell-and-tube heat exchanger is one of the most widely used types in industry due to its robust design and versatility. In this system, one fluid flows through a series of tubes while another flows around them within a shell, facilitating efficient heat transfer.
Design Considerations
Key factors include the tube layout, baffle configuration, and the selection of materials to maximize heat transfer while minimizing pressure drops and preventing corrosion.
This type of heat exchanger is essential in applications with high thermal loads, such as in oil refineries and power plants, where reliability and efficiency are paramount.
Challenges and Considerations
Although heat exchangers are vital for efficient energy use, they present several challenges:
- Fouling: The accumulation of deposits on heat transfer surfaces can degrade performance and increase maintenance costs.
- Pressure Drop: Balancing high heat transfer rates with minimal pressure losses is a key design trade-off.
- Material Selection: Materials must withstand thermal stresses and potential corrosion from the working fluids.
Important!
Effective design and regular maintenance, along with advanced modeling techniques, are essential to mitigate these challenges and ensure optimal heat exchanger performance.
Addressing these challenges is critical for maximizing energy efficiency and prolonging the lifespan of heat exchangers in demanding applications.
Conclusion
Heat exchangers are critical components in modern mechanical engineering, enabling efficient thermal energy transfer in systems ranging from power plants to HVAC and chemical processing. By understanding their principles, design options, and performance metrics, engineers can optimize these systems for enhanced efficiency and sustainability.
A deep knowledge of heat exchanger technology, including key equations and design challenges, empowers engineers to innovate and drive advancements in energy management and process optimization.
