Fiber Reinforced Plastics (FRP)

Introduction

Fiber Reinforced Plastics (FRP) are composite materials made by combining high-strength fibers with a polymer matrix to create lightweight, corrosion-resistant structural systems. In civil infrastructure, FRP laminates, wraps, bars, and plates are used to strengthen concrete, steel, masonry, and timber; to create lightweight bridge decks and roofs; and to deliver fast, low-disruption retrofits. This page gives practicing engineers a concise, field-ready guide to FRP fundamentals, mechanics, design checks, durability, fire behavior, and installation—tied to the overall load path, credible structural loads, and realistic inspection workflows.

Think of FRP as “engineered reinforcement”: you pick fiber type, orientation, and resin to match specific structural demands and environments.

What Is FRP & Why Use It?

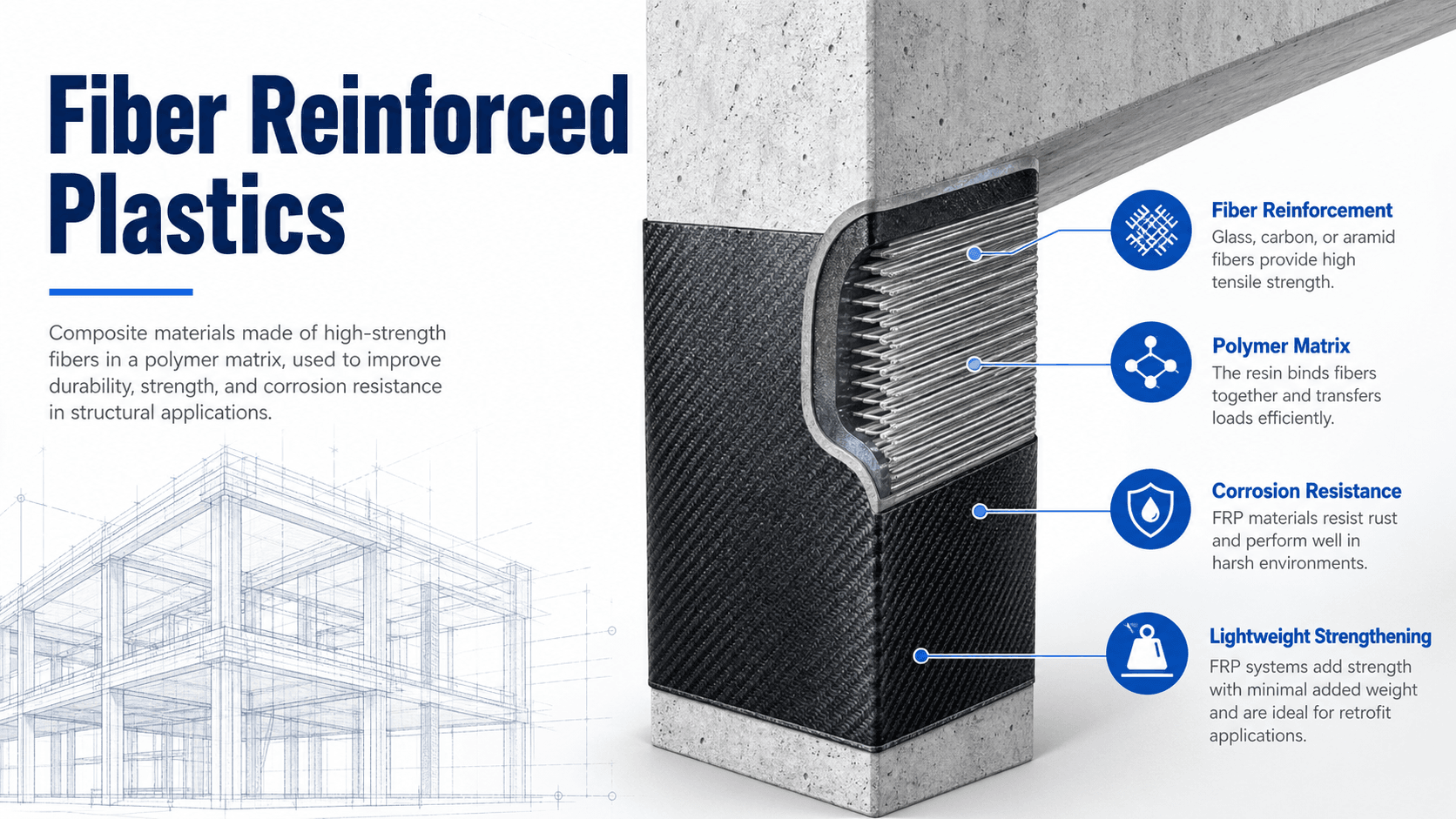

FRP is a two-phase material. The fiber (carbon, glass, aramid, basalt) carries most of the tension; the matrix (epoxy, vinyl ester, polyester) binds fibers, transfers shear, and protects them from the environment. Compared to metals, FRP offers high specific strength and stiffness, is non-corroding, and can be installed with minimal downtime—ideal for rehabilitation, seawater or deicing exposures, and weight-sensitive spans. Integrate FRP strategies with your analysis assumptions and foundation design so stiffness changes don’t surprise the downstream system.

Typical Project Goals

Increase flexural/shear capacity of RC beams and slabs, confine columns for ductility, reduce fatigue stresses in steel girders, replace corroding rebar with GFRP, and deploy lightweight sandwich panels for rapid bridge deck renewal.

Types & Forms of FRP for Structures

The composite “family” is broad; these forms are common in buildings and bridges:

  • CFRP (Carbon): Highest stiffness/strength along fibers; ideal for deflection-sensitive retrofits and slender elements.
  • GFRP (Glass): Cost-effective, corrosion-proof; widely used for rebar, wraps, and stay-in-place forms in chloride or wastewater environments.
  • AFRP (Aramid): Excellent impact/energy absorption; niche civil use for blast/impact retrofits and specialized wraps.
  • Basalt FRP: Durable and alkali-resistant fibers; growing use for bars and fabrics in harsh environments.
  • Forms: Dry fabrics (uni/bi/quadraxial), prepregs, wet-layup systems, pultruded plates/shapes, near-surface mounted (NSM) strips, GFRP/CFRP bars, and sandwich panels with foam or honeycomb cores.

Did you know?

Along the fiber direction, CFRP’s modulus rivals steel at ~¼ the density—great for adding capacity without increasing dead load.

Mechanics & Rule of Mixtures

FRP is anisotropic: properties depend on fiber orientation. Unidirectional plies provide high stiffness and strength in one direction; ±45° plies provide shear transfer; 90° plies support transverse cracks and stability. Stacking sequences (0/±45/90) and fiber volume fraction tune performance.

Rule of Mixtures (Longitudinal, Simplified)

\( E_L \approx V_f E_f + V_m E_m \,, \quad \sigma_{L,u} \approx V_f \sigma_{f,u} + V_m \sigma_{m,u} \)
\(V_f, V_m\)Fiber & matrix volume fractions
\(E_f, E_m\)Fiber & matrix moduli

Transverse modulus and shear follow different models and are much lower than longitudinal values. Practical takeaway: align fibers with principal tension; use enough off-axis plies for shear and crack-bridging; and remember bond quality and fiber waviness reduce theoretical gains.

Design & Analysis for FRP Strengthening and New Work

Start with the demand: quantify unfactored and factored loads, evaluate the “as-is” capacity, and define the shortfall (strength, stiffness, ductility, durability). Check governing limit states: FRP rupture, debonding, concrete crushing, shear, serviceability (deflection and crack width), and fatigue. Ensure the upgraded member still supports the global load path and connections/foundations can take increased actions.

  • Flexure (RC): CFRP plates/fabrics on the tension face; limit design strains to prevent intermediate crack-induced debonding and ensure end anchorage.
  • Shear (RC): U-wraps or side wraps oriented perpendicular/diagonal to cracks; provide full continuity around soffits where possible.
  • Confinement (Columns): FRP jackets increase compressive strength and ductility; lap lengths and hoop strains govern effectiveness.
  • Steel Members: CFRP plates reduce fatigue stresses and boost bending capacity; isolate from steel to prevent galvanic coupling.
  • Timber & Masonry: NSM strips and EB (externally bonded) laminates increase flexure/shear with minimal visual change—useful for heritage structures.

Important

Design the system, not just the laminate. Adding FRP stiffness shifts forces; verify collectors/chords and foundations and check dynamic behavior for vibration-sensitive floors and pedestrian bridges.

Where FRP Shines: Structural Applications

FRP’s unique value shows when weight, corrosion, or construction downtime dominate decisions. Common use cases:

  • Bridge Rehab: CFRP soffit plates and shear wraps for girders; GFRP bars to replace corroded steel in decks and barriers; lightweight sandwich panels for rapid deck replacement.
  • Seismic Retrofit: Column/joint wrapping, diaphragm strengthening, and collector upgrades to increase ductility—coordinate with seismic design.
  • Marine/Waterfront: FRP jackets for piles; GFRP reinforcement for splash/tidal zones; corrosion-proof stay-in-place forms.
  • Industrial/Water: FRP solutions resist chemicals and moisture; ideal for clarifiers, headworks, and tanks where coatings alone struggle.
  • Historic Structures: NSM CFRP strips deliver capacity with minimal visual impact; reversible strategies support preservation goals.

Case Insight

A parking deck with chloride damage received CFRP soffit plates for flexure, U-wraps at supports for shear, and a new GFRP-reinforced topping—cutting future corrosion risk while limiting shutdowns.

Durability: Moisture, UV, Alkalinity & Fatigue

FRP resists corrosion but the matrix and interface need protection. Epoxies soften as temperature approaches glass transition \(T_g\), UV can degrade exposed resin, and wet-alkaline concrete can attack GFRP without proper sizing or barrier coats. Use environmental reduction factors and protective coatings.

  • UV: Pigmented topcoats or UV-stable resins for exterior laminates.
  • Moisture/Alkali: Seal edges, use primers, and select AR (alkali-resistant) sizing for GFRP in concrete contact.
  • Freeze–Thaw/Thermal Cycling: Avoid water entrapment; match resin to service temperatures and provide expansion joints where needed.
  • Fatigue: Good high-cycle behavior if stresses and bond stresses are kept within limits; detailing at terminations is critical.

Environmental Reduction (Concept)

\( \phi_\text{env} \cdot R_n \ge U \, , \; \phi_\text{env} \lt 1 \ \text{for UV, moisture, alkali, temp} \)
\(\phi_\text{env}\)Reduction for environment

Fire & Temperature Effects

Polymers soften near their \(T_g\), reducing stiffness and bond. In fire design, treat FRP as limited unless protected by intumescent coatings, encapsulation, or tested assemblies. For hybrids, assume the base structure (steel/concrete/timber) carries code-required loads while FRP is considered sacrificial unless proven otherwise. Coordinate with the project’s fire strategy early, especially for exposed retrofits and mass-timber systems.

Bond, Anchorage & Detailing Essentials

Bond is the “connection” for FRP. Surface prep (grinding, cleaning, moisture control) and resin choice govern performance. Terminations need tapered ends, U-wraps, anchors, or mechanical fixings to prevent premature debonding. For steel members, add insulating barriers to avoid galvanic corrosion at CFRP/steel contacts.

Detailing Tips

Round concrete corners before wrapping, eliminate sharp rebar ridges, provide minimum lap lengths, orient fibers to principal tension or shear, and keep bond lines continuous across cracks and around soffits.

Testing, QA/QC & Installation Workflow

Installation quality controls performance. A field-ready QA/QC plan reduces risk and avoids costly rework.

  1. Submittals: Product datasheets, environmental reduction factors, design properties at service temperature, and proposed layup/ply maps.
  2. Surface Readiness: Pull-off testing to verify substrate tensile strength; moisture content checks for concrete; contamination control.
  3. Mockups: Trial layups to prove wet-out, air release, and finish; verify terminations and corner radii.
  4. Installation: Control temperature/humidity, mix ratios, pot life; use wet-out rollers and consolidation methods; record batch numbers and ambient conditions.
  5. Inspection: Tap-testing for voids, adhesion tests, coupon sampling; integrate with special inspections at hold points.
  6. Documentation: As-built FRP maps, ply counts, orientations, lap locations, anchors, and protective coating systems for future maintenance.

Important

Schedule FRP after shrinkage-prone cracking has stabilized where practical; uncontrolled early cracking can disrupt bond and reduce effectiveness.

Codes, Standards & Trusted References

Use authoritative, stable sources for current methods, materials, and testing. Reliable entry points include:

  • ASTM: Composite test methods (e.g., tension D3039, flexure D7264, short-beam shear D2344). Visit astm.org.
  • FHWA: Bridge/infrastructure guidance on FRP materials and strengthening. Visit fhwa.dot.gov.
  • NIST: Research on composite durability, testing, and performance. Visit nist.gov.
  • NASA Composites: Background on composite mechanics and certification philosophy. Visit nasa.gov.

Tie these resources back to our related guides on structural analysis, wind design, seismic design, and foundation design so FRP upgrades integrate seamlessly with the global system.

Frequently Asked Questions

When should I choose CFRP vs. GFRP?

CFRP offers higher stiffness—best where deflection control and thin laminates are critical. GFRP is cost-effective and corrosion-proof—great for bars and wraps in marine or deicing environments. Pick based on stiffness needs, budget, and exposure.

Will FRP survive outdoors?

Yes, with protection: use UV-resistant coatings, seal edges, select AR-sized GFRP for concrete contact, and apply environmental reduction factors. Plan periodic inspections for long-term assurance.

Is bond or fiber rupture the usual limit state?

Often bond or substrate failure governs before fiber rupture. That’s why surface prep, corner radiusing, tapering, and anchors/U-wraps are essential. Treat the bond line like a structural component.

How does FRP affect vibration?

Added CFRP increases stiffness and can raise natural frequencies; verify comfort/serviceability using structural dynamics checks, especially for pedestrian bridges and long-span floors.

Can FRP be the primary reinforcement?

Yes in specific systems (e.g., GFRP rebar in decks/tanks). Design differs from steel: lower modulus, linear-elastic behavior to rupture, and different development rules—follow FRP-specific provisions and manufacturer data.

Key Takeaways & Next Steps

Fiber Reinforced Plastics (FRP) let you add strength and stiffness exactly where needed with minimal weight and disruption. Select fiber type and orientation to match demands; protect the system against UV, moisture, and heat; and design bond and terminations as structural elements. Confirm a continuous load path, coordinate with foundations and connections, and plan special inspections to keep performance on track.

Continue exploring our materials and system guides: compare steel design, concrete design, and timber design; verify loads and analysis; and integrate FRP with foundation design. For standards and test methods, start with ASTM, FHWA, NIST, and NASA. With thoughtful detailing and disciplined QA/QC, FRP delivers durable, high-performance solutions across the built environment.
