Key Takeaways
- Core idea: Power generation converts primary energy into electrical energy that can be delivered to loads through the grid.
- Engineering use: Engineers compare generation sources by output, voltage, frequency, dispatchability, efficiency, fuel supply, emissions, and grid connection needs.
- What controls it: The practical value of a power plant depends on capacity, energy production, capacity factor, ramp rate, voltage support, reliability, and available fuel or natural resource.
- Practical check: A source with high installed capacity is not always the best grid resource if it cannot produce electricity when demand is highest.
Table of Contents
Introduction
Power generation is the process of converting primary energy sources such as natural gas, coal, nuclear fuel, sunlight, wind, or moving water into electrical energy. Most utility-scale generation uses turbines and generators, while solar photovoltaic systems convert sunlight directly into electricity before power electronics prepare it for the grid.

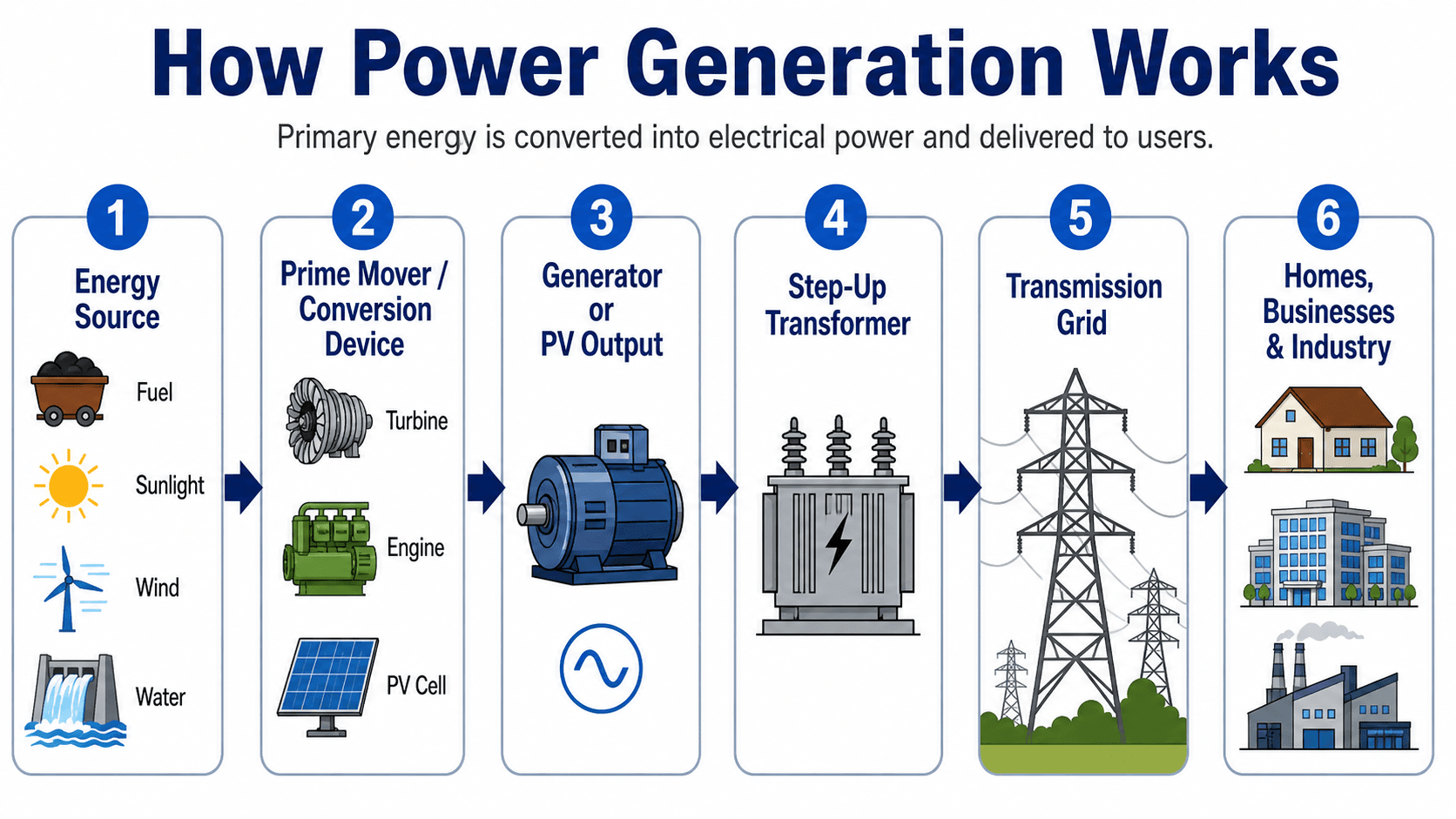

How Power Generation Works
Notice that the generator is only one part of the system. A complete power-generation path also includes the prime mover, voltage transformation, transmission connection, and the loads that ultimately consume the electricity.
What Is Power Generation?
Power generation is the engineering process of producing usable electrical energy from another form of energy. That starting energy may be chemical energy in fuel, nuclear energy in uranium, gravitational potential energy in water, kinetic energy in wind, geothermal heat from the earth, or solar radiation from the sun.
In electrical engineering, power generation is not only about making electricity. The output must be synchronized, transformed, protected, controlled, and delivered in a way that supports voltage, frequency, reliability, and safety across the power system.
How Electricity Is Produced
Most large power plants follow a conversion chain: a primary energy source creates mechanical rotation, the rotation drives a generator, and the generator produces electrical power. The electrical output is then stepped up to a higher voltage so it can travel efficiently through transmission lines.

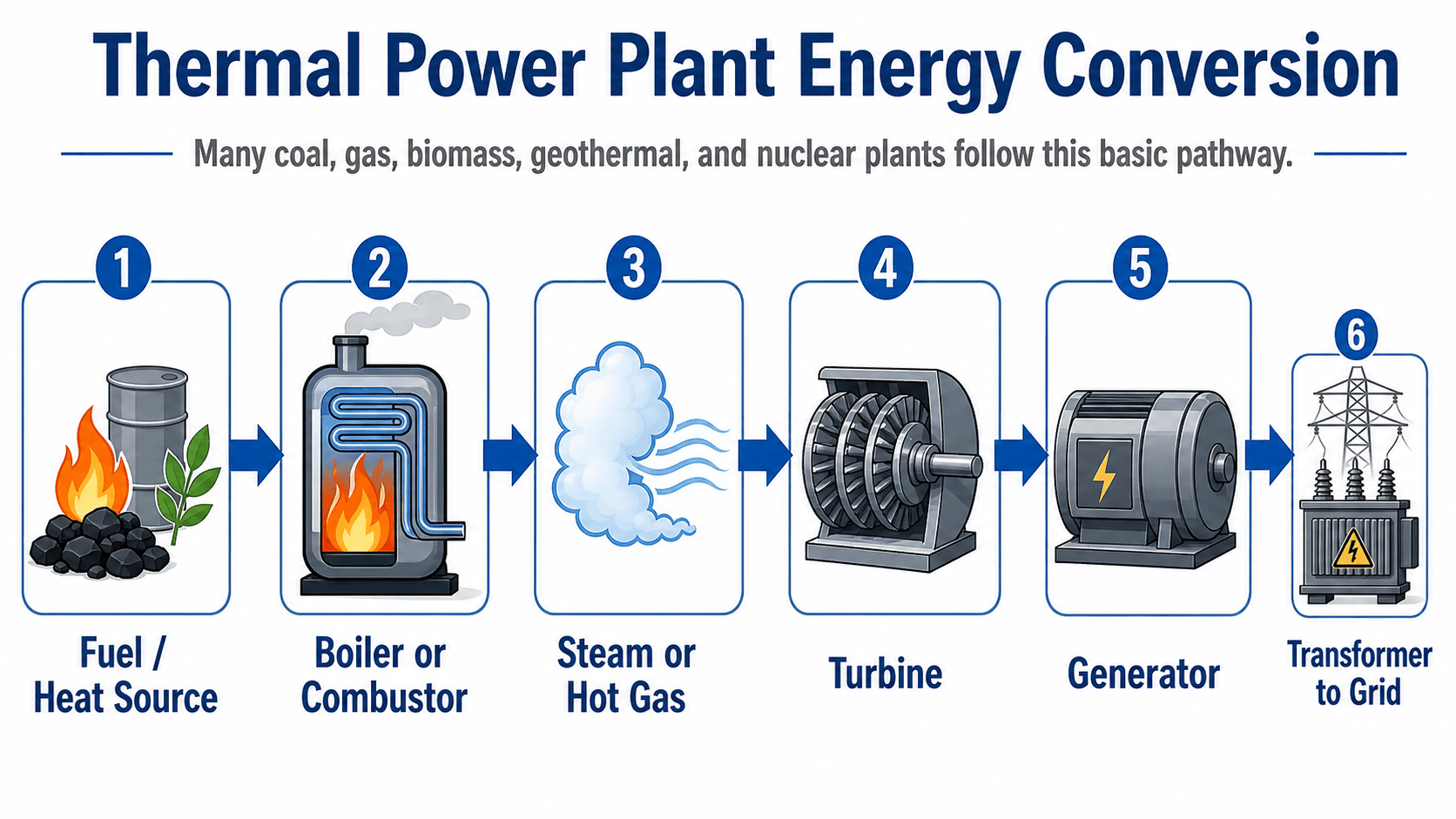

Thermal generation pathway
Coal, many natural gas plants, biomass plants, nuclear plants, and some geothermal plants use heat to create steam or hot gas. That working fluid expands through a turbine, which turns a shaft connected to a generator. The basic equipment may change, but the engineering sequence is similar.
Direct electrical conversion
Solar photovoltaic generation is different. A PV cell converts sunlight directly into DC electricity without a turbine, boiler, or rotating generator. The system still needs power electronics, protection, controls, and usually an inverter so the output can serve AC loads or interconnect with the grid.
Grid-ready output
A generator or inverter must produce power that can be connected safely to the system. For grid-connected AC systems, voltage, frequency, phase relationship, fault behavior, protection coordination, and switching equipment all matter. Generation that cannot be controlled or synchronized properly can create reliability and safety problems even if it produces energy.

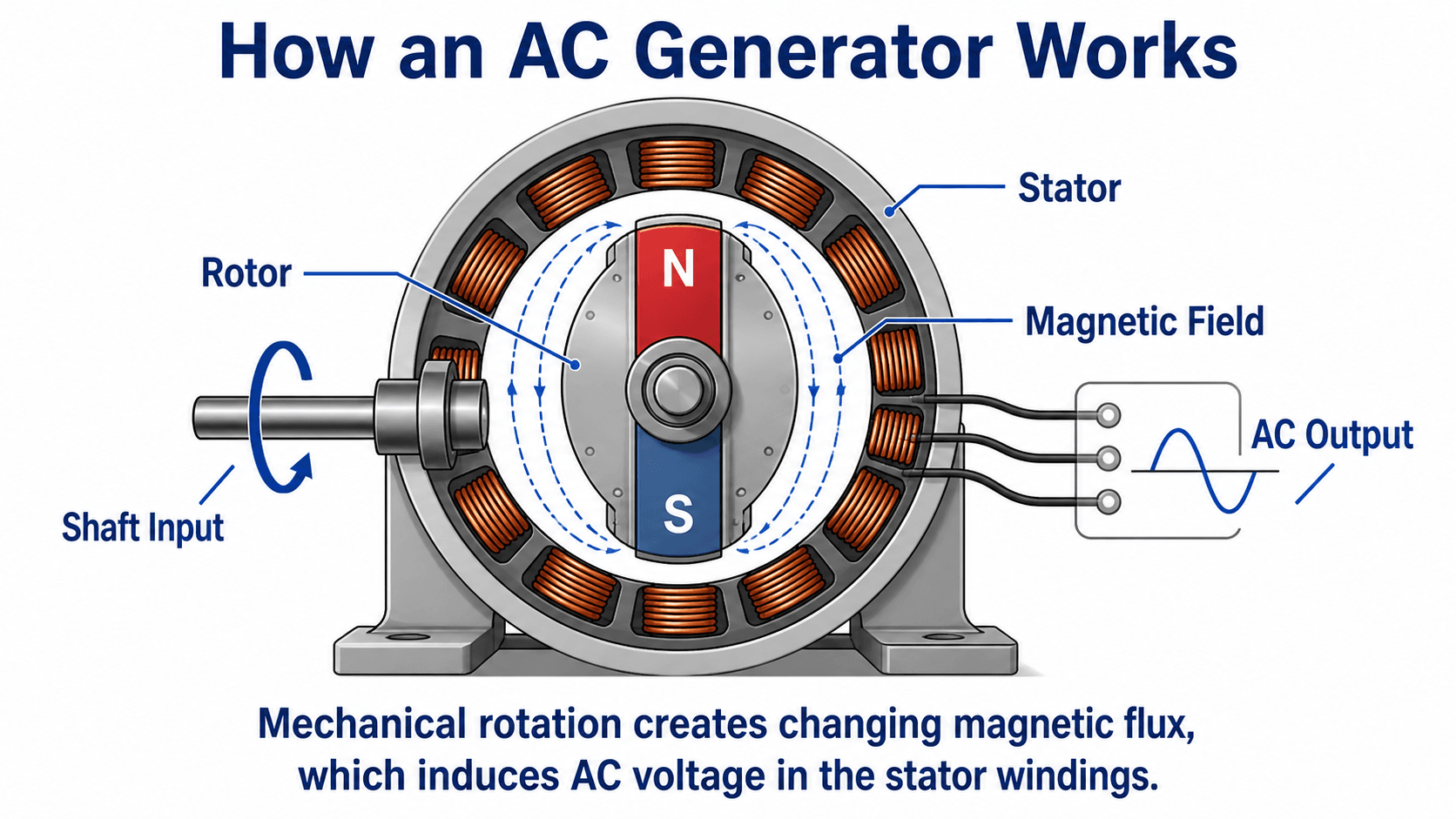

How a Generator Converts Motion Into Electricity
A generator converts mechanical shaft power into electrical power through electromagnetic induction. In a simplified AC generator, a rotor creates a moving magnetic field and the stator windings experience changing magnetic flux, which induces voltage.
Rotor, stator, and magnetic field
The rotor is the rotating part of the machine. The stator is the stationary winding assembly where useful voltage is commonly produced. The magnetic field links the two. In real utility machines, excitation, cooling, insulation, synchronization, and protection systems are critical to keeping the generator stable and reliable.
Why frequency matters
In a synchronous generator, electrical frequency is tied to rotor speed and the number of magnetic poles. That is why turbine speed control and grid synchronization matter. A generator cannot simply be connected to an energized grid without matching voltage, frequency, phase sequence, and phase angle within acceptable limits.

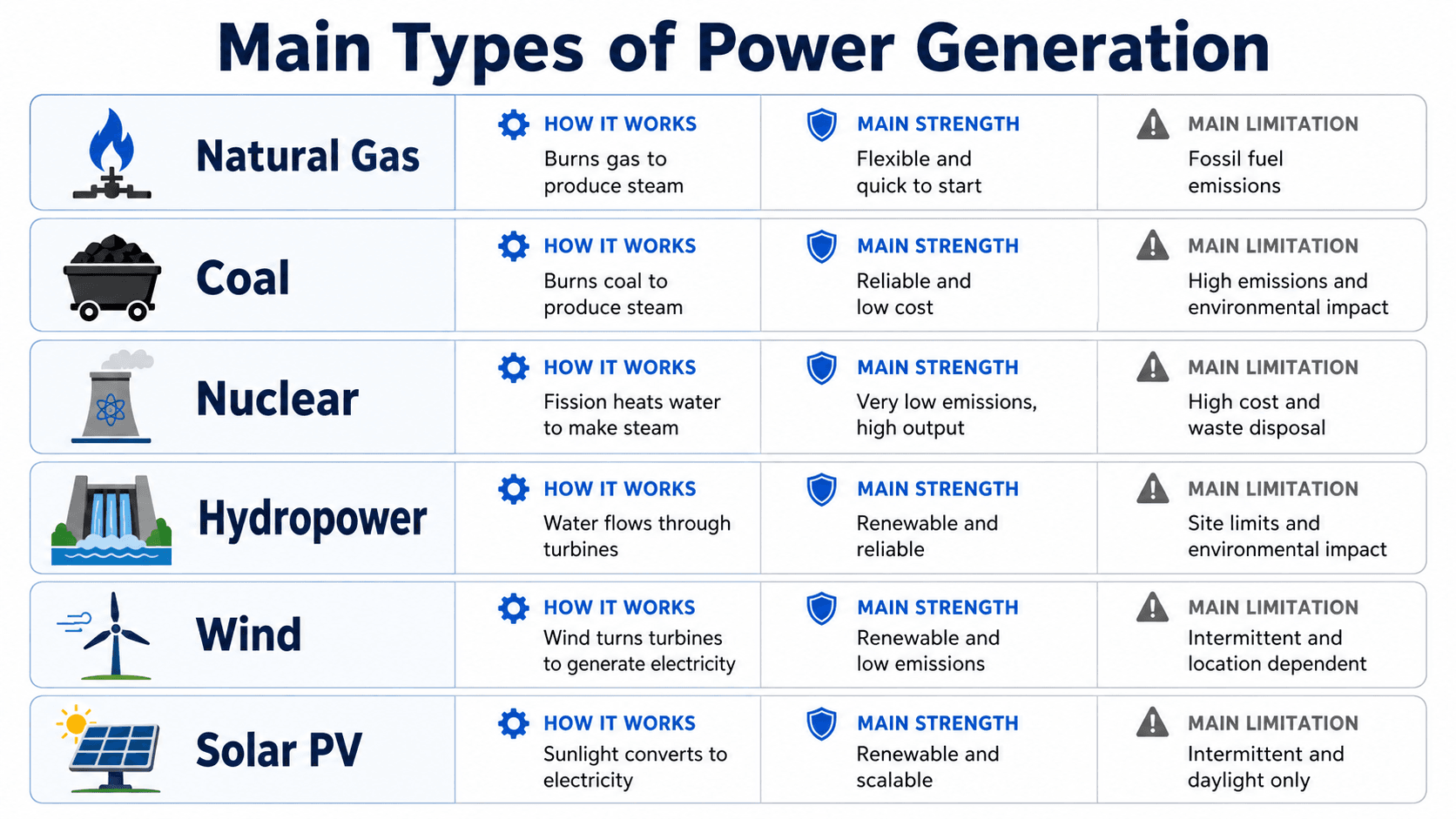

Main Types of Power Generation
The main power generation sources can be grouped by fuel type, conversion method, and grid role. A practical engineering comparison should look beyond whether a source is renewable. It should also consider controllability, output timing, voltage support, operating cost, permitting, maintenance, and how the source behaves during system disturbances.
| Generation source | Typical conversion method | Grid role | Primary limitation |
|---|---|---|---|
| Natural gas | Combustion turbine, steam turbine, or combined cycle | Flexible generation, load following, and peaking | Fuel cost exposure and fossil-fuel emissions |
| Coal | Boiler, steam turbine, and generator | Historically steady thermal generation | Higher emissions, slower response, and environmental controls |
| Nuclear | Reactor heat, steam turbine, and generator | High-output steady generation | Capital cost, permitting, long development time, and waste management |
| Hydropower | Moving water through turbine-generator equipment | Flexible generation where reservoir control exists | Geography, water availability, and ecological impacts |
| Wind | Wind turbine generator and power electronics | Variable renewable energy | Wind availability and grid integration |
| Solar PV | Photovoltaic modules and inverters | Variable renewable energy | Daylight, weather, inverter behavior, and storage needs |
| Geothermal | Earth heat to steam or working fluid, turbine, and generator | Steady renewable generation where resources exist | Location limits and reservoir performance |
A common beginner mistake is treating all megawatts as equal. A 100 MW plant that can be dispatched during peak demand is different from a 100 MW resource that only produces when the wind blows or the sun is available.

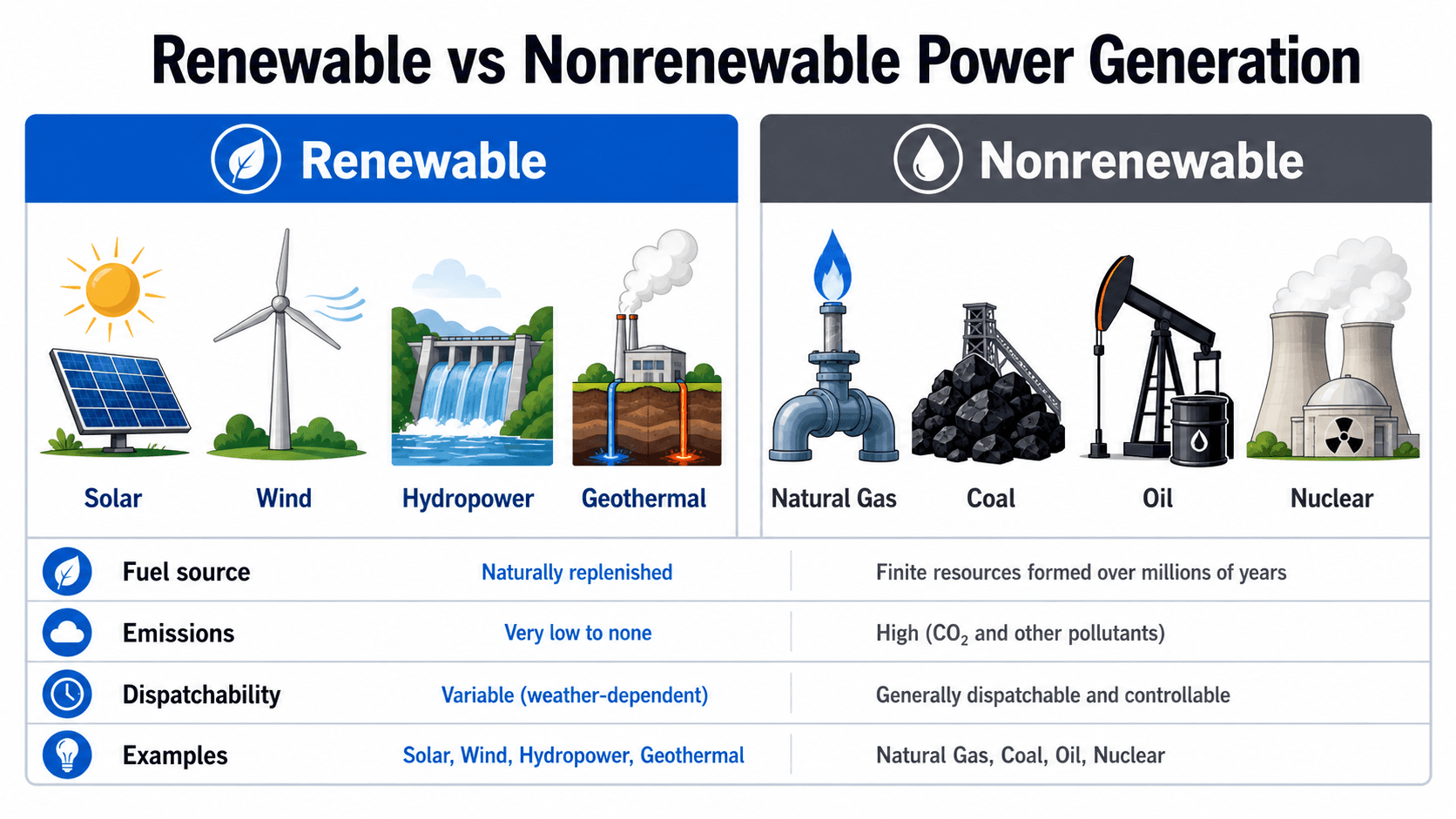

Renewable vs Nonrenewable Power Generation
Renewable power generation uses naturally replenished energy flows such as sunlight, wind, moving water, biomass, or geothermal heat. Nonrenewable power generation uses finite fuel sources such as coal, natural gas, oil, or uranium. The engineering distinction does not stop at the fuel source because the grid also needs controllability, stability, inertia, voltage support, and protection behavior.
Nuclear is nonrenewable but not fossil fuel generation
Nuclear generation is often misunderstood. It is nonrenewable because it depends on mined nuclear fuel, but it is not a fossil-fuel source. In operation, nuclear plants provide large steady electrical output with very low direct carbon dioxide emissions, while requiring extensive safety, licensing, cooling, and waste-management systems.
Renewable does not always mean dispatchable
Solar and wind are renewable, but their output depends on weather and time of day. Hydropower can be dispatchable when reservoir storage is available. Geothermal can behave more like steady baseload generation in suitable locations. This is why the grid value of a resource depends on both the energy source and the operating profile.

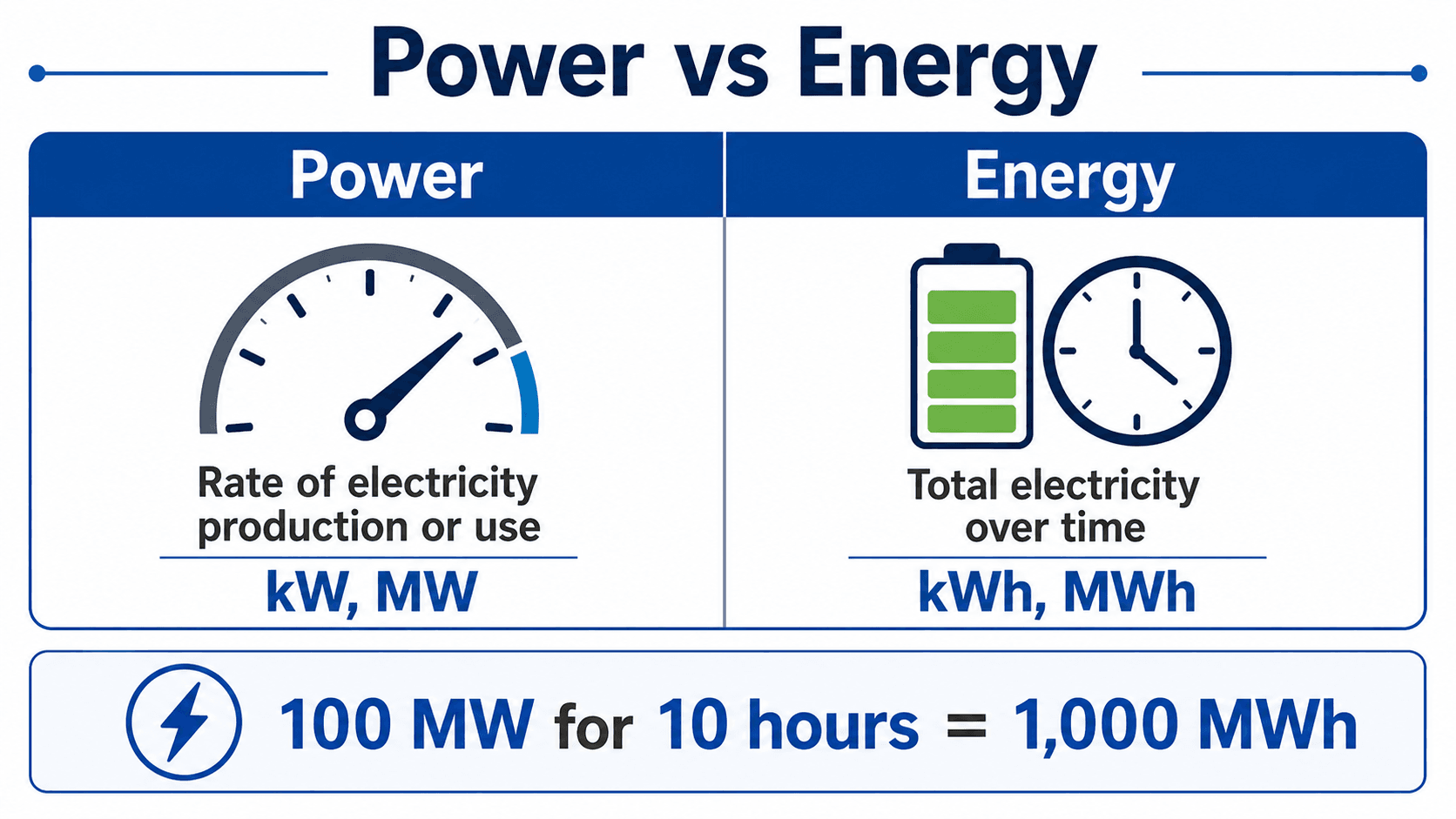

Power, Energy, and Capacity Factor
Power and energy are closely related but not the same. Power is the rate of electricity production or use, commonly measured in kilowatts or megawatts. Energy is the total amount produced or consumed over time, commonly measured in kilowatt-hours or megawatt-hours.
- \(E\) Energy produced, commonly measured in kWh or MWh.
- \(P\) Power output, commonly measured in kW or MW.
- \(t\) Operating time, commonly measured in hours.
Capacity factor compares actual energy production to the energy that would be produced if a plant operated at full rated output for the entire period. It is one reason two resources with the same nameplate capacity can produce very different annual energy.

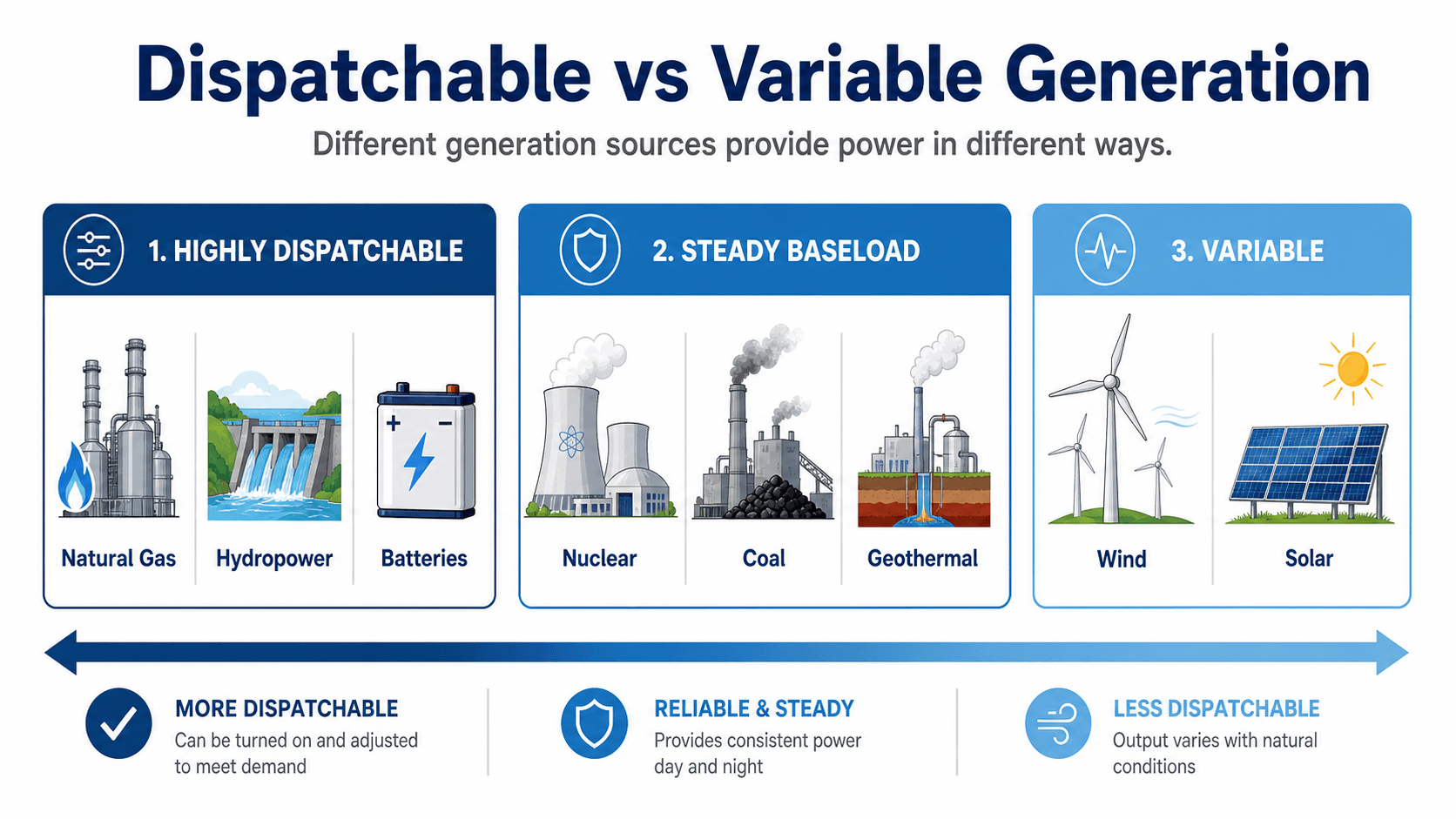

Dispatchable, Baseload, and Variable Generation
Grid operators need enough generation to match load at every moment. Dispatchable sources can be scheduled, started, adjusted, or ramped to follow demand. Variable sources produce power according to natural conditions, so they often need forecasting, transmission planning, storage, or flexible backup resources.
Why dispatchability matters
A power system cannot rely only on annual energy totals. It must satisfy demand during hot afternoons, cold mornings, evening ramps, equipment outages, storms, and transmission constraints. A resource that produces energy at the wrong time may still require complementary capacity elsewhere.
Inverter-based generation changes grid behavior
Solar PV, many wind resources, and batteries connect through power electronics. These resources can provide fast controls, but they do not behave exactly like large synchronous machines unless specifically designed and programmed to support grid-forming or grid-following functions.

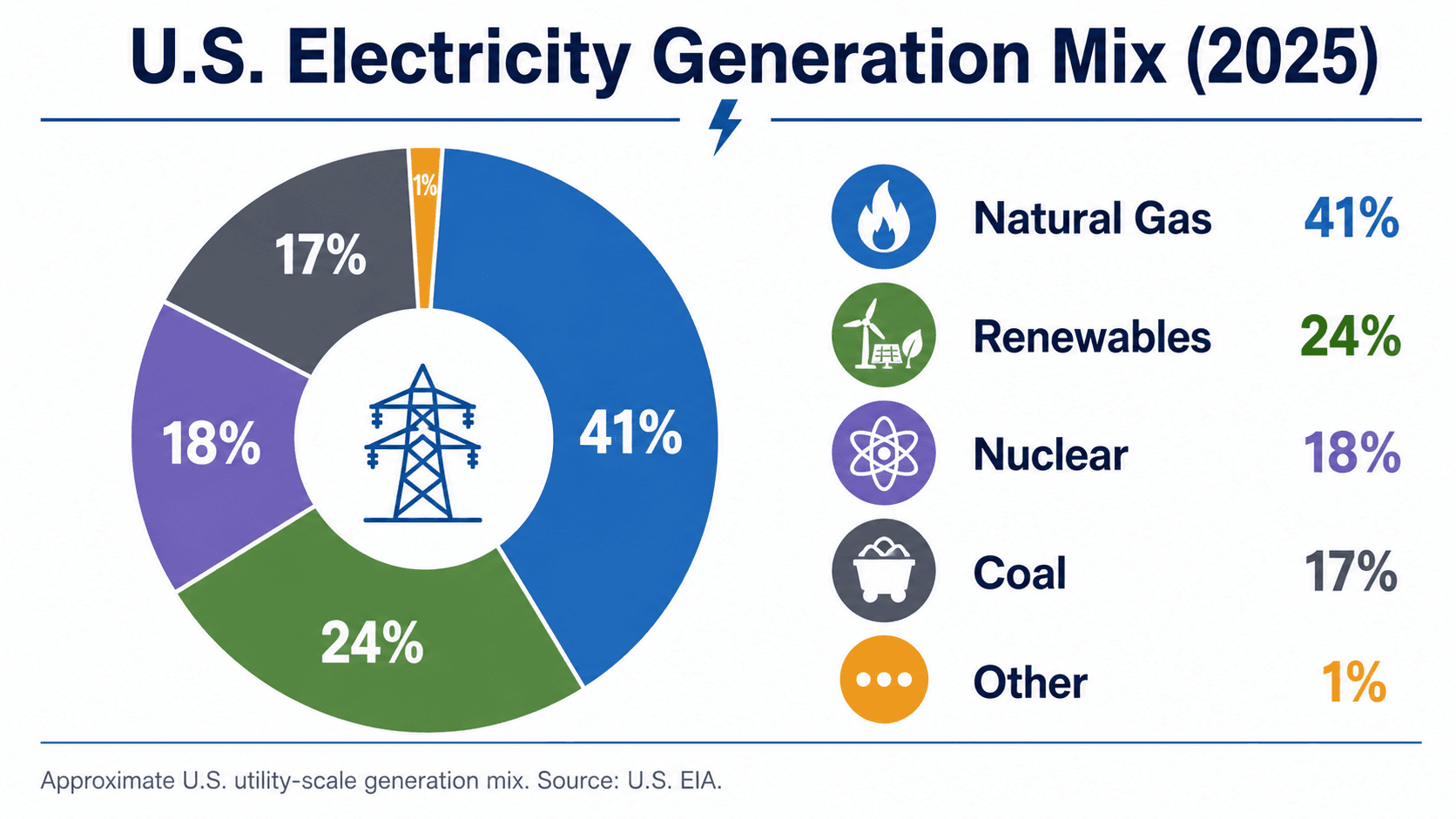

Current U.S. Electricity Generation Mix
A current generation mix helps show how different technologies work together in practice. Natural gas remains a major source of U.S. utility-scale electricity, while renewables, nuclear, and coal also provide large shares of generation. The mix changes by region, season, fuel prices, plant retirements, renewable additions, hydrology, and demand growth.
For engineering analysis, a generation mix chart should be treated as a starting point. A planning study also needs hourly load shape, reserve margin, transmission constraints, generation outages, ramping needs, fuel supply, and reliability criteria.
Power Generation Selection Checklist
When engineers compare power generation options, the question is rarely “which source is best?” The better question is whether a source provides the right type of power, at the right time, in the right location, with acceptable cost, risk, emissions, and reliability.
Start with the load profile, then identify whether the need is steady energy, peak capacity, backup power, renewable energy, voltage support, or local resilience. After that, compare candidate resources by energy source, dispatchability, interconnection limits, site constraints, permitting, operation, and maintenance requirements.
| Check or decision | What to look for | Why it matters |
|---|---|---|
| Load profile | Peak demand, daily shape, seasonal variation, critical loads, and ramping needs | The best generation source depends on when the electricity is needed, not just how much annual energy is required. |
| Resource availability | Fuel supply, solar resource, wind speed, water flow, geothermal conditions, or backup fuel storage | A technically strong technology can still fail if the site does not support reliable input energy. |
| Grid connection | Voltage level, transformer capacity, protection coordination, fault current, and interconnection requirements | Generation must connect safely without creating voltage, protection, or stability problems. |
| Operating behavior | Ramp rate, minimum load, start time, outage risk, inverter controls, and dispatchability | Operating flexibility can be as important as installed capacity for grid reliability. |
| Lifecycle constraints | Capital cost, fuel cost, maintenance, emissions controls, water use, land use, and permitting | A low-cost energy source on paper may become difficult when real site, environmental, and operational constraints are included. |
Engineering Judgment and Field Reality
Textbook diagrams make power generation look linear, but real systems are constrained by protection settings, switching equipment, cooling systems, controls, auxiliary loads, maintenance outages, weather, fuel logistics, and transmission availability. A generating unit is only useful if the surrounding electrical and mechanical systems allow it to operate safely.
Installed capacity is not the same as dependable capacity. A generator may be nameplate-rated for a certain MW output, but actual availability can be limited by ambient temperature, cooling water, fuel delivery, forced outages, inverter limits, curtailment, or interconnection restrictions.
Auxiliary loads reduce net output
Power plants consume some of their own electricity for pumps, fans, controls, cooling systems, conveyors, exciters, lighting, and balance-of-plant equipment. Engineers distinguish between gross generation at the machine terminals and net generation delivered to the grid.
Location can control value
The same generation technology can have very different value depending on where it connects. A generator near constrained load may support reliability, while a remote generator may require transmission upgrades before its output can be fully delivered.
When This Breaks Down
Simplified explanations of power generation break down when they ignore time, grid behavior, and operating constraints. A source may be technically capable of producing electricity but still be limited by the conditions around it.
- Ignoring time of production: Annual MWh does not prove a source can serve peak load or emergency demand.
- Treating all generators alike: Synchronous machines, inverter-based resources, combustion turbines, and PV systems behave differently during faults and disturbances.
- Forgetting the grid connection: Transformer ratings, interconnection queues, fault-duty limits, and transmission congestion can limit usable output.
- Overlooking weather and ambient conditions: Heat, cold, drought, icing, smoke, clouds, wind conditions, and storms can change actual production.
- Confusing energy with reliability: A resource can produce a lot of energy over a year but still need backup, storage, or transmission support at critical hours.
Common Mistakes and Practical Checks
Power generation is often oversimplified because the visible equipment is easier to understand than the system behavior. The most common mistakes come from comparing technologies by one metric instead of looking at the complete generation and grid-support role.
- Comparing only nameplate MW: Always ask how many MWh the resource produces and when that production occurs.
- Ignoring reactive power and voltage control: Real power output is not the only grid requirement; voltage support and control behavior also matter.
- Assuming renewable means simple: Solar and wind avoid fuel delivery but add forecasting, inverter, storage, interconnection, and curtailment considerations.
- Assuming thermal plants are always flexible: Some thermal plants ramp quickly, while others have minimum loads, long start times, or cycling limitations.
- Forgetting balance-of-plant systems: Pumps, cooling systems, switchgear, transformers, protection, controls, and auxiliary power affect reliability.
Do not evaluate a generation source using only cost per kWh. For system planning, the timing, location, controllability, reliability contribution, interconnection cost, and operating constraints may change the decision.
Relevant Data Sources and Engineering References
Power generation decisions are supported by energy data, grid studies, interconnection requirements, equipment standards, and project-specific design criteria. For broad U.S. generation context, the most useful starting point is a government energy data source.
- U.S. Energy Information Administration: EIA electricity generation by energy source provides current educational context on U.S. electricity generation sources and how the generation mix is reported.
- Project-specific criteria: Utility interconnection rules, owner requirements, protection standards, environmental permits, equipment ratings, and local grid constraints may control the final design.
- Engineering use: Engineers combine generation data with load studies, short-circuit studies, protection coordination, voltage analysis, stability analysis, and lifecycle cost review before selecting or connecting a resource.
Frequently Asked Questions
Power generation is the process of converting primary energy sources such as natural gas, coal, nuclear fuel, sunlight, wind, or moving water into electrical energy. Most large-scale plants use turbines and generators, while solar photovoltaic systems convert sunlight directly into electricity.
The main types of power generation include natural gas, coal, nuclear, hydropower, wind, solar photovoltaic, geothermal, biomass, and backup engine generation. Each source differs in dispatchability, emissions, cost structure, equipment, and how it supports grid reliability.
Solar photovoltaic generation does not use a turbine. PV modules convert sunlight directly into DC electricity, and inverters convert that DC output into AC power for buildings or the grid. Solar thermal plants are different because they can use heat and turbines.
Power generation produces electricity, usually at a power plant, renewable site, or distributed energy resource. Power distribution delivers electricity from substations to homes, businesses, and industrial loads at lower usable voltages after transmission has moved bulk power over longer distances.
Summary and Next Steps
Power generation is the starting point of the electric power system. It converts fuel, heat, sunlight, wind, water, or other energy sources into electrical power that can be transformed, transmitted, distributed, and used by loads.
The most important engineering checks are not limited to how electricity is produced. Engineers also evaluate when it is produced, how controllable it is, how it connects to the grid, what support equipment it requires, and what limitations affect dependable output.
