Retaining Wall Design: Principles, Types, and Importance
Introduction to Retaining Wall Design
Retaining wall design is a critical aspect of civil and geotechnical engineering, aimed at stabilizing slopes and preventing soil erosion. A well-designed retaining wall helps manage changes in ground elevation and provides support to sloping terrain. Engineers must consider factors such as soil conditions, wall height, and load-bearing capacity to ensure the wall’s long-term stability and effectiveness.
This article delves into the principles of retaining wall design, explores different types of retaining walls, and highlights their importance in construction and landscaping.
What is Retaining Wall Design?
Retaining wall design involves constructing a structure that holds back soil or rock from a building, roadway, or other areas. The primary purpose of retaining walls is to prevent soil erosion and landslides, especially in areas with steep slopes. Engineers design retaining walls based on the wall’s height, the type of soil, water drainage, and load conditions.
Proper retaining wall design ensures that the wall can withstand lateral earth pressure, environmental loads, and other external forces, providing stability and support for sloped terrain.
Importance of Retaining Wall Design
Retaining walls are essential for the safety and stability of structures built on uneven terrain. A well-designed retaining wall prevents soil erosion, landslides, and slope failure. It also protects properties and infrastructure from potential damage caused by unstable ground conditions.
Preventing Soil Erosion and Slope Failure
One of the primary functions of a retaining wall is to prevent soil erosion. When built on slopes, retaining walls help hold back loose soil, reducing the risk of landslides and slope instability. This is especially crucial in areas prone to heavy rainfall or seismic activity.
Enhancing Landscape and Infrastructure
Retaining walls are commonly used in landscaping and construction projects to create usable land on steep terrain. By leveling the ground, retaining walls improve the aesthetic appeal of landscapes and provide stable surfaces for building foundations, driveways, and walkways.
Managing Water Drainage
Water drainage is a key factor in retaining wall design. Poor drainage can lead to hydrostatic pressure, which may cause the wall to fail. Retaining walls are often designed with drainage systems, such as weep holes and gravel backfill, to manage water flow and reduce pressure on the wall.
Types of Retaining Walls

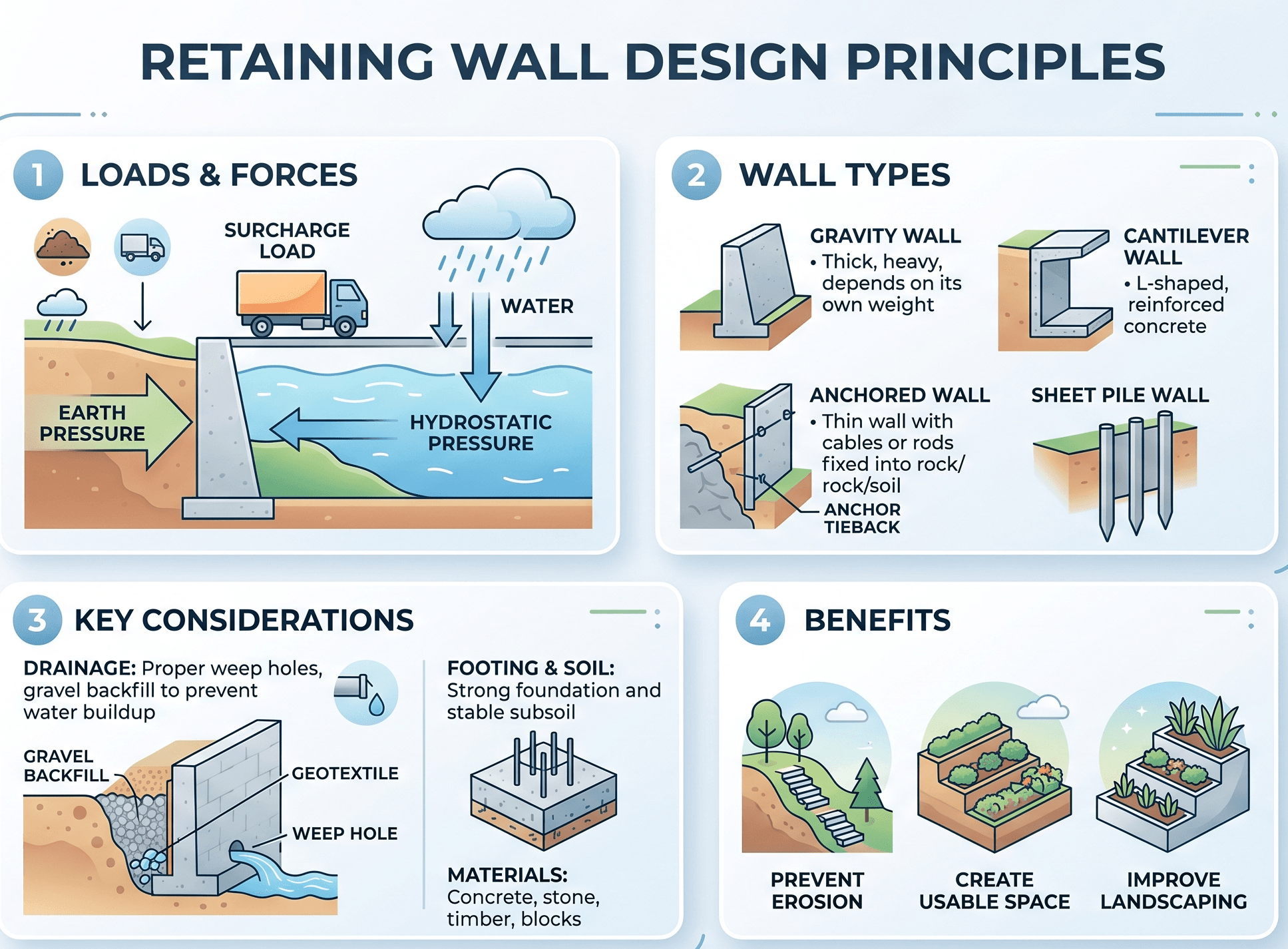

There are several types of retaining walls, each with its specific design characteristics and applications. The choice of retaining wall depends on the project requirements, soil conditions, and the height of the wall.
Gravity Retaining Walls
Gravity retaining walls rely on their mass and weight to resist lateral earth pressure. They are usually made of concrete, stone, or masonry and are best suited for short to medium-height walls. The design is straightforward, with the wall’s weight providing stability.
Cantilever Retaining Walls
Cantilever retaining walls use a reinforced concrete or masonry structure with a base slab and a vertical stem. These walls transfer the load to the foundation through a cantilever action, making them suitable for medium to high walls. The design requires precise engineering to ensure stability.
Sheet Pile Retaining Walls
Sheet pile retaining walls are thin walls made of steel, vinyl, or wood, driven into the ground to support soft soils. These walls are ideal for projects near water bodies or where space is limited. The design focuses on resisting lateral loads by anchoring the piles deep into the soil.
Anchored Retaining Walls
Anchored retaining walls are supported by anchors driven into the ground behind the wall. This type of wall is useful for deep excavations or when the wall needs additional support to withstand high lateral pressure.
Methods of Retaining Wall Design
The design of a retaining wall involves assessing the soil properties, calculating loads, and selecting the appropriate materials and construction techniques. Engineers must also consider drainage solutions and safety factors to ensure the long-term stability of the wall.
Geotechnical Investigation
Before designing a retaining wall, engineers conduct a geotechnical investigation to evaluate soil properties such as shear strength, bearing capacity, and groundwater levels. This data informs the design process and helps prevent soil-related issues such as wall failure.
Load Calculations
Engineers calculate the lateral earth pressure exerted on the wall by the soil behind it. These calculations determine the size, thickness, and reinforcement needed for the wall to resist sliding, overturning, and bearing failure.
Drainage Solutions
Proper drainage is essential for preventing hydrostatic pressure buildup behind the wall. Engineers incorporate drainage systems, such as weep holes or perforated pipes, to manage water flow and ensure that the wall remains stable over time.
Applications of Retaining Wall Design
Retaining walls are used in a variety of construction projects, from residential landscaping to large-scale infrastructure developments. Their ability to stabilize slopes and create level surfaces makes them invaluable in both urban and rural settings.
Residential and Commercial Projects
Retaining walls are commonly used in residential and commercial developments to create level ground for buildings, parking lots, and gardens. They also enhance the visual appeal of properties by adding terraced landscaping features.
Infrastructure Development
In infrastructure projects such as roads, highways, and railways, retaining walls are used to support embankments and prevent soil movement. Their stability is essential for maintaining safe and functional transportation routes.
Waterfront and Marine Applications
Retaining walls are also used in waterfront and marine environments to prevent soil erosion and protect against flooding. These walls are often constructed with durable materials such as concrete or steel to withstand harsh environmental conditions.
Challenges in Retaining Wall Design
Designing retaining walls presents several challenges, including variable soil conditions, water management, and ensuring long-term stability. Engineers must address these challenges through careful planning and material selection.
Unpredictable Soil Behavior
Soil conditions can vary across a project site, making it challenging to design a retaining wall that accounts for these variations. A thorough geotechnical investigation is crucial to identifying potential risks and selecting appropriate design solutions.
Water Management
Proper water management is critical to retaining wall stability. Engineers must ensure that drainage systems are adequate to prevent hydrostatic pressure, which can lead to wall failure or soil erosion.
Cost and Material Considerations
The cost of constructing a retaining wall depends on the type of wall, materials used, and project complexity. Engineers must balance cost-effectiveness with safety, ensuring that the wall is both stable and affordable.
Conclusion: The Role of Retaining Wall Design in Construction
Retaining wall design is essential for stabilizing slopes, preventing soil erosion, and creating usable land on sloped terrain. By considering factors such as soil conditions, load-bearing requirements, and water management, engineers can design retaining walls that provide long-lasting stability and functionality.
Whether for residential landscapes, commercial developments, or large-scale infrastructure projects, retaining walls play a vital role in ensuring safe and stable construction.
