Friction Calculator
Compute friction force between two surfaces from the coefficient of friction and the normal force, with static and kinetic modes.
Calculation Steps
Engineering Guide
Friction Calculator: From Inputs to Safe Design
Learn how to turn the numbers from the Friction Calculator into reliable forces, decelerations, and design checks for real components, tests, and systems.
Quick Start
The Friction Calculator is built around the standard equation \( F_f = \mu N \), where \( F_f \) is friction force, \( \mu \) is the coefficient of friction, and \( N \) is the normal force between the surfaces. Follow these steps to get a clean, defensible result.
- 1 Identify the friction type you care about: static (object on the verge of motion) or kinetic (object sliding). Set this with the Friction Type dropdown above the inputs.
- 2 Determine the contact surfaces and pick a reasonable coefficient \( \mu \) from a test, supplier data, or a handbook (e.g., “rubber on dry asphalt”, “steel on steel with light oil”). Enter that value in the Coefficient of friction field.
- 3 Compute the normal force \( N \): on a level floor this is usually \( N \approx mg \), but on an incline it becomes \( N = mg \cos \theta \). Enter the normal force in the units that match your workflow (N, kN, or lbf).
- 4 Choose the output units for friction force (N, kN, or lbf) in the “Friction force units” dropdown so the result lines up with your load cases or test instruments.
- 5 Run the calculator and review the Friction force result, then glance at the Quick stats panel: it shows the equivalent supported mass and deceleration so you can see if the value is physically reasonable.
- 6 If you are doing a design check, compare the friction force against the required load (e.g., required braking force, slip resistance, or joint capacity) with a safety factor appropriate for your standard (often 1.5–3.0).
- 7 Use the Show Steps button to export the symbolic and numeric math into your calc sheet or report, and the Share menu to copy a clean page URL into your notes or email.
Tip: If you are unsure about \( \mu \), run a quick sensitivity check by varying it ±25 % and seeing how much the friction force and deceleration change. This gives you a feel for how conservative your assumptions are.
Caution: The classic equation \( F_f = \mu N \) assumes dry Coulomb friction: it does not include adhesion, hydroplaning, temperature extremes, or high-speed effects. Use lab data or more advanced models for critical safety systems.
Choosing Your Method
There are several ways to feed the Friction Calculator depending on what information you actually have. The core equation is the same, but your path to \( N \) and \( \mu \) can differ.
Method A — Direct \( \mu \) and Normal Force
Use this when you already know the normal force and have a trustworthy coefficient of friction.
- Fast and transparent for simple blocks, jigs, and fixtures.
- Easy to document in a design calculation sheet.
- Works directly with test data from a load cell or scale.
- Requires a reliable \( \mu \) value for your exact surfaces.
- Normal force may change with preload, vibration, or tilt.
Method B — From Mass and Orientation
Use when you know the object’s mass and the slope angle rather than the normal force directly.
- Great for blocks, carts, and equipment on ramps.
- Makes it easy to test “what slope can we safely hold?”
- Directly connects to free-body diagrams from statics class.
- Assumes weight is the only contributor to normal force.
- Needs consistent units for mass, gravity, and angle.
Then \( F_f = \mu N \).
Method C — Braking and Deceleration Checks
Use this when you want to connect friction to required braking force or stopping distance.
- Links directly to deceleration \( a = F_f / m \).
- Useful for quick checks on vehicle tires, conveyor drives, or clamps.
- The calculator’s quick stats show the implied deceleration automatically.
- Real braking systems also have dynamic and thermal limits.
- Tire-road friction changes with water, snow, and wear.
What Moves the Number the Most
Even though the equation looks simple, the friction force is highly sensitive to certain variables and assumptions. Use these “levers” to understand and tune your design.
The single biggest driver. Small changes in surface finish, lubrication, or contamination can shift \( \mu \) by 20–50 %. Always document where your value comes from and whether it represents a safe lower bound.
Increasing clamp force, bolt preload, or weight increases friction linearly. On inclined or curved surfaces, remember that only the component perpendicular to the surface contributes to \( N \).

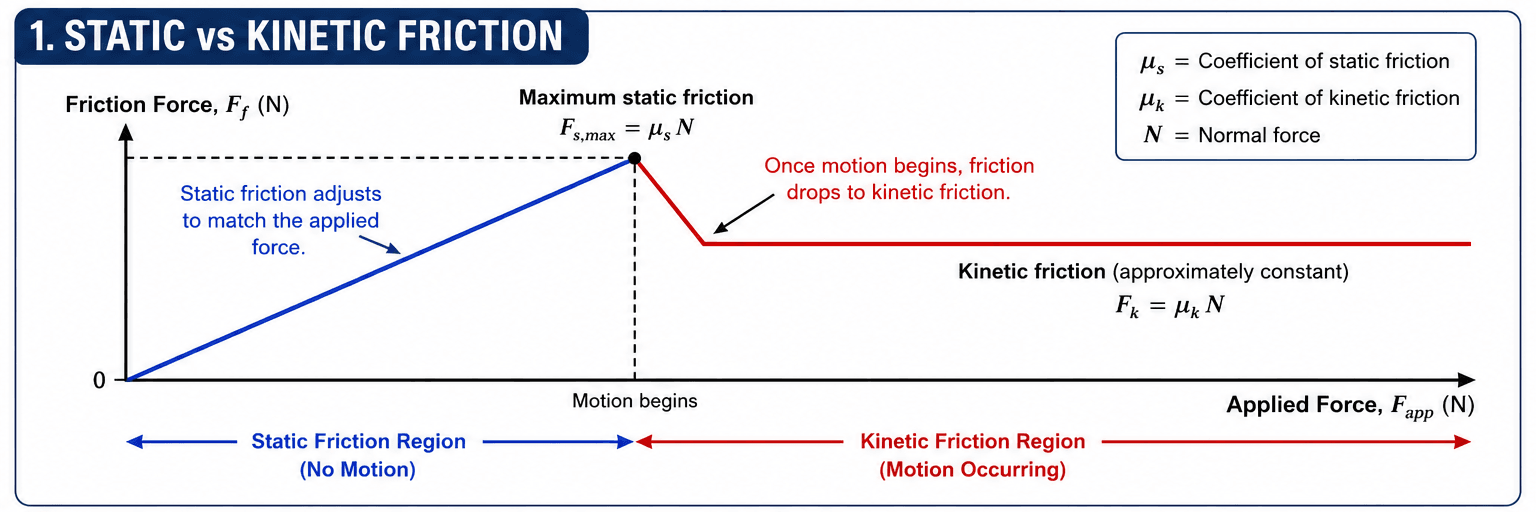

Typically \( \mu_s > \mu_k \). Once sliding starts, friction drops to the kinetic value, which can reduce braking or holding capacity. The calculator lets you switch between regimes so you can see this step change clearly.

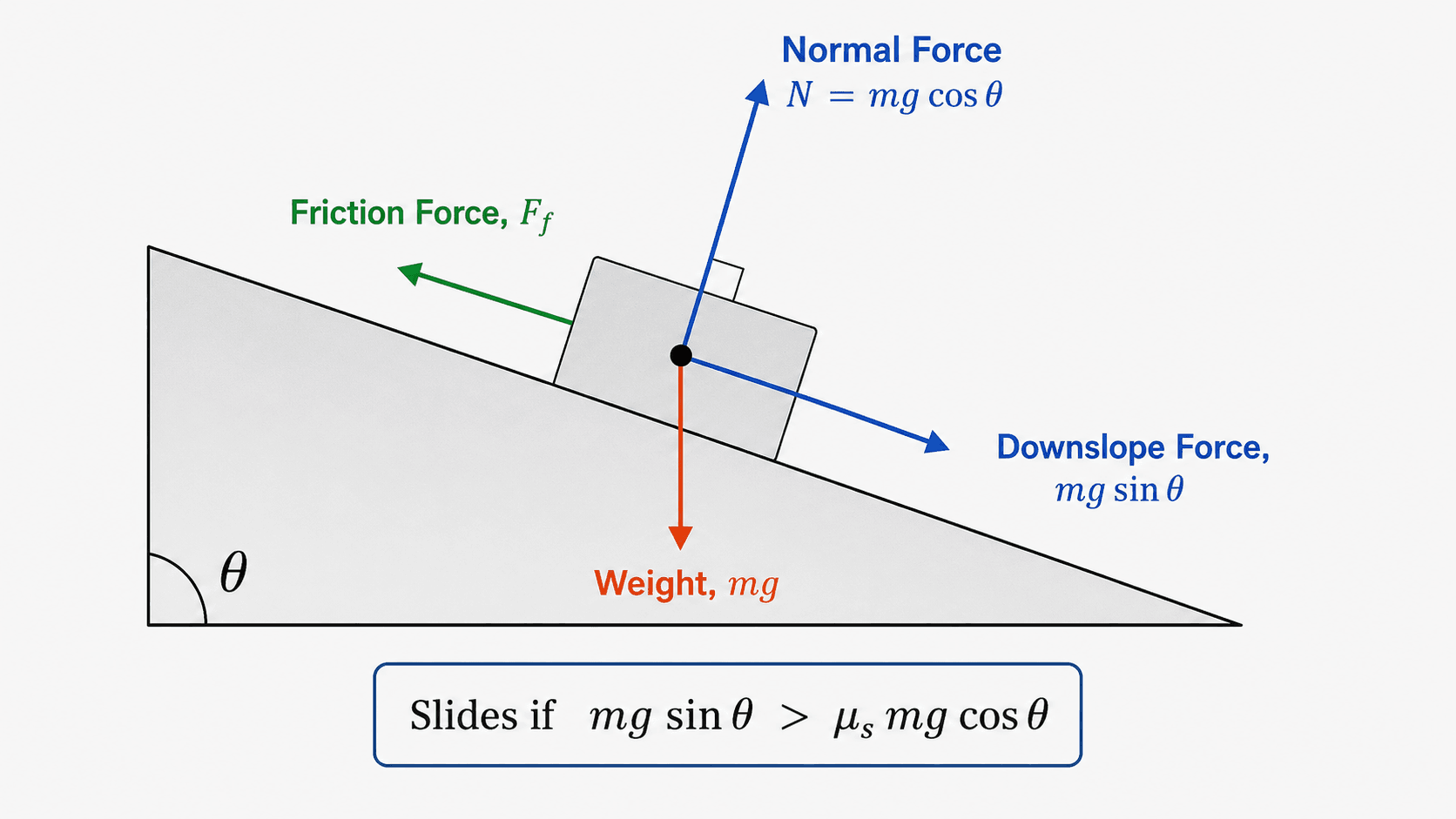

On an incline, the same weight produces a smaller normal force \( N = mg\cos\theta \), while the downhill component \( mg\sin\theta \) grows. Near the “critical” angle, small errors in \( \mu \) or \( \theta \) can decide whether motion starts.
Water, ice, dust, oil, and wear all change friction. For critical systems, use coefficients measured under realistic worst-case conditions rather than clean lab values.
At low speeds, Coulomb friction is reasonable; at high sliding speeds and elevated temperatures (e.g., brakes), the relationship can become nonlinear. Use the calculator as a first pass, and apply more detailed models where needed.
Worked Examples
Example 1 — Static Friction on a Horizontal Floor
A 50 kg crate sits on a concrete floor. You want to know the maximum static friction force before it starts sliding.
- Mass: \( m = 50\ \text{kg} \)
- Gravity: \( g = 9.81\ \text{m/s}^2 \)
- Coefficient of static friction: \( \mu_s = 0.40 \)
- Surface: wood pallet on broom-clean concrete
Example 2 — Kinetic Friction and Braking Deceleration
A small test cart of mass 120 kg is rolling on a level concrete surface. When its brakes lock the wheels, the effective coefficient of kinetic friction between the tires and floor is \( \mu_k = 0.65 \). You want to estimate the braking force and deceleration.
- Mass: \( m = 120\ \text{kg} \)
- Gravity: \( g = 9.81\ \text{m/s}^2 \)
- Coefficient of kinetic friction: \( \mu_k = 0.65 \)
- Initial speed: \( v_0 = 5\ \text{m/s} \) (about 18 km/h)
Common Layouts & Variations
In practice, friction problems show up in a handful of recurring scenarios. The underlying physics is the same, but the geometry and assumptions change how you compute \( N \) and interpret the result.
| Scenario | Typical modeling approach | Notes & caveats |
|---|---|---|
| Block on horizontal surface | \( N = mg \), \( F_f = \mu N \). Compare \( F_f \) to applied horizontal load. | Good first approximation for crates, pallets, and fixtures. Does not include dynamic effects or impact loads. |
| Block on an inclined plane |
\( N = mg\cos\theta \), downhill load
\( W_\parallel = mg\sin\theta \). Check \( F_{f,\max} = \mu_s N \) vs. \( W_\parallel \). | If \( W_\parallel > \mu_s N \), sliding will start and friction drops to \( \mu_k \). Small changes around the limiting angle can flip the result. |
| Belt / brake / tire contact | Start with \( F_f = \mu N \) per wheel or pad, then sum across contacts. For more accuracy use a belt-friction or tire model. | \( \mu \) depends strongly on speed, temperature, and surface condition. Safety-critical systems typically use measured curves, not a single constant. |
| Preloaded bolted joint | Normal force is dominated by preload \( N \approx F_{\text{preload}} \). Sliding capacity \( F_{f,\max} = \mu N \). | Use the calculator to combine bolt preload and joint friction, but remember that codes specify minimum slip factors and partial safety factors. |
| Linear guideways & bearings | Break friction into rolling and sliding components; approximate with an effective \( \mu \) when detailed data is absent. | For precision motion, bearing manufacturer data usually overrides generic friction coefficients. |
- Sketch a free-body diagram before plugging numbers into the calculator.
- Check whether additional forces (springs, clamps, fluid pressure) add to or reduce the normal force.
- Confirm that your chosen coefficient applies to the correct regime (static vs kinetic).
- For safety-critical designs, apply a safety factor to \( \mu \) or to the friction force, not just to the load.
- Compare your result to similar known systems (e.g., typical tire-road deceleration values).
- Document assumptions so future reviewers can see how the calculator was used.
Specs, Logistics & Sanity Checks
Unlike a material property such as density, friction depends heavily on how surfaces are prepared and operated. Treat the Friction Calculator as a tool for making clear, traceable estimates, not as a substitute for specification and testing.
Specifying Coefficient of Friction
When you write a spec or design note, avoid vague statements like “surface must be non-slip.” Instead:
- State a target coefficient (e.g., \( \mu_s \ge 0.5 \)).
- Refer to a test method or standard (ASTM, ISO, etc.).
- Define the conditions (dry, wet, icy, lubricated).
- Include the type of friction (static vs kinetic) you designed around.
Field Testing & Measurement
For important interfaces, measure friction directly:
- Use a pull-test with a force gauge to estimate \( \mu_s \).
- Log deceleration during a brake test to back-calculate \( \mu_k \).
- Repeat tests as surfaces wear, foul, or are cleaned.
- Feed measured values back into the calculator for updated checks.
Sanity Checks on Results
After using the Friction Calculator, take a moment to sanity-check the numbers:
- Is the friction force too high or low compared to \( \mu mg \)?
- Does the implied deceleration fall within realistic bounds (e.g., 0.2–1.0 g for tire-road contact)?
- Have you mistakenly used lbf with metric masses or vice versa?
- Is your safety factor appropriate for the risk level and design code?
For long-lived equipment, recalc friction with “end-of-life” conditions (worn surfaces, contamination, reduced preload). The same Friction Calculator math still applies; only the input assumptions change.
