Key Takeaways
- Core idea: Magnetic properties describe how a material responds when a magnetic field is applied, removed, or reversed.
- Engineering use: These properties control material selection for motors, generators, transformers, inductors, sensors, shielding, and permanent magnets.
- What controls it: Magnetic response depends on electron behavior, domain alignment, permeability, susceptibility, coercivity, remanence, saturation, frequency, and temperature.
- Practical check: A material that is magnetic is not automatically a good permanent magnet; the B-H curve and application requirements matter.
Table of Contents
Introduction
Magnetic properties describe how materials respond to magnetic fields, including whether they attract, repel, retain magnetism, carry magnetic flux, or lose energy during magnetization. In engineering, these properties determine whether a material is suitable for transformer cores, electric motors, inductors, permanent magnets, magnetic shielding, sensors, or high-frequency magnetic components.

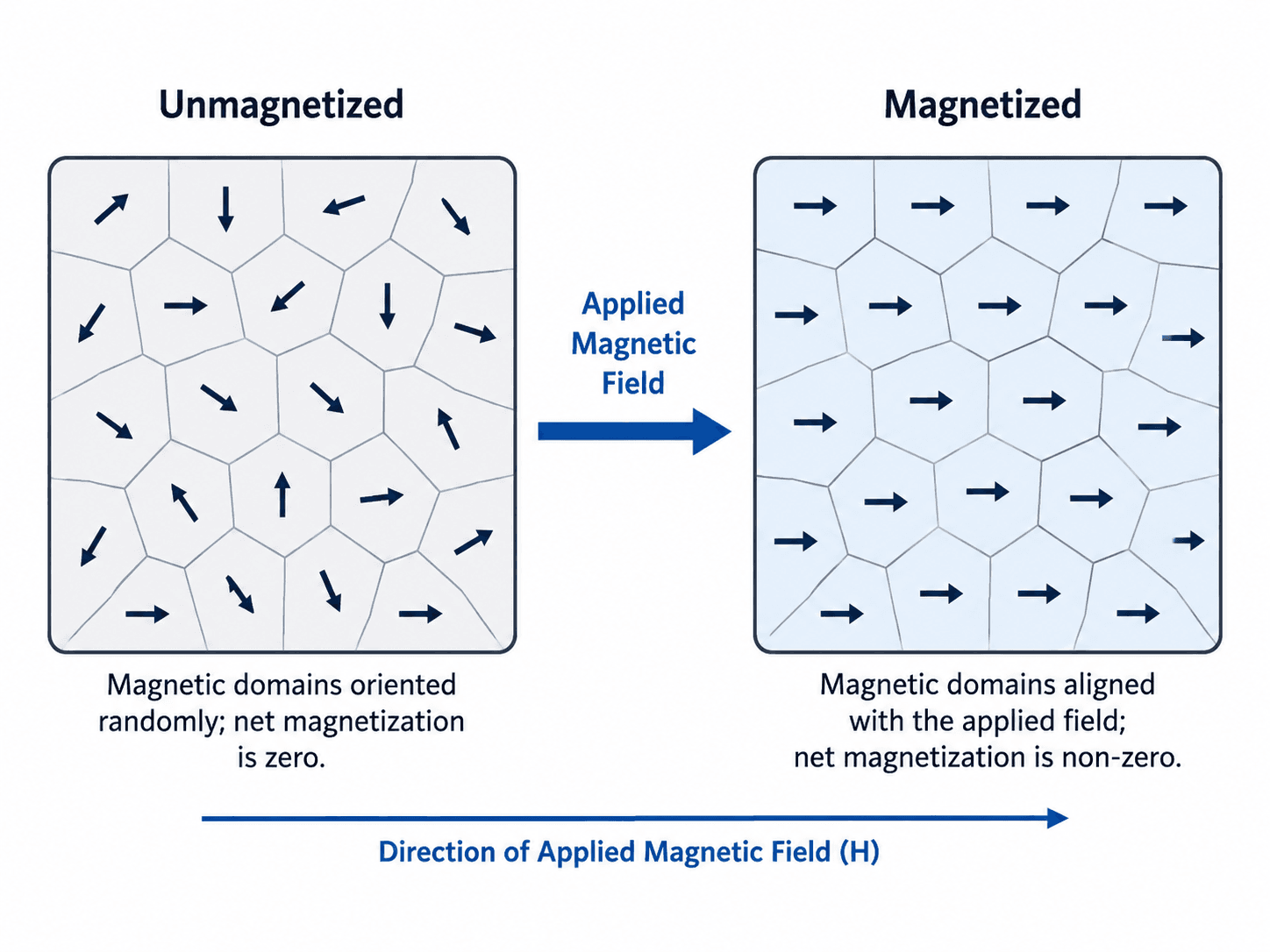

Magnetic Domains Before and After Magnetization
The important detail is the change from random domain orientation to aligned domain orientation. That alignment is what creates a net magnetic response at the material scale.
What are Magnetic Properties?
Magnetic properties are material characteristics that describe how a material behaves in a magnetic field. They include broad behavior types, such as diamagnetism, paramagnetism, and ferromagnetism, as well as measurable engineering properties such as permeability, susceptibility, remanence, coercivity, magnetic saturation, maximum energy product, Curie temperature, and hysteresis loss.
Magnetic properties can be understood at three levels: visible behavior, measured material properties, and engineering performance. A material may be called magnetic in everyday language, but engineers usually need specific values and curves that show how the material carries flux, stores magnetism, resists demagnetization, or loses energy during cyclic magnetization.
Engineers use magnetic properties to decide whether a material should guide flux, store magnetism, switch fields efficiently, resist demagnetization, reduce electromagnetic interference, or avoid magnetic interaction altogether.
Magnetic Properties of Materials Table
Different materials can all be described as magnetic or nonmagnetic in casual language, but their engineering behavior can be very different. The table below connects common material classes to the magnetic properties that usually matter most.
| Material or class | Typical magnetic behavior | Important magnetic properties | Common engineering use |
|---|---|---|---|
| Iron | Ferromagnetic | Strong domain alignment, high permeability, saturation behavior | Magnetic paths, actuators, cores, and general ferromagnetic components |
| Silicon steel / electrical steel | Soft ferromagnetic | High permeability, low core loss, controlled hysteresis behavior | Transformer cores, motor laminations, generator laminations |
| Soft ferrites | Ferrimagnetic | Useful permeability, high electrical resistivity, frequency-dependent loss | Inductors, chokes, EMI suppression, high-frequency magnetic cores |
| NdFeB permanent magnets | Hard magnetic | High remanence, high coercivity, high maximum energy product | Compact permanent magnets, motors, sensors, magnetic couplings |
| SmCo permanent magnets | Hard magnetic | High coercivity, good temperature stability, strong remanence | High-temperature permanent magnet applications |
| Copper | Diamagnetic | Weak negative susceptibility | Conductors where strong magnetic response is usually not desired |
| Aluminum | Paramagnetic | Weak positive susceptibility | Lightweight structures and conductors where magnetic core behavior is not required |
This table is a starting point, not a final design guide. Material grade, heat treatment, operating temperature, frequency, geometry, and test method can all change the useful magnetic performance.
Types of Magnetic Materials and Magnetic Behavior
The first way to classify magnetic properties is by how strongly a material responds to an applied magnetic field. This classification helps explain why iron is strongly attracted to a magnet, aluminum shows only weak magnetic response, and copper is not useful as a magnetic core material.
| Magnetic behavior | Material response | Common examples | Engineering implication |
|---|---|---|---|
| Diamagnetic | Weakly repelled by a magnetic field | Copper, bismuth, graphite, water | Usually not selected to carry magnetic flux, but important when magnetic neutrality matters. |
| Paramagnetic | Weakly attracted to a magnetic field | Aluminum, magnesium, titanium, oxygen | Response is usually too weak for magnetic core design but relevant in measurement and material characterization. |
| Ferromagnetic | Strongly attracted and capable of domain alignment | Iron, cobalt, nickel, many steels | Used in cores, motors, generators, actuators, and permanent magnet systems depending on hysteresis behavior. |
| Ferrimagnetic | Strong magnetic response with opposing unequal moments | Ferrites, magnetite | Useful in many high-frequency magnetic components because ferrites can combine magnetic response with high electrical resistance. |
| Antiferromagnetic | Opposing magnetic moments cancel at the larger scale | Manganese oxide, chromium compounds | More specialized, but important in advanced magnetic materials, sensors, and spintronic research. |
Most introductory explanations stop at ferromagnetic, paramagnetic, and diamagnetic materials. Engineering decisions usually require the next layer: how much flux the material can carry, how easily it magnetizes, how much magnetism remains, and how much energy it loses.
What Controls Magnetic Properties?
Magnetic properties come from atomic-scale behavior, but the useful engineering response depends on both material structure and operating conditions. Composition matters, but so do crystal structure, domain structure, grain orientation, processing, temperature, frequency, stress, and component geometry.
| Control factor | Why it matters | Engineering implication |
|---|---|---|
| Electron spin and magnetic moments | Magnetic behavior starts with atomic-scale magnetic moments. | Materials with favorable moment alignment can develop strong magnetic response. |
| Magnetic domains | Domains can align, rotate, grow, or resist movement under an applied field. | Domain behavior controls magnetization, hysteresis, coercivity, and remanence. |
| Crystal structure and alloy composition | Atomic arrangement and alloying affect exchange interactions and magnetic ordering. | Small composition or phase changes can significantly affect magnetic performance. |
| Heat treatment and processing | Annealing, cold work, sintering, lamination, and grain orientation can change domain movement. | Two materials with similar chemistry can perform differently if processed differently. |
| Temperature | Thermal motion disrupts magnetic ordering and can reduce magnetization. | Permanent magnets and magnetic cores must be checked at operating temperature, not just room temperature. |
| Frequency | Alternating fields create cyclic loss, and conductive cores can develop eddy current losses. | High-frequency designs often require ferrites, laminated steels, or powdered cores instead of solid metals. |
| Stress and strain | Mechanical stress can alter domain motion and magnetic response. | Forming, clamping, vibration, and residual stress can change permeability, losses, or noise. |
| Geometry and air gaps | The magnetic path controls reluctance and demagnetizing effects. | A good magnetic material can underperform if the magnetic circuit has poor geometry. |
For a broader foundation on why atomic arrangement affects material behavior, see Atomic Structure and Crystallography.
Key Magnetic Properties Engineers Use
Magnetic material selection depends on measurable properties, not just labels like “magnetic” or “nonmagnetic.” A material used in a transformer core should behave very differently from a material used as a permanent magnet.
| Property | What it describes | Why it matters in engineering |
|---|---|---|
| Magnetic permeability, \( \mu \) | How easily magnetic flux density develops in the material | High permeability helps concentrate magnetic flux in cores, inductors, relays, and shielding paths. |
| Relative permeability, \( \mu_r \) | Permeability compared with free space | Useful for comparing core materials and estimating magnetic circuit behavior. |
| Initial permeability | Permeability at low magnetic field levels | Important for small-signal inductors, sensors, and low-field magnetic response. |
| Maximum permeability | Highest permeability reached over a magnetization curve | Useful because ferromagnetic permeability is nonlinear and changes with field strength. |
| Magnetic susceptibility, \( \chi \) | How strongly the material becomes magnetized by an applied field | Helpful for comparing weak and strong magnetic response during testing and material characterization. |
| Remanence, \( B_r \) | Magnetism that remains after the applied field is removed | High remanence is important for permanent magnets and magnetic memory effects. |
| Coercivity, \( H_c \) | Reverse field needed to reduce magnetization to zero | Low coercivity is useful for soft magnetic cores; high coercivity is useful for permanent magnets. |
| Saturation flux density | Upper limit where additional field produces little additional magnetic response | Core saturation can distort signals, overheat devices, and reduce motor or transformer performance. |
| Maximum energy product, \( (BH)_{\max} \) | Maximum useful magnetic energy density for a permanent magnet | Helps compare permanent magnet strength and compactness. |
| Curie temperature | Temperature above which ferromagnetic ordering is lost | Critical when magnetic components operate near heat sources or elevated ambient temperatures. |
| Hysteresis loss | Energy lost during each magnetization cycle | Important for AC cores, motors, transformers, inductors, and high-frequency components. |
Permeability vs Susceptibility
Permeability and susceptibility are related, but they are not the same engineering idea. Permeability is often used when modeling flux in a core or magnetic circuit, while susceptibility is often used to describe how strongly a material magnetizes in response to the applied field.
| Concept | Plain meaning | Common engineering use |
|---|---|---|
| Magnetic permeability | How easily magnetic flux develops in the material | Magnetic circuits, transformer cores, inductors, shielding, and flux paths |
| Magnetic susceptibility | How strongly the material becomes magnetized by the field | Material classification, magnetic measurement, and material characterization |
Useful Magnetic Property Relationships
In simple linear magnetic materials, magnetic flux density \(B\) is often related to magnetic field strength \(H\) through permeability. Real ferromagnetic materials are usually nonlinear, so these relationships are best treated as a starting point rather than a complete design model.
- \(B\) Magnetic flux density, commonly expressed in tesla.
- \(H\) Magnetic field strength, commonly expressed in amperes per meter.
- \( \mu \) Magnetic permeability of the material.
- \( \mu_0 \) Permeability of free space.
- \( \mu_r \) Relative permeability, used to compare a material with free space.
- \(M\) Magnetization of the material.
- \( \chi \) Magnetic susceptibility, describing the degree of magnetization caused by the applied field.

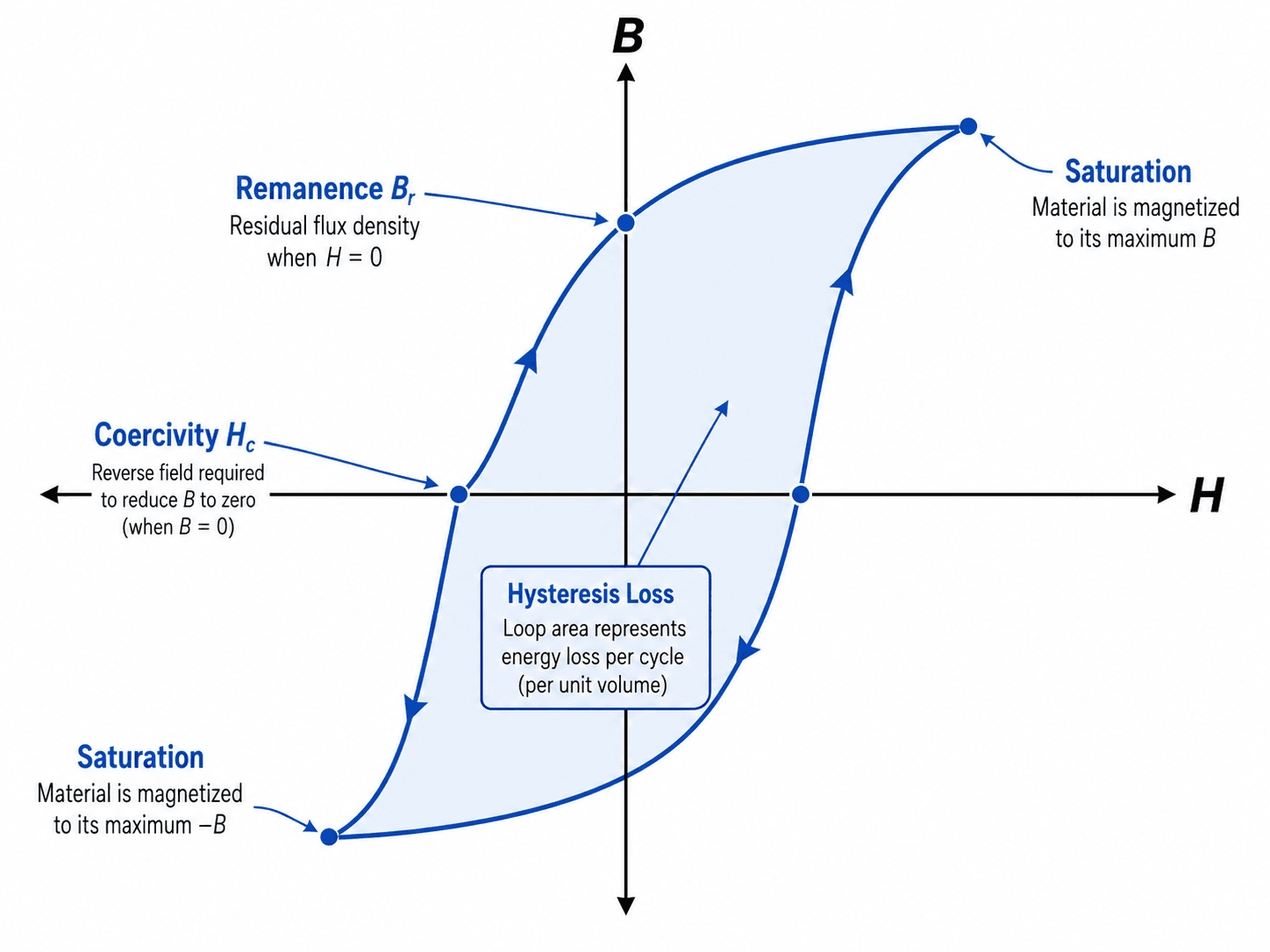

B-H Hysteresis Loop Explained
The B-H hysteresis loop is one of the most useful visuals for understanding magnetic properties. It shows how magnetic flux density \(B\) changes as magnetic field strength \(H\) is increased, reduced, reversed, and applied again.
What the loop tells you
The top and bottom ends of the loop show saturation. The vertical-axis intercept shows remanence, or the flux density left when \(H = 0\). The horizontal-axis intercept shows coercivity, or the reverse field needed to bring \(B\) back to zero. The area inside the loop represents hysteresis loss per cycle.
Why hysteresis matters
In AC devices, hysteresis loss becomes heat. That is why transformer cores and many motor laminations use materials with narrow loops and low coercivity. Permanent magnets use the opposite behavior: a wider loop with high coercivity and strong retained magnetism.
Full loop vs permanent magnet demagnetization curve
For soft magnetic cores, engineers often care about the full hysteresis loop and the energy lost each cycle. For permanent magnet materials, engineers often focus on the second quadrant of the B-H curve because it describes demagnetization behavior, usable magnetic energy, and resistance to opposing magnetic fields.

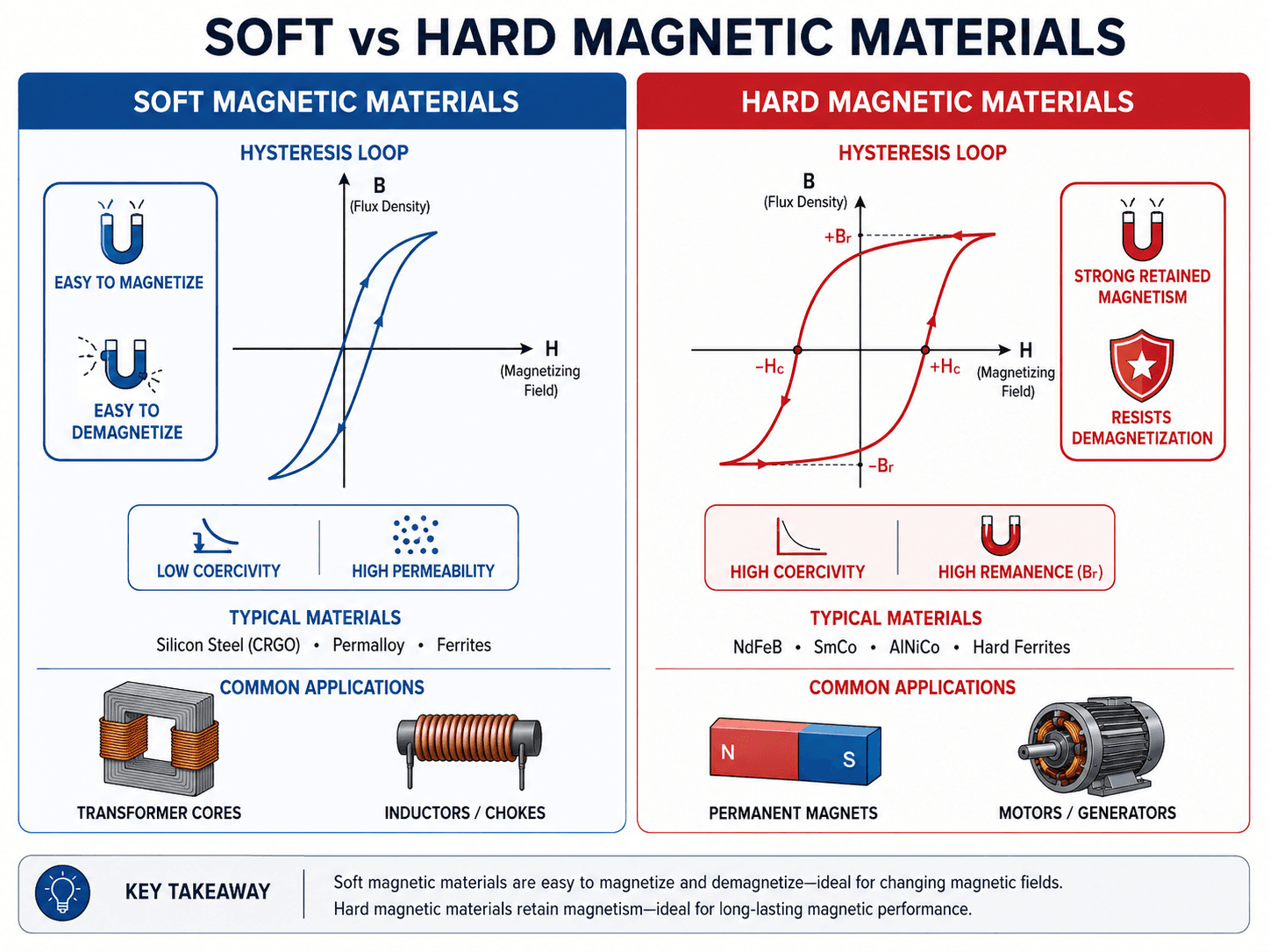

Soft Magnetic Materials vs Hard Magnetic Materials
Soft and hard magnetic materials are not named for mechanical hardness. They are named for how easily their magnetization changes. This distinction is one of the most important practical ideas in magnetic material selection.
| Selection question | Soft magnetic material | Hard magnetic material |
|---|---|---|
| Should the material magnetize and demagnetize easily? | Yes. Low coercivity is desirable. | No. High coercivity is desirable. |
| Should the material retain magnetism after the field is removed? | Usually no. Retained magnetism can be a problem. | Yes. Strong remanence is a main design goal. |
| Typical applications | Transformer cores, inductors, relays, solenoids, motor laminations | Permanent magnets, speakers, sensors, magnetic couplings, some motor/generator components |
| Typical materials | Electrical steel, silicon steel, soft ferrites, permalloy | NdFeB, SmCo, AlNiCo, hard ferrites |
| Main failure concern | Core loss, saturation, overheating, residual magnetism, frequency limits | Demagnetization, temperature sensitivity, corrosion, brittle fracture, cost |
Magnetic Properties in Engineering Applications
Magnetic properties appear in mechanical, electrical, materials, and manufacturing decisions. The same material can be useful or unsuitable depending on whether the goal is flux guidance, energy conversion, sensing, shielding, or permanent magnet performance.
| Application | Magnetic properties that matter | Design implication |
|---|---|---|
| Transformer cores | High permeability, low hysteresis loss, high saturation flux density | The core must carry alternating flux efficiently without overheating or saturating. |
| Motors and generators | Permeability, saturation behavior, remanence, coercivity, losses | Magnetic properties affect torque, efficiency, heat generation, and permanent magnet performance. |
| Inductors and chokes | Core permeability, saturation current, frequency-dependent loss | Incorrect material selection can cause loss of inductance, overheating, or poor filtering. |
| Permanent magnets | High remanence, high coercivity, high \( (BH)_{\max} \), temperature stability | The magnet must retain field strength under load, heat, vibration, and opposing magnetic fields. |
| Magnetic shielding | High permeability and suitable geometry | Shielding often works by redirecting flux rather than blocking it like a wall. |
| High-frequency cores | Permeability, electrical resistivity, low frequency-dependent loss | Ferrites and powdered cores can reduce eddy current problems compared with solid conductive cores. |
| Sensors and measurement devices | Stable susceptibility, predictable magnetization, low drift | Material response must remain consistent across operating conditions. |
Start with the function: guide flux, switch flux, retain flux, measure flux, or reduce stray flux. That decision usually tells you which magnetic properties deserve the most attention.
Magnetic Material Selection Checklist
A strong magnetic material choice is not based on one property alone. The checklist below helps connect the material’s magnetic behavior to the actual engineering function.
Define the magnetic function first, then check whether the material needs high permeability, high coercivity, high remanence, low hysteresis loss, high saturation flux density, high electrical resistivity, temperature stability, or corrosion protection. A material that performs well in one magnetic role may perform poorly in another.
| Selection check | What to look for | Why it matters |
|---|---|---|
| Magnetic function | Core, permanent magnet, shield, sensor, actuator, or high-frequency component | The function determines whether soft or hard magnetic behavior is preferred. |
| Permeability need | High relative permeability when the design must carry or redirect flux | Low permeability can make a core or shield ineffective even if the material is otherwise strong. |
| Coercivity need | Low coercivity for reversible magnetization; high coercivity for retained magnetism | Choosing the wrong coercivity can cause either unwanted residual magnetism or unwanted demagnetization. |
| Remanence requirement | High \(B_r\) when the material must remain magnetized after the field is removed | Permanent magnets need retained magnetic flux; transformer cores usually do not. |
| Energy product requirement | High \( (BH)_{\max} \) when compact permanent magnet strength matters | A higher energy product can reduce magnet size for a required magnetic output. |
| Saturation margin | Expected flux density compared with material saturation behavior | Saturation can sharply reduce performance and increase heating or distortion. |
| Operating frequency | DC, low-frequency AC, high-frequency switching, or pulsed field | Hysteresis and eddy current losses can dominate at higher frequencies. |
| Temperature range | Operating temperature compared with material limits and Curie temperature | Magnetic strength, coercivity, and losses can change significantly with temperature. |
| Geometry and magnetic path | Air gaps, path length, cross-sectional area, and closed versus open magnetic circuits | Geometry can make a good material perform poorly if the magnetic path is not controlled. |
| Material processing | Heat treatment, grain orientation, lamination, sintering, coating, or alloying | Processing can strongly change permeability, coercivity, losses, and stability. |
Engineering Judgment and Field Reality
Magnetic property values are not fixed constants in the same way that a simple table may imply. They can change with temperature, frequency, prior magnetic history, stress, manufacturing process, grain orientation, material grade, coating condition, and geometry. That is why datasheets and test curves often matter more than a single published value.
A magnetic core tested under low-field laboratory conditions may behave differently once it is installed in a device with air gaps, heat, vibration, pulsed fields, nearby conductors, and changing load conditions.
Why geometry changes magnetic performance
Magnetic materials do not work independently from their shape. Air gaps, sharp corners, thin sections, and open magnetic paths can increase reluctance and reduce useful flux. A high-permeability material can still underperform if the magnetic circuit is poorly shaped.
Why processing history matters
Cold working, heat treatment, annealing, grain orientation, and lamination can change magnetic behavior. Electrical steels, ferrites, and permanent magnet materials are often engineered through processing as much as composition.
Why magnetostriction matters
Some magnetic materials change shape slightly as they magnetize. This effect, called magnetostriction, can contribute to vibration, audible hum, stress sensitivity, and noise in transformers, motors, and magnetic actuators.
For a broader view of how material categories and alloy choices affect engineering performance, see Metals and Alloys.
When This Breaks Down
Simple magnetic property explanations are useful for learning, but they can break down when the material response becomes nonlinear, temperature-sensitive, frequency-dependent, geometry-controlled, or affected by previous magnetic history.
- Saturation: Once a magnetic material approaches saturation, increasing \(H\) produces much less increase in \(B\), which can reduce core effectiveness.
- High frequency: Hysteresis loss and eddy current loss can make a low-frequency core material unsuitable for high-frequency switching or filtering.
- Conductive solid cores: Solid metallic cores can generate eddy currents under changing fields, which increases heat and reduces efficiency unless laminations, ferrites, or powdered cores are used.
- Temperature rise: Magnetic strength, coercivity, permeability, and losses can change as the material heats up.
- Permanent magnet temperature limits: Some magnets experience reversible strength reduction with temperature, while excessive heat can cause irreversible demagnetization.
- Residual magnetism: Soft magnetic materials can still retain some magnetism, which may matter in precision devices, relays, and sensing applications.
- Demagnetizing fields: Open shapes and external opposing fields can reduce effective magnetization, especially in permanent magnet applications.
Common Mistakes and Practical Checks
Magnetic properties are often oversimplified because basic magnet examples make the subject look intuitive. In engineering work, the most common mistakes come from ignoring hysteresis, temperature, saturation, frequency, and the difference between magnetic material categories.
- Calling every ferromagnetic material a permanent magnet: Many ferromagnetic materials are designed to lose magnetization easily.
- Using permeability as a constant: Ferromagnetic permeability can change with field level, temperature, frequency, and material history.
- Ignoring hysteresis loss: A material may carry flux well but still waste energy as heat in cyclic operation.
- Ignoring eddy current loss: A highly magnetic metal may perform poorly in AC or high-frequency systems if electrical conductivity creates excessive circulating currents.
- Forgetting saturation: A core can stop behaving as intended when the applied field or flux demand becomes too high.
- Comparing materials without test conditions: Magnetic values are only meaningful when temperature, field level, frequency, material grade, and measurement method are understood.
- Ignoring corrosion and coatings: Some high-strength permanent magnets need protective coatings because corrosion can reduce service life and magnetic reliability.
Do not choose a magnetic material only because it is strongly attracted to a magnet. For engineering selection, the B-H curve, operating temperature, frequency, geometry, and required magnetic function are usually more important.
If you are comparing magnetic property loss, service degradation, or material damage over time, the related topic Failure Mechanisms is a useful next step.
How Magnetic Properties Are Measured
Magnetic properties are measured using controlled test methods because casual magnet attraction does not reveal permeability, susceptibility, coercivity, remanence, maximum energy product, or hysteresis loss. Engineers typically rely on material datasheets, B-H curves, magnetometer measurements, hysteresisgraph data, or project-specific test data when magnetic performance matters.
- NIST magnetic reference materials: NIST magnetic moment and susceptibility standard reference materials provide useful context for calibrated measurement of magnetic moment and susceptibility in bulk materials.
- Project-specific criteria: Final material selection should account for operating temperature, frequency, magnetic field level, geometry, manufacturing process, grade-specific data, and the required safety or performance margin.
- Engineering use: Use measured curves and qualified material data when the magnetic component affects efficiency, heat generation, holding force, signal integrity, sensing accuracy, shielding performance, or demagnetization risk.
Frequently Asked Questions
Magnetic properties describe how a material responds to an applied magnetic field. They include whether the material is attracted or repelled, how easily magnetic flux passes through it, whether magnetism remains after the field is removed, and how much energy is lost during repeated magnetization.
Magnetic permeability describes how easily magnetic flux density develops in a material for a given magnetic field, while magnetic susceptibility describes how strongly the material becomes magnetized by that field. Permeability is often used in magnetic circuit and core design, while susceptibility is useful for comparing magnetic response.
A B-H hysteresis loop shows how magnetic flux density changes as magnetic field strength is increased, reduced, reversed, and applied again. It reveals saturation, remanence, coercivity, and energy loss per magnetization cycle, which are central to selecting magnetic materials.
Soft magnetic materials magnetize and demagnetize easily, making them useful for transformer cores, inductors, and changing magnetic fields. Hard magnetic materials resist demagnetization and retain magnetism, making them useful for permanent magnets, sensors, motors, and generators.
The strongest magnetic properties depend on the application. Rare-earth magnets such as neodymium iron boron are very strong permanent magnets, while silicon steel, permalloy, and ferrites are often valuable because they guide or switch magnetic flux efficiently.
Summary and Next Steps
Magnetic properties explain how materials interact with magnetic fields, from weak attraction or repulsion to strong domain alignment, flux guidance, retained magnetism, and cyclic energy loss. The most useful engineering properties include permeability, susceptibility, remanence, coercivity, saturation, maximum energy product, Curie temperature, and hysteresis behavior.
In practice, magnetic material selection begins with the function: guide magnetic flux, switch it efficiently, retain it as a permanent magnet, shield a sensitive area, or measure it accurately. The best material depends on operating temperature, frequency, geometry, processing, material grade, and the shape of the B-H curve.
