Soil Mechanics
What Is Soil Mechanics?
Soil mechanics is the foundation of geotechnical engineering. It studies how soils form, classify, transmit water, compress, and resist shear so we can safely design earthworks, pavements, foundations, retaining structures, and slopes. Because soils are natural, variable, and stress-history dependent, soil mechanics blends geology, material science, and continuum mechanics with careful field and lab testing. The goal is simple: convert uncertain subsurface conditions into reliable parameters for design and construction.

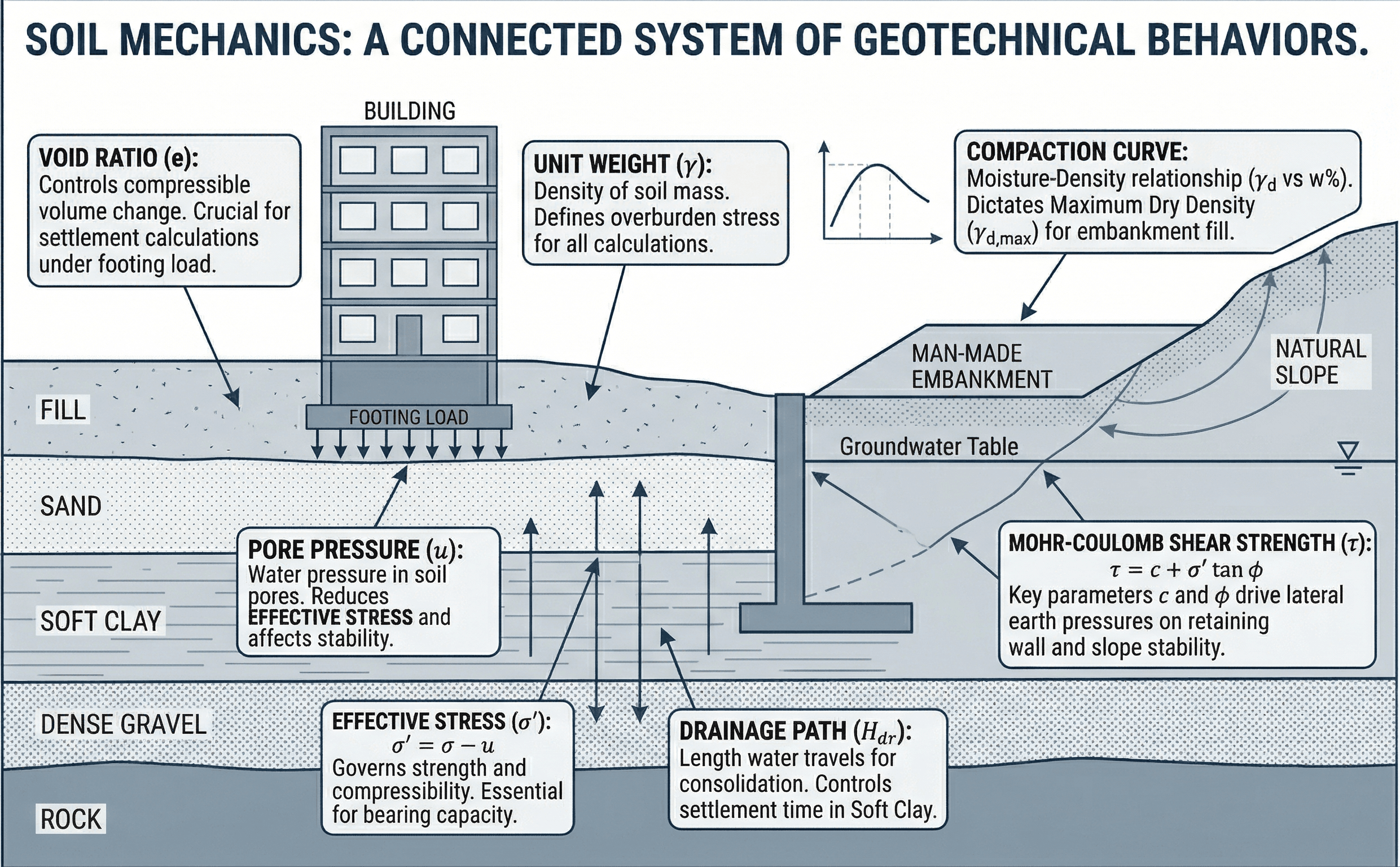

A typical workflow starts with desktop studies (geologic maps, past reports), followed by site exploration (borings, test pits, CPT), sampling and testing, and then analysis and design. Core concepts you’ll see throughout this page include phase relationships and index properties, classification (USCS/AASHTO), compaction behavior, seepage governed by Darcy’s law, effective stress, shear strength via Mohr–Coulomb, time-dependent consolidation, and stability of earth structures.
If a project touches the ground, soil mechanics determines how it will perform—both on day one and decades later.
Soil Phases & Index Properties
Natural soils contain solids (minerals and organics), water, and air. Phase relationships help relate mass, volume, and density states—crucial for compaction, consolidation, and settlement prediction. Important index properties include water content, unit weight, void ratio, degree of saturation, and Atterberg limits (for fines).
Common Phase Relationships
Why It Matters
Phase relationships control density and saturation, which in turn affect stiffness, strength, and permeability. Designers use them to convert field measurements into model inputs and to check construction quality.
Soil Classification (USCS & AASHTO)
Classification provides a common language to describe soil behavior. Coarse-grained soils (sands, gravels) are identified by gradation and fines content; fine-grained soils (silts, clays) are identified by plasticity and liquid/plastic limits. Organic content and special soils (peat, loess, collapsible/expansive clays) require extra care.
- USCS: GW/GP (well/poorly graded gravels), SW/SP (sands), GM/SM (silt), GC/SC (clayey), ML/CL (low plasticity fines), MH/CH (high plasticity).
- AASHTO: Groups A-1 to A-7 with group index capturing performance as subgrade or embankment materials.
- Plasticity Chart: Casagrande A-line separates silts from clays using liquid and plastic limits.
Did you know?
Two soils with identical grain sizes can behave very differently if one contains a small amount of clay—plasticity changes everything.
Compaction Behavior
Compaction densifies soil by expelling air, increasing dry unit weight and stiffness while reducing compressibility and permeability. The relationship between water content and dry unit weight is defined by the Proctor curve (Standard or Modified). Field control uses nuclear density gauges or sand cone tests with target relative compaction (e.g., 95% of maximum dry density) and moisture windows.
Dry Unit Weight
Design Consideration
For clayey soils, compacting slightly wet of optimum improves compressibility and permeability control; for granular soils, compact dry of optimum to maximize stiffness.
Permeability & Seepage
Water flow through soil is governed by hydraulic conductivity, which varies over orders of magnitude—from \(10^{-1}\) m/s in gravels to \(10^{-9}\) m/s in clays. Seepage analysis is critical for dewatering, drainage, cutoff walls, and dam/levee performance.
Darcy’s Law
Quick Tip
Always check exit gradients and piping at the downstream toe of embankments; granular filters and drains are cheap insurance against internal erosion.
Effective Stress: The Controlling Principle
Shear strength and compressibility in saturated soils are governed by effective stresses, not total stresses. Pore water carries part of the load; changing groundwater levels or undrained loading can instantly change soil behavior without moving a grain.
Terzaghi’s Effective Stress
Important
Construction staging and drainage can change \(u\) dramatically. Ignoring transient pore-pressure effects is a common cause of failures.
Shear Strength: Sands vs Clays
Shear strength controls bearing capacity, slope stability, and lateral earth pressures. For sands, friction governs strength; for clays, both cohesion and friction matter and depend on drainage conditions (drained vs undrained).
Mohr–Coulomb Criterion
Undrained Clays (Total Stress)
Consolidation & Settlement
Fine-grained soils compress over time as excess pore pressures dissipate and particles rearrange. Primary consolidation is time-dependent drainage; secondary compression follows at constant effective stress. Predicting total and differential settlement is key for mat foundations, tanks, embankments, and slabs-on-grade.
1-D Primary Consolidation
Time Rate (Terzaghi)
Lateral Earth Pressures & Retaining
Earth pressures depend on wall type, movement, and backfill/drainage. At-rest pressures apply to rigid, non-yielding walls; active/passive states develop when walls move sufficiently. Proper drainage and filters behind walls are often the most cost-effective risk reducers.
Active Earth Pressure (Rankine)
Slope Stability
Stability analyses compare resisting and driving shear along potential slip surfaces using limit-equilibrium or numerical methods. Key influencers include groundwater (pore pressures), stratigraphy, surcharge, and seismic loading. Reinforcement (geogrids, nails, anchors) and drainage often provide large gains in the factor of safety.
Factor of Safety (Concept)
Laboratory & In-Situ Testing
Reliable parameters come from representative samples and appropriate tests. Index tests (moisture, unit weight, Atterberg, sieve/hydrometer) feed classification; strength and compressibility come from triaxial (UU, CU, CD), direct shear, unconfined compression, and oedometer. In-situ methods (SPT-N, CPT-qc, vane shear, pressuremeter, dilatometer, geophysics) provide continuous or deformation-focused profiles often superior to disturbed samples.
- Sampling: Disturbed (split-spoon) for gradation/plasticity; undisturbed (Shelby, piston, block) for strength/settlement.
- Instrumentation: Piezometers, settlement plates, and inclinometers to track pore pressure, settlement, and lateral movement.
- QA/QC: Chain-of-custody, sample preservation, and reconciling lab results with field behavior.
Design Approach & Standards
Soil-mechanics-based designs check both ultimate limit states (bearing, sliding, overturning, global stability) and serviceability (settlement, rotation, deformation, seepage). Reliability comes from multiple layers: adequate exploration, high-quality testing, defensible parameter selection (characteristic values), and calibrated factors of safety or partial factors per the governing standard. Documentation should include assumptions, variability, and construction monitoring plans.
Allowable Capacity (Concept)
FAQs: Soil Mechanics Essentials
How do soils differ from man-made materials?
Soils are particulate, anisotropic, and stress-history dependent. Their properties vary spatially, so we rely on statistics, judgment, and monitoring—not just deterministic values.
When is a deep foundation preferable?
When shallow soils are weak/compressible, when scour or uplift governs, or when settlements are intolerable. Piles/shafts transfer loads to deeper competent layers or rock and control movements.
What controls settlement more—load or soil type?
Both, but soil type dominates. Loose sands settle immediately (elastic), while soft clays settle over months/years (consolidation). Modest load increases on soft clays can cause large long-term movements.
How does groundwater impact stability?
Elevated pore pressures reduce effective stress and shear strength, increasing lateral pressures and driving slope/wall instability. Drainage and staged construction mitigate risk.
What is the most common field investigation mistake?
Too few/too shallow borings for the structure and geology, coupled with inadequate sampling quality. Variability below grade is the #1 hidden risk; investigate accordingly.
Conclusion
Soil mechanics provides the language and tools to turn the ground into a reliable foundation for infrastructure. By understanding phases and index properties, classifying soils correctly, compacting to the right moisture/energy, managing seepage via Darcy’s law, designing with effective stress and Mohr–Coulomb strength, and predicting time-dependent consolidation, engineers deliver structures that are safe, economical, and durable.
For owners and designers, early geotechnical involvement pays off: a well-planned investigation, appropriate testing, and soil-mechanics-based design minimize surprises, optimize foundations and earthworks, and ensure long-term performance. From embankments and pavements to retaining walls and shallow/deep foundations, soil mechanics is the starting point—and the constant check—of successful civil engineering.
