Key Takeaways
- Core idea: Disinfection methods are treatment barriers used to inactivate pathogens before finished drinking water enters storage and distribution.
- Engineering use: Water treatment plants often combine primary disinfection with a chemical residual that continues protecting water in the distribution system.
- What controls it: Source water quality, turbidity, pH, temperature, disinfectant demand, contact time, residual needs, and byproduct risk control method selection.
- Practical check: UV and ozone can be strong in-plant disinfectants, but they do not provide lasting residual protection after water leaves the plant.
Table of Contents
Introduction
Disinfection methods in water treatment are the physical or chemical processes used to inactivate disease-causing microorganisms before finished drinking water reaches storage tanks and distribution pipes. Common methods include chlorination, chloramination, chlorine dioxide, ozone, and ultraviolet light, with selection driven by pathogen targets, water quality, contact time, residual needs, and byproduct control.

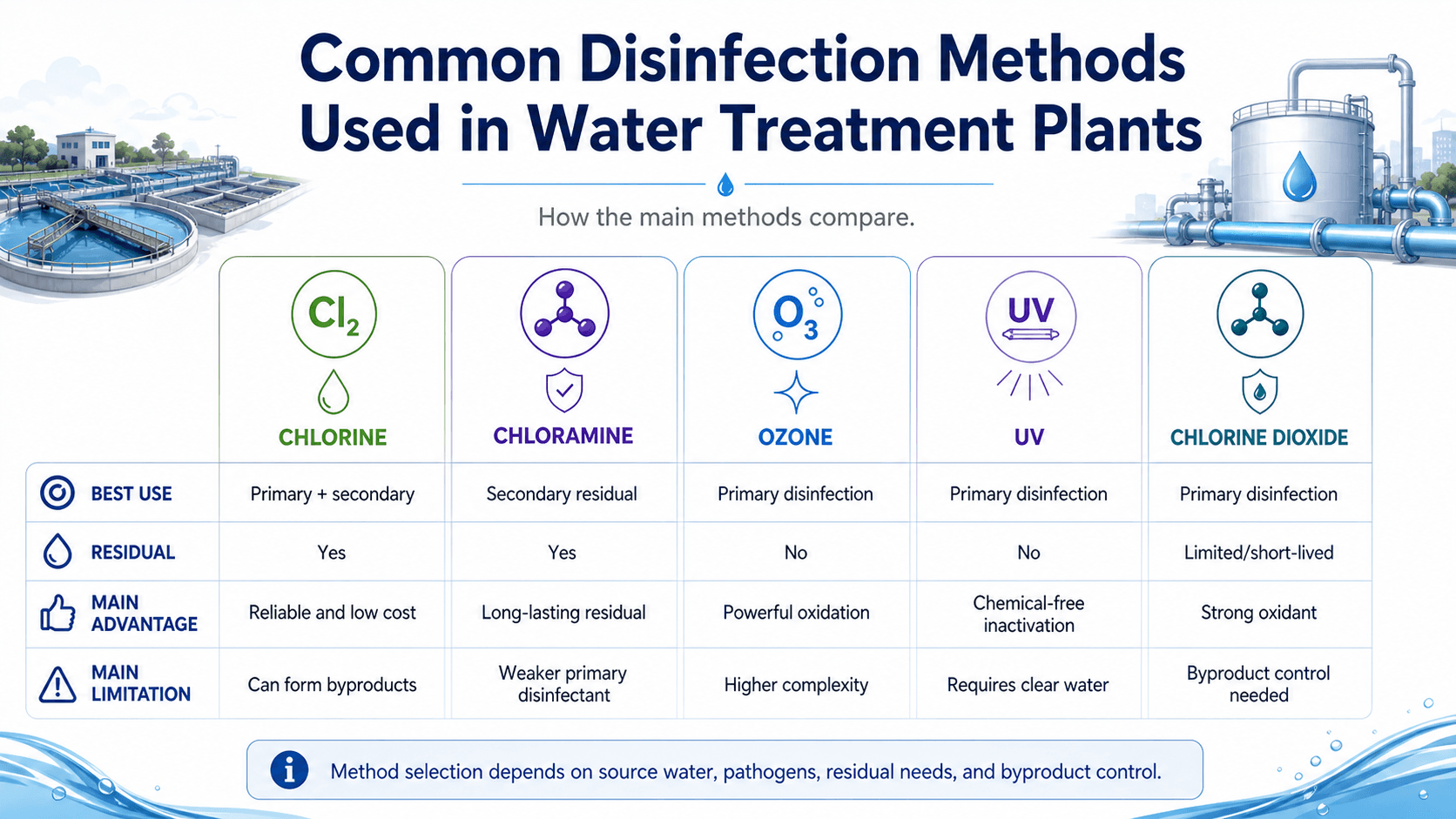

Common Disinfection Methods Used in Water Treatment Plants
The most important first distinction is residual protection. Chlorine and chloramine can continue working after the plant, while ozone and UV primarily act as in-plant treatment barriers.
What Are Disinfection Methods?
Disinfection methods are the treatment processes used to reduce microbial risk in drinking water. In a water treatment plant, disinfection is usually one of the final barriers after larger solids, suspended particles, turbidity, and much of the organic matter have been reduced by upstream processes.
The engineering objective is not simply to add a chemical or install a reactor. The objective is to achieve reliable pathogen inactivation while preserving acceptable taste, odor, corrosion control, byproduct levels, operational safety, and distribution system protection. That is why many utilities use a multiple-barrier approach instead of relying on one disinfection method alone.
A disinfection method is part of the full treatment train. Filtration performance, organic matter removal, contact basin hydraulics, storage volume, and distribution water age all affect whether disinfection works reliably.

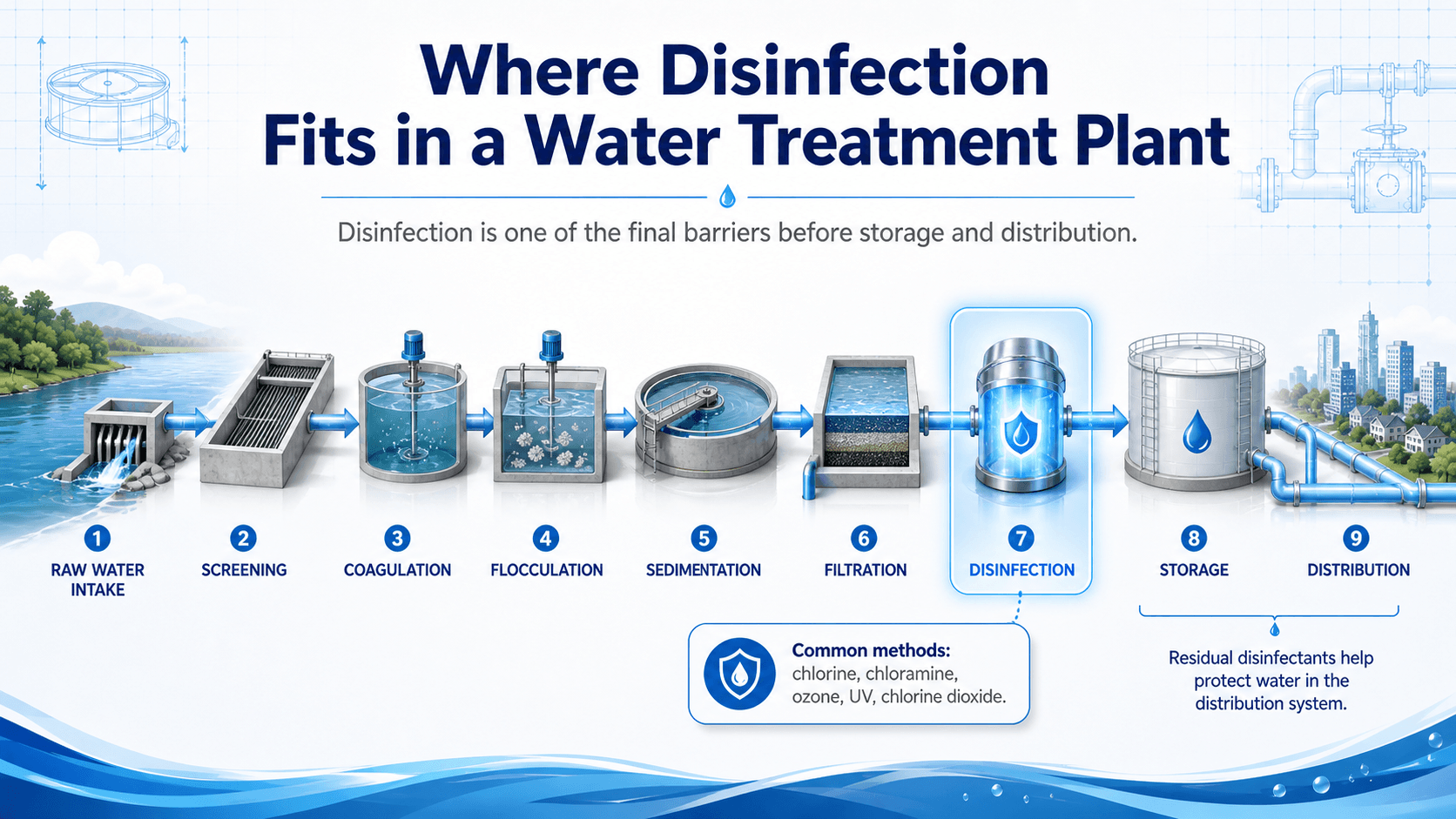

Where Disinfection Fits in a Water Treatment Plant
In a conventional surface water treatment plant, disinfection normally follows the main particle-removal steps. A typical sequence is raw water intake, screening, coagulation, flocculation, sedimentation, filtration, disinfection, finished water storage, and distribution.
Why disinfection is usually after filtration
Filtration removes particles that can shield microorganisms from disinfectants. Lower turbidity also improves UV transmission and reduces the disinfectant demand that would otherwise be consumed by suspended solids, organic matter, iron, manganese, or other reactive constituents.
Why storage and distribution still matter
The water still has to move through clearwells, tanks, transmission mains, distribution pipes, and service connections. A method that works well inside the plant may still need a secondary residual strategy to protect water from microbial regrowth or contamination risks after treatment.

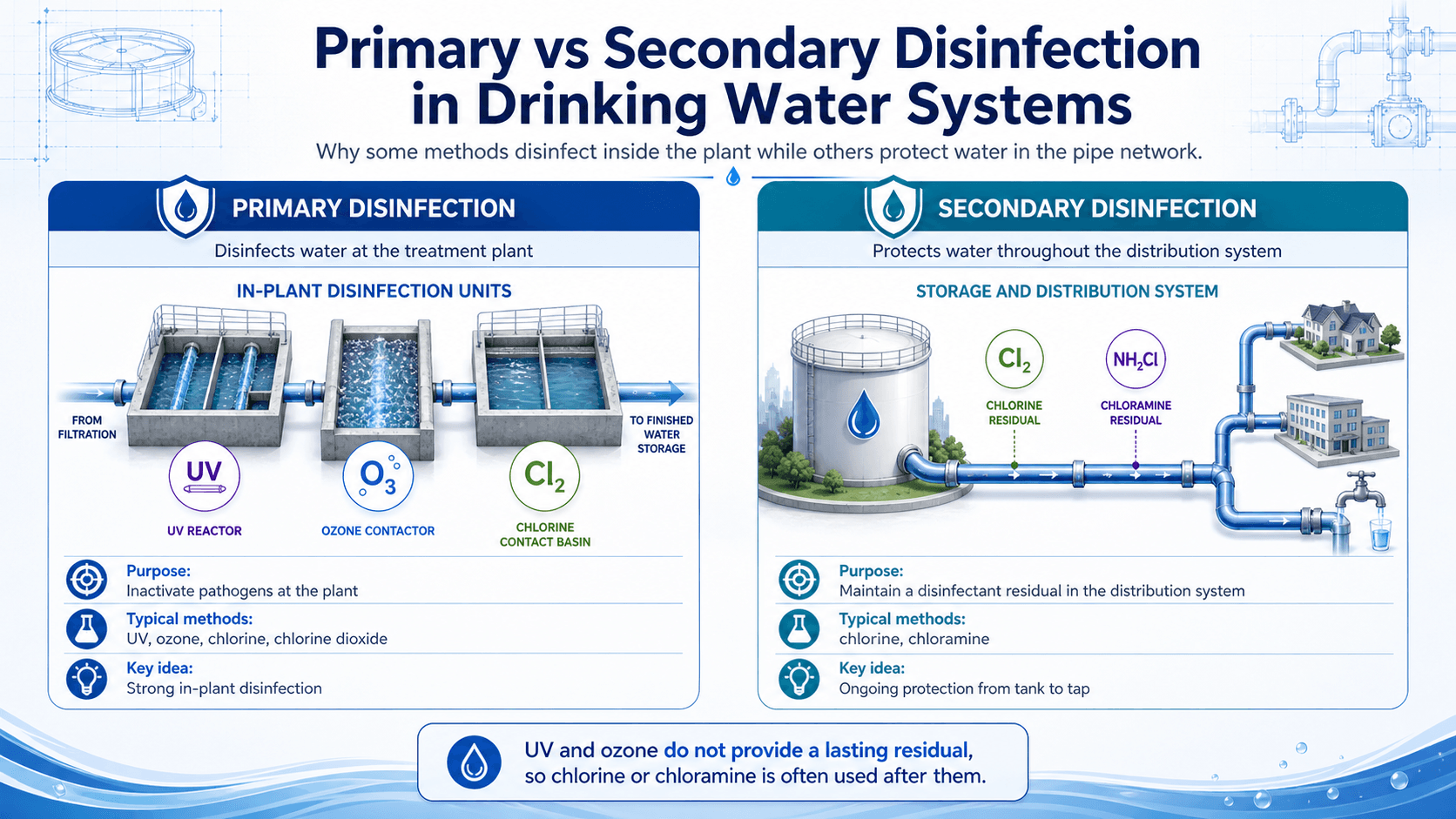

Primary vs Secondary Disinfection
Primary disinfection is the in-plant barrier used to inactivate pathogens before water enters finished storage. Secondary disinfection is the residual protection that remains in the distribution system after treatment. This distinction explains why a plant may use UV or ozone and still add chlorine or chloramine afterward.
Primary disinfection
Primary disinfection may use chlorine, chlorine dioxide, ozone, UV, or a combination of barriers depending on source water quality, target organisms, treatment requirements, and plant configuration. This step is focused on achieving the required inactivation before the water enters finished storage.
Secondary disinfection
Secondary disinfection usually relies on free chlorine or chloramine because they can remain measurable after water leaves the plant. The residual is not a replacement for filtration or primary disinfection, but it is an important protective barrier in tanks, mains, and service areas with longer water age.
How the Main Disinfection Methods Compare
There is no universal best disinfection method for every water treatment plant. A small system with short distribution piping may have different priorities than a regional system with long transmission mains, large storage tanks, variable source water quality, and challenging residual maintenance.
| Method | Typical role | Main advantage | Main limitation |
|---|---|---|---|
| Chlorine | Primary and secondary disinfection | Reliable, widely used, relatively low cost, and capable of leaving a residual | Can react with natural organic matter and contribute to disinfection byproducts |
| Chloramine | Secondary residual | Longer-lasting residual in many distribution systems | Weaker primary disinfectant and requires careful nitrification control |
| Chlorine dioxide | Primary disinfection and oxidation | Strong oxidant with useful taste, odor, and pathogen control applications | Requires control of chlorite and chlorate formation |
| Ozone | Primary disinfection and oxidation | Very powerful oxidant and strong in-plant treatment barrier | No lasting residual and higher equipment complexity |
| UV light | Primary physical disinfection | Chemical-free inactivation and useful for organisms resistant to some chemical disinfectants | No residual and performance depends heavily on water clarity and UV transmittance |
If a plant uses UV or ozone as the primary barrier, it commonly still needs chlorine or chloramine afterward to provide a measurable residual in finished water storage and distribution.
CT, Contact Time, and Disinfectant Exposure
Chemical disinfection is controlled by exposure, not just by the amount of chemical added. Engineers evaluate whether the disinfectant residual concentration and effective contact time are sufficient under the actual water temperature, pH, flow, and hydraulic conditions.
The CT concept multiplies disinfectant residual concentration by effective contact time. A higher concentration or longer contact time can increase exposure, but practical operation is constrained by taste, odor, byproducts, chemical safety, residual goals, and contact basin hydraulics.
- C Disinfectant residual concentration, commonly expressed in mg/L at the relevant point in the contact process.
- T Effective contact time, commonly expressed in minutes and adjusted for short-circuiting, baffling, and contact basin hydraulics.
- CT Disinfectant exposure, commonly expressed as mg·min/L and compared against treatment requirements for target organisms and operating conditions.
Why the same dose can perform differently
A chlorine dose that works well in cold, clear, well-mixed water may not achieve the same result when organic demand is higher, pH shifts, flow increases, or the contact basin short-circuits. Operators may add the same chemical amount, but the actual exposure can be very different.
What Controls Disinfection Performance?
Disinfection performance depends on water chemistry, physical clarity, hydraulics, microbial targets, monitoring, and distribution system behavior. Actual performance depends on whether the disinfectant reaches the organisms, remains active long enough, and leaves the right residual without creating unacceptable side effects.
| Factor | Why it matters | Engineering implication |
|---|---|---|
| Turbidity and particles | Particles can shield microorganisms and reduce UV effectiveness. | Filtration performance is part of disinfection performance, not a separate concern. |
| Organic matter | Organic material increases disinfectant demand and can contribute to byproduct formation. | Better precursor removal upstream can reduce downstream disinfection stress. |
| pH and temperature | Chemical disinfectant effectiveness changes with water chemistry and seasonal conditions. | Required dose and contact time may change between summer, winter, and source water events. |
| Hydraulic contact time | Short-circuiting can reduce the actual time water is exposed to disinfectant. | Contact basins, clearwells, and baffles must be reviewed as hydraulic systems, not just storage volumes. |
| Distribution system length | Residual decays as water moves through storage tanks, mains, and dead-end pipes. | Longer systems may need a more durable residual strategy, careful flushing, or targeted operational control. |
Disinfection Byproducts and Treatment Tradeoffs
Disinfection byproducts can form when chemical disinfectants react with naturally occurring organic matter or other constituents in the water. This does not mean disinfection should be avoided. It means treatment plants must balance microbial protection against chemical byproduct control.
Why upstream treatment affects byproducts
Processes such as coagulation in water treatment and flocculation in water treatment can reduce particles and organic precursors before disinfection. That lowers disinfectant demand and can reduce the conditions that contribute to byproduct formation.
Why “more disinfectant” is not always better
Increasing disinfectant dose may improve residual, but it can also create taste, odor, corrosivity, chemical handling, and byproduct concerns. The practical objective is controlled exposure and reliable residual, not simply the highest possible chemical dose.
The strongest primary disinfectant may not be the best total-system solution if it creates excessive operational complexity or fails to provide the residual needed in the distribution system.
Method Selection Guide for Water Treatment Plants
Engineers select disinfection methods by starting with the treatment objective, then checking whether the method can meet pathogen inactivation, residual, water quality, operator, and distribution requirements. The best choice is usually the method or combination of methods that provides reliable public-health protection with manageable side effects.
Start with the source water and pathogen target. Check filtered water turbidity, organic matter, pH, temperature, and UV transmittance. Select the primary disinfection barrier. Then decide whether a secondary residual is required for storage and distribution. Finally, verify byproducts, chemical safety, operator skill, redundancy, monitoring, and maintenance needs.
| Decision point | What to look for | Likely engineering direction |
|---|---|---|
| Need strong in-plant inactivation? | Surface water source, resistant organisms, high microbial risk, or strict inactivation target. | Consider chlorine, chlorine dioxide, ozone, UV, or a combined barrier approach. |
| Need long distribution residual? | Large storage volume, long pipe network, warm water, dead ends, or long water age. | Free chlorine or chloramine becomes important for secondary disinfection. |
| High organic matter or DBP concern? | Elevated color, total organic carbon, seasonal algae, or source water changes. | Improve precursor removal before disinfection and evaluate disinfectant type and application point. |
| Low UV transmittance? | Particles, color, iron, manganese, or other constituents reducing light penetration. | UV may require better pretreatment or may not be suitable as the only primary barrier. |
| Operator and maintenance constraints? | Staffing, chemical storage, instrumentation, lamp cleaning, generator maintenance, and emergency response. | Select a method the utility can operate consistently, not just the most advanced technology on paper. |
Engineering Judgment and Field Reality
Real water treatment plants rarely operate under one steady condition. Storm events, algae blooms, seasonal temperature changes, source blending, filter performance, and storage tank water age can all change how well a disinfection strategy performs. Experienced engineers and operators watch trends, not just individual readings.
One common field reality is that disinfection issues may appear downstream before they appear in the plant data. A treatment plant may meet its finished water residual target, but far-end distribution locations can still experience low residual, taste and odor complaints, nitrification risk, or microbial regrowth indicators if water age is high.
The residual measured at the plant is not the same as the residual experienced across the entire distribution system. Tank mixing, pipe age, biofilm, dead ends, water age, and seasonal demand can change the answer.
When This Breaks Down
Disinfection methods break down when the simplified assumption of clear, well-mixed, predictable water is no longer true. A process that looks adequate in a diagram may underperform if the water quality, hydraulics, monitoring strategy, or distribution conditions are not controlled.
- High turbidity: particles can shield microorganisms and reduce UV light penetration.
- Poor contact basin hydraulics: short-circuiting can reduce the effective contact time even when total basin volume appears adequate.
- High disinfectant demand: organic matter, ammonia, iron, manganese, or biofilm can consume disinfectant before it provides the intended residual.
- Long water age: residual can decay in storage tanks and dead-end mains before water reaches customers.
- Weak monitoring strategy: a plant can miss seasonal or distribution problems if it only checks one location or one operating condition.
Common Mistakes and Practical Checks
The most common mistakes come from treating disinfection as a single equipment choice instead of a complete barrier strategy. The practical checks below connect the method to the water quality, treatment train, and distribution system.
- Assuming UV or ozone replaces residual protection: these methods can be powerful primary disinfectants but do not protect water throughout the pipe network.
- Ignoring upstream treatment: poor coagulation, flocculation, sedimentation, or filtration can make disinfection harder and less reliable.
- Using dose instead of exposure: chemical dose alone does not prove disinfection performance without residual, contact time, and hydraulic context.
- Overlooking byproducts: chemical disinfection must be balanced with organic precursor control and finished water quality goals.
- Checking only plant effluent: distribution system residual trends are critical for understanding real customer-side protection.
Do not rank disinfection methods as universally best or worst. A method that is excellent for primary inactivation may be incomplete if the system also needs residual protection in storage and distribution.
Useful References and Design Context
Drinking water disinfection is tied to public-health protection, microbial inactivation, filtration performance, and byproduct control. Engineers usually evaluate treatment requirements through federal rules, state primacy agency requirements, design manuals, pilot data, and utility-specific operating experience.
- U.S. EPA Surface Water Treatment Rules: EPA Surface Water Treatment Rules explain the regulatory framework for filtration and disinfection of surface water and groundwater under the direct influence of surface water, including microbial protection and disinfection byproduct tradeoffs.
- Project-specific criteria: State drinking water requirements, utility standards, source water studies, and distribution system monitoring plans may control the final disinfection approach.
- Engineering use: Engineers use regulatory criteria, CT calculations, residual monitoring, pilot testing, and water quality data to choose the method, dose, contact basin configuration, and monitoring strategy.
Frequently Asked Questions
The main disinfection methods used in drinking water treatment include chlorine, chloramine, chlorine dioxide, ozone, and ultraviolet light. Chlorine and chloramine are especially important because they can leave a disinfectant residual that continues protecting water after it leaves the treatment plant.
UV and ozone can be very effective inside the treatment plant, but they do not provide a lasting residual in the distribution system. Chlorine or chloramine is often used after those methods so treated water remains protected as it moves through storage tanks, pipes, and service connections.
Primary disinfection is the in-plant step used to inactivate pathogens before water enters finished storage. Secondary disinfection maintains a disinfectant residual in the distribution system so water stays protected between the treatment plant and the customer tap.
Disinfectant need depends on source water quality, turbidity, organic matter, pH, temperature, target pathogens, contact time, required residual, and distribution system conditions. Engineers balance microbial protection against taste, odor, chemical handling, corrosion, and disinfection byproduct control.
Summary and Next Steps
Disinfection methods are the final microbial protection barriers used in water treatment plants before finished water enters storage and distribution. The main methods include chlorine, chloramine, chlorine dioxide, ozone, and UV, but their roles are not interchangeable.
The most important engineering distinction is primary versus secondary disinfection. Primary disinfection controls pathogens inside the plant, while secondary disinfection maintains a residual in the distribution system. Good method selection also accounts for CT, turbidity, organic matter, byproducts, contact basin hydraulics, operator skill, and distribution water age.
