Strip Foundations

What Is a Strip (Continuous) Foundation?

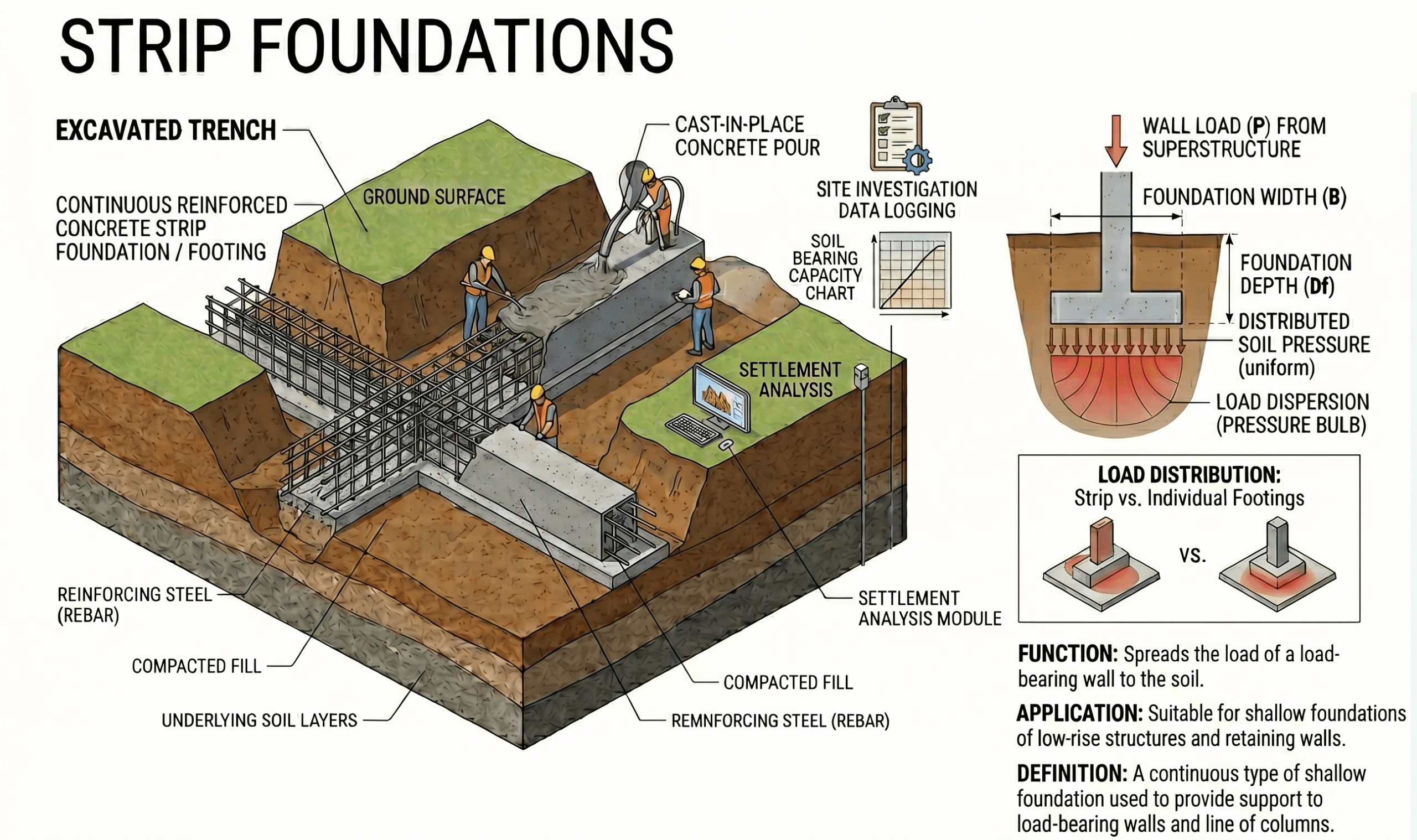

A strip foundation—also called a continuous footing—is a linear footing running beneath load-bearing walls or a line of closely spaced columns. It spreads load along its length so soil contact pressures remain within allowable bearing capacity and total/differential settlement limits. Strip foundations are a cornerstone of low- to mid-rise construction, basement walls, and lightly loaded retaining structures where near-surface soils are competent.

This guide explains where strip footings excel, common geometries, key geotechnical and structural checks, groundwater and frost considerations, wall interaction with soil, and site-ready construction practices. It also links to related topics such as Shallow Foundations, Isolated Foundations, Combined Foundations, and alternatives like Mat Foundations or Deep Foundations when loads or ground conditions demand.

Designing a great strip footing is about continuity—consistent bearing, controlled settlement, and details that keep the wall and soil acting as a reliable system.

When Are Strip Foundations the Best Choice?

Consider strip foundations when the following conditions are met:

• Continuous Wall Loads: Masonry or concrete load-bearing walls, basement walls, or long equipment plinths impose distributed line loads.
• Competent Near-Surface Soils: Medium-dense sands or stiff clays with adequate bearing and limited compressibility at shallow depths (Site Characterization confirms this).
• Moderate Settlements Tolerated: Superstructure can accommodate expected total and differential settlements along the wall alignment.
• Economy & Simplicity: Repetition of formwork and reinforcement makes strips cost-effective compared to a mat in smaller buildings.
• Hydrogeologic Feasibility: Groundwater is manageable without excessive heave or uplift (see Groundwater).

Types & Geometry

Geometry reflects wall load, site constraints, and soil capacity. Common variants include:

• Plain Rectangular Strip: Constant width and thickness; typical for uniform wall loads and soils.
• Stepped Strip: Thickness or elevation steps to follow sloping ground or reach frost depth without overexcavation.
• Wide Base / Narrow Stem: A widened base plate reduces contact pressure; the stem aligns with the wall above to limit eccentricity.
• Reinforced Strip with Edge Beams: Longitudinal reinforcement or ribs for spans across soft spots and for managing differential movement.
• Strip with Key: A shear key or toe projection for sliding resistance where lateral loads are significant (e.g., retaining conditions).

Bearing Capacity, Eccentricity & Settlement

The first sizing step is to select a width so that the service or factored soil pressure remains within allowable or limit-state targets. Then ensure the resultant from wall load and any lateral effects stays within the kern (middle third) to avoid tension at the base.

Parameters should come from a well-scoped investigation and lab program—see Geotechnical Soil Testing (e.g., Triaxial Test, Atterberg Limits, Permeability Test) and be interpreted within a coherent ground model (see Geotechnical Modeling and Geotechnical Data Analysis).

• Immediate Settlement: Dominant in sands and overconsolidated clays; adjust for width and embedment.
• Consolidation Settlement: Significant in normally consolidated clays; predict using oedometer parameters (Soil Consolidation).
• Differential Along the Wall: Consider variability in subgrade stiffness; longitudinal reinforcement or ribs can bridge soft spots.
• Mitigation: Increase width, improve ground (Ground Improvement Techniques), or shift to a Mat Foundation.

Groundwater, Frost & Durability

Hydrogeologic and climate conditions often control footing details, excavation safety, and long-term performance. Characterize seasonal groundwater and local frost depth early and design resilient drainage.

• Groundwater: Keep base above high seasonal water where feasible; provide underdrains and capillary breaks. Learn more: Groundwater in Geotechnical Engineering.
• Frost: Place the base below regional frost depth and specify non-frost-susceptible subbase.
• Durability: Use low-permeability concrete, appropriate cover, and joint sealing where exposure is aggressive.
• Stable References: For durable national guidance, see FHWA and USACE. For hazard mapping, consult USGS.

Walls, Lateral Earth Pressure & Adjacent Works

Strip footings frequently support walls that interact with soil laterally: basement walls, grade beams, and low retaining structures. Lateral forces introduce sliding and overturning demands; proximity to excavations and utilities can change effective stresses and settlement behavior.

• Lateral Earth Pressures: Check active/at-rest pressures; coordinate with Retaining Wall Design if backfill raises demands.
• Sliding Resistance: Provide adequate base friction; add a shear key or increase embedment where needed.
• Adjacent Excavations: Temporary cuts can reduce lateral support and cause settlements; monitor and phase construction accordingly.
• Liquefaction & Seismic: In seismic regions, check sliding/overturning and potential lateral spreading (see Liquefaction).
• SSI: Model wall–soil–footing interaction to capture realistic load paths (see Soil-Structure Interaction).

Construction Practices & QA/QC

Reliable field performance depends on disciplined site work with verifiable acceptance criteria tied to the geotechnical report.

• Excavation & Subgrade: Proof-roll and undercut soft spots; place a leveling pad; verify founding elevation and bearing stratum.
• Backfill & Compaction: Moisture–density targets per the Standard Proctor Test and field Compaction Test.
• Drainage: Install subdrains, weeps, and free-draining backfill where needed; confirm outlets.
• Concrete & Reinforcement: Maintain cover; avoid congestion at wall-footing junctions; continuous placement to limit cold joints; curing per spec.
• Instrumentation: Settlement points/heave pins along long walls if risk warrants; groundwater observation wells for dewatering control.
• Reporting: Collate tests, photos, and field changes into final Geotechnical Reporting.

Design Workflow: From Ground Model to Details

A consistent workflow reduces uncertainty and drives repeatable quality:

• 1) Investigate: Borings, CPT/SCPT, lab testing; identify groundwater and variability—start with Site Characterization.
• 2) Parameterize: Derive stiffness/strength/compressibility; validate correlations via Geotechnical Data Analysis.
• 3) Proportion Width & Depth: Choose width for pressure limits; embedment for frost/sliding; consider base keys where lateral loads act.
• 4) Serviceability: Predict immediate and consolidation settlements along the wall; consider ribbing/reinforcement for bridging soft zones.
• 5) Strength Checks: Bearing, sliding, overturning, shear, and flexure; verify kern criteria and wall–footing connection detailing.
• 6) Groundwater & Drainage: Detail subdrains, caps, and outlets (see Groundwater).
• 7) Alternatives: If settlements or geometry push limits, evaluate Mat Foundations or Deep Foundations.

FAQs: Strip Foundations

How wide should my strip footing be?

Pick the smallest width that keeps contact pressure under allowable limits for all load combinations, including eccentric effects from wall loads or backfill. Then verify shear and flexure strength and adjust thickness and rebar accordingly.

How do I control differential settlement along long walls?

Use consistent subgrade preparation, consider ribs or a grade beam to bridge soft spots, and tighten QA/QC. If variability is high, increase width or move to a stiffened slab or Mat Foundation.

Should I include a shear key?

Provide a key when sliding checks fail under lateral earth or seismic loads. Keys increase passive resistance and reduce reliance on base friction alone.

Which external references are stable to cite?

National repositories such as FHWA, USACE, and USGS are authoritative and unlikely to change base URLs.

Conclusion

Strip foundations are a practical, buildable solution for continuous wall loads on competent ground. Their success depends on a sound ground model, thoughtful proportioning for bearing and eccentricity, and realistic settlement control along the wall length. Hydrologic resilience (drainage, capillary breaks) and climate-aware details (frost depth) protect performance over the structure’s life. When geometry tightens or settlement criteria become stringent, evaluate system-level alternatives—Combined Foundations at boundaries, or a full Mat Foundation or Deep Foundations for heavier structures. Keep exploring related guides on Bearing Capacity, Soil-Structure Interaction, and Ground Improvement Techniques to round out your design toolkit.
