Timber Design

Introduction

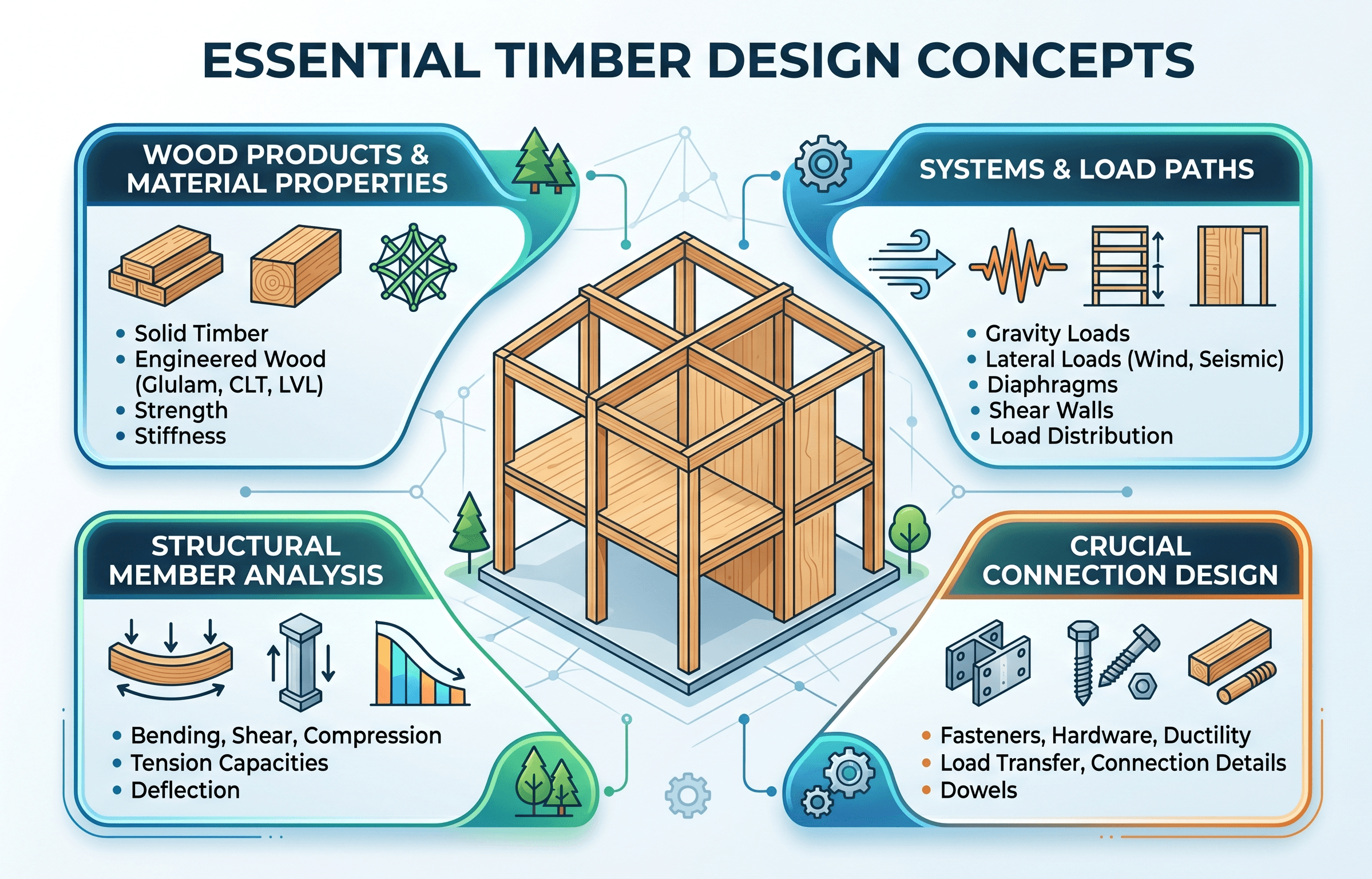

Timber design is the practice of sizing wood members and detailing connections so buildings and bridges made from sawn lumber, glulam, LVL, and mass timber systems are safe, comfortable, durable, and economical. As a structural material, wood is unique: its strength and stiffness vary by species, grade, moisture, and load duration, yet it achieves exceptional performance when designers respect these variables and provide a continuous load path to the foundation.

Modern timber design blends traditional carpentry wisdom with codified mechanics, enabling low-carbon structures that perform on schedule and budget.

What Is Timber Design & Why Choose It?

In practice, “timber design” means selecting a wood product and grade, establishing design values, modeling member and system behavior in structural analysis, and checking strength, serviceability, and durability. Projects choose timber to reduce embodied carbon, accelerate construction with prefabrication, and deliver pleasant acoustic and aesthetic environments. With mass timber (CLT, glulam, NLT, DLT) and hybrid systems, spans and heights once reserved for steel and concrete are now viable in wood—when diaphragm, shear wall, and connection design are executed rigorously.

Common Applications

Low- to mid-rise residential and commercial buildings, long-span roofs, schools, pavilions, and hybrid cores with timber gravity systems.

Materials & Engineered Wood Products

Structural timber ranges from sawn lumber to engineered products with improved uniformity. Properties depend on species, grade, and layup. For fundamentals see timber materials and broad building materials.

  • Sawn lumber: Dimension lumber with species/grade design values for bending \( F_b \), tension \( F_t \), compression \( F_c \), shear \( F_v \), and modulus \( E \).
  • Glulam: Laminated members with high predictability; curved shapes possible; excellent for long spans and arches.
  • LVL/PSL/LSL: Engineered veneers/strands with high \( F_b \) and \( E \) for beams, headers, and rim boards.
  • Mass timber (CLT, NLT, DLT): Panelized products for floors/roofs/walls; behave as plates/diaphragms with rolling shear considerations.

Key Modifiers

Design values are adjusted for load duration, moisture, temperature, size, stability, and repetitive member use. Selection affects both capacity and serviceability.

Design Philosophy: Strength, Serviceability & Adjustments

Timber codes use limit states for strength and serviceability with adjustment factors that tailor reference design values to in-service conditions. Load combinations come from recognized minimum load standards; member checks cover bending, shear, axial, combined actions, and stability. Because wood is anisotropic and moisture-sensitive, serviceability (deflection, vibration, creep) and durability (moisture management) are co-equal with strength.

Strength Check (Conceptual)

\( \sum \gamma_i Q_i \le \phi\, R_n \quad \text{or} \quad \sum Q_i \le \dfrac{R_n}{\Omega} \)
\(Q_i\)Load effects (M, V, N)
\(R_n\)Nominal resistance from design values
\( \phi,\ \Omega \)Resistance / safety factors

Important

Apply duration-of-load and moisture adjustments consistently—misapplication can swing results more than any small modeling refinement.

Member Design: Bending, Shear, Axial & Combined

Member checks depend on reference design values modified for conditions. Bending strength addresses extreme fiber stresses; shear checks web (rolling) shear in lumber and panel shear in CLT; axial checks include column stability; combined actions use interaction equations.

Bending Stress (Concept)

\( \sigma_b = \dfrac{M}{S} \le F_b^{\,\ast} \)
\(M\)Maximum bending moment
\(S\)Section modulus
\(F_b^{\,\ast}\)Adjusted bending design value

Shear Stress (Concept)

\( \tau_v \approx \dfrac{1.5\,V}{A_w} \le F_v^{\,\ast} \)
\(V\)Shear force
\(A_w\)Web area (solid depth × thickness)
\(F_v^{\,\ast}\)Adjusted shear design value

For floor systems, repetitive member factors may increase capacity, while notches and holes must be kept away from high-moment zones. For CLT, check major/minor axis bending and rolling shear in the cross-laminated layers; panel manufacturer data guide span tables and connections.

Stability & Buckling

Columns require stability checks for slenderness, including effects of end conditions and effective length. Bending stability for beams includes lateral-torsional buckling (less critical for deep, well-braced timber floors) and compression perpendicular to grain bearing at supports. Where members are slender, second-order effects (P-Δ) can amplify moments—treat these in your analysis.

Column Concept (Euler)

\( P_{cr} = \dfrac{\pi^2 E I}{(K L)^2} \)
\(E\)Modulus of elasticity (adjusted)
\(K L\)Effective length

Bracing & Bearing

Provide lateral bracing at compression edges, verify bearing perpendicular-to-grain at supports/blocking, and prevent crushing at hangers and ledger seats.

Connections: Nails, Screws, Bolts & Plates

Connections often govern timber systems. Dowel-type fasteners (nails, screws, bolts) are designed using yielding modes with wood bearing; withdrawal and rope effects are controlled by embedment depth and angle to grain. Engineered connectors (hangers, knife plates, concealed steel) concentrate forces—detail for access, tolerances, and erection sequencing. For mass timber, self-tapping screws provide high capacity and stiffness; STS angle and length matter.

  • Shear connections: Nail/screw arrays in double shear; avoid splitting with predrill and spacing limits.
  • Tension connections: Use long screws at angles to grain or steel plates with bolts; verify withdrawal and net section.
  • Uplift & hold-downs: Shear walls require hold-downs and boundary chords with adequate overturning capacity.

Important

Detail what you modeled: connection slip and stiffness affect drift and vibration; coordinate with diaphragm/shear wall assumptions.

Serviceability: Deflection, Vibration & Creep

Timber is lightweight and sensitive to long-term deformation. Deflection limits protect finishes and perception; vibration criteria ensure occupant comfort; creep increases deflection under sustained load and higher moisture. Check short-term (instantaneous) and long-term (creep) deflections; stiffen with deeper members, composite action, or additional bracing. See structural dynamics for vibration fundamentals.

Deflection (Simplified)

\( \Delta_\text{inst} = \dfrac{5 w L^4}{384 E I} \quad \Rightarrow \quad \Delta_\text{long} \approx (1+\lambda)\, \Delta_\text{inst} \)
\(w\)Uniform load
\( \lambda \)Creep amplification (moisture & duration)

Comfort Tips

Raise fundamental frequency with shorter spans or stiffer members; add partitions or topping where appropriate; avoid resonant equipment frequencies.

Durability, Moisture Management & Fire Resistance

Durable timber structures start with moisture control: keep water out, let assemblies dry, and separate wood from ground/standing water. Detail overhangs, flashing, ventilation gaps, and capillary breaks. Insects and decay are managed by design and, where needed, treatment. For fire, heavy timber and mass timber develop a protective char layer that slows heat penetration; design uses effective char rates and residual section methods.

Char Method (Concept)

\( t_\text{eff} = t_0 – \beta_0\, t_f \)
\(t_\text{eff}\)Effective residual thickness
\( \beta_0 \)Effective char rate
\( t_f \)Fire exposure time

Lateral Systems: Shear Walls & Diaphragms

Timber lateral systems rely on sheathing fastener arrays and hold-downs to deliver strength and ductility. For wind, control story drift and uplift, roof/diaphragm anchorage, and component cladding pressures; see wind design. For seismic, capacity design principles protect brittle modes by ensuring ductile yielding in connections and chords; coordinate with seismic design and diaphragm collectors/chords.

  • Diaphragms: Panel nailing patterns, boundary chords, and collectors must match analysis assumptions (rigid vs. semi-rigid).
  • Shear walls: Sheathing grade/thickness, nail size/spacing, aspect ratio limits, and overturning hold-downs control capacity and drift.
  • Mass timber panels: CLT diaphragms with spline joints or steel plates; verify panel shear and connections.

Codes, Standards & Trusted References

Timber design is governed by building codes and material standards. Load determinations and combinations come from recognized minimum load standards. Stable homepages for authoritative resources:

  • AWC – American Wood Council: Design standards and guides. Visit awc.org.
  • ASCE: Minimum design loads and hazard criteria. Visit asce.org.
  • ICC: International Building Code. Visit iccsafe.org.
  • APA – The Engineered Wood Association: Technical notes and diaphragm/wall values. Visit apawood.org.

For context across materials, explore steel design and concrete design alongside this timber overview.

Frequently Asked Questions

Is timber strong enough for multi-story buildings?

Yes. Mass timber panels and glulam frames deliver competitive spans and stiffness. The keys are tuned diaphragms, robust hold-downs, and connections detailed to match modeled stiffness.

What usually governs timber floors—strength or vibration?

Often vibration/deflection serviceability. Achieve comfort by increasing depth, reducing span, adding composite topping, or improving damping through partitions.

How do moisture and load duration affect design?

They directly modify design values. Wet-service reduces capacity; short-duration events (wind/seismic) can increase allowable stresses. Apply modifiers consistently and design details to keep assemblies dry.

Can timber meet fire ratings?

Yes. Heavy/mass timber can achieve required ratings through inherent charring and protected residual sections; detail connections and penetrations to maintain protection.

Key Takeaways & Next Steps

Timber design delivers low-carbon, fast-to-build structures when the fundamentals are respected: accurate loads, realistic boundary conditions, proper adjustment factors, and moisture/fire-aware detailing. Start with system selection and span strategy, verify strength and serviceability, and coordinate inspections to confirm placement and connection details. To deepen your understanding, review structural loads, wind design, seismic design, and core structural analysis concepts.

For authoritative references and up-to-date guidance, start with AWC, confirm loads via ASCE, and verify jurisdictional adoption at ICC. With thoughtful modeling and rigorous detailing, timber can safely carry modern architecture’s ambitions.
