Key Takeaways
- Core idea: Lightweight materials reduce structural self-weight while still needing adequate strength, stiffness, fire resistance, durability, and connection performance.
- Engineering use: Engineers use lightweight systems to reduce dead load, foundation demand, seismic mass, crane loads, retrofit weight, and transportation effort.
- What controls it: The controlling issue is often stiffness, vibration, buckling, creep, connection behavior, or fire performance rather than simple material strength.
- Practical check: A lightweight material should be evaluated as part of the full load path, not swapped into a design based only on density or unit cost.
Table of Contents
Introduction
Lightweight materials in structural engineering are materials or systems that reduce dead load while still providing the required strength, stiffness, durability, and safety. Common examples include structural lightweight concrete, steel framing, aluminum alloys, mass timber, fiber-reinforced polymers, sandwich panels, and lightweight fill systems used to make buildings and infrastructure more efficient.

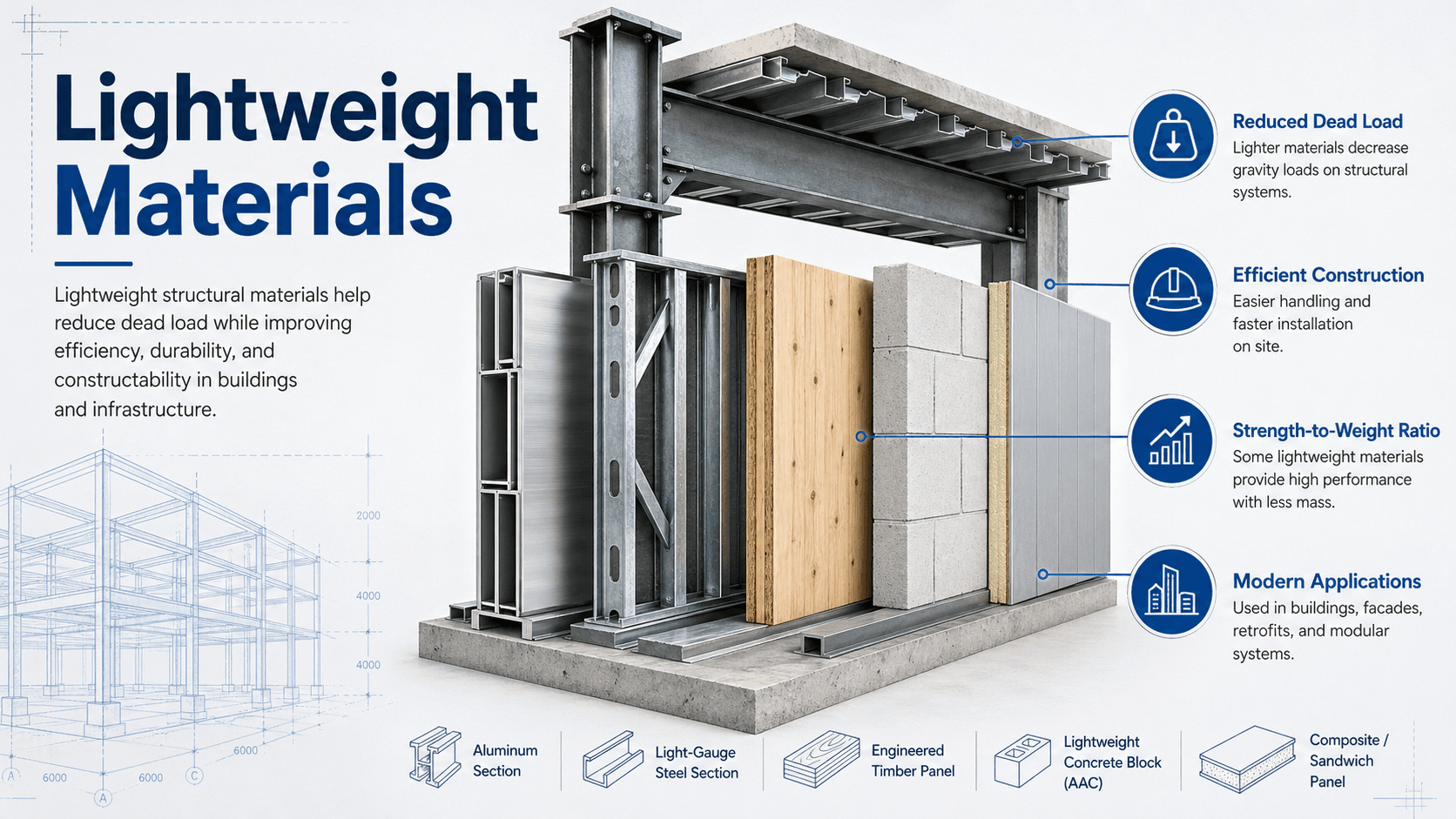

Visual Guide to Lightweight Structural Materials
Notice that the best lightweight option is not always the material with the lowest density. A successful structural choice balances weight reduction with stiffness, stability, fire performance, constructability, and long-term behavior.
What are Lightweight Materials?
Lightweight materials are materials, products, or structural systems chosen because they reduce the weight of a member, assembly, or entire structure. In structural engineering, the term is relative: a material may be lightweight because it has low density, a high strength-to-weight ratio, a hollow shape, a cellular core, or an efficient composite layout.
This distinction matters because a material can be light but not structurally useful, or dense but highly efficient. Steel, for example, is much denser than timber or aluminum, yet a steel truss or wide-flange beam may carry large loads with relatively little total system weight. Structural lightweight design is therefore about performance per unit weight, not density alone.
How Lightweight Materials Reduce Structural Demand
Reducing self-weight affects more than the member being replaced. A lighter floor, roof, facade, or bridge deck can reduce loads in beams, columns, walls, foundations, retaining systems, cranes, connections, and sometimes seismic force-resisting systems. The benefit can multiply through the structure when the reduced weight occurs high in the building or across many repeated bays.
Dead Load and the Load Path
Dead load flows through the structure from slabs and decks into beams, girders, columns, walls, foundations, and supporting soil. When a floor system becomes lighter, the full load path may see lower gravity reactions. This can make lightweight materials especially useful in high-rise floors, long-span roofs, bridge decks, and retrofit projects where existing foundations have limited reserve capacity.
Strength-to-Weight and Stiffness-to-Weight
Two important ideas are specific strength and specific stiffness. Specific strength compares strength to density, while specific stiffness compares elastic modulus to density. These ratios help engineers screen material families, but they do not replace member design, connection design, fire checks, vibration checks, or construction review.
- E Elastic modulus, commonly used to evaluate stiffness and deflection behavior.
- ρ Material density, commonly expressed in lb/ft³ or kg/m³.
- Dead load Permanent weight from structural members, finishes, cladding, fixed equipment, and other permanent components.
Where Lightweight Materials are Used in Structures
Engineers use lightweight materials where reducing weight improves performance, constructability, or economy. The decision is usually project-specific because the best material for a bridge deck may not be the best material for a high-rise floor, long-span roof, facade support, or retaining wall backfill.
- High-rise buildings: Lighter floors, facades, and partitions can reduce gravity loads, column demand, foundation demand, and seismic mass.
- Long-span roofs and canopies: Steel trusses, aluminum framing, timber grids, and sandwich panels can create efficient spans with less erection weight.
- Bridge decks and retrofits: FRP decks, lightweight concrete, aluminum components, and timber systems can reduce added load on existing substructures.
- Soft-ground and retaining wall projects: EPS geofoam and other lightweight fills can reduce settlement, lateral pressure, and embankment loading.
- Industrial and corrosive environments: FRP shapes, stainless components, and aluminum systems can reduce weight while improving corrosion resistance.
Ask what weight reduction actually improves. If the project is controlled by foundation capacity, seismic mass, crane access, retrofit limits, or long-span serviceability, lightweight materials may create system-level value. If the project is controlled by fire rating, acoustics, impact resistance, or connection complexity, the lightest option may not be the best option.
Major Types of Lightweight Structural Materials
Lightweight structural materials are best compared by use case, not by weight alone. A good selection table should show what each material does well, what usually controls the design, and where it can create problems.
| Material or system | Best structural uses | Main engineering concern |
|---|---|---|
| Structural lightweight concrete | Floor slabs, bridge decks, precast elements, roof systems, and high-rise floors | Modulus of elasticity, creep, shrinkage, curing, aggregate quality, and anchorage behavior |
| Structural steel | Long-span beams, trusses, frames, towers, industrial structures, and seismic systems | Buckling, fire protection, corrosion protection, connection design, and vibration |
| Aluminum alloys | Facades, canopies, pedestrian bridges, marine structures, roofs, and specialty framing | Lower stiffness than steel, thermal movement, fatigue details, and galvanic corrosion |
| Mass timber and engineered wood | Floors, roofs, walls, glulam beams, CLT panels, hybrid buildings, and exposed structural systems | Moisture control, fire detailing, vibration, acoustics, connection slip, and long-term creep |
| Fiber-reinforced polymers | Bridge decks, strengthening systems, grating, platforms, corrosive environments, and lightweight panels | Fire, UV exposure, creep rupture, bond, anchorage, matrix temperature limits, and brittle rupture |
| Sandwich panels | Roofs, walls, cladding, modular construction, pedestrian bridges, and enclosure systems | Face wrinkling, core shear, fire rating, impact resistance, connection pull-through, and delamination |
| Lightweight masonry and AAC | Partitions, infill walls, fire-rated walls, low-rise walls, and enclosure assemblies | Lower compressive strength, anchorage, moisture behavior, and local bearing capacity |
| EPS geofoam and lightweight fill | Retaining wall backfill, bridge approaches, embankments, soft-ground construction, and utility protection | Buoyancy, fire during construction, long-term compression, chemical compatibility, and protective cover |
What Controls Lightweight Material Design?
Lightweight material selection is usually controlled by a combination of strength, stiffness, stability, durability, fire performance, and constructability. For many lightweight systems, the first failure point is not crushing or yielding. It may be excessive deflection, vibration, local buckling, connection slip, bond loss, delamination, or temperature-related degradation.
| Control | Why it matters | Typical design implication |
|---|---|---|
| Strength | The member must resist bending, shear, axial load, bearing, and local stresses. | Check the governing limit states for the specific material and connection type. |
| Stiffness | Lower stiffness can cause deflection, drift, ponding risk, cladding damage, or occupant discomfort. | Use deeper sections, composite action, sandwich cores, bracing, or stricter serviceability limits. |
| Vibration | Lower mass and flexible members can make floors, bridges, and canopies feel lively. | Check natural frequency, damping, acceleration, and realistic use conditions. |
| Stability | Thin lightweight elements may buckle locally, distort, or require intermediate restraint. | Detail bracing, stiffeners, effective widths, lateral restraint, and load-spreading details. |
| Connections | Fasteners, inserts, bond lines, welds, screws, and bearing regions often control performance. | Design connections for strength, slip, fatigue, movement, corrosion, and inspection access. |
| Durability and fire | Lightweight systems may be sensitive to moisture, UV, heat, chemicals, corrosion, or charring assumptions. | Coordinate coatings, protection, drainage, rated assemblies, testing, and maintenance planning. |
Lightweight Material Selection Checklist
Use this checklist as an early design screen before choosing a lightweight material. It is not a replacement for structural design, but it helps identify whether the material is solving the real engineering problem or simply reducing weight on paper.
Define the weight problem → identify the governing load path → compare candidate materials → check stiffness and vibration → design connections and interfaces → verify fire and durability → confirm constructability and inspection access → update the structural model with realistic mass and stiffness.
| Check or decision | What to look for | Why it matters |
|---|---|---|
| Weight reduction target | Foundation capacity, crane limit, retrofit limit, seismic mass, long-span roof weight, or transportation limit | The material should solve a real system constraint, not just look attractive in a density table. |
| Serviceability limit | Deflection, drift, floor vibration, facade movement, ponding, or pedestrian comfort | Lightweight members often pass strength checks before they pass stiffness or comfort checks. |
| Connection behavior | Fastener bearing, bolt slip, bond length, inserts, thermal movement, galvanic isolation, and local crushing | Lightweight systems frequently fail or become expensive at interfaces rather than in the main member. |
| Fire and exposure | Rating requirements, charring assumptions, polymer temperature limits, coating systems, moisture paths, and UV exposure | The chosen material must perform for the actual environment and required fire-resistance period. |
| Construction tolerance | Handling damage, shipping limits, field cutting, drilling restrictions, moisture protection, and temporary bracing | A lightweight system that is easy to lift can still be difficult to install correctly if details are fragile. |
Example: Replacing a Heavy Roof System
Consider an existing building where the owner wants to replace a heavy roof assembly with a lighter system during a renovation. The goal may be to reduce demand on existing joists, columns, masonry walls, or foundations without major structural strengthening.
Initial Design Question
The first question is not “which material is lightest?” The first question is whether the existing structure is controlled by member strength, deflection, diaphragm behavior, connection capacity, uplift, fire rating, or overall stability. A lighter roof may reduce gravity reactions, but it may also change wind uplift anchorage, diaphragm stiffness, vibration behavior, and thermal movement.
Engineering Meaning
A lightweight sandwich panel, steel deck, aluminum roof frame, or mass timber panel may be appropriate, but only after the engineer confirms the full load path. The supporting members, diaphragm connections, edge details, penetrations, insulation, fire rating, and construction sequence must be checked together. Weight savings are valuable only if the final assembly still behaves as intended.
Engineering Judgment and Field Reality
Lightweight material decisions are often won or lost during detailing and construction. A clean comparison chart may show large weight savings, but the field condition may introduce added plates, blocking, stiffeners, protection layers, acoustic mats, fireproofing, topping slabs, temporary bracing, or special anchors that reduce the expected advantage.
Engineers also need to be careful with supplier data. Published values may reflect ideal lab conditions, specific orientations, dry conditions, short-term loading, or proprietary assemblies. For structural design, the relevant value is the tested and code-accepted performance of the actual product, assembly, connection, and exposure condition.
Lightweight does not mean forgiving. Thin plates dent, FRP bond surfaces need careful preparation, timber needs moisture protection, aluminum moves with temperature, and lightweight concrete depends heavily on batching, curing, and aggregate behavior.
When This Breaks Down
Lightweight material logic breaks down when density becomes the only selection metric. Structural performance depends on the complete system: member shape, span, boundary conditions, load duration, environmental exposure, fire strategy, connection behavior, construction sequence, and inspection plan.
- Stiffness is ignored: Aluminum, FRP, timber, and thin-gauge systems may need deeper sections or composite action to control deflection.
- Connections are underestimated: Bolts, screws, inserts, welds, adhesives, bearing regions, and bond lines may control capacity and cost.
- Fire performance is assumed: Polymers, aluminum, timber, lightweight panels, and protected steel assemblies require material-specific fire strategies.
- Acoustics and vibration are skipped: Lightweight floors and panels can transmit sound or feel bouncy unless damping, mass, and stiffness are coordinated.
- Durability is treated generically: Moisture, UV exposure, chlorides, galvanic couples, chemicals, freeze-thaw cycles, and inspection access vary by material.
Common Mistakes and Practical Checks
The most common mistake is treating lightweight materials as direct one-for-one substitutions. In practice, changing the material can change stiffness, connection behavior, load distribution, damping, thermal movement, fire requirements, and construction sequencing.
- Comparing only density: Use density as a screening tool, not the final design decision.
- Ignoring the full assembly: Toppings, protection layers, fasteners, blocking, fireproofing, acoustic mats, and finishes add weight back into the system.
- Skipping serviceability: Check deflection, drift, vibration, ponding, cracking, and movement compatibility before assuming the design works.
- Forgetting differential movement: Aluminum, timber, FRP, concrete, and steel do not expand, shrink, creep, or absorb moisture in the same way.
- Relying on generic product claims: Confirm tested values, code reports, manufacturer limitations, and project-specific exposure conditions.
Do not approve a lightweight substitution late in design without rechecking structural loads, stiffness, connections, fire rating, diaphragm behavior, and construction impacts.
Useful References and Design Context
Lightweight material design depends on the specific material family. Engineers typically use a combination of building code provisions, material standards, manufacturer data, testing requirements, and project specifications.
- ACI 318 and ACI lightweight concrete guidance: Used for concrete member design, lightweight aggregate concrete behavior, modulus assumptions, shear, anchorage, and serviceability checks.
- AISC Steel Construction Manual: Used for structural steel member design, stability, connections, fire considerations, and efficient framing systems.
- Aluminum Design Manual: Used for structural aluminum members, allowable stresses, buckling behavior, connection design, and alloy-specific properties.
- National Design Specification for Wood Construction: Used for timber and engineered wood design, including member capacity, connections, load duration, and service conditions.
- ACI 440 and manufacturer-tested FRP systems: Used for fiber-reinforced polymer strengthening, reinforcement, bond behavior, environmental reduction factors, and system limitations.
Frequently Asked Questions
Lightweight materials in structural engineering are materials or systems that reduce dead load while still meeting strength, stiffness, durability, fire, and serviceability requirements. Examples include structural lightweight concrete, steel framing, aluminum, mass timber, FRP composites, sandwich panels, and lightweight fill materials.
Steel is dense as a raw material, but it can be considered lightweight at the structural system level because its high strength allows efficient beams, columns, trusses, and frames. The key is not only material density, but performance per unit weight in the final structure.
The main disadvantage is that lightweight systems often become controlled by stiffness, vibration, connections, fire protection, acoustics, or durability rather than simple strength. A member may be strong enough but still deflect too much, feel bouncy, corrode at interfaces, or require special detailing.
Lightweight materials can reduce seismic mass, which can reduce inertia forces during an earthquake. However, lower weight does not replace seismic detailing. Engineers still need a continuous load path, adequate diaphragm behavior, ductile connections, drift control, and proper foundation design.
Summary and Next Steps
Lightweight materials help structural engineers reduce self-weight while maintaining the performance required for safe buildings, bridges, roofs, facades, retrofits, and civil infrastructure. The best lightweight choice is not simply the lowest-density material. It is the material or system that satisfies strength, stiffness, durability, fire, constructability, and load path requirements together.
Use lightweight materials with a system-level mindset. Check what actually controls the project, compare realistic assemblies, verify serviceability, detail connections carefully, and confirm that field installation will preserve the assumptions used in design.
