Key Takeaways
- Definition: Geosynthetics are engineered polymer products placed in contact with soil, rock, or water to improve hydraulic, mechanical, or containment performance.
- Use case: Engineers use them to separate layers, filter water, reinforce weak ground, provide drainage, protect liners, and control seepage.
- Main decision: The critical choice is matching the product’s function and durability to the actual failure mode, not just picking a familiar product type.
- Outcome: After this page, you should be able to identify which class of geosynthetic fits a project and where design judgment matters most.
Table of Contents
Introduction
In brief: Geosynthetics are polymer-based engineering materials that improve soil systems by separating, filtering, draining, reinforcing, protecting, or containing ground and fluids.
Who it’s for: Students, designers, and field reviewers.
For informational purposes only. See Terms and Conditions.
Geosynthetics matter because they can solve geotechnical problems with less excavation, faster installation, and better control of water and deformation when specified and detailed correctly.

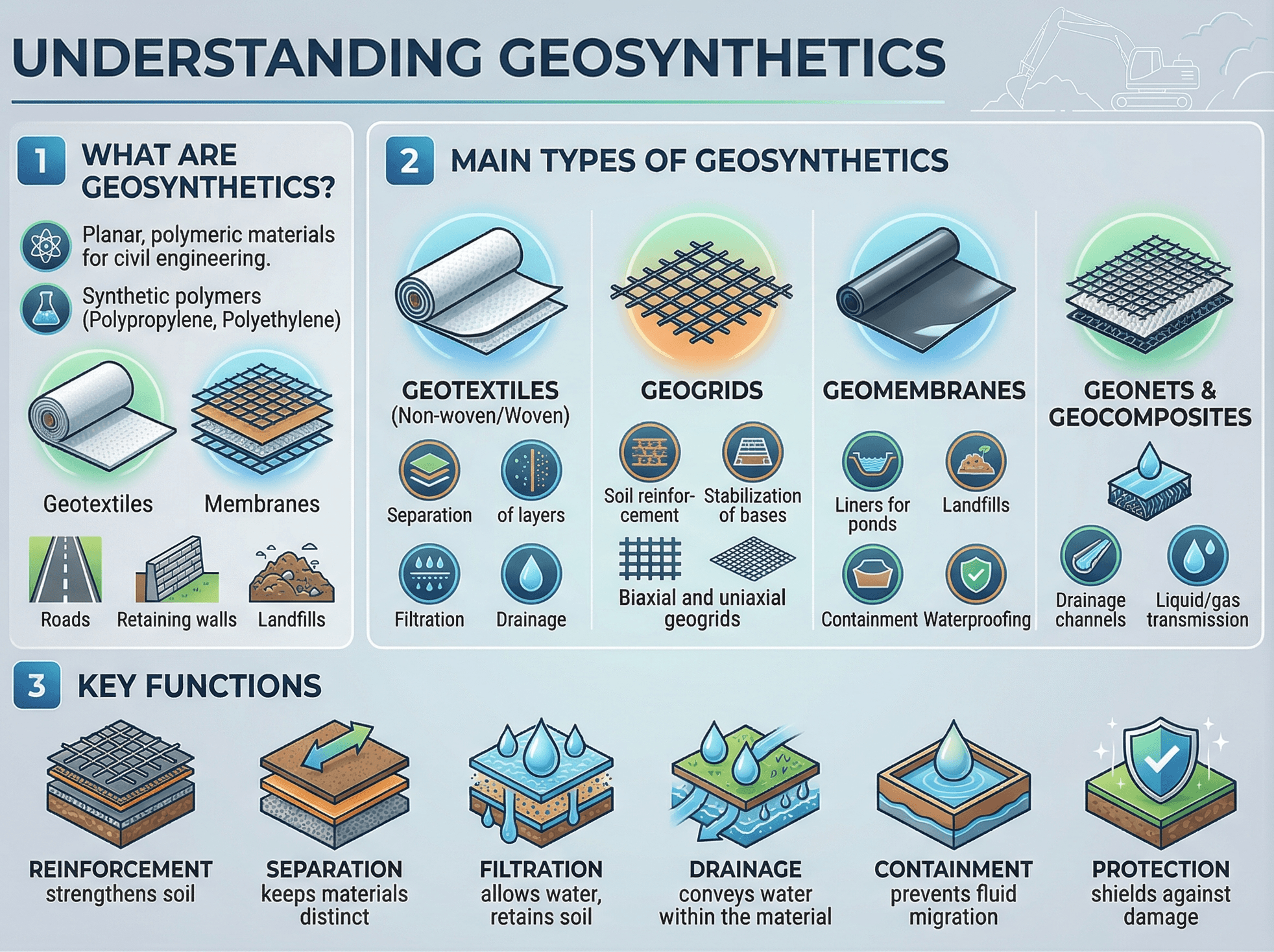

Geosynthetics infographic
Start by noticing that each product class does a different job. Geotextiles often manage separation and filtration, geogrids and geocells add reinforcement, geomembranes control containment, and geonets or geocomposites help drainage. The key lesson is that geosynthetics should be selected by required function first and product form second.
What is geosynthetics?
Geosynthetics is the umbrella term for engineered polymer products used in contact with soil, rock, earth, or water as part of a civil or geotechnical system. In practice, the term includes geotextiles, geogrids, geomembranes, geonets, geocells, geocomposites, and related specialty products. Each exists because soil systems rarely fail for just one reason. Some projects need stronger load distribution, some need cleaner separation between aggregate and subgrade, some need drainage without soil loss, and some need fluid containment.
A good way to think about geosynthetics is that they let engineers add targeted performance to the ground without completely replacing the ground. Instead of excavating poor soil and importing large quantities of aggregate, a designer may use a separator over a soft subgrade, a geogrid to improve confinement, or a geocomposite drain to move water through a retaining system. That can reduce haul-off, shorten schedule, lower carbon, and improve constructability.
The deeper engineering point is that geosynthetics are not magic fabric. They are design elements with tensile properties, hydraulic behavior, survivability limits, interface friction, creep response, puncture resistance, and chemical durability concerns. They work well when the design identifies the controlling mechanism clearly. They disappoint when the product is treated as a generic add-on without checking what the site is actually trying to do.
Core functions, product types, and design language
Most geosynthetic design conversations revolve around six core functions: separation, filtration, drainage, reinforcement, protection, and containment. One product may serve more than one of these, but the designer still needs to know which function is primary, because that function controls the key property checks.
How the main product families differ
Geotextiles are permeable sheets that commonly separate aggregate from fine subgrade, filter water while retaining soil, cushion sensitive materials, or support limited drainage. Geogrids are open, grid-like reinforcement products that mobilize tensile strength and interlock with aggregate. Geomembranes are low-permeability barriers used where seepage and containment are critical. Geonets are structured drainage cores that move fluid in-plane. Geocells create a three-dimensional confinement system that distributes load and helps stabilize infill. Geocomposites combine multiple components, such as a drain core bonded to a filter fabric, to deliver layered performance in one product.
Key variables and typical ranges
The exact properties vary by manufacturer and application, but engineers typically compare tensile strength, junction strength, transmissivity, permittivity, apparent opening size, puncture resistance, interface friction, and long-term allowable strength. The important habit is to connect each number to a failure mode rather than treating product data sheets like a checklist.
- \(T\) Tensile strength or allowable tensile load; often reported in force per width, such as kN/m or lb/ft.
- \(J\) Permittivity; indicates cross-plane water flow capacity through a permeable geotextile.
- \(O_{95}\) Characteristic opening size; used in filtration design to relate fabric openings to retained soil particles.
- \(\theta\) Transmissivity; indicates in-plane drainage capacity for drainage products such as geonets or geocomposites.
- \(\phi_i\) Interface friction angle between soil and geosynthetic; important for pullout, slope, and wall performance.
- \(T_{allow}\) Long-term allowable tensile strength after reduction factors for creep, installation damage, and durability.
Start every geosynthetic selection by asking, “What is the one thing I need this layer to prevent?” The controlling failure mode usually points to the right product family faster than brand comparisons do.
Decision logic for selecting geosynthetics
A practical workflow begins with the project problem, not the product catalog. If the subgrade is weak and aggregate contamination is likely, separation is the first need. If water must pass while fines stay put, filtration governs. If the goal is tensile load transfer or confinement, reinforcement controls. If the issue is seepage prevention, containment drives the design. If water must move laterally behind a wall or beneath a cover, drainage becomes the main function.
Define the problem → identify the governing function → identify the failure mode → select the product class → check hydraulic or mechanical properties → check survivability and durability → detail overlaps, anchorage, drainage paths, and QA/QC.
This workflow matters because many projects need multiple functions at once. A reinforced soil wall may need reinforcement in the fill, filtration at the face, and drainage behind the system. A roadway over soft subgrade may need both separation and stabilization. In those cases, product simplicity is good, but only if the combined product still satisfies each required function with enough margin.
Equations and calculations
Not every geosynthetic application is equation-heavy, but reinforcement design usually depends on long-term allowable strength rather than short-term index values. A simplified design idea is:
Here, \(T_{ult}\) is the ultimate tensile strength, \(RF_{CR}\) is the reduction factor for creep, \(RF_{ID}\) accounts for installation damage, and \(RF_{D}\) covers durability effects such as chemical or biological degradation. The message is simple: the usable long-term design strength can be much lower than the headline strength shown on a product sheet.
In filtration work, designers also compare soil gradation to geotextile opening size and verify that the geotextile can pass the expected flow without clogging. In drainage design, the relevant check shifts to in-plane flow capacity under confinement and gradient. For a liner system, the central issue may be hydraulic conductivity and leak risk rather than tensile performance. That is why geosynthetic design is really a problem-matching exercise.
Worked example
Example: roadway over a weak silty subgrade
Consider a low-volume access road being built over wet silty subgrade where construction traffic is causing rutting and pumping. The first instinct may be to keep adding stone. In many projects, that becomes expensive and still does not solve contamination of the aggregate layer. A better workflow is to identify the immediate failure mechanisms: loss of separation between base and subgrade, reduced confinement in the aggregate, and construction instability.
One practical solution is to place a separator geotextile directly on the prepared subgrade, followed by aggregate, and in some cases a geogrid within or at the base-subgrade interface to improve confinement and load distribution. The geotextile is not there to “make the road strong” by itself. Its primary role is to keep the aggregate from punching into and mixing with the soft subgrade. That preserves the quality of the imported stone. If a geogrid is added, its job is different: it helps stiffen the base system by mobilizing tensile restraint and aggregate interlock.
The interpretation step is what matters. If contamination is the dominant problem, separation is the first priority. If rutting and repeated wheel loads still govern after separation is handled, reinforcement may be justified. Engineers who skip that distinction sometimes overspend on reinforcement when the main failure mode was actually aggregate loss into the subgrade.
Engineering judgment and field reality
Geosynthetics are often sold through clean product categories, but field performance is driven by messier realities: wet weather, rough subgrade, sharp aggregate, rushed installation, unexpected groundwater, contractor substitutions, and geometry that differs from the neat section detail. In other words, design intent only survives if installation conditions support it.
One recurring field issue is survivability. A fabric that works perfectly in theory can be torn during placement if the subgrade is rutted or the aggregate is dumped too aggressively. Another is hydraulic mismatch. A product chosen for filtration may still clog if the gradation, biological environment, or long-term fines migration were not understood. In wall and slope work, pullout resistance and connection detailing can govern more than the nominal tensile strength.
A geosynthetic almost never fails alone. Poor subgrade preparation, uncontrolled overlaps, damaged rolls, clogged outlets, or drainage paths with nowhere to discharge are usually part of the story.
Experienced engineers also watch the construction sequence. Some products are selected correctly but placed too late, after the subgrade has already been disturbed beyond recognition. Others are over-relied on as a substitute for drainage, when the real problem is perched water or poor outlet control. The best field question is often, “What will this layer be forced to do on its worst day?”
Where this method breaks down
Geosynthetics stop performing well when the product-function match is wrong or when long-term behavior is ignored. Reinforcement design breaks down if designers use short-term tensile values instead of long-term allowable strength. Filtration assumptions break down when clogging potential is ignored, especially in gap-graded or internally unstable soils. Drainage layers break down when there is no protected outlet, when confinement crushes the drainage core, or when the system silts in over time.
Containment applications break down when puncture risk, seam quality, chemical compatibility, or subgrade smoothness are underestimated. Separation layers become ineffective when the base is too thin, the subgrade too weak for the assumed construction traffic, or the product is damaged during placement. In soft ground, geosynthetics can improve performance, but they do not automatically eliminate settlement. If the project requires extremely small differential movement, the real answer may be ground improvement, thicker structural fill, or deep foundations rather than a single reinforcement layer.
Common pitfalls and engineering checks
- Choosing a product by trade name instead of by required function and design properties.
- Using ultimate strength data where long-term allowable strength should control.
- Assuming a separator can also serve as a reinforcement layer without checking the mechanism.
- Ignoring interface friction, overlap detailing, anchorage, or connection strength.
- Forgetting that drainage systems need a clean, protected path to daylight or a collector system.
- Overlooking installation damage, survivability class, or puncture resistance.
- Failing to verify compatibility with site chemistry, temperature exposure, and long-term durability demands.
The most expensive mistake is treating geosynthetics as a blanket fix for weak ground when the real problem is inadequate site characterization, poor drainage, or unrealistic deformation tolerances.
| Project need | Likely product | Typical controlling property | Key check |
|---|---|---|---|
| Keep aggregate and subgrade separate | Geotextile | Survivability, puncture, opening size | Will it survive placement and still retain fines? |
| Improve base confinement | Geogrid or geocell | Tensile behavior, stiffness, interlock | Is reinforcement actually the governing need? |
| Move water laterally | Geonet or geocomposite drain | Transmissivity | Does the drain work under expected confinement? |
| Prevent seepage or leakage | Geomembrane | Hydraulic barrier properties | Is puncture, seam quality, and subgrade smoothness addressed? |
| Filter water while keeping soil in place | Geotextile | Permittivity and opening size | Will the filter resist clogging over time? |
Visualizing geosynthetics in design
A useful mental model is to imagine geosynthetics as thin engineered layers that change the behavior of a much thicker soil system. In a road section, the separator sits at the contamination boundary. In a reinforced wall, the geogrid extends back into the fill to create a composite mass. In a landfill, the geomembrane becomes the primary barrier while protective and drainage layers support it above and below. That “system view” helps prevent the common mistake of judging the product without judging the surrounding soil and drainage details.
This section stays text-only because the main infographic already covers the core product-function map without adding duplicate visual weight.
Relevant standards and design references
Geosynthetic design is usually governed by a combination of project specifications, manufacturer test methods, agency manuals, and application-specific standards. The exact governing references depend on whether the application is roadway stabilization, retaining structures, drainage, erosion control, or containment.
- ASTM geosynthetic test standards: Commonly used for tensile, puncture, hydraulic, and durability properties that appear on product data sheets and design submittals.
- AASHTO roadway and geosynthetic guidance: Frequently used where geosynthetics support pavement systems, subgrade stabilization, and transportation earthwork applications.
- NCMA / reinforced soil wall guidance: Important for mechanically stabilized earth walls, connection behavior, reinforcement layers, and wall detailing.
- EPA and containment guidance: Relevant where geomembranes and composite liner systems are used for environmental containment, leak control, and barrier protection.
- Project specifications and approved products lists: Often control survivability class, material acceptance, installation requirements, and field QA/QC even when national standards define the test methods.
Frequently asked questions
Geotextiles are usually chosen for separation, filtration, protection, or limited drainage, while geogrids are primarily selected for reinforcement and load distribution. A geotextile is a sheet-like filter or separator; a geogrid is an open structural reinforcement element that relies on tensile behavior and aggregate interlock.
Often yes, but only when the geosynthetic is solving the governing failure mode and the section is designed around realistic traffic, drainage, and subgrade behavior. They can improve efficiency, but they do not remove the need for proper earthwork and verification.
They underperform when clogging, puncture, creep, UV exposure, chemical incompatibility, or installation damage are ignored, or when the wrong product family is chosen for the job. Many failures are really system failures involving poor detailing, poor outlets, or poor construction sequence.
Common uses include roads over weak subgrade, reinforced soil walls, embankments on soft ground, retaining wall drainage, landfill liner systems, erosion control assemblies, and separation layers beneath working platforms. Their value rises when water control, staged construction, or material efficiency are major project concerns.
No. They are design tools, not substitutes for understanding the ground. The best results come when geosynthetics are integrated with site characterization, earthwork controls, drainage paths, and field QA/QC instead of being used as a shortcut around those steps.
Summary and next steps
Geosynthetics help engineers modify soil systems intelligently rather than relying only on more excavation, more stone, or heavier sections. Their value comes from targeted functions: separation, filtration, drainage, reinforcement, protection, and containment. The correct choice depends less on product familiarity and more on identifying the actual mechanism that is controlling performance.
In practice, good geosynthetic design sits at the intersection of soil behavior, hydraulic behavior, durability, and constructability. The most reliable designs check not just the product properties, but also how the system will be installed, confined, drained, and maintained over time. If you remember one thing, remember this: geosynthetics work best when they are treated as part of a ground system, not as an isolated material upgrade.
