Mechanical Properties of Materials

Mechanical properties are the load-response characteristics of a material. They describe whether a material stretches, compresses, bends, returns to shape, permanently deforms, absorbs energy, resists indentation, survives repeated loading, or fractures suddenly.

In engineering design, mechanical properties are not just vocabulary terms. They are screening checks for real failure modes. A material may have enough strength but not enough stiffness, enough hardness but not enough toughness, or enough static capacity but poor fatigue performance.

Most mechanical property data starts with stress and strain. Stress describes internal force intensity, while strain describes relative deformation. Together, they let engineers compare materials independent of specimen size and connect laboratory test data to design behavior.

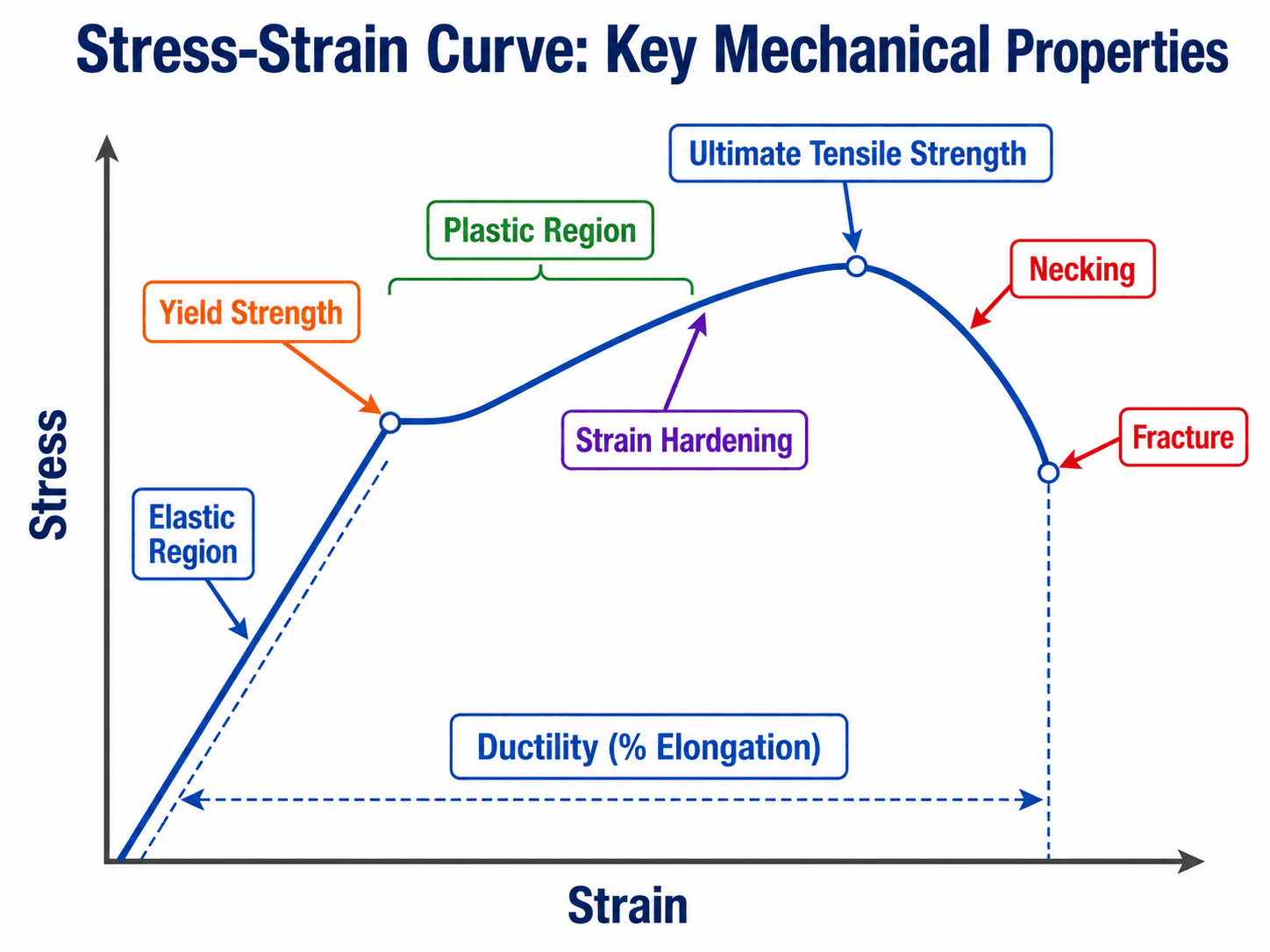

The stress-strain curve is the bridge between raw test measurements and usable mechanical properties. The early slope relates to stiffness, the yield point relates to permanent deformation, the maximum stress relates to tensile strength, and the strain at fracture helps describe ductility.

The most important mechanical property depends on what the part must do. A rotating shaft, spring, bracket, bearing surface, pressure vessel, gear tooth, and impact guard can all be controlled by different properties.

Elastic and Plastic Behavior

Elastic deformation is recoverable. Plastic deformation is permanent. For many ductile materials, design limits are based on avoiding unwanted plastic deformation, not just avoiding final fracture.

This linear relationship is Hooke’s law for the elastic region of many materials. It is useful only while the material behaves approximately linearly and has not yielded.

Mechanical properties are one subset of material properties. They focus on force, deformation, contact, damage, and failure. Other material properties may still matter in the same design, but they answer different questions.

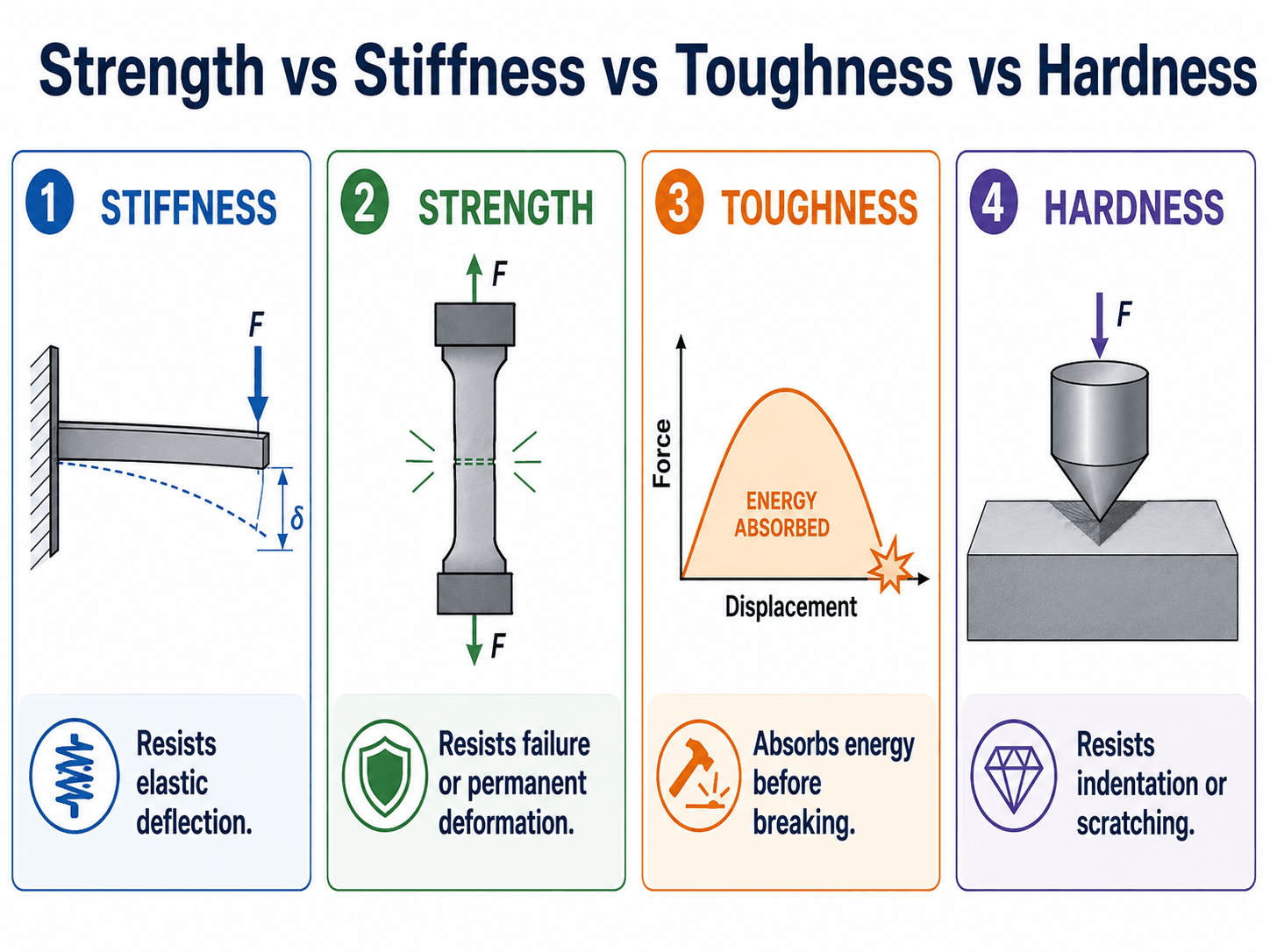

The same material can perform well in one loading condition and poorly in another. A material chosen for tensile strength may still be a poor choice for impact, fatigue, surface wear, creep, or bending stiffness.

Mechanical behavior is strongly influenced by material family. Metals, polymers, ceramics, and composites respond differently because their bonding, microstructure, defects, processing, and internal reinforcement are different.

At the microstructure level, mechanical properties depend on bonding, grain structure, phase structure, dislocation motion, porosity, cracks, and reinforcement direction. Metals often deform plastically because dislocations can move. Many ceramics resist slip and fracture more suddenly. Polymers are strongly affected by temperature and time. Composites depend heavily on fiber direction, matrix behavior, layup, voids, and bonding.

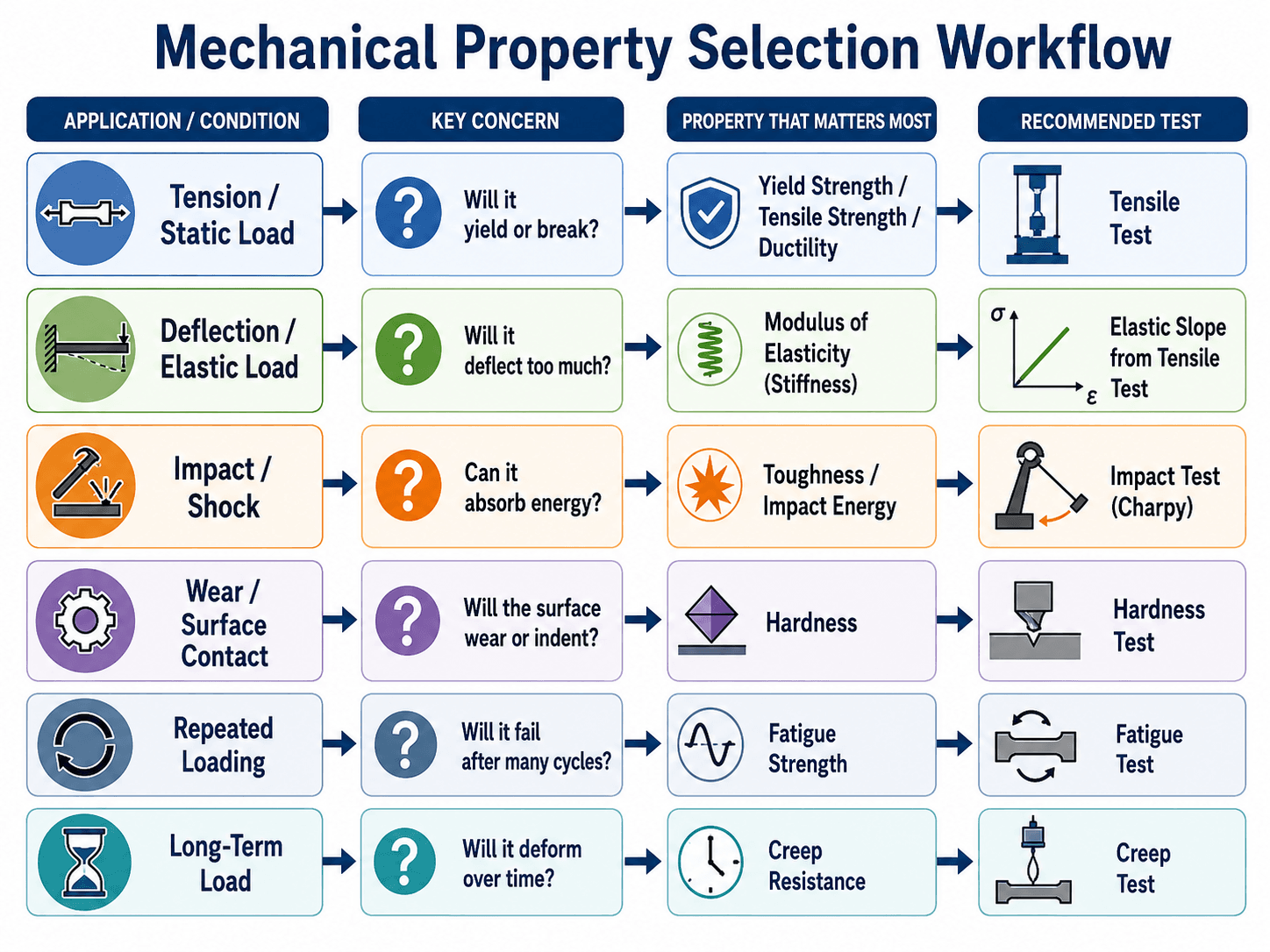

Mechanical properties are measured with controlled tests that apply known loads, deformation rates, specimen geometries, and environmental conditions. The goal is not only to generate a number, but to determine which number applies to the actual design problem.

A material datasheet can be useful, but it must be read carefully. The most important question is whether the listed property matches the material condition, test method, temperature, orientation, and loading mode of the real part.

Consider a cantilever bracket supporting a repeated service load. A basic material comparison might only ask for tensile strength, but a real design review needs several property checks.

Step 1: Check Static Strength

The bracket should remain below the allowable stress based on yield strength or another project-specific design limit. If the material yields, the bracket may permanently sag, misalign connected parts, or create secondary stresses.

Step 2: Check Stiffness and Deflection

Even if the bracket does not yield, it may deflect too much. Stiffness depends on both the material modulus and bracket geometry. A higher-strength material does not automatically fix excessive deflection if the elastic modulus is similar.

Step 3: Check Fatigue, Notches, and Environment

If the bracket sees vibration or repeated loading, fatigue may control the design. Holes, welds, sharp corners, rough surfaces, corrosion, or poor fit-up can reduce fatigue performance more than a basic static calculation suggests.

Mechanical property values are usually measured under controlled conditions. Real components see geometry effects, stress concentrations, residual stresses, manufacturing variation, surface damage, corrosion, temperature shifts, and loading histories that do not appear in a simple property table.

Good engineering judgment uses mechanical properties as inputs, not final answers. The final decision also depends on geometry, load path, safety factor, environment, manufacturing process, inspection requirements, cost, availability, and consequence of failure.

Simple mechanical property comparisons become unreliable when the service condition does not match the test condition. This is especially important for polymers, composites, brittle materials, high-temperature applications, impact loading, fatigue-sensitive parts, and components with cracks or defects.

• Temperature changes: Elevated temperature can reduce strength, increase creep, soften polymers, or change ductility and toughness.
• High strain rate or impact: Fast loading can make some materials behave more brittle than they do in slow tests.
• Fatigue loading: Repeated stress cycles can initiate cracks below the material’s static yield or tensile strength.
• Stress concentrations: Holes, threads, keyways, welds, corners, and scratches can control failure before nominal stress reaches a published property value.
• Direction-dependent materials: Rolled metals, wood, additively manufactured parts, and composites may have different properties depending on orientation.

The most common mistake is using a single mechanical property as if it proves a material is suitable. Mechanical design normally requires several checks because different failure modes can control under different conditions.

• Using tensile strength when yield strength controls: Ductile parts often become unacceptable once permanent deformation begins, long before final fracture.
• Assuming harder means better: Higher hardness may improve wear resistance but can reduce machinability, ductility, or impact tolerance in some materials.
• Ignoring stiffness: A part can be strong enough but still too flexible for alignment, vibration, sealing, or serviceability requirements.
• Ignoring fatigue: A static strength check does not prove a component will survive repeated loading.
• Comparing values from different test conditions: Strain rate, specimen geometry, temperature, heat treatment, and material condition can make property values non-equivalent.
